WideLine LED Strip Light - RGB Color Changing, Waterproof

Description

The Waterproof WideLine LED Strip Light RGB Color Changing delivers vibrant, dynamic lighting for indoor and outdoor applications. Create millions of colors with smooth, consistent RGB illumination, making it ideal for decorative, architectural, and accent lighting projects. Featuring efficient SMD 5050 LEDs and an IP68 waterproof rating, it allows for use in wet environments, making it a durable solution for outdoor installations, accent lighting, signage, and landscape applications. Designed for flexible installation, it can be cut every 1.97" (12V) or 3.94" (24V) for precise customization.

Specifications

Part #	AL-SL-WU-IP68
Physical
Adhesive Backing	Adhesive Tape 3M 9080 in White
Beam Angle	120 degrees

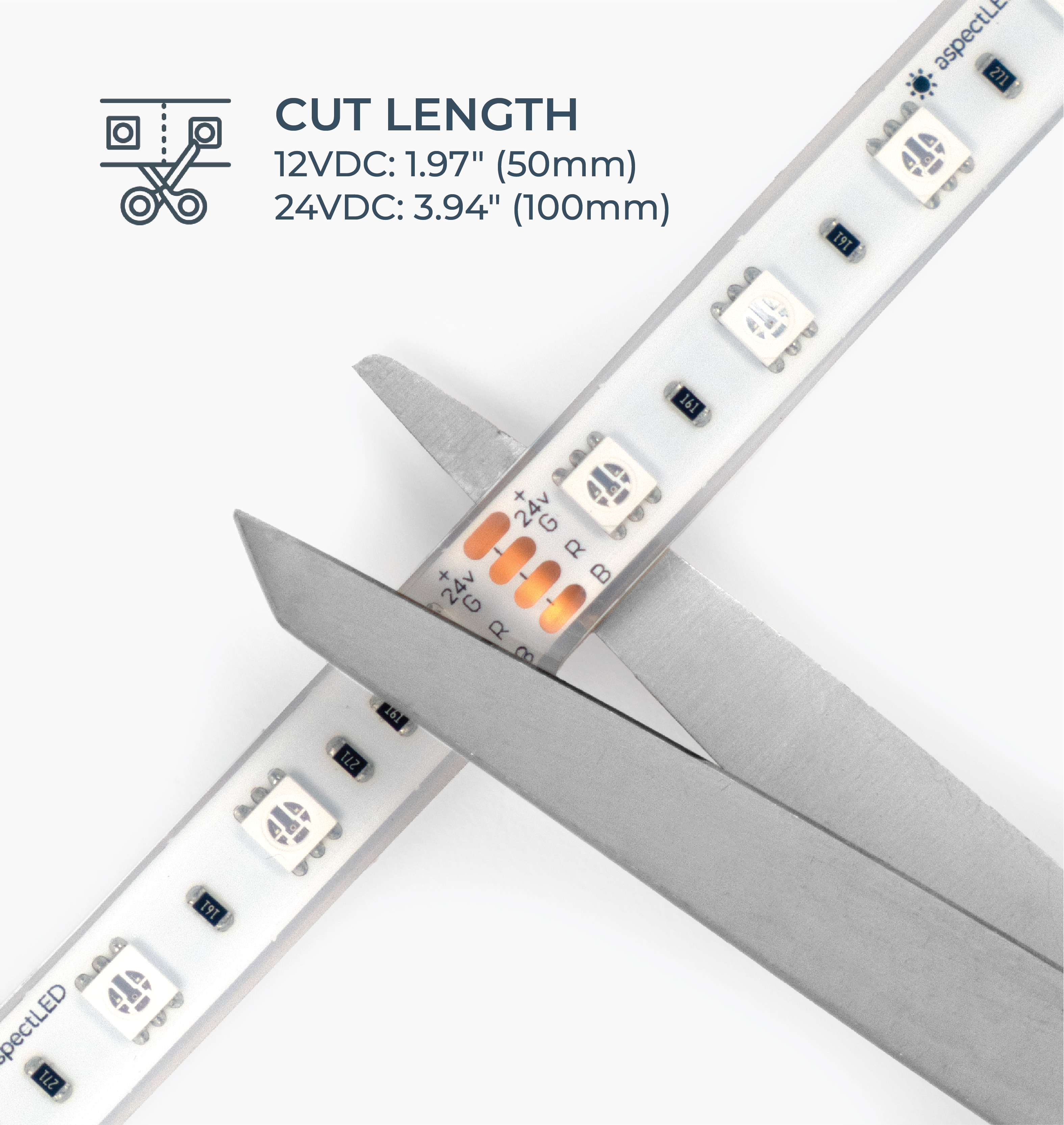

Cut Length	12VDC: 1.97" (50mm) 24VDC: 3.94" (100mm)
Dimensions	16.4' (5m) long 0.47" (12mm) wide 0.17" (4.5 mm) high
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted, Mounting Straps
Electrical
Efficacy (lumens per watt)	Red: 8 lm/W Green: 22 lm/W Blue: 4.7 lm/W
Input Voltage	12VDC 24VDC
LED Quantity	18 LED's/ft (60 LED's/m)
LED Type	SMD 5050
Max Power Consumption	4.39W/ft (14.4W/m)
Max Run Length	16.4' (5m)
Pin/Wire Count	4 pin
Photometric
LED Color Options	RGB
Max Lumens	Red: 39 lm/ft Green: 100 lm/ft Blue: 21 lm/ft
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP68
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry, Damp, Wet
Control
CV, CC, DMX or SPI	Constant Voltage
Compatibility
Compatible Connectors	N/A
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

IP68 Waterproof Performance: Fully submersible and engineered for extreme conditions, perfect for exteriors, signage, and even marine projects.

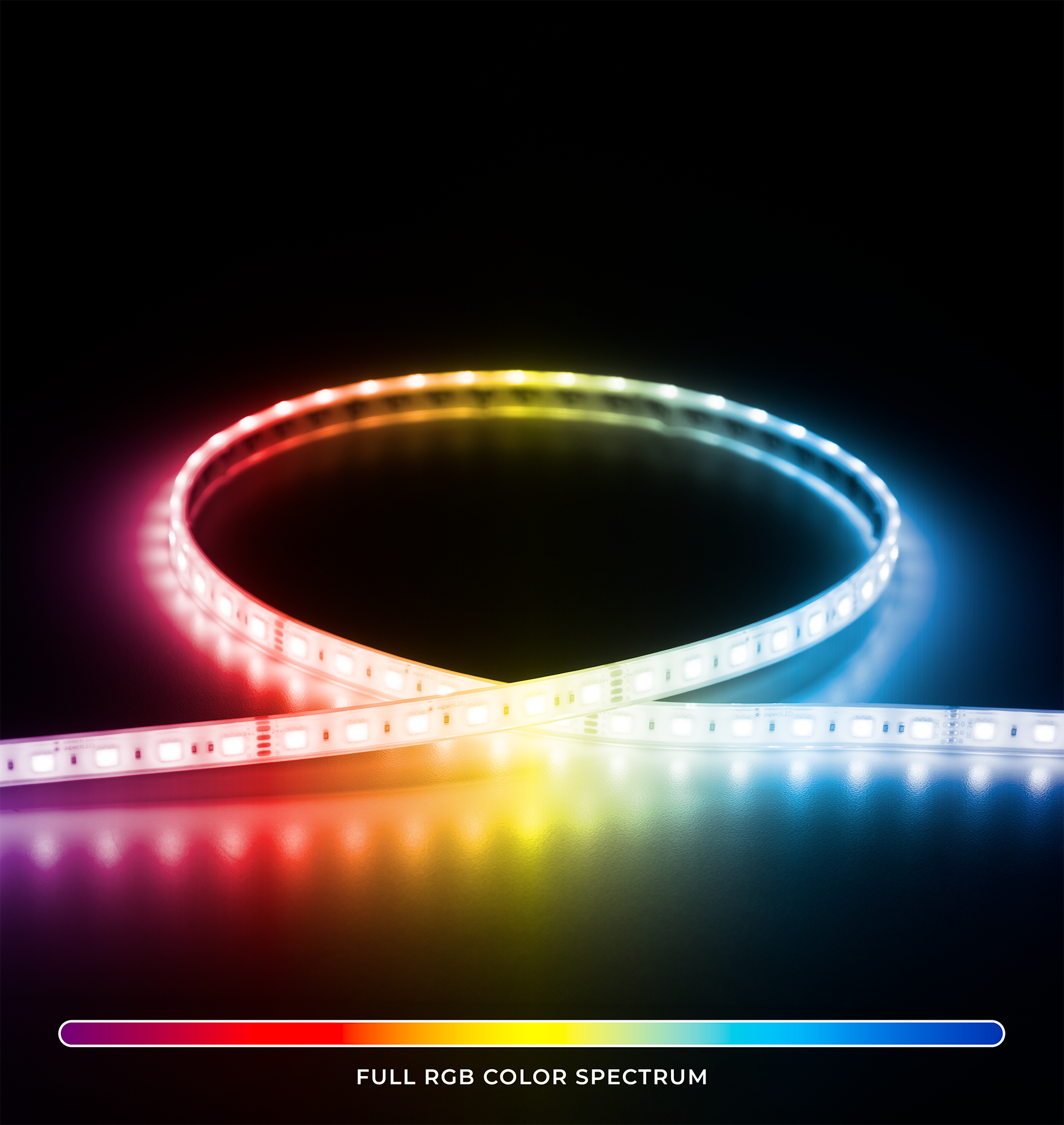

Millions of Colors: Experience flawless, consistent illumination, even light output from start to finish, and vibrant RGB color-changing options.
Fully Dimmable: Compatible with dimmable power supplies, allowing easy brightness adjustment to match your environment.
Simple Installation: Industrial-grade adhesive backing ensures a quick and reliable mount to most clean, dry surfaces.
Cuttable Design: Cut every 12VDC: 1.97" (50mm) or 24VDC: 3.94" (100mm) for a customized fit on any project.
Long-Lasting: Rated for up to 50,000 hours of consistent performance.
No RF Interference: Operates cleanly without affecting nearby electronic equipment.
Maintenance-Free: Built for long-term use with no ongoing upkeep required.

Applications

Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Edge-lighting for glass
Under-cabinet, toe-kick, in-cove moldings
DIY projects
Safety stair tread and step marking Edge-lighting for glass
Decorative lighting for holidays, tradeshows, exhibitions

Technical Documents

Cut Sheet

Technical Drawing

12VDC Photometric Report

24VDC Photometric Report

IES File RGB

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

WideLine LED Strip Light - RGB Color Changing, Waterproof

SKU: AL-SL-WU-IP68-12-RGB

$106.89

$106.89 ~~$106.89~~

Voltage: 12VDC

12VDC 24VDC

This product requires a power supply.
Calculate your power supply
