Description

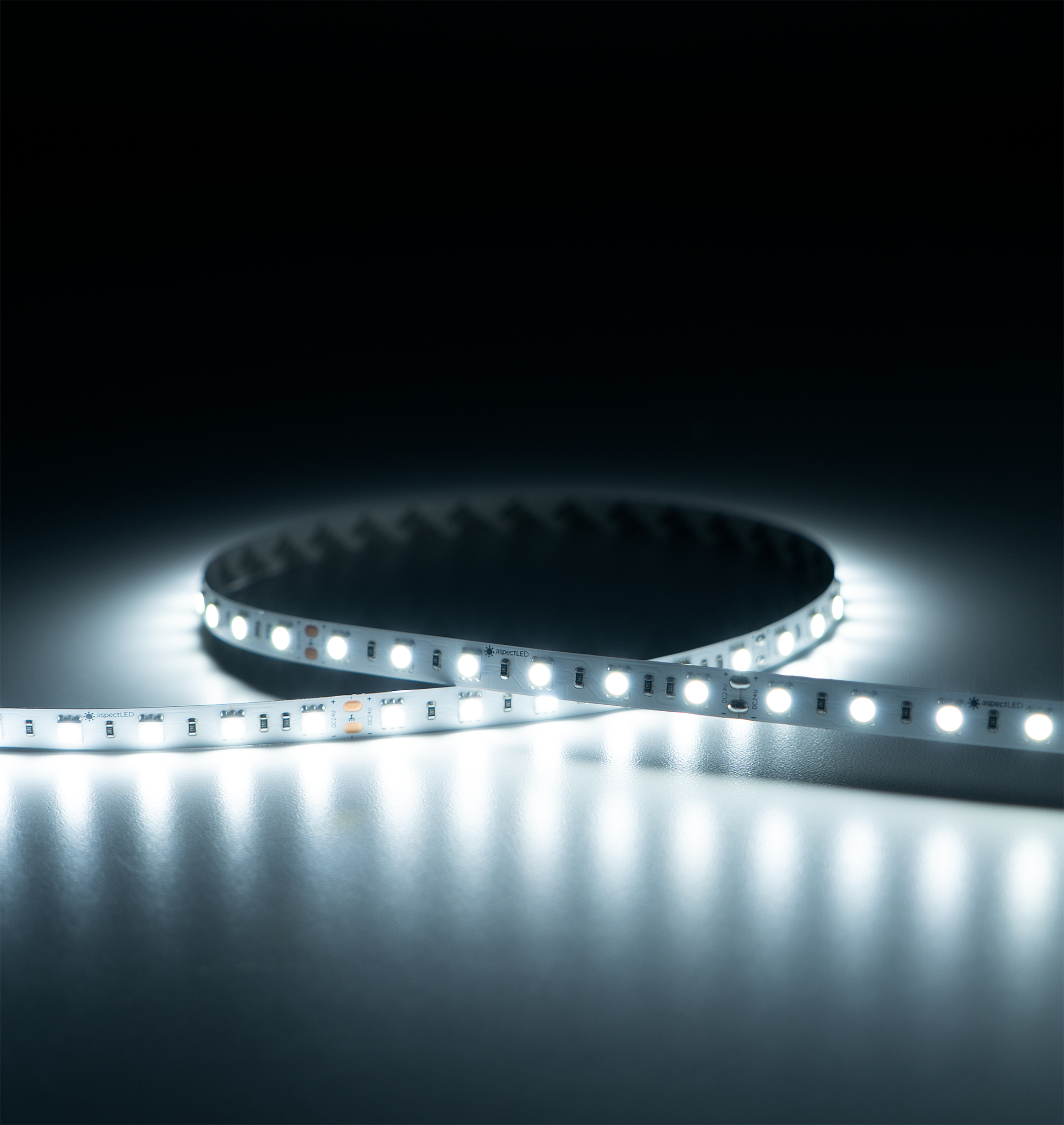

The Static White WideLine LED Strip Light delivers bright, reliable illumination for dry-location architectural and accent lighting applications. With 90+ CRI and multiple white color temperatures from 2700K to 6000K, it provides accurate, natural-looking light for any space. Featuring efficient SMD 5050 LEDs, WideLine produces up to 402 lumens per foot with a wide 120° beam angle for smooth, even illumination. The flexible design can be cut every 3.94" (100mm) for easy customization in cabinets, coves, displays, and more.

Specifications

Part #	AL-SL-W90-IP20-24
Physical
Adhesive Backing	Adhesive Tape 3M 9080 in White
Beam Angle	120 degrees

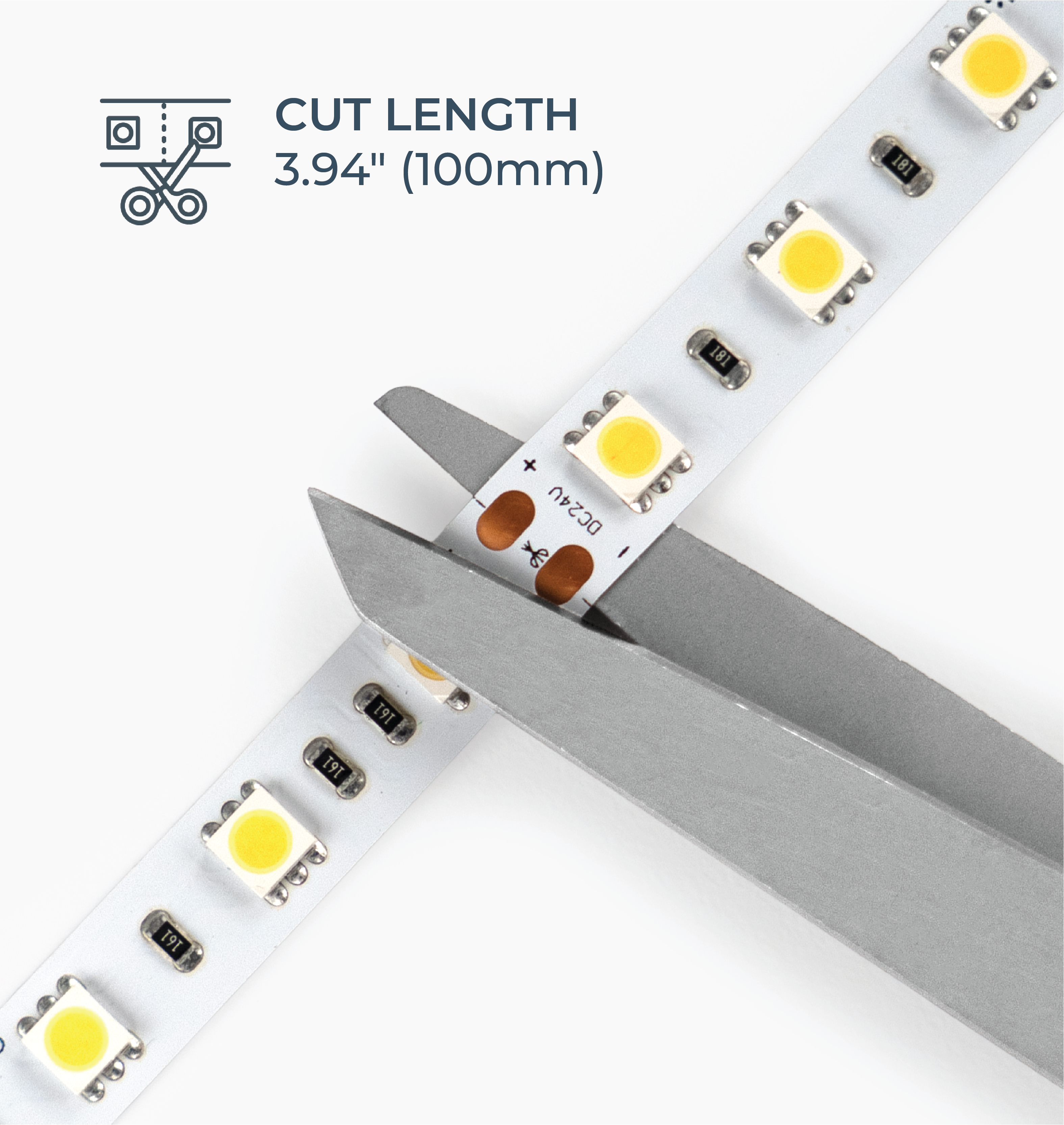

Cut Length	3.94" (100mm)
Dimensions	16.4' (5m) long 0.39" (10mm) wide 0.09" (2.1mm) high
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted
Electrical
Efficacy (lumens per watt)	Up to 94.67 Lumens/Watt
Input Voltage	24VDC
LED Quantity	18 LED's/ft (60 LED's/m)
LED Type	SMD 5050

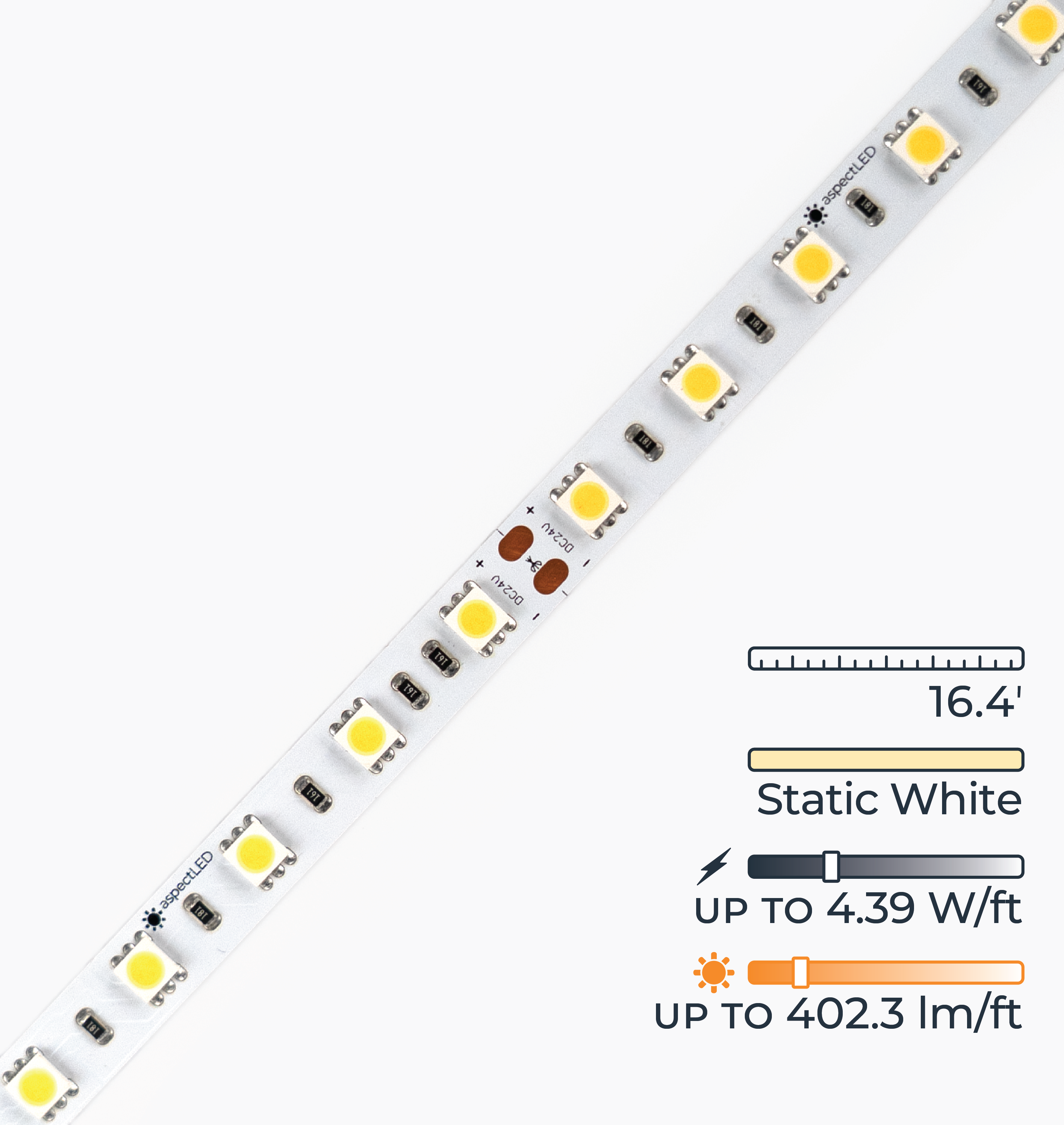

Max Power Consumption	4.39W/ft (14.4W/m)
Max Run Length	16.4' (5m)
Pin/Wire Count	2 pin
Photometric
CRI	90

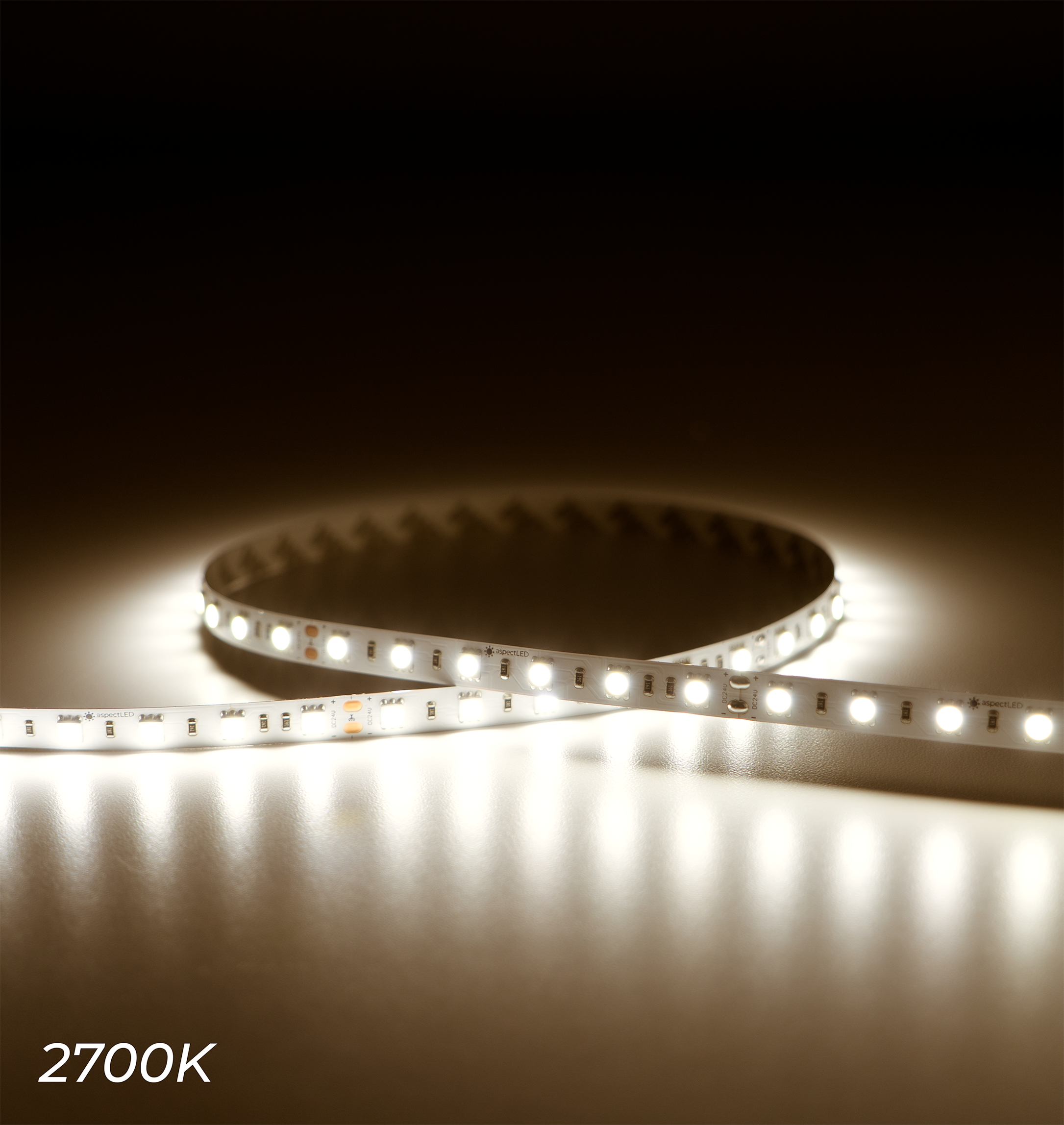

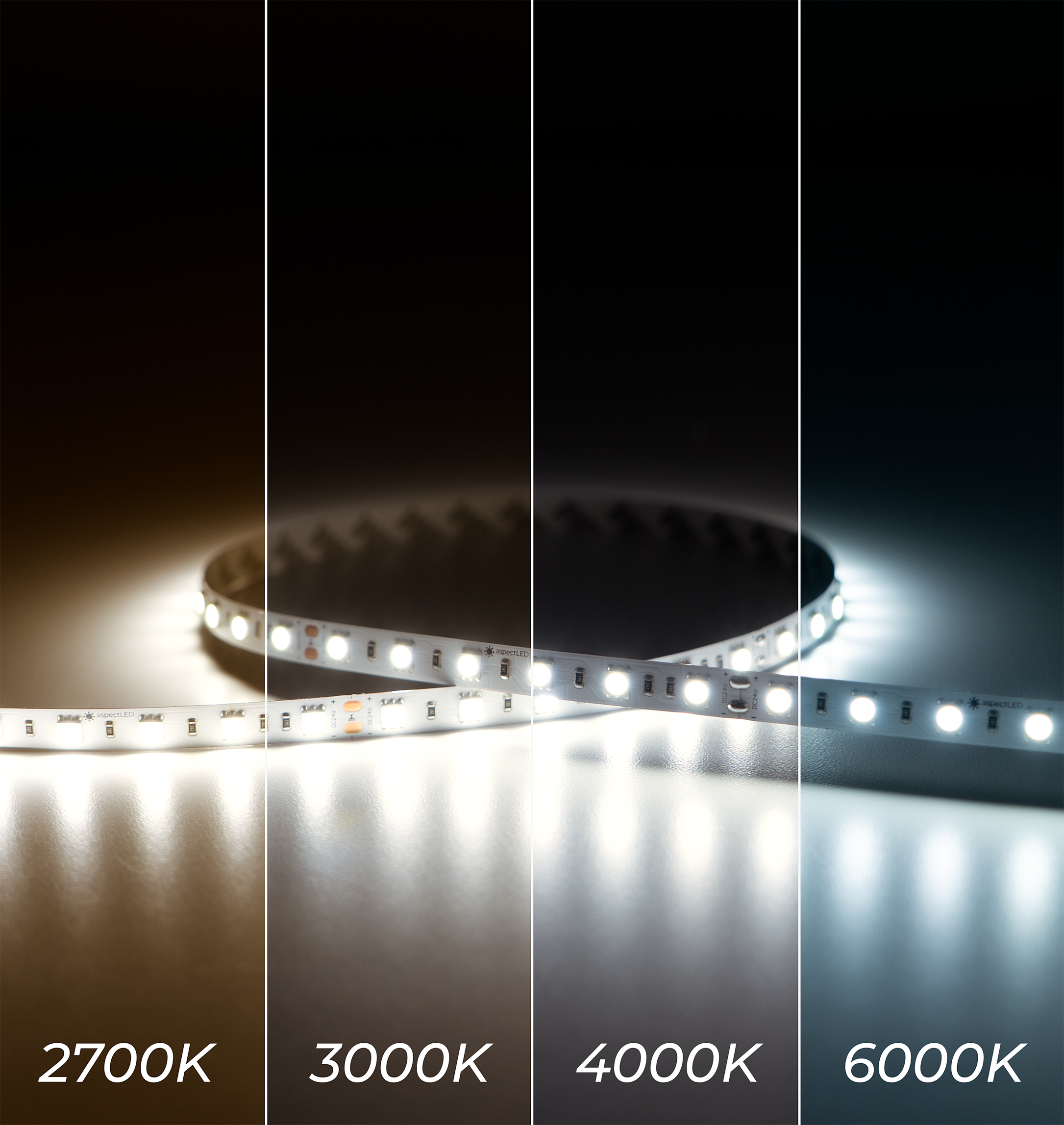

LED Color Options	2700K 3000K 4000K 6000K
Max Lumens	Up to 402.32 Lumens/ft (1320 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry Locations Only
Control
CV, CC, DMX or SPI	Constant Voltage
Compatibility
Compatible Connectors	AL-SL-CN-W-JUMPER AL-SL-CN-W-PIGTAIL AL-SL-CN-W-SPLICE AL-SL-CN-W-TSPLICE AL-SL-CN-W-ANGLESPLICE
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

High Color Accuracy: 90+ CRI delivers vibrant, true-to-life colors with excellent color rendering.
Bright, Efficient Illumination: Produces up to 402 lumens per foot for powerful, energy-efficient lighting.
Flexible Installation: A flexible design with a 120° beam angle provides smooth, even illumination across a variety of applications.
Dimmable Performance: Compatible with constant voltage dimming systems for adjustable brightness control.
Secure Adhesive Backing: 3M adhesive backing ensures reliable installation and long-lasting placement.
Customizable Lengths: Cuttable every 3.94 inches (100mm) for precise sizing and reduced material waste.
Long Lifespan: Rated for up to 50,000 hours of reliable, maintenance-free performance.
Energy Efficient: Delivers bright illumination while helping reduce energy consumption.
Interference-Free Operation: Designed for consistent performance with no RF interference.

Applications

Under-cabinet, toe-kick, in-cove moldings
Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Safety stair tread and step marking
Decorative lighting for holidays, tradeshows, exhibitions
Edge-lighting for glass
DIY projects

Technical Documents

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

WideLine LED Strip Light - Static White

SKU: AL-SL-W90-IP20-24-27K

$58.89

$58.89 ~~$58.89~~

LED Light Color: 2700K

This product requires a power supply.
Calculate your power supply
