WideLine LED Strip Light - Tunable White

Description

Create the perfect lighting environment with the WideLine Tunable White LED Strip Light, designed to deliver high-quality, adjustable illumination for a variety of indoor applications. With a tunable white range from 2700K to 6000K and a 90+ CRI, WideLine allows you to customize your space with warm, comfortable tones or crisp, daylight-inspired illumination while maintaining accurate color rendering. Featuring 18 LEDs per foot, a wide 120-degree beam angle, and up to 210 lumens per foot, WideLine provides smooth, consistent lighting with excellent brightness and coverage. The flexible design and cut intervals every 3.94" make it easy to customize installations for cabinets, displays, architectural accents, and other dry-location applications.

Specifications

Part #	AL-SL-W90-IP20-24-CCT
Physical
Adhesive Backing	Adhesive Tape 3M 9080 in White
Beam Angle	120 degrees
Cut Length	3.94" (100mm)
Dimensions	16.4' (5m) long 0.39" (10mm) wide 0.09" (2.1mm) high
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted
Electrical
Efficacy (lumens per watt)	2700K: 38 lm/W 6000K: 40 lm/W
Input Voltage	24VDC
LED Quantity	18 LED's/ft (60 LED's/m)
LED Type	SMD 5050
Max Power Consumption	4.39W/ft (14.4W/m)
Max Run Length	16.4' (5m)
Pin/Wire Count	3 pin
Photometric
CRI	90
LED Color Options	2700K-6000K
Max Lumens	2700K: 195 lm/ft 6000K: 210 lm/ft
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry Locations Only
Control
CV, CC, DMX or SPI	Constant Voltage
Compatibility
Compatible Connectors	AL-SL-CN-W90CCT-JUMPER AL-SL-CN-W90CCT-PIGTAIL AL-SL-CN-W90CCT-SPLICE
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

High Color Accuracy: 90+ CRI delivers vibrant, true-to-life colors with excellent color rendering.

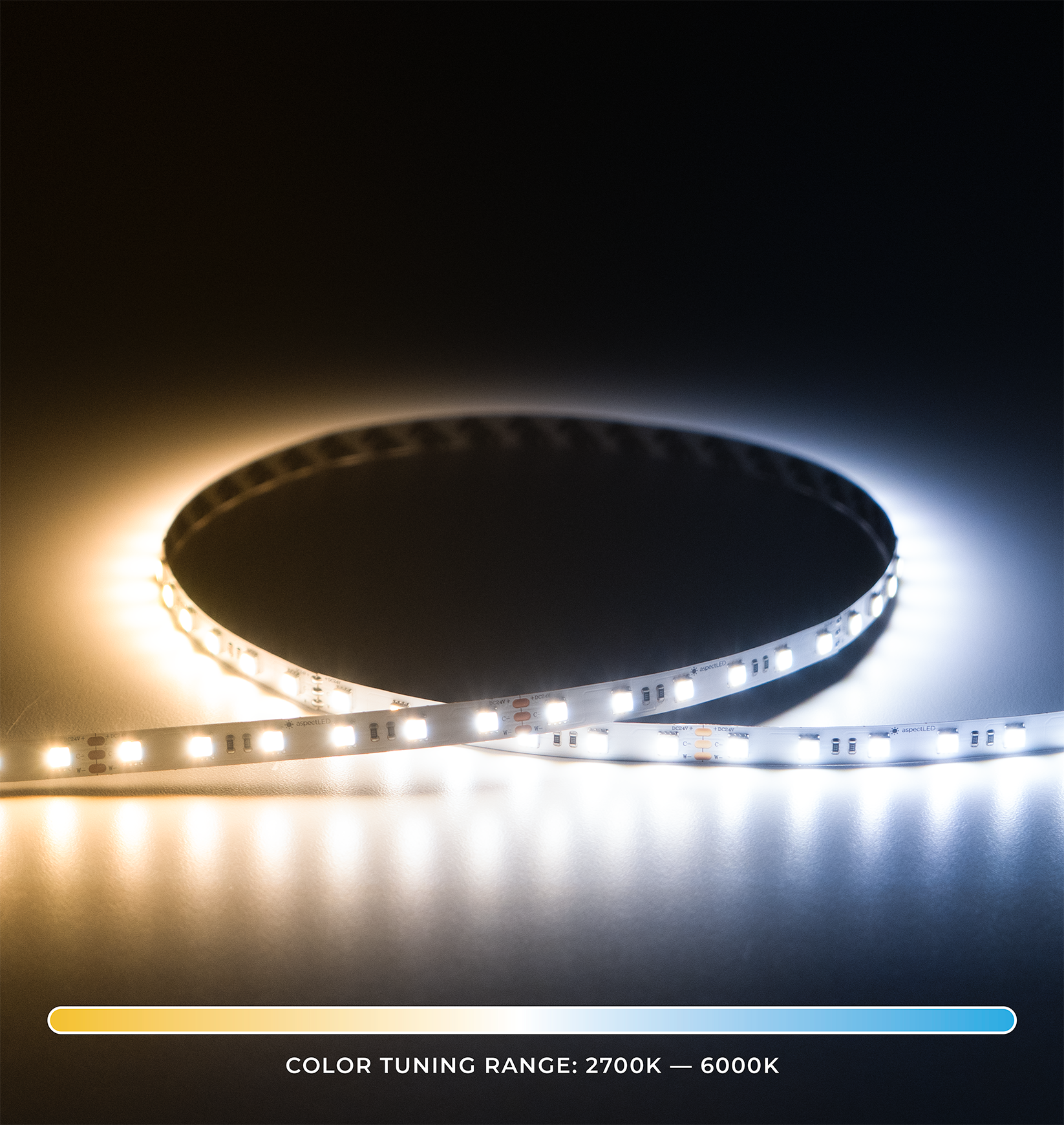

Tunable White Control: Adjustable color temperatures from 2700K to 6000K allow you to create the perfect lighting environment for any application.
Flexible Installation: A flexible design with a 120° beam angle provides smooth, even illumination that adapts to a variety of spaces.
Secure Adhesive Backing: 3M adhesive backing ensures reliable installation and long-lasting placement.

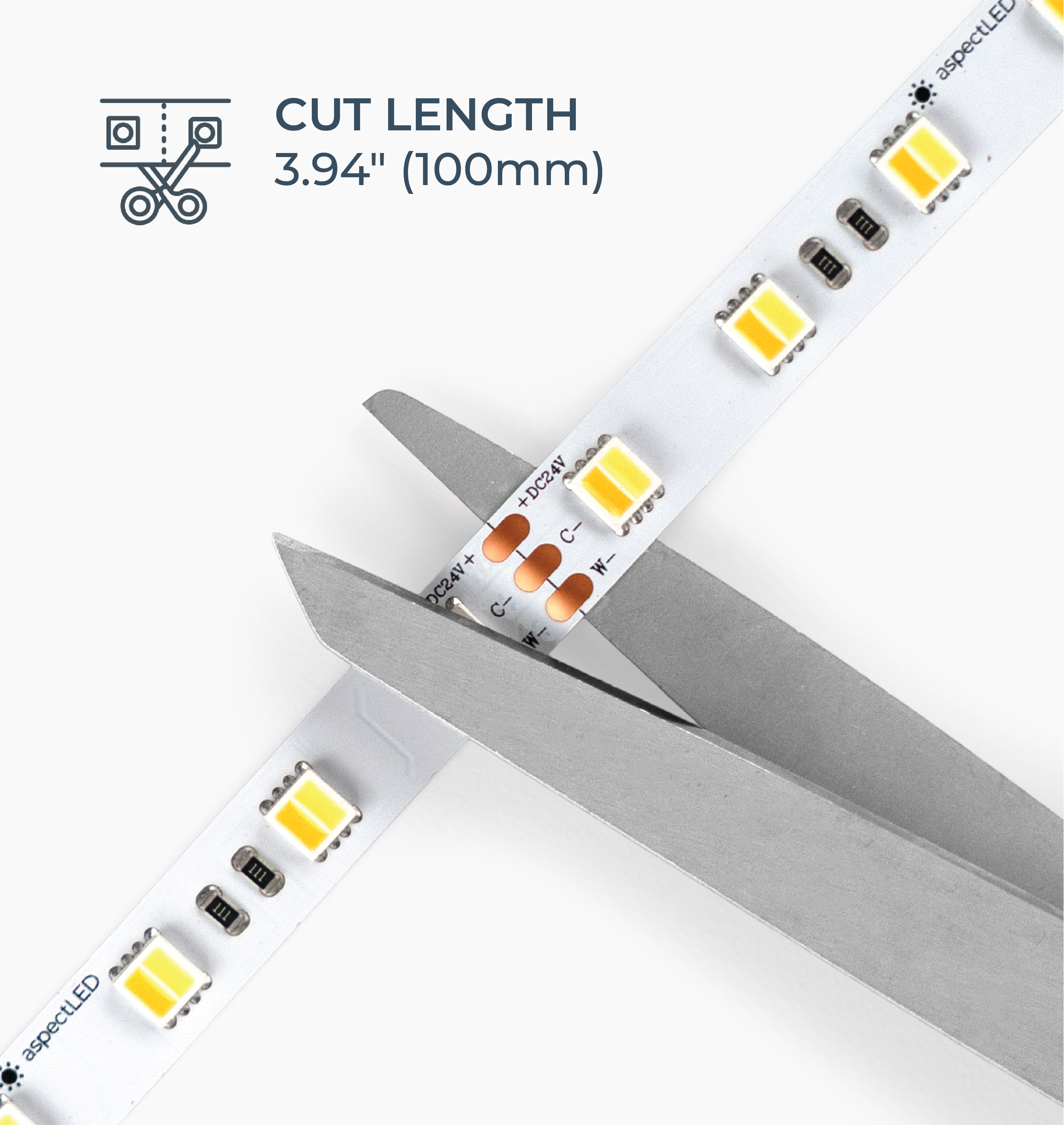

Customizable Lengths: Cuttable every 3.94" for precise sizing and reduced material waste.
Bright, Efficient Illumination: Delivers up to 210 lumens per foot for powerful, energy-efficient lighting.
Long Lifespan: Rated for up to 50,000 hours of reliable performance with minimal maintenance.
Interference-Free Operation: Designed for consistent performance with no RF interference.
Maintenance-Free Design: Built for dependable operation with little to no upkeep required.

Applications

Under-cabinet, toe-kick, in-cove moldings
Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Safety stair tread and step marking
Decorative lighting for holidays, tradeshows, exhibitions
Edge-lighting for glass
DIY projects

Technical Documents

Cut Sheet

Technical Drawing

Photometric Report

IES File 2700K + 6000K

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

WideLine LED Strip Light - Tunable White

Name: WideLine LED Strip Light - Tunable White
Brand: aspectLED
SKU: AL-SL-W90-IP20-24-CCT
Price: 92.89 USD
Availability: InStock

SKU: AL-SL-W90-IP20-24-CCT

$92.89

$92.89 ~~$92.89~~

This product requires a power supply.
Calculate your power supply
