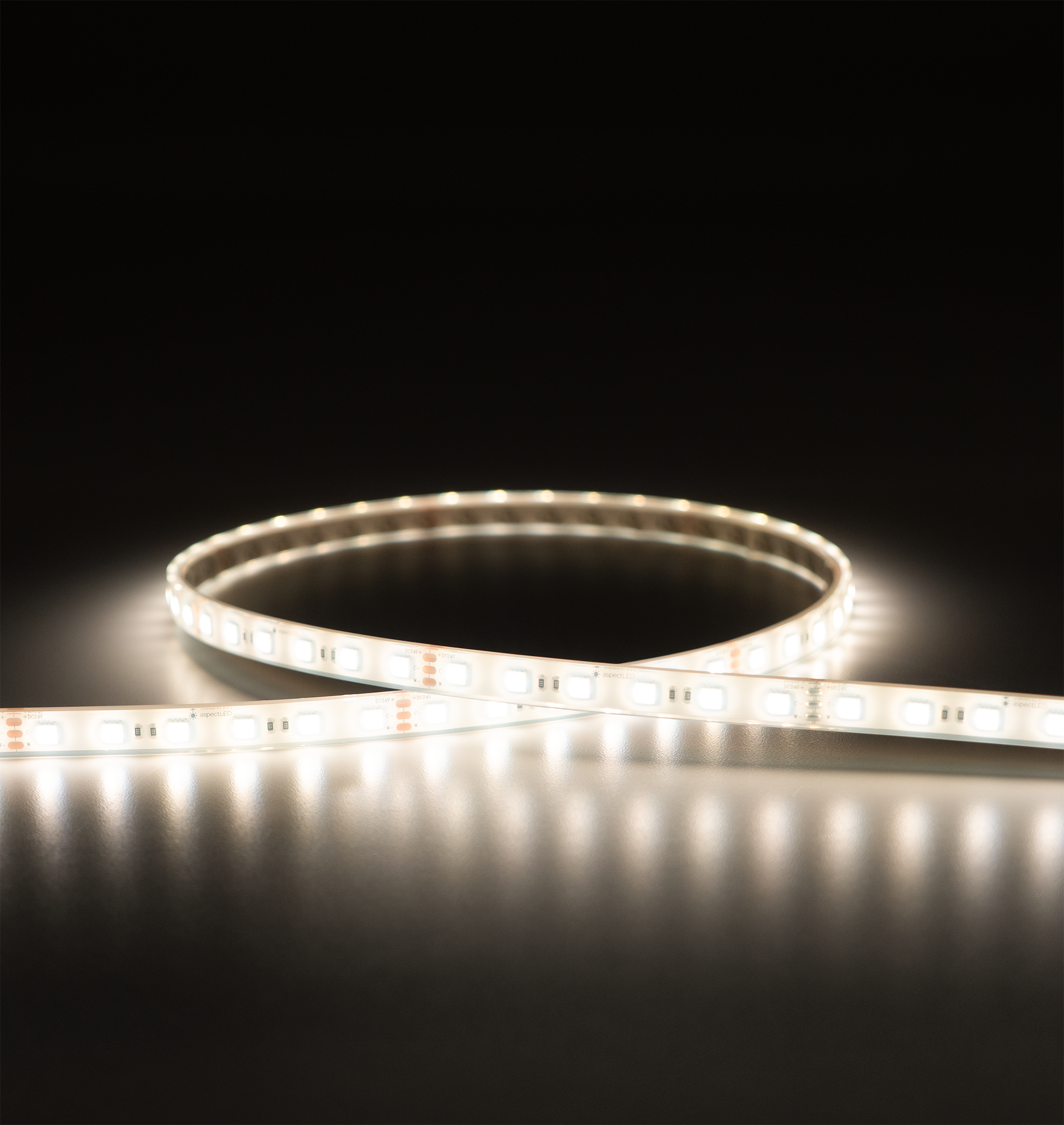

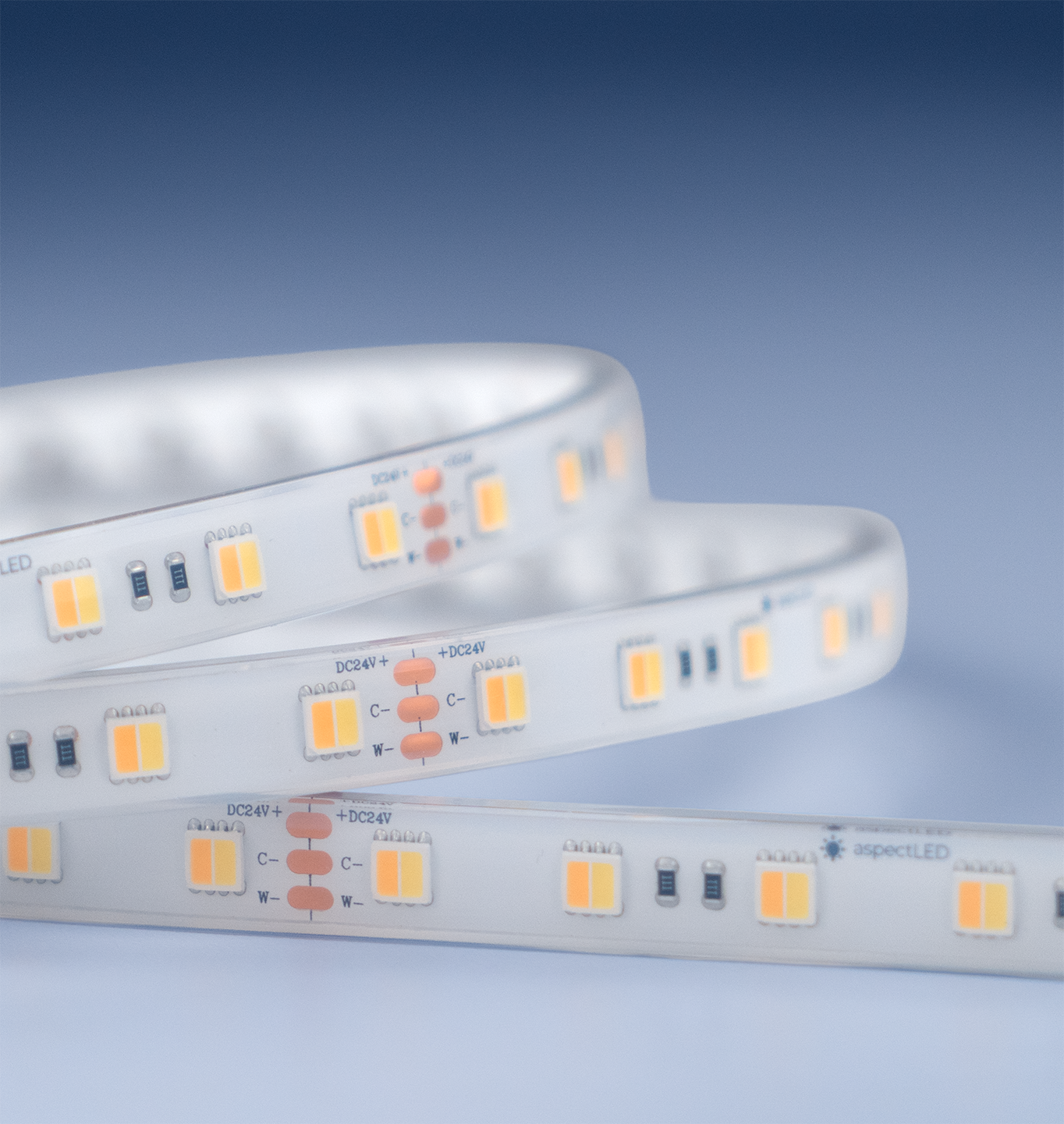

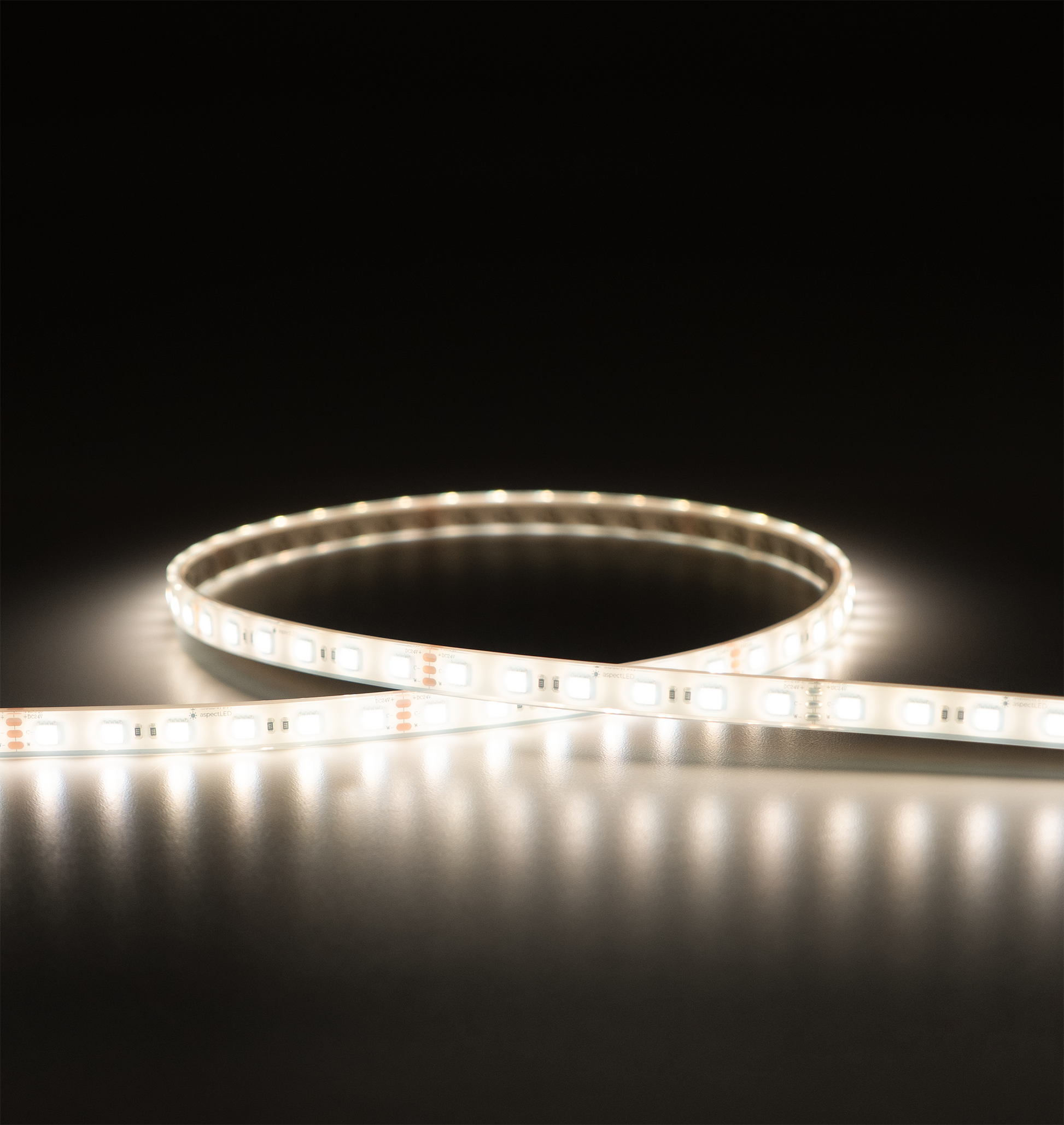

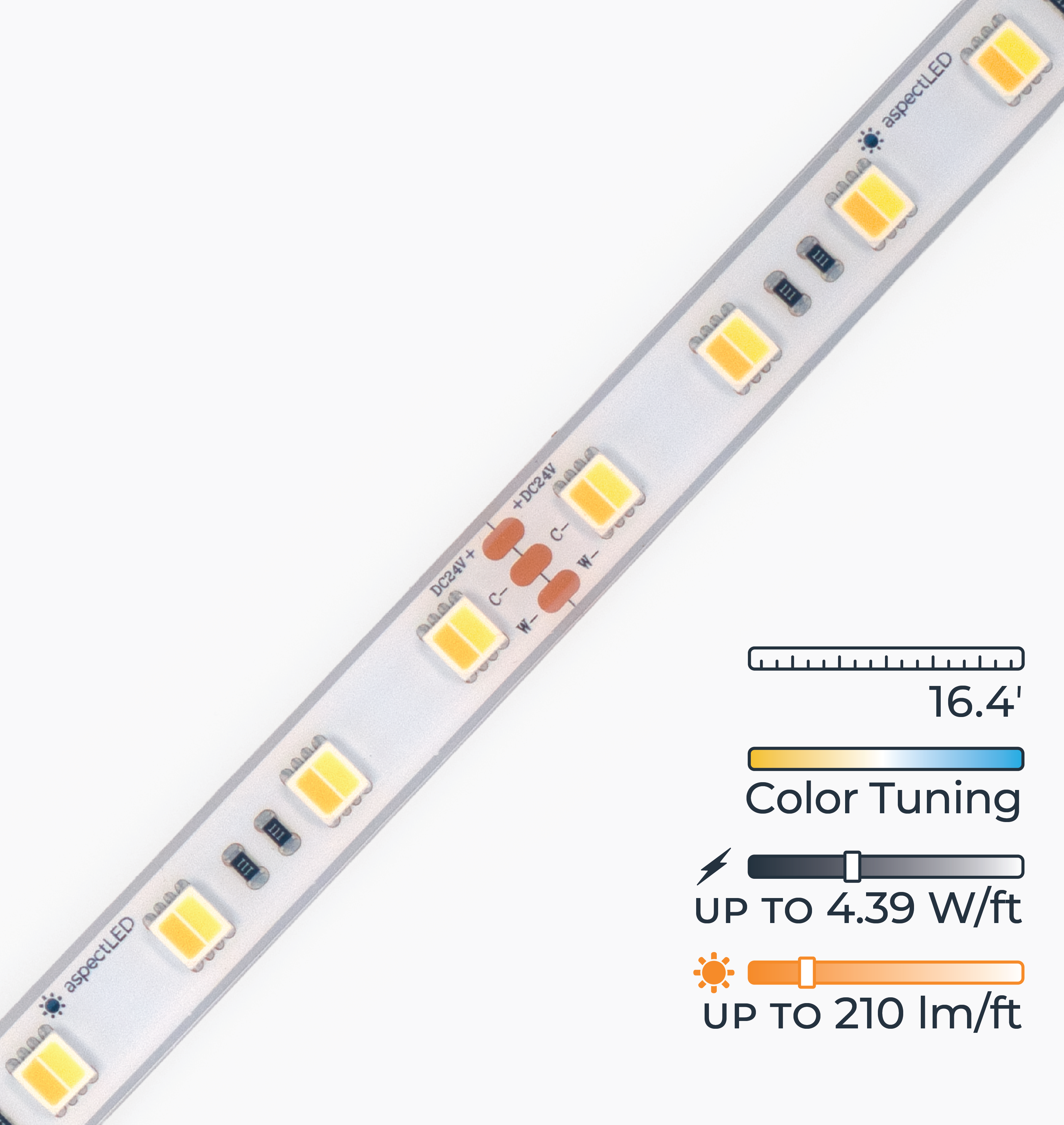

WideLine LED Strip Light - Tunable White, Waterproof

Description

Create the perfect lighting environment with the waterproof WideLine Tunable White LED Strip Light, designed to deliver high-quality, adjustable illumination for a variety of outdoor and indoor applications. With an IP68 waterproof rating, this strip is fully submersible and built to withstand demanding and extreme environments. A tunable white range from 2700K to 6000K and a 90+ CRI, WideLine allows you to customize your space with warm, comfortable tones or crisp, daylight-inspired illumination while maintaining accurate color rendering. Featuring 18 LEDs per foot, a wide 120-degree beam angle, and up to 210 lumens per foot, WideLine provides smooth, consistent lighting with excellent brightness and coverage. The flexible design and cut intervals every 3.94" make it easy to customize installations for cabinets, displays, architectural accents, and other dry-location applications.

Specifications

Part #	AL-SL-W90-IP68-24-CCT
Physical
Adhesive Backing	Adhesive Tape 3M 9080 in White
Beam Angle	120 degrees
Cut Length	3.94" (100mm)
Dimensions	16.4' (5m) long 0.47" (12mm) wide 0.17" (4.5 mm) high
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted, Mounting Straps
Electrical
Efficacy (lumens per watt)	2700K: 38 lm/W 6000K: 40 lm/W
Input Voltage	24VDC
LED Quantity	18 LED's/ft (60 LED's/m)
LED Type	SMD 5050
Max Power Consumption	4.39W/ft (14.4W/m)
Max Run Length	16.4' (5m)
Pin/Wire Count	3 pin
Photometric
CRI	90
LED Color Options	2700K-6000K
Max Lumens	2700K: 195 lm/ft 6000K: 210 lm/ft
Environmental
IP Rating	IP68
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry, Damp, Wet
Control
CV, CC, DMX or SPI	Constant Voltage
Compatibility
Compatible Connectors	N/A
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

High Color Accuracy: 90+ CRI delivers vibrant, true-to-life colors with excellent color rendering.

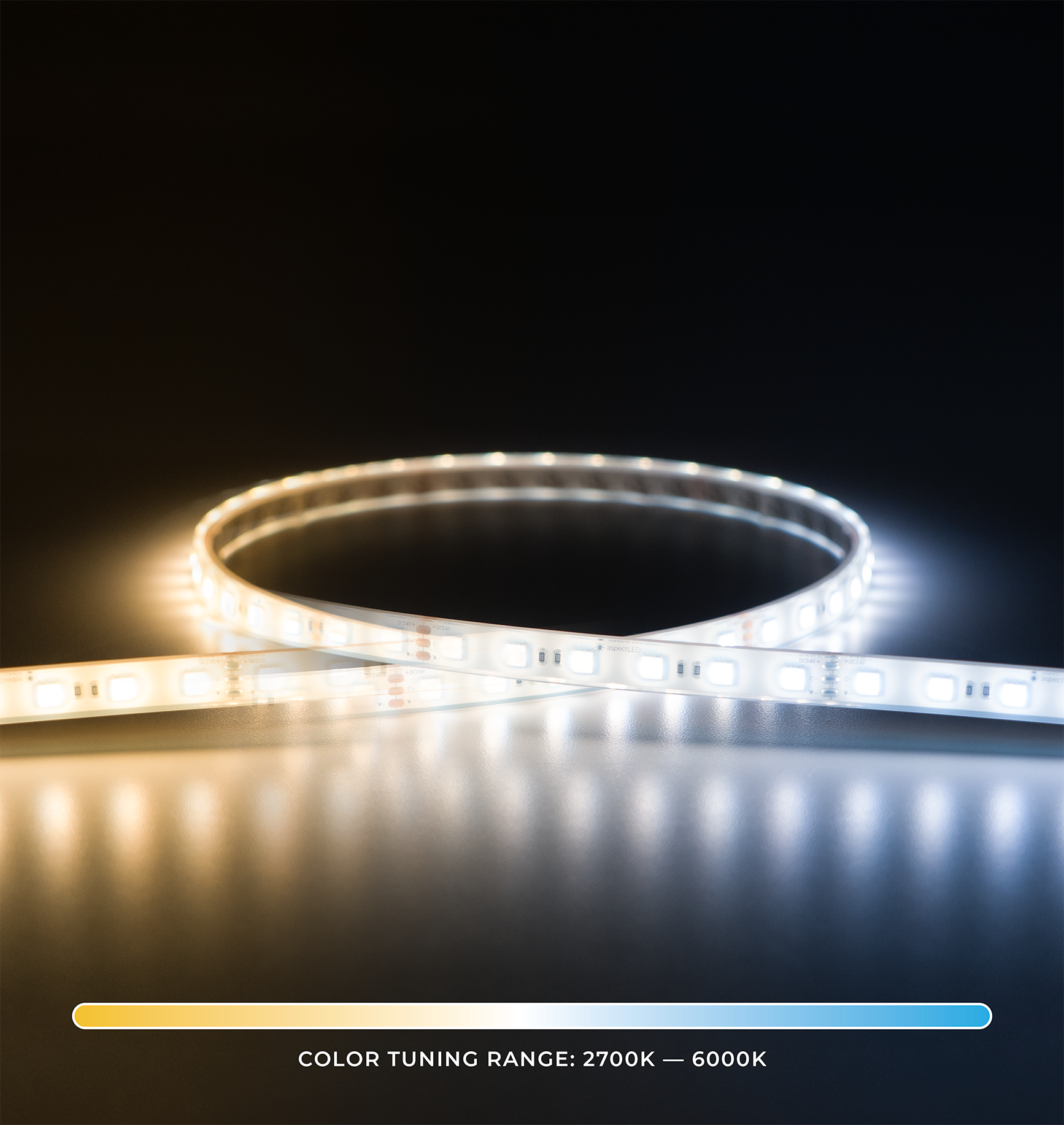

Tunable White Control: Adjustable color temperatures from 2700K to 6000K allow you to create the perfect lighting environment for any application.
Flexible Installation: A flexible design with a 120° beam angle provides smooth, even illumination that adapts to a variety of spaces.
Secure Adhesive Backing: 3M adhesive backing ensures reliable installation and long-lasting placement.

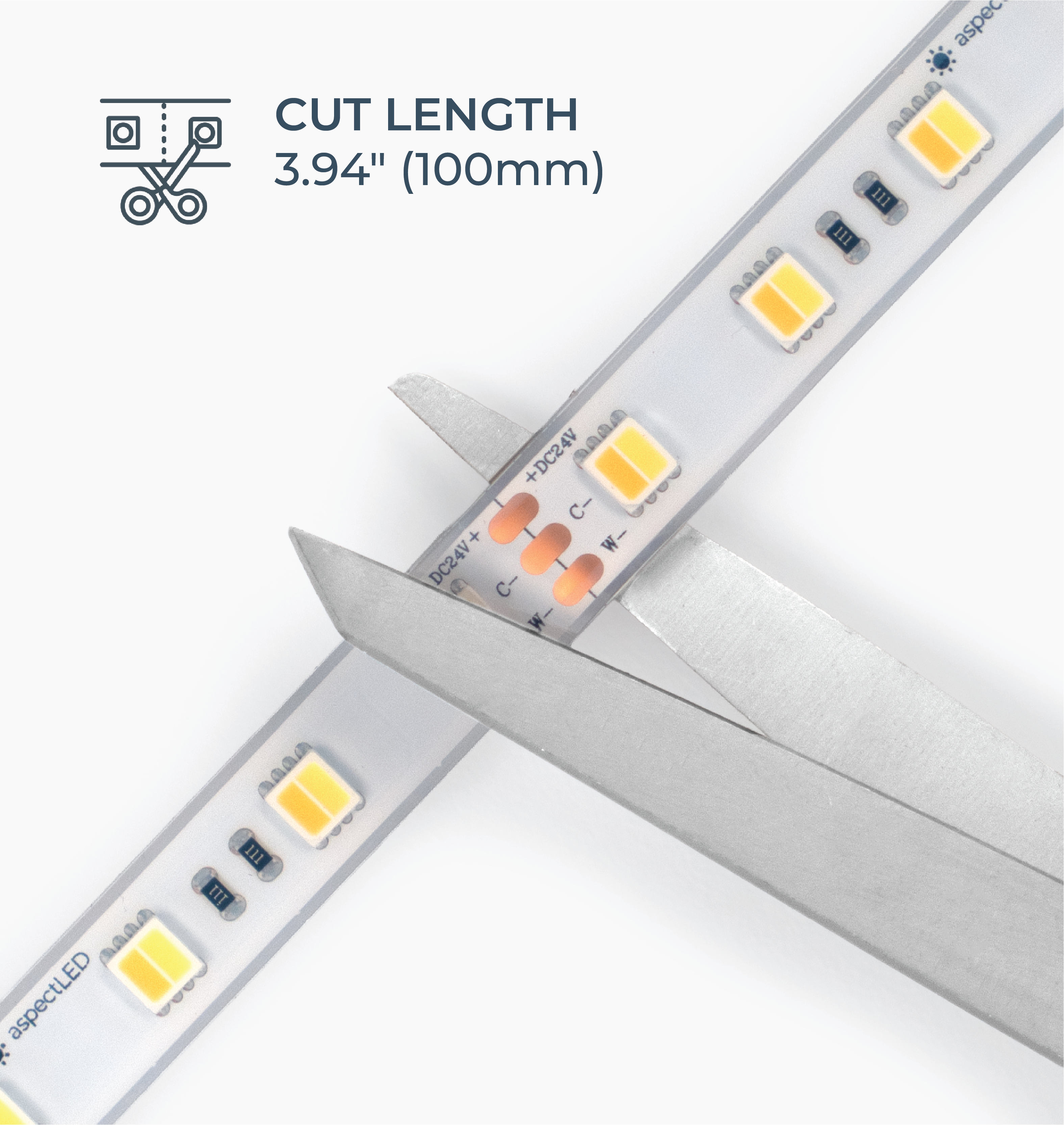

Customizable Lengths: Cuttable every 3.94" for precise sizing and reduced material waste.
Bright, Efficient Illumination: Delivers up to 210 lumens per foot for powerful, energy-efficient lighting.
Long Lifespan: Rated for up to 50,000 hours of reliable performance with minimal maintenance.
Interference-Free Operation: Designed for consistent performance with no RF interference.
Maintenance-Free Design: Built for dependable operation with little to no upkeep required.

Applications

Accent lighting
Deck lighting
Decorative lighting for tradeshows or exhibitions
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Pergola lighting
Safety stair tread and step marking
Shower niche lighting

Technical Documents
