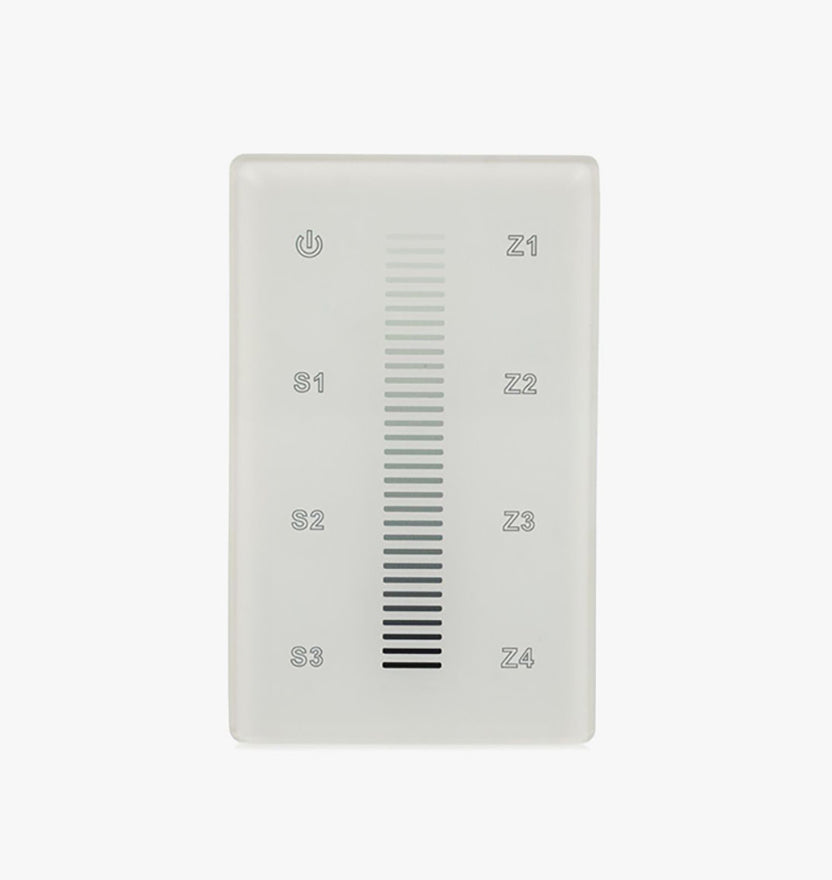

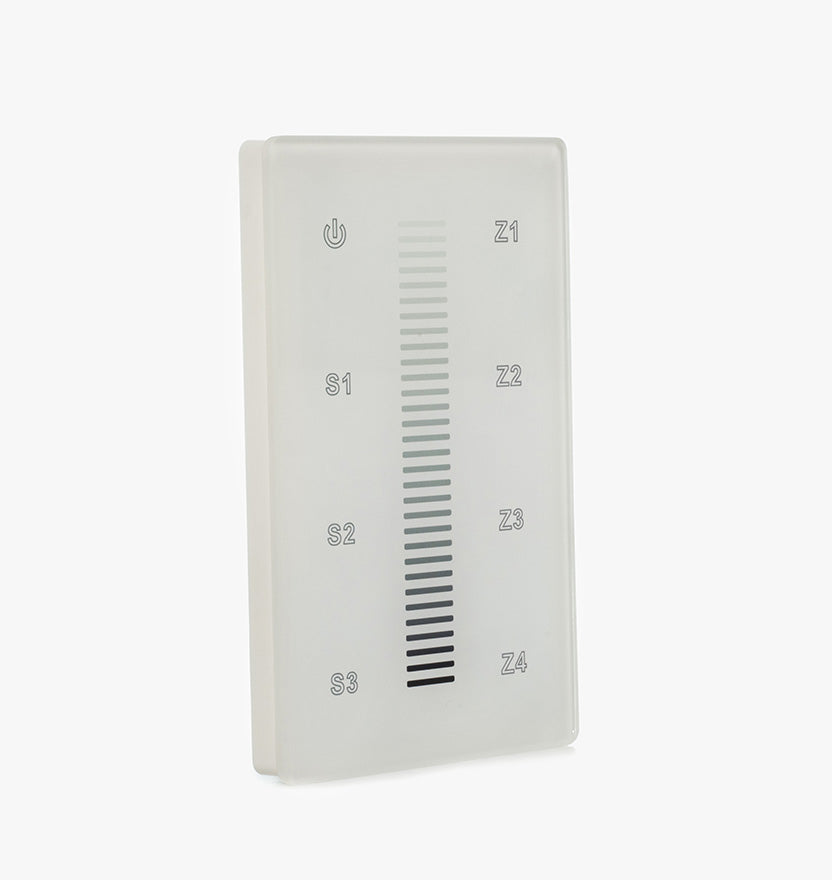

Wireless Multi-Zone LED Wall Dimmer Controller
The In-Wall low voltage LED dimming controller is our most stylish LED dimmer. This permanently mounted in-wall controller allows you to control your single color low voltage LED fixtures, providing full brightness control. Simply connect this unit to its receiver (or control box), your 12VDC/24VDC LED fixtures and a power supply, mount your wall plate, and start controlling your fixture.
This dimming LED controller is compatible with all of aspectLEDs single color 12VDC or 24VDC LED fixtures.
Please note, this remote controller requires a base unit, available here. This in-wall controller communicates with its receiver wirelessly, but must be hardwired with low voltage wire to your power supply. To pair this controller with its base unit, turn the in-wall unit on, then the desired zone number on the remote (1-3). Press the learning key on the base unit, then touch the dimming pad. Your lights should blink, and your controller should be paired.
Physical Dimensions & Specifications
| AL-CTLR-DIM-4ZRF-WMT | |
|---|---|
| Part # | AL-CTLR-DIM-4ZRF-WMT |
| In-Wall Remote Dimensions | 4-1/4" Long 2" Wide 3/4" Thick |
| RF Receiver/Control Box | Wireless RGBW 4 Channel LED Controller with Channel Pairing |
| Input Voltage | 12VDC or 24VDC |
| Power Source | 12VDC or 24VDC power supply |
| Output Signal | Wireless (RF) Remote Control DMX |
| Compatible Power Supplies | Non-dimmable power supplies |
| Weight | 0.9 lbs |
| Warranty | 1 Year |
Features:
- Installer-friendly: easy to install, mount and configure
- Easy to use remote control
- 0-100% brightness control
- Full color (16.7M colors) control
Applications:
- Architectural lighting control
- Stage lighting control
- Dance/Music club lighting control
- Landscape light control
- Big box retail lighting
- Loft-style office lighting
- Auditorium lighting
Installation Guide
Click here to download the installation guide for this product.
Cut Sheet/Specifications
Click here to download the cut sheet/specifications for this product.
IES Files/Other Downloads
