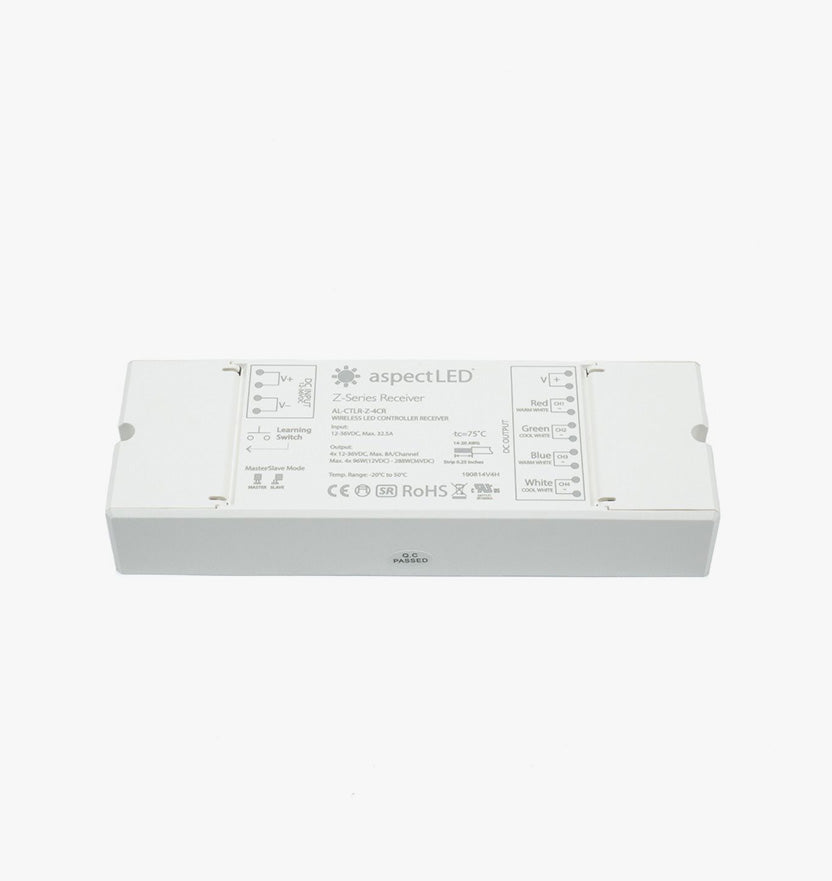

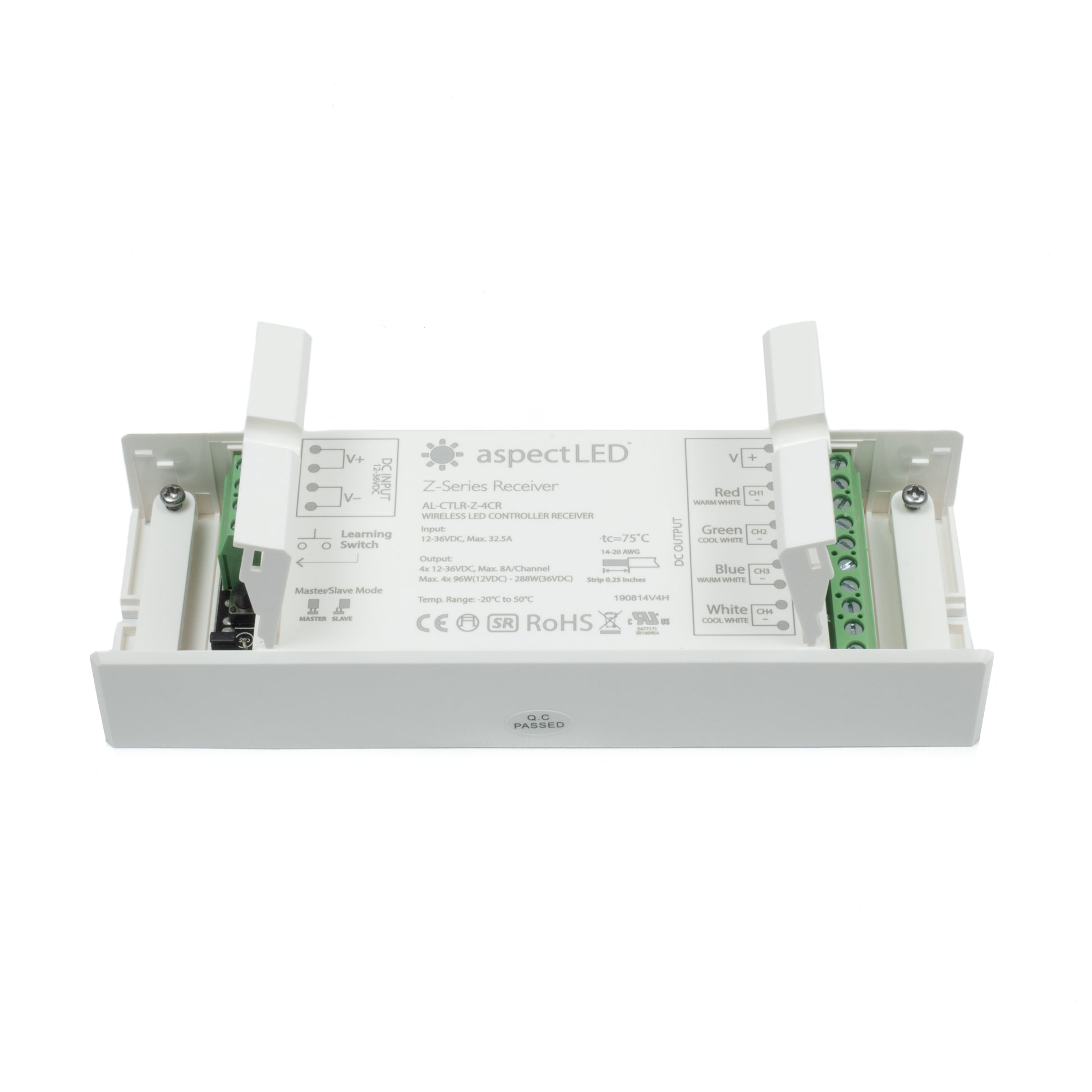

Wireless RGBW 4 Channel LED Controller with Channel Pairing
Wireless RGBW 4 Channel LED Controller with Channel Pairing
Description
Take full control of your LED lighting system with the Wireless RGBW 4-Channel LED Controller. This controller acts as the central receiver for your lighting setup, connecting directly to your power supply and LED fixtures via low-voltage wiring while communicating wirelessly with compatible RF remotes. Whether you're working with single-color, tunable white, RGB, or RGBW lighting, this controller delivers reliable performance and flexible control across a wide range of applications.
Key Features
Key Features
-
MAX 8 AMPS PER CHANNEL
12VDC: 4 × 96 WATTS
24VDC: 4 × 192 WATTS -
Input Voltage
12VDC or 24VDC -
4 Channel
-
RF Remote
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-CTLR-RGBW-4CP |
| Physical | |
| Dimensions | 6.75" Long x 2.25" Wide x 1.25" Thick |
| Finish Options | White |
| Weight | 0.9 lbs |
| Electrical | |
| Input Signal | Wireless (RF) Remote Control |
| Input Voltage | 12VDC or 24VDC |
| Max Power Consumption | 192 watts |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | 32°C to 104°C (0°C to 40°C) |
| Suitable Uses | Indoor Dry Locations |
| Compatibility | |
| Compatible Power Supplies | Non-dimmable power supplies |
| Standards / Certifications | |
| Standards / Certifications | RoHS |
| Warranty | 1 Year |
