3.15” Adjustable White Recessed Puck Light - 3W (25 Watt Equivalent)
3.15” Adjustable White Recessed Puck Light - 3W (25 Watt Equivalent)
In-Stock (36) - Ships Same or Next Business Day
Description

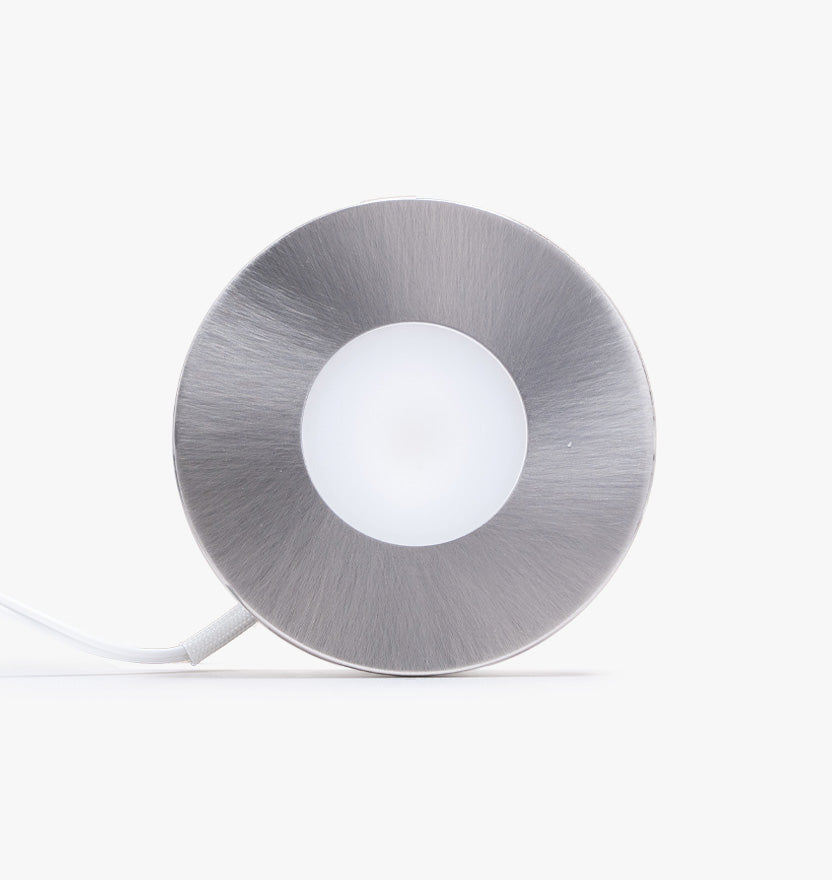

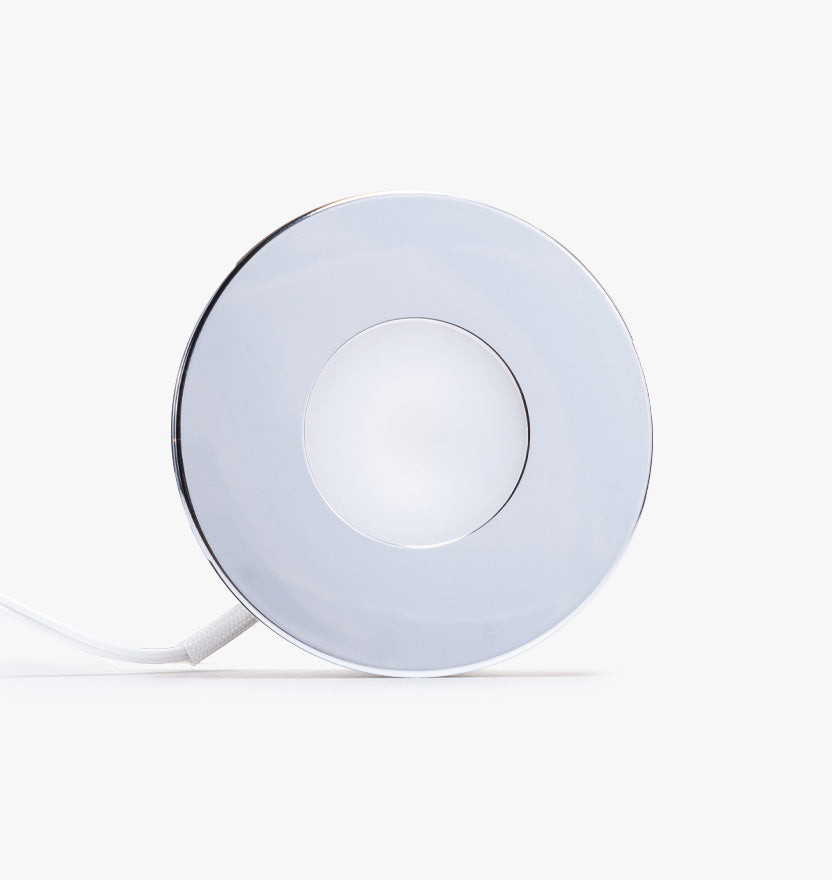

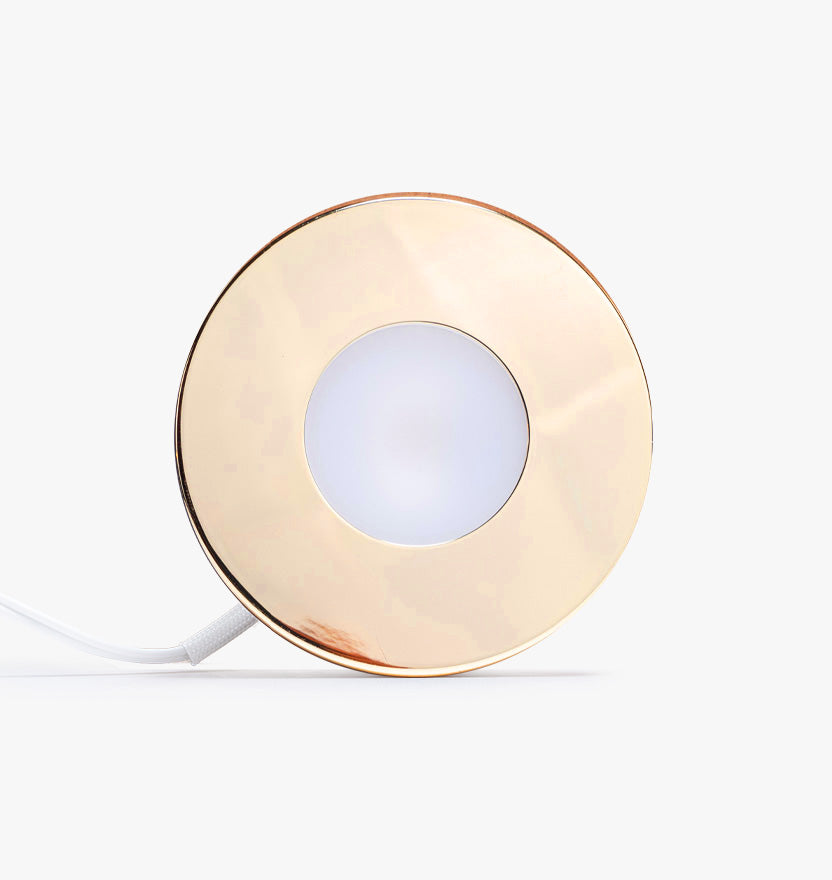

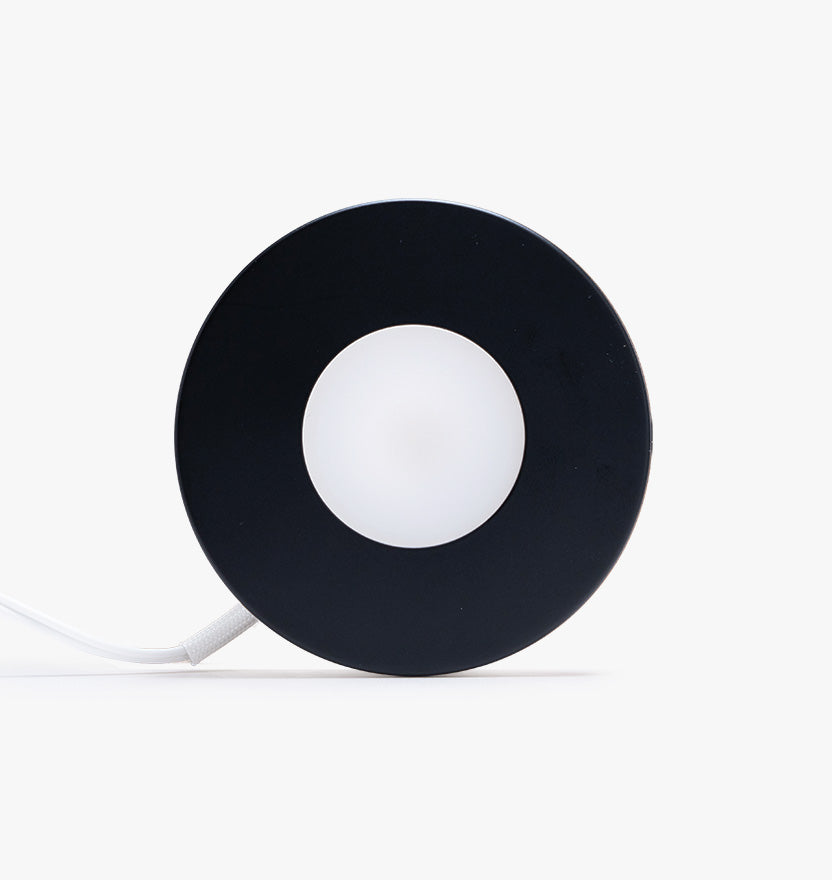

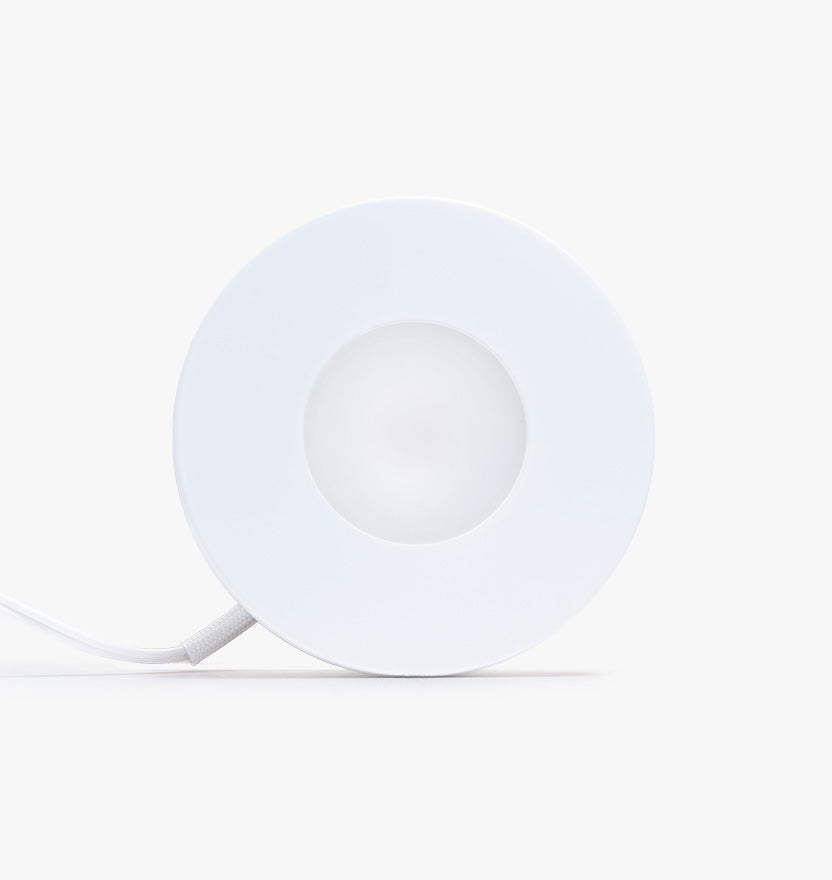

Recessed Puck Light are compact, low profile and easy to install. It has a switch that allows you to select whichever white light color you prefer - 3000K Warm White, 4000K Cool White or 6000K Day White - so you can try them all and decide which you like best. The magnetized trim comes in 5 colors; white, black, chrome, satin nickel and brass. They are designed to be recessed and cannot be surface mounted.
Key Features
Key Features
-
Up to 230 Lumens
-
3 Watts
-
VOLTAGE
12VDC
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-PK-CCT-3W-12VDC |
| Physical | |

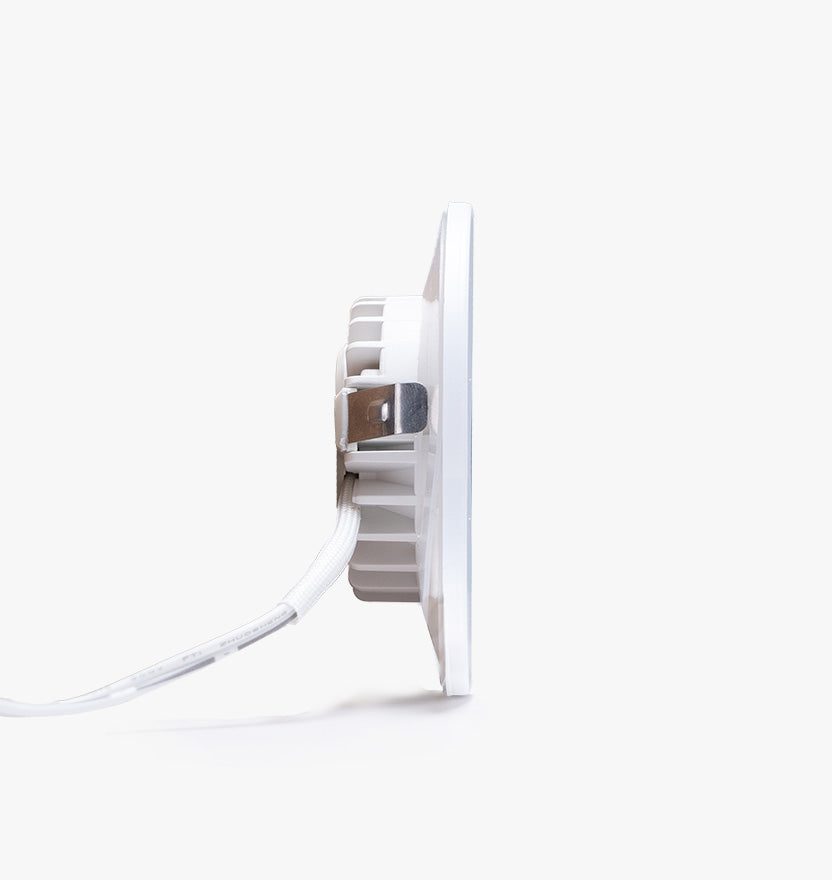

| Dimensions | 3.15" diameter 0.85" tall 2.25" cutout hole diameter |
| Estimated Lifespan | 30,000 hours |
| Fixture Material | Plastic |
| Trim Material | Steel |
| Weight | 0.15lbs |
| Wire Length | 10" |
| Electrical | |
| Input Voltage | 12VDC |
| LED Quantity | 1 |
| LED Type | COB |
| Max Power Consumption | 3W |
| Photometric | |
| CRI | 90 |
| LED Color Options | 3000K Warm White Cool White 4000K Day White 6000K |
| Max Lumens | 230 Lumens |
| Environmental | |
| IP Rating | IP21 |
| Max Operating Temperature | #ERROR! |
| Suitable Uses | Dry Locations Only |
| Control | |
| Dimmable | Yes |
| Dimming Type | AC (Line Voltage) or DC (PWM) |
| Compatibility | |
| Compatible Power Supplies | Compatible with ELV dimmable/non-dimmable only. |
| Standards / Certifications | |
| Standards / Certifications | UL Listed, cUL Listed, RoHS, CE, ETL |
| Warranty | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What light color should I choose?

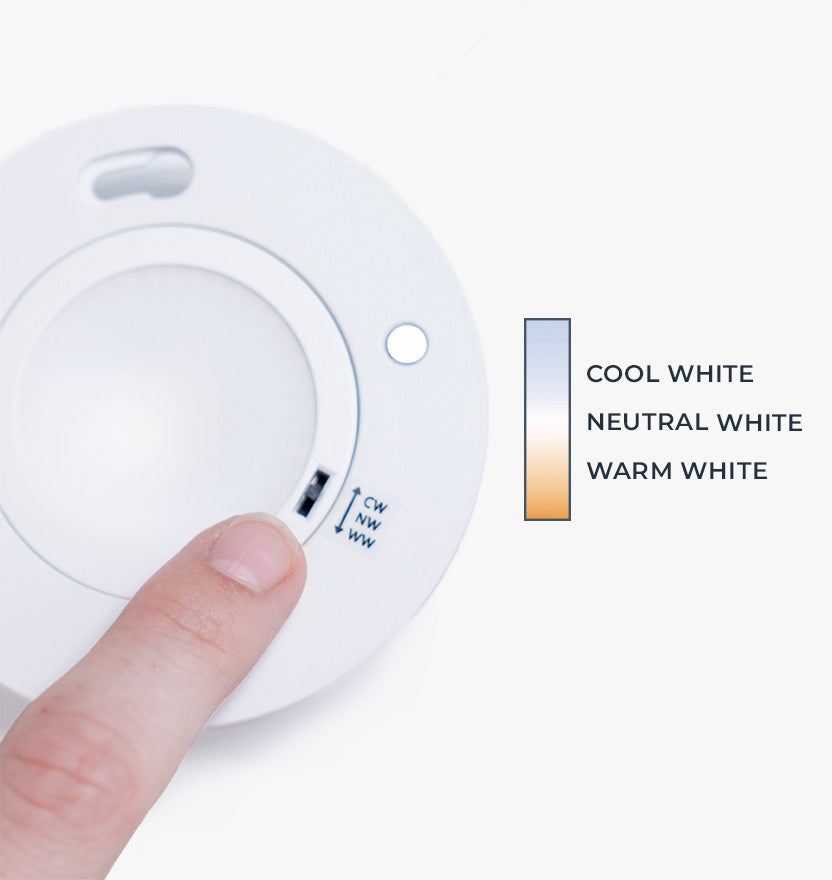

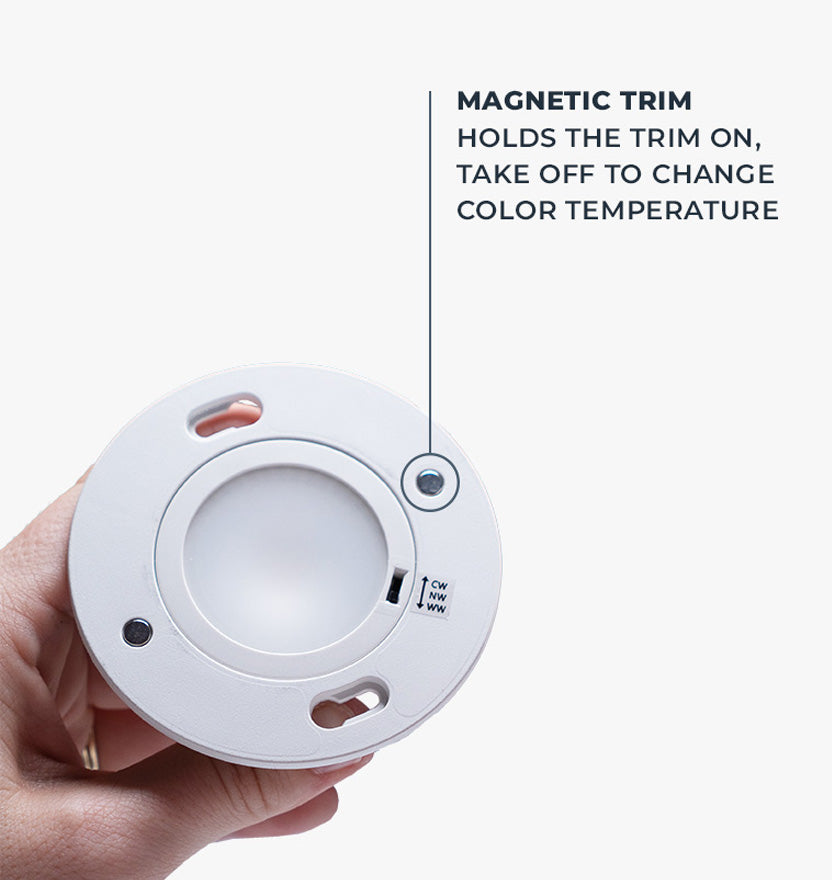

This puck light allows you to select whichever light color you prefer so you can try them all and decide which you like best. There is a switch on the light fixture that allows you to switch between light colors.

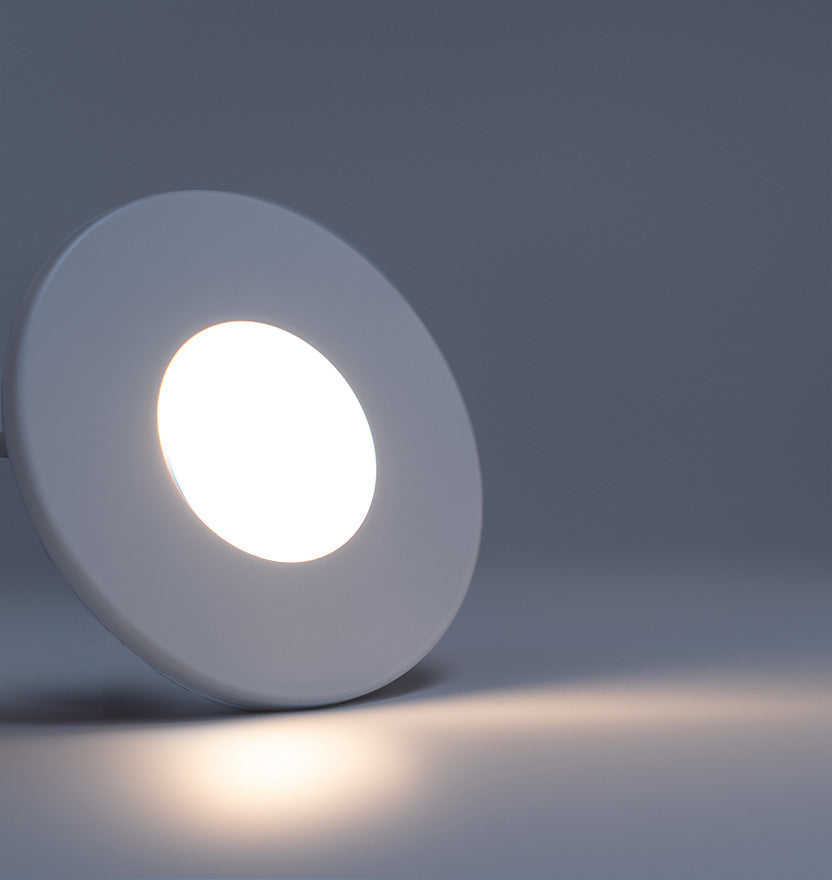

Warm White is equivalent to a standard incandescent light color and is most popular for residential applications. It has a slight warm yellow glow to it that many people find comfortable and we are all used to seeing in our homes. It is a 2700-3000K on the Kelvin Light Color Scale.

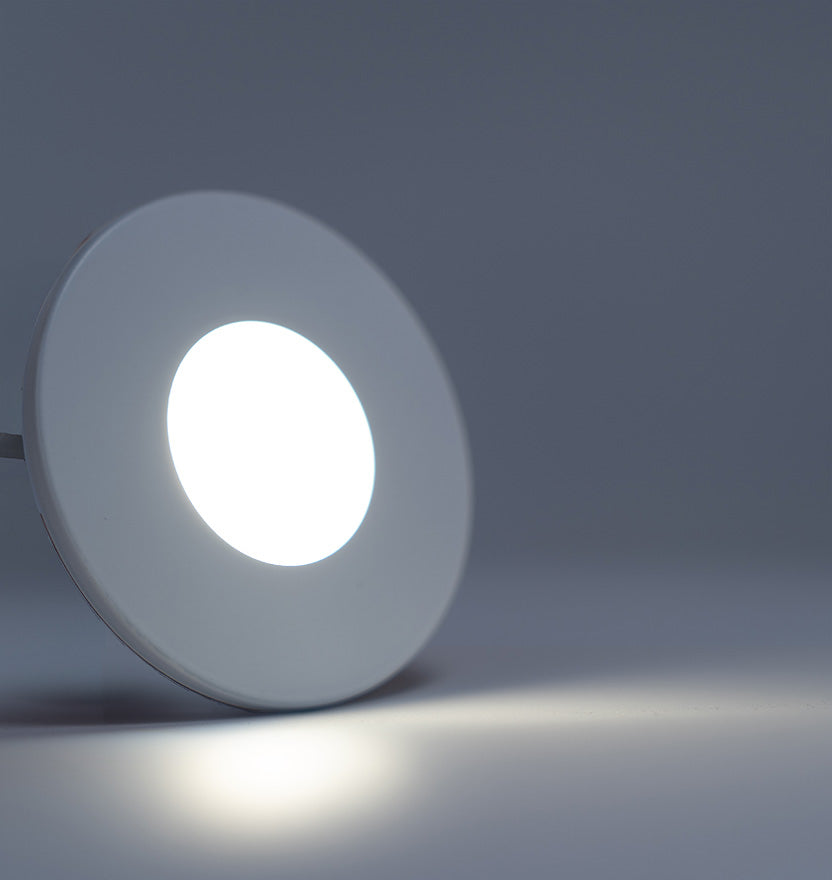

Cool White is equivalent to a standard CFL or Fluorescent light color and is most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without any yellow undertone. It is a 4000-4500K on the Kelvin Light Color Scale.

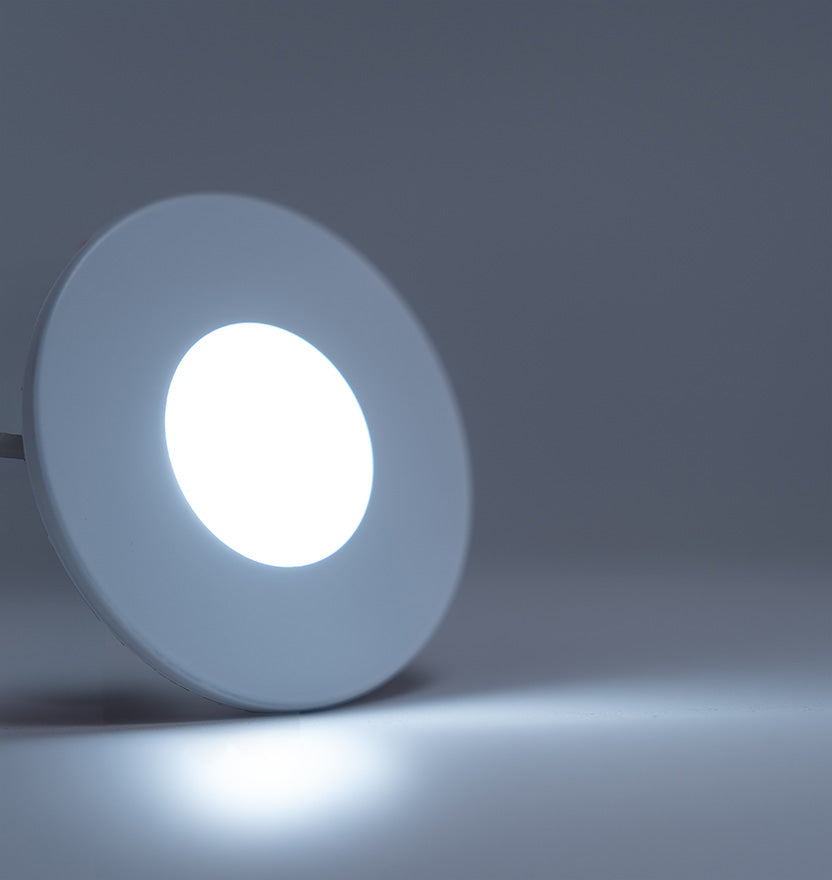

DayWhite™ most closely replicates natural daylight and does have a slight blue hue to the light output. This is rarely seen in residential applications as the light output can seem a bit harsh and bright, and is most commonly seen in exterior or commercial applications. This is the brightest of the White light color options. It is a 6000-6500K on the Kelvin Light Color Scale.
Can I connect multiple lights together?
Yes, just make sure that your wire gauge and power source are adequate to support the distance you are running from your power source to the lights and the number of lights on your circuit. A parralel type circuit should be used. These should not be wired in series.
Which voltage option should I choose?
This light is only available in 12VDC: Popular for automotive, motorcycle, boat/marine applications, or anywhere where you are connecting to a 12VDC supply. Some applications may require a separate 12VDC power supply!
Are they dimmable?
Yes- They can be dimmed via PWM dimming with a controller and a non dimmable power supply or they can be put on a dimmable (NON MLV!) Power supply with a lineside dimmer. These are 12VDC so the compatible power supply would be our 80 Watt 12 VDC Dimmable PS (LINK)
What is the cutout hole size?
The light will fit a 2-1/4" cutout Hole size.
Is it Waterproof?
No. It is rated IP21
