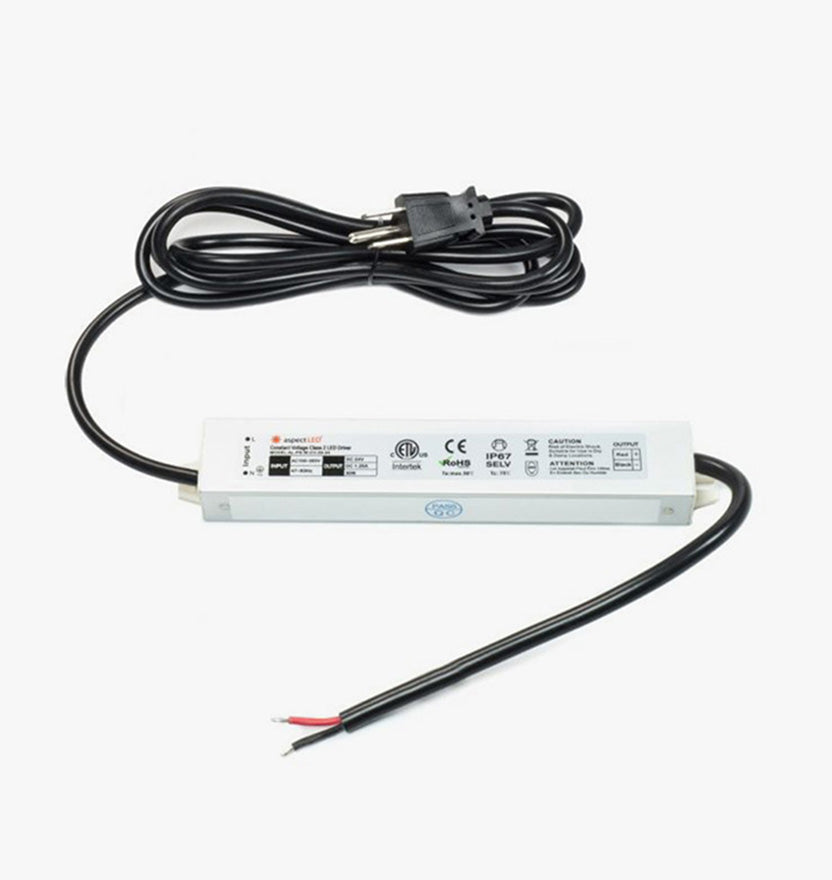

30 Watt LED Power Supply
30 Watt LED Power Supply
In-Stock (537) - Ships Same or Next Business Day
Description
Light up the little things with a power supply sized to match. The 30 Watt LED Power Supply supports a max continuous load of 24 watts with an efficiency rating above 83%. This maintenance-free driver uses solid-state construction to stand up to shock and vibration, and its mounting tabs make installation quick and simple. Rated for temperatures as low as -30°C (-22°F) and suitable for dry and wet locations, it’s a dependable choice for the small spaces that deserve great light.
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | |
|---|---|---|
| Part # | AL-PS-W-30 | AL-PS-W-30 |
| Physical | ||
| Dimensions | 6-5/8" Long (168mm) 1-1/8" Wide (29mm) 13/16" Tall (21mm) | 6-5/8" Long (168mm) 1-1/8" Wide (29mm) 13/16" Tall (21mm) |
| Housing Material | Aluminum | Aluminum |
| Mounting Method | Mounting Tabs | Mounting Tabs |
| Weight | 0.77 lbs (0.35 kg) | 0.77 lbs (0.35 kg) |
| Electrical | ||
| AC Current | 3.5A @ 110VAC | 2.0A @ 110VAC |
| AC Voltage Range | 100-265VAC | 100-265VAC |
| DC Voltage | 12VDC | 24VDC |
| Efficiency | >83% | >83% |
| Frequency Range | 47-63Hz | 47-63Hz |
| Inrush Current | 50A | 50A |
| Max Continuous Load | 24W | 24W |
| Max Output Current | 2.5A | 1.25A |
| Max Power Consumption | 30W | 30W |
| Environmental | ||
| IP Rating | IP67 | IP67 |
| Max Operating Temperature | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) |
| Max Storage Temperatures | -40°C to 80°C (-40°F to 176°F) | -40°C to 80°C (-40°F to 176°F) |
| Suitable Uses | Dry and Damp Locations | Dry and Damp Locations |
| Control | ||
| Dimmable | No | No |
| Compatibility | ||
| Recommended Box/Enclosure (Optional) | AL-PS-BX-MD | AL-PS-BX-MD |
| Standards / Certifications | ||
| Standards / Certifications | ETL Listed ROHS CE Class 2 | ETL Listed ROHS CE Class 2 |
| Warranty | 1 Year | 1 Year |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
Is this product UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
