Arc - LED Light Sheet - 12x24, Static White

Description

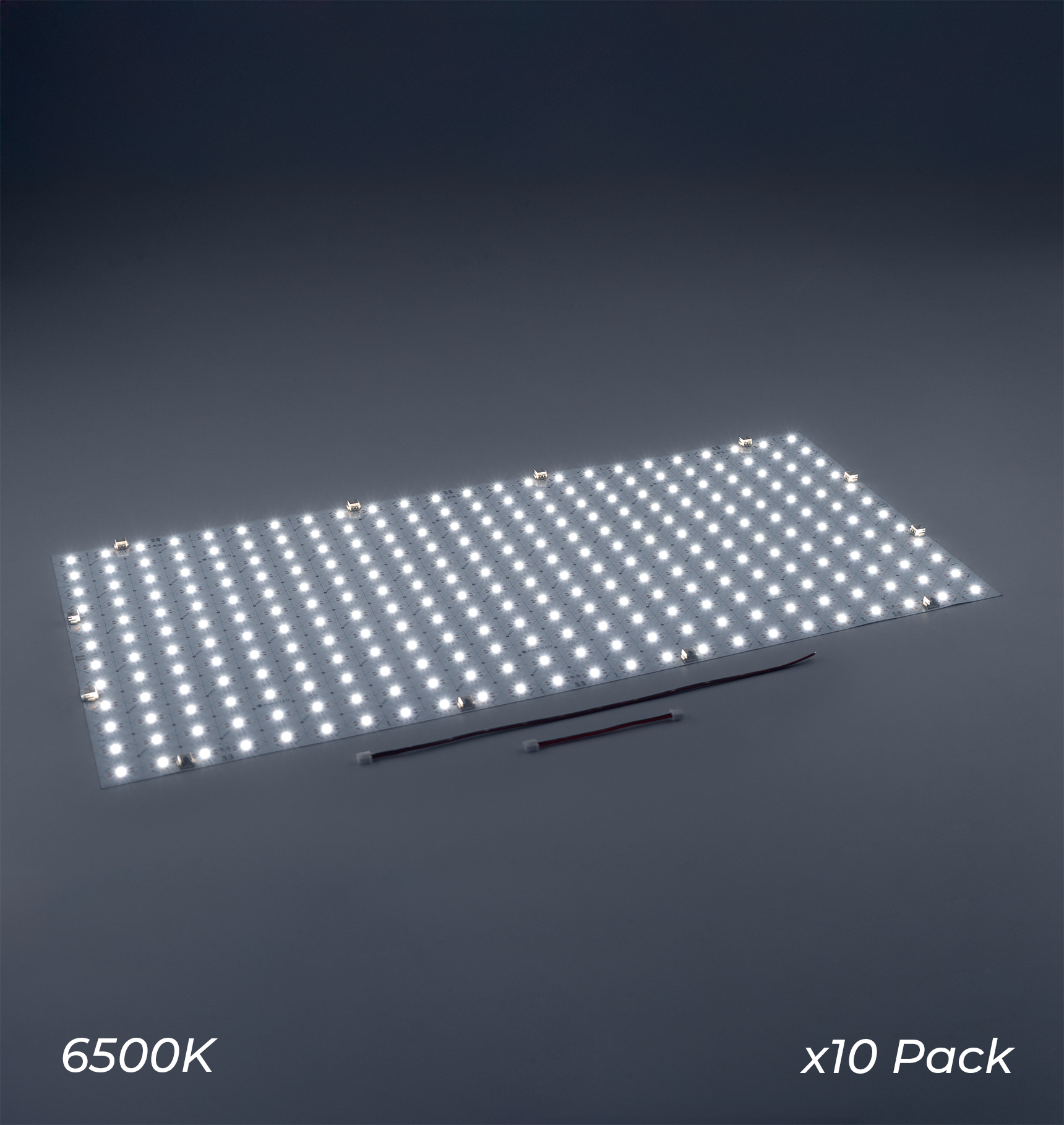

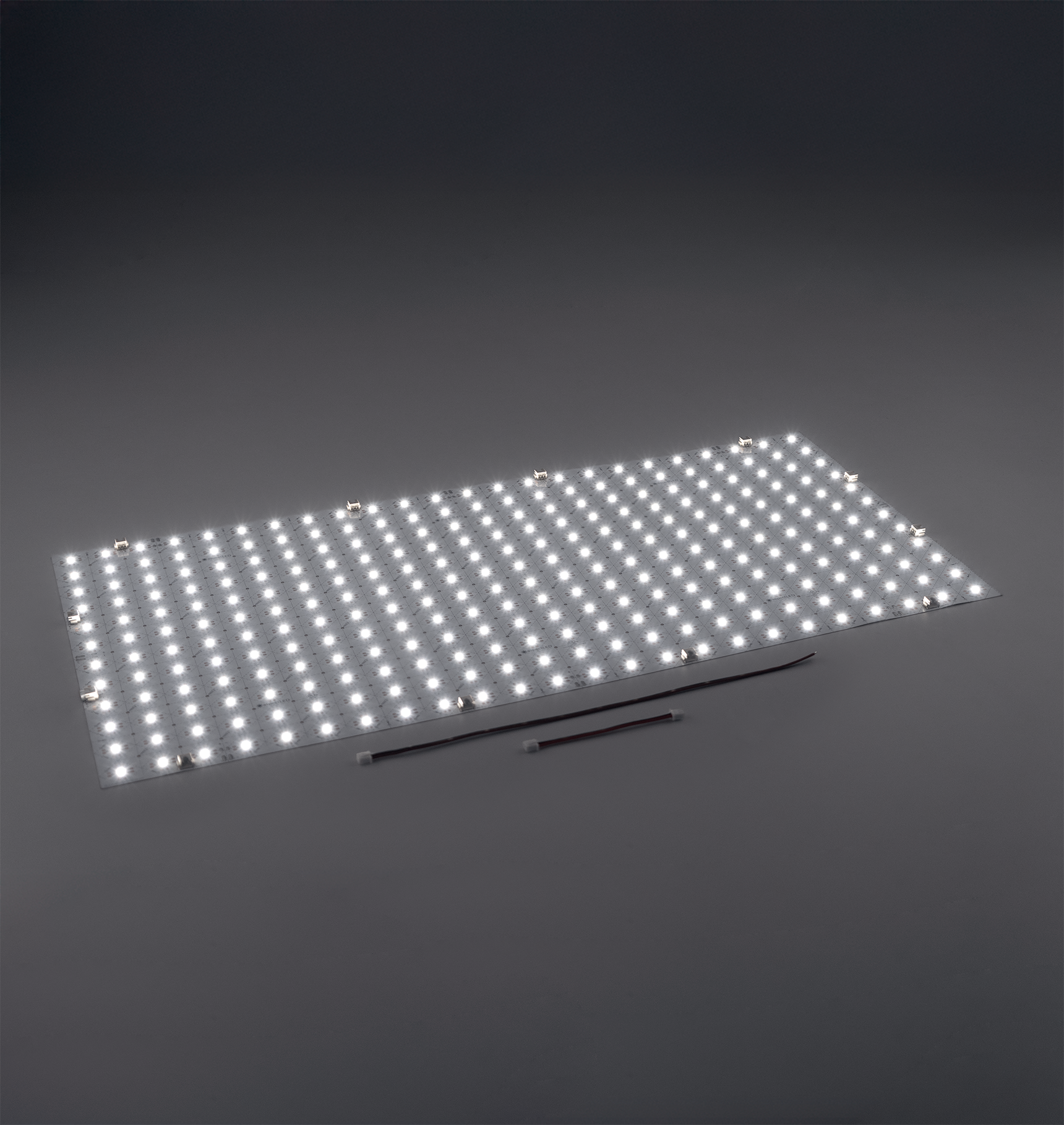

Arc Static White Light Sheets are available in 3000K, 4000K, and 6500K color temperatures. These flexible LED light sheets can be cut in any direction along the marked cut lines, allowing precise customization down to a single diode. Each sheet includes two double-ended connectors and two single-ended connectors for simple linking and installation. Designed for vertical backlighting, these thin, flexible sheets easily bend around corners and curved surfaces, making them ideal for signage and accent wall applications. Up to 23 sheets can be wired in series to reduce wiring runs, streamline installation, and help keep project costs down without overloading the power supply.

Key Features

Link in Series
Easy Connect
Maximum Customization
Cuttable

Specifications

Part #	AL-LS-ARC-24-10W
Physical
Adhesive Backing	Yes
Beam Angle	120°
Cut Length	1" x 1"
Dimensions	24" Long 12" Wide 0.26" Tall
Estimated Lifespan	50,000 Hours
Mounting Method	3M Adhesive Tape
Weight	0.42 lbs
Electrical
Efficacy (lumens per watt)	110 Lumens/Watt
Input Voltage	24VDC
LED Quantity	288 LEDs/sheet
LED Type	SMD 2835
Max Power Consumption	10 watts
Max Run Length	9 sheets (for driver <100W), 23 sheets (for driver >240W)
Photometric
CRI	90+
LED Color Options	3000K, 4000K, 6500K
Max Lumens	Up to 1100 lumens
Overall Coverage	2 ft²
Environmental
IP Rating	IP20
Max Operating Temperature	68°-113°F (20-40°C)
Max Storage Temperatures	140°F
Suitable Uses	Dry Locations Only
Control
Dimmable	Yes
Compatibility
Compatible Connectors	AL-LS-CN-SC-JUMPER-XH AL-LS-CN-SC-PIGTAIL-XH
Standards / Certifications
Standards / Certifications	RoHS CE UL
Warranty	5 years

Features

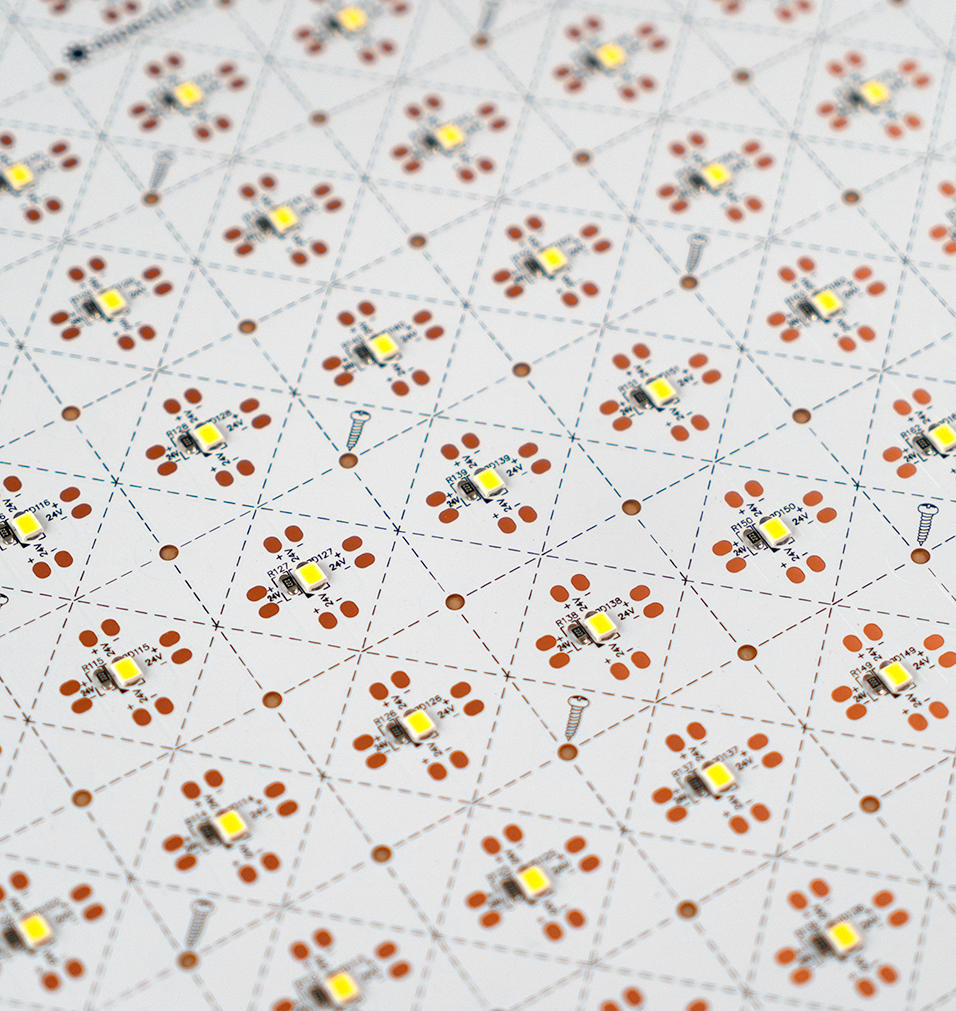

Maximum Customization: 1ftx2ft sheets are cuttable to nearly any shape. Cuttable down to 1 diode (1"x1" squares). Dual direction cut lines allows for last-minute adjustments, design changes, and customization on-site.
Wire/link up to 23 sheets in series (46 square feet), reducing installation time and costs with fewer runs without maxing out your power supply.
Maximum Flexibility: Thin, flexible backing makes it easy to arch around contours and curved surfaces or bend over corners. Backed with 3M adhesive tape for easy mounting and installation.

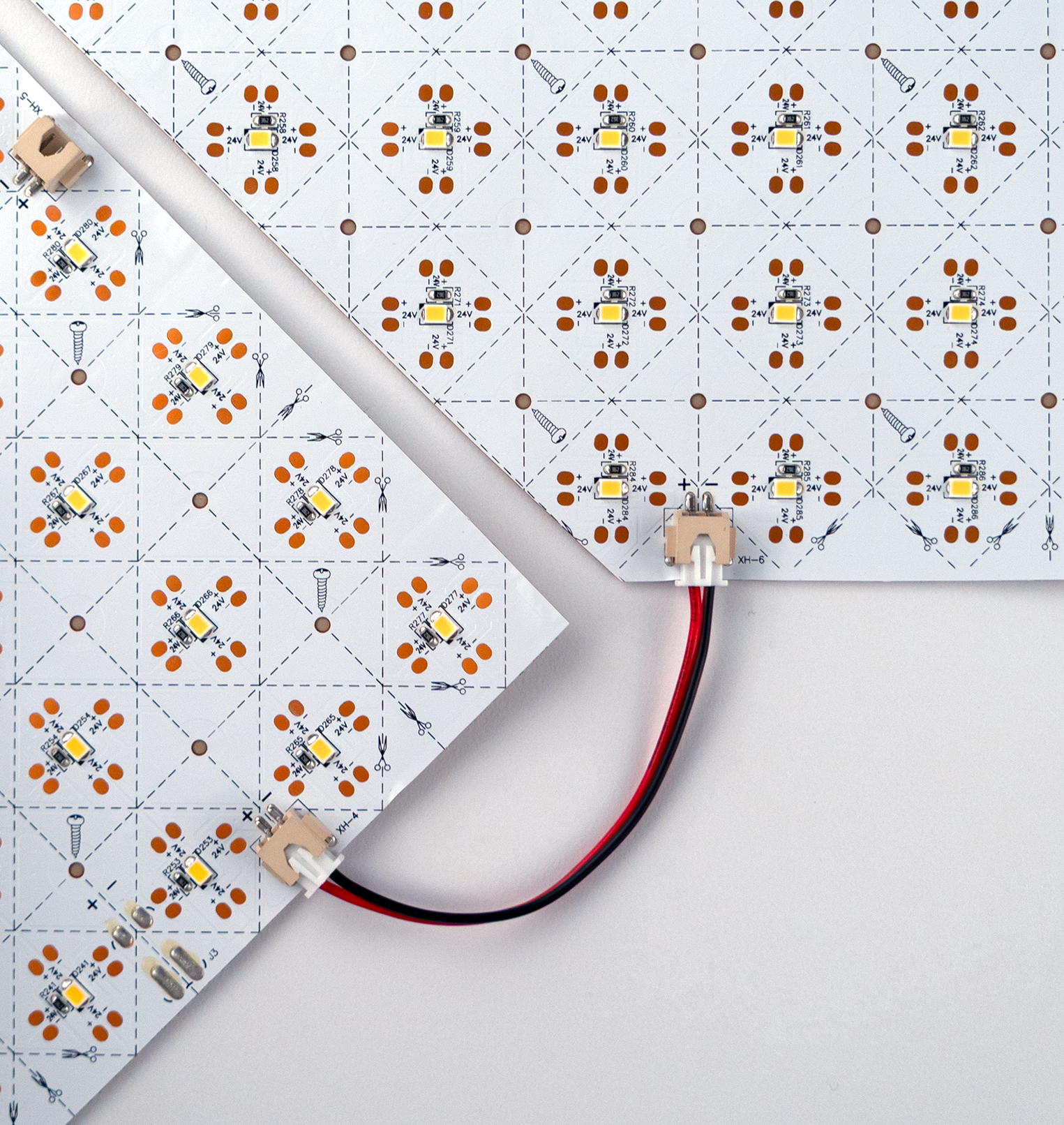

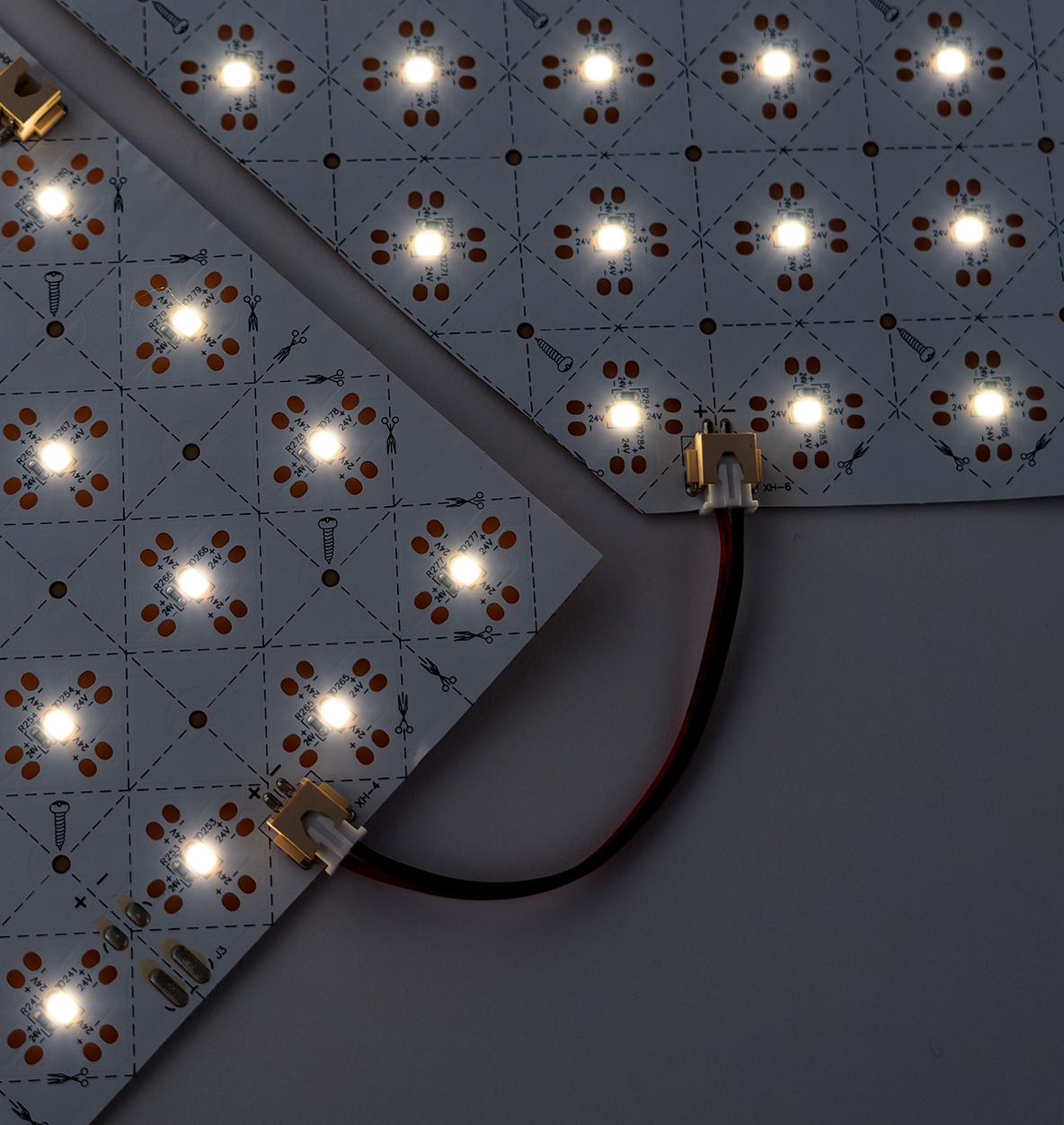

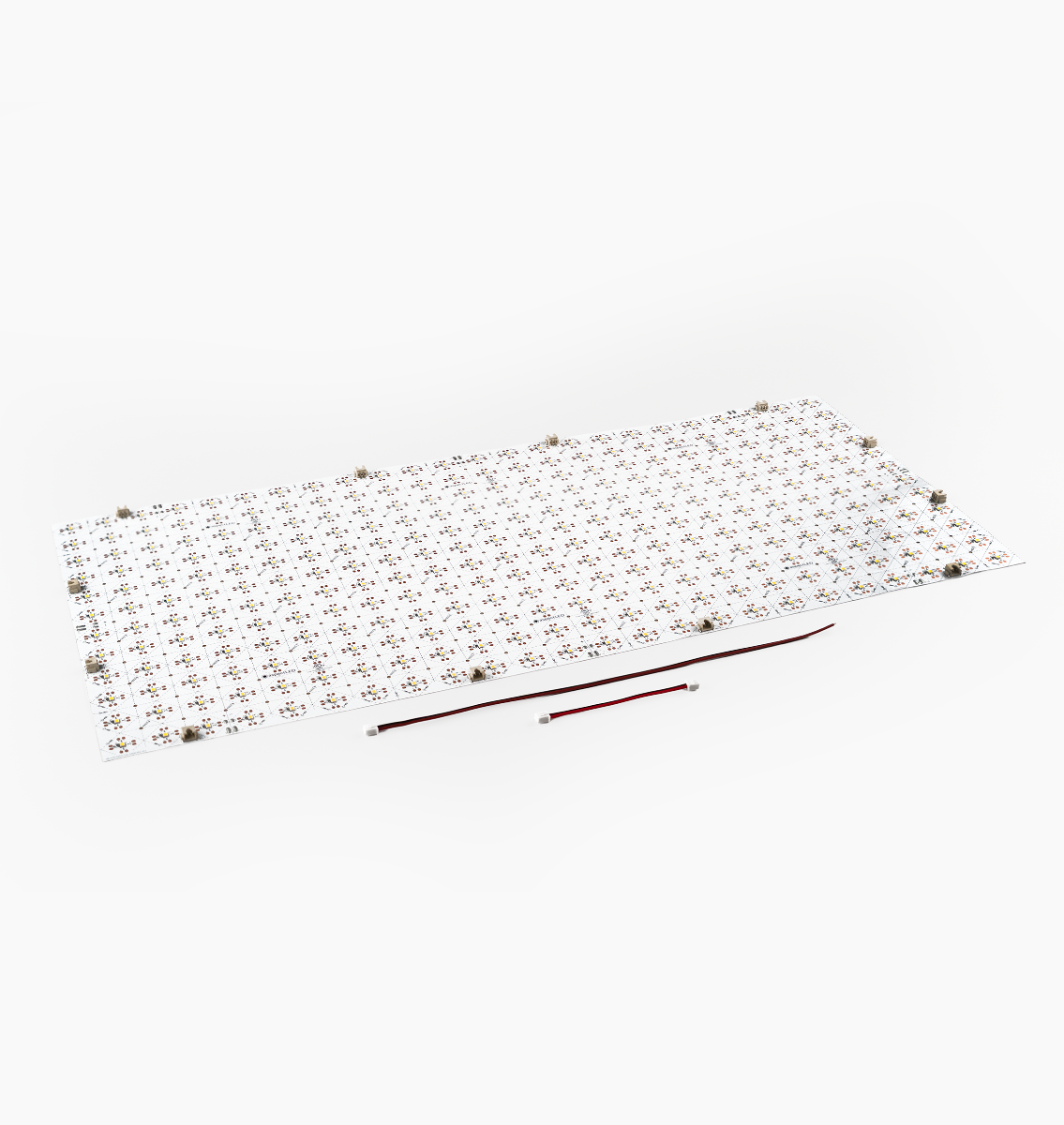

Ready to use accessories: Each light sheet ships with (1) 8” pigtail and (2) 2.75” jumper XH-style plug connectors to link multiple sheets with integrated connection blocks. Need extras? Replacements can be found here.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Backlighting for signage and/or large format graphics
Backlighting for kitchen backsplashes and translucent stone countertops
Backlighting for accent walls, facades, and other architectural features
Commercial/Retail Lighting
Showroom/Tradeshow Displays
Public Art
Hospitality/Commercial Lobbies
Illuminating Stained Glass (museums, art galleries, churches, etc.)
DIY projects
