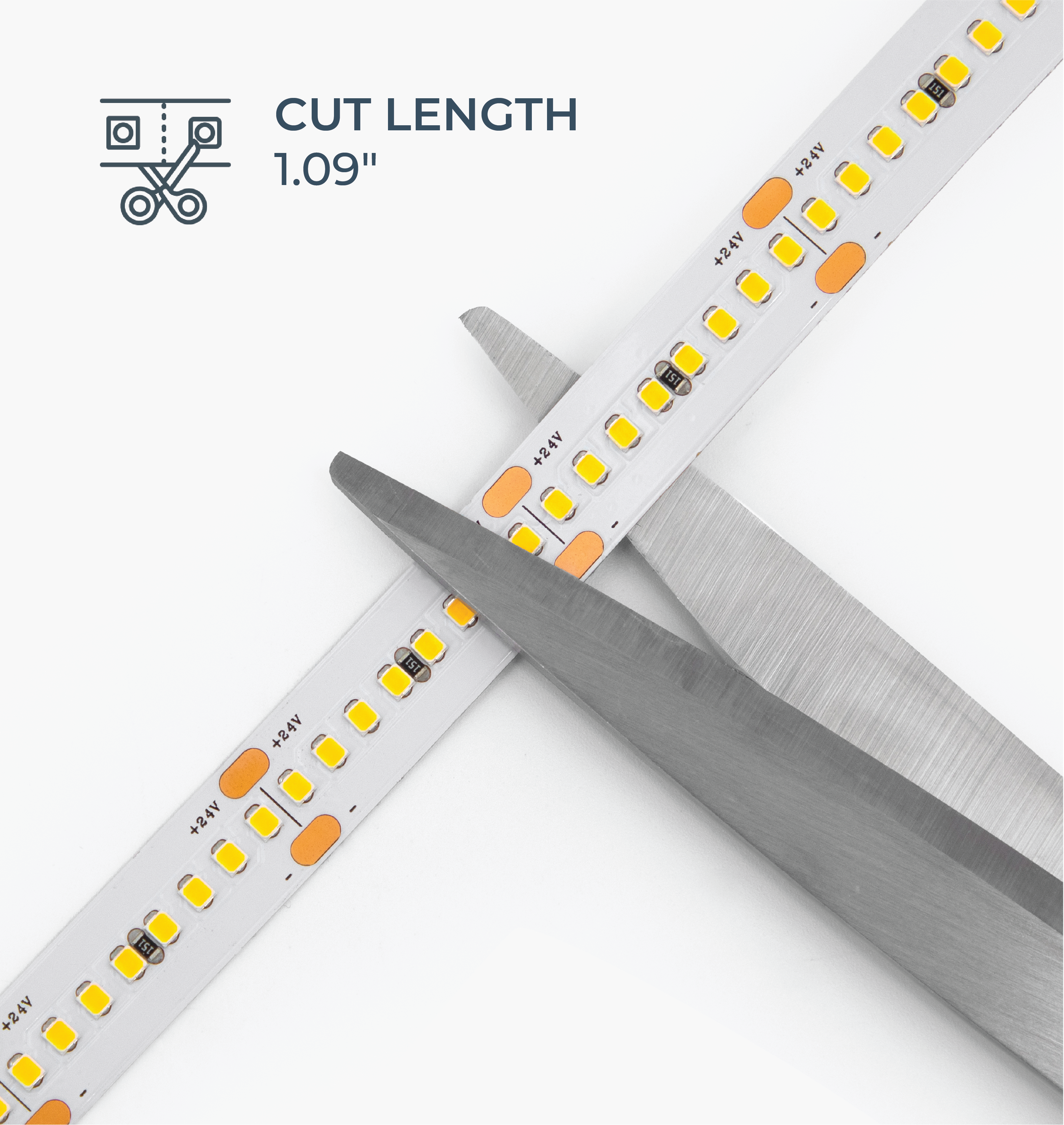

LED strip with cut length measurement and scissors on a white background

Description

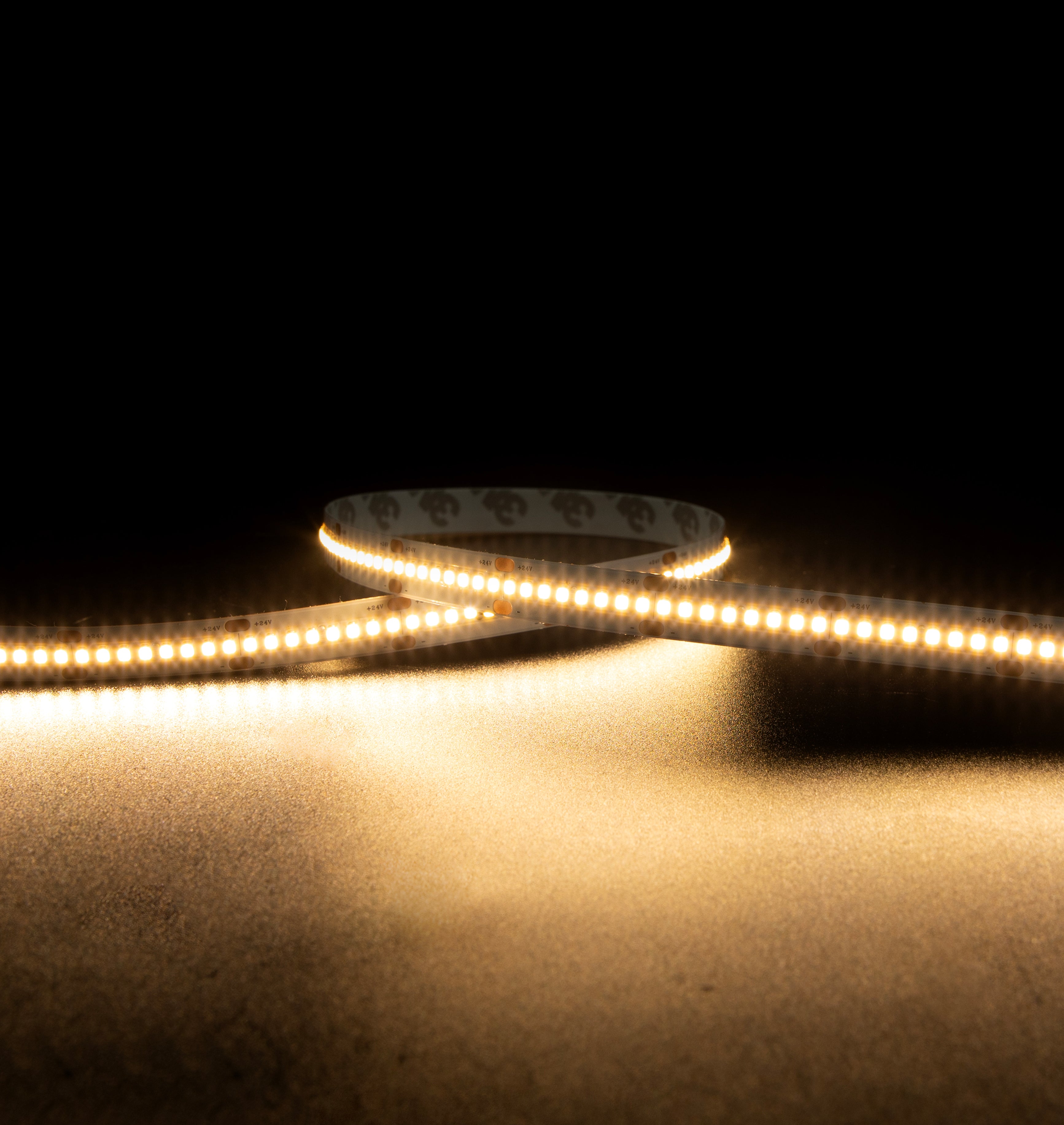

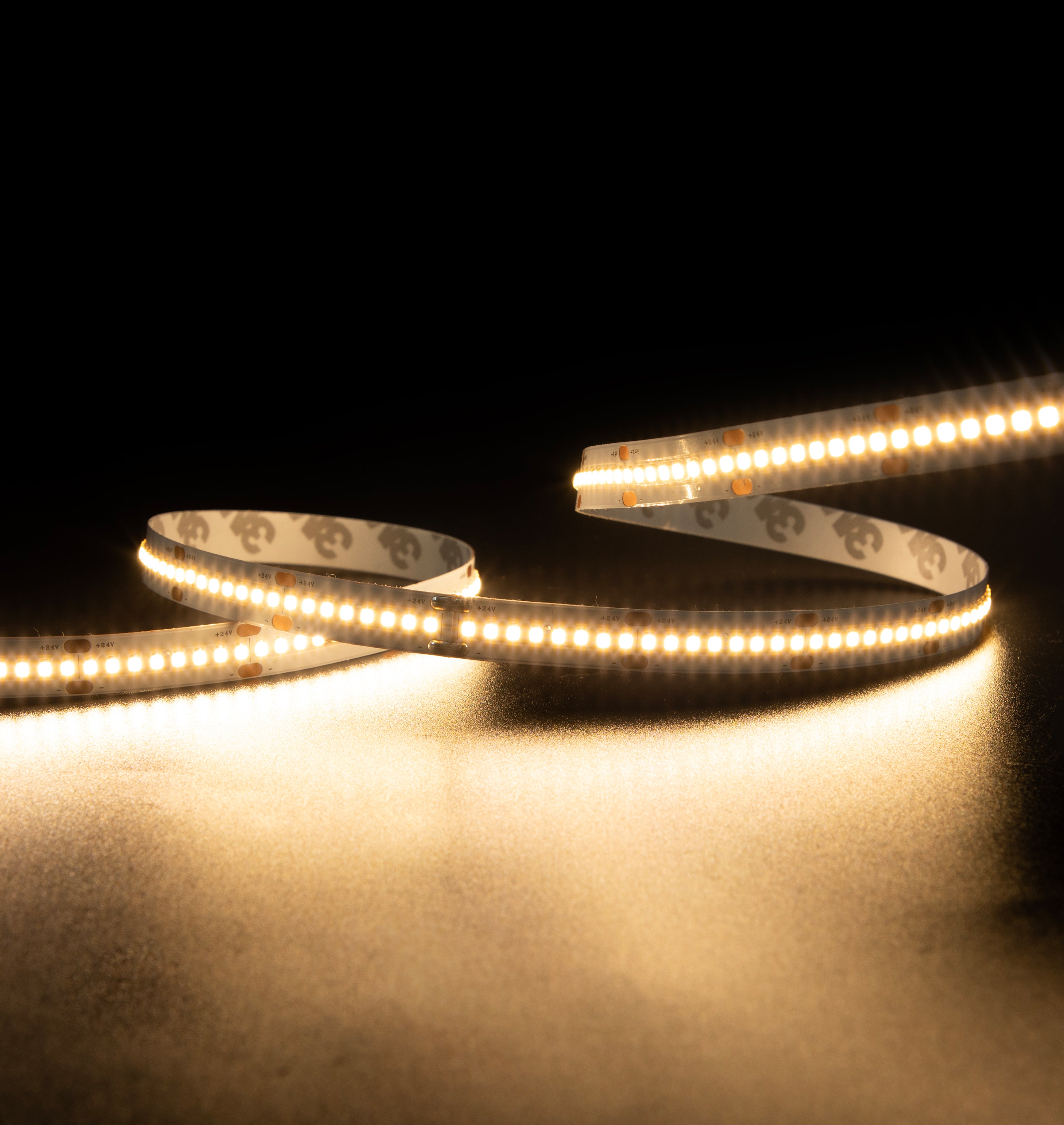

The Architect LED Strip Light Static White is built for projects where precision, output, and flawless illumination are essential. Designed for architectural applications, it delivers exceptional brightness and uniformity to elevate any space. Featuring advanced SMD 2022 high-density LEDs, it creates a smooth, continuous line of light with minimal spotting. With output up to 700 lumens per foot and 165 lumens per watt, it provides powerful, efficient illumination for performance-driven environments. Available in color temperatures from 2700K to 6000K, it provides consistent color matching across projects. Ultra-small 1.09" cut intervals allow for precise layouts with minimal waste, while optimization for shallow aluminum channels ensures clean, professional results in tight spaces.

Key Features

Lumens Per Foot:
Up to 700
CRI 90
165 Lumens/Watt
Cut Length: 1.09"

Specifications

Part #	AL-SL-AR-IP20-24
Physical
Adhesive Backing	Yes
Beam Angle	120
Cut Length	1.09" (27.8mm)

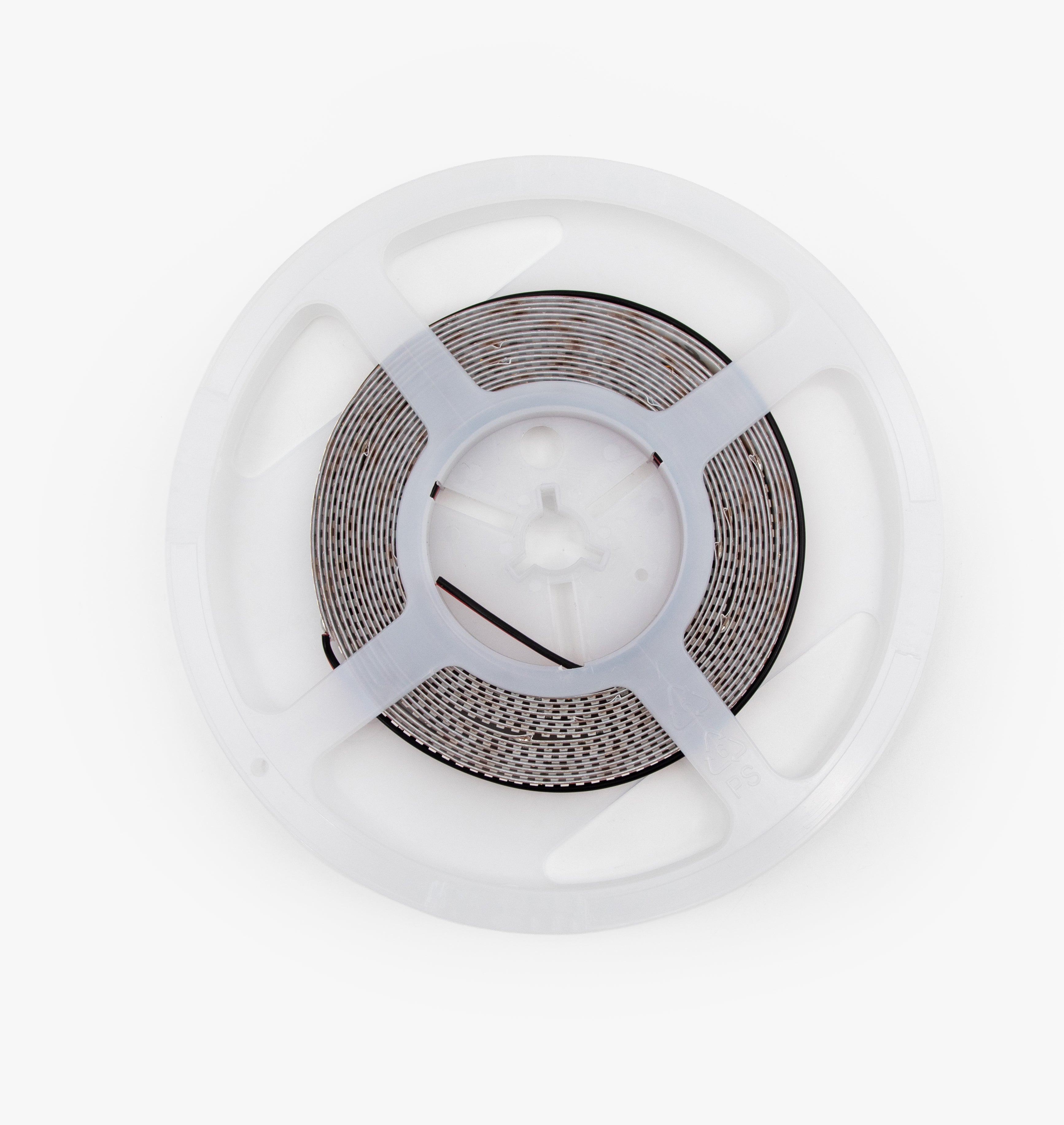

Dimensions	16.4' (5m) 0.393" (10mm) 0.08" (2.1mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Weight	0.4 lb
Electrical
Efficacy (lumens per watt)	Up to 165 Lumens/Watt
Input Voltage	24VDC
LED Quantity	87 LED's/ft (288 LED's/m)
LED Type	2022xk

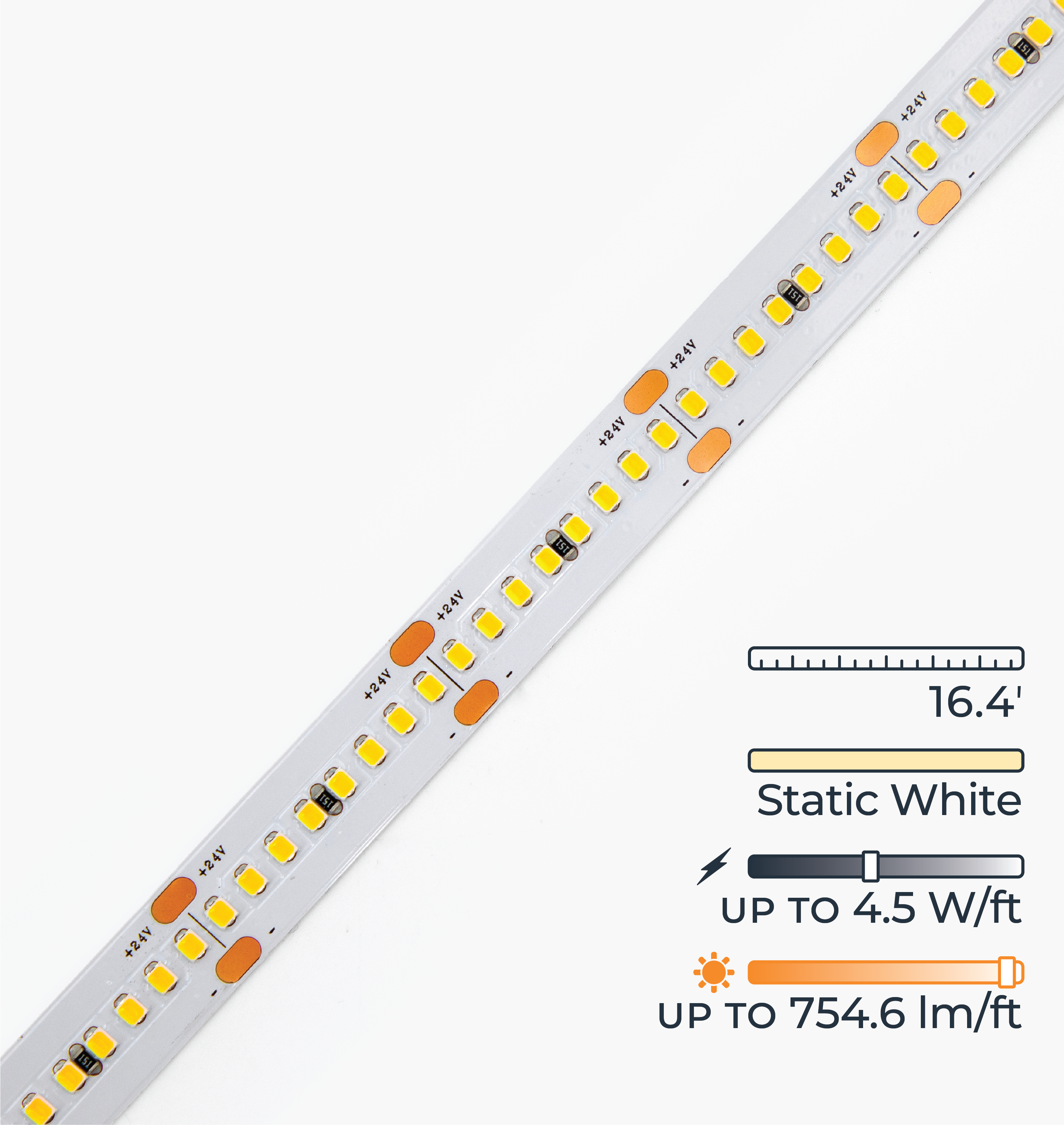

Max Power Consumption	4.5W/ft (15W/m)
Max Run Length	16.4' (5m)
Photometric
CRI	90

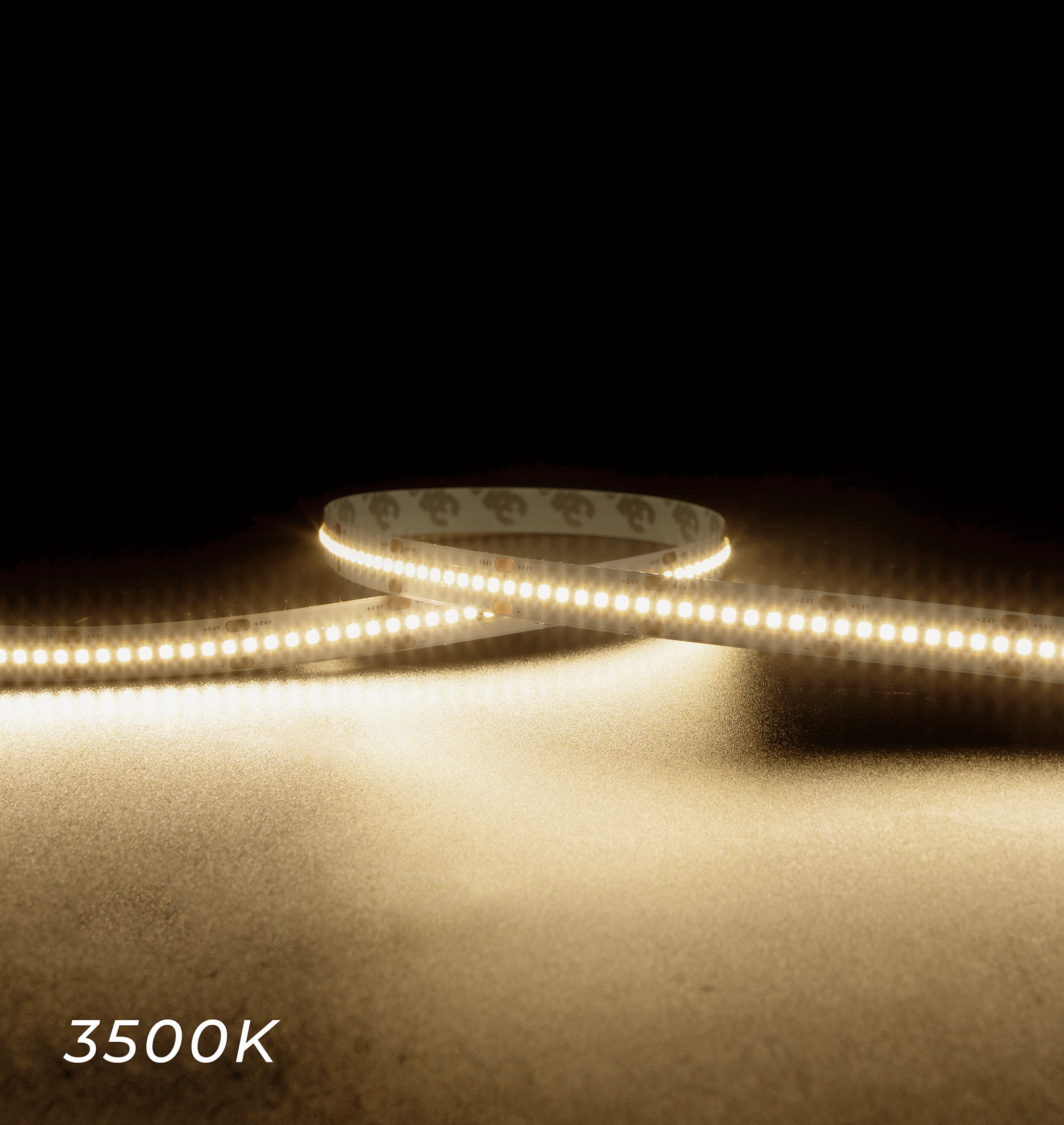

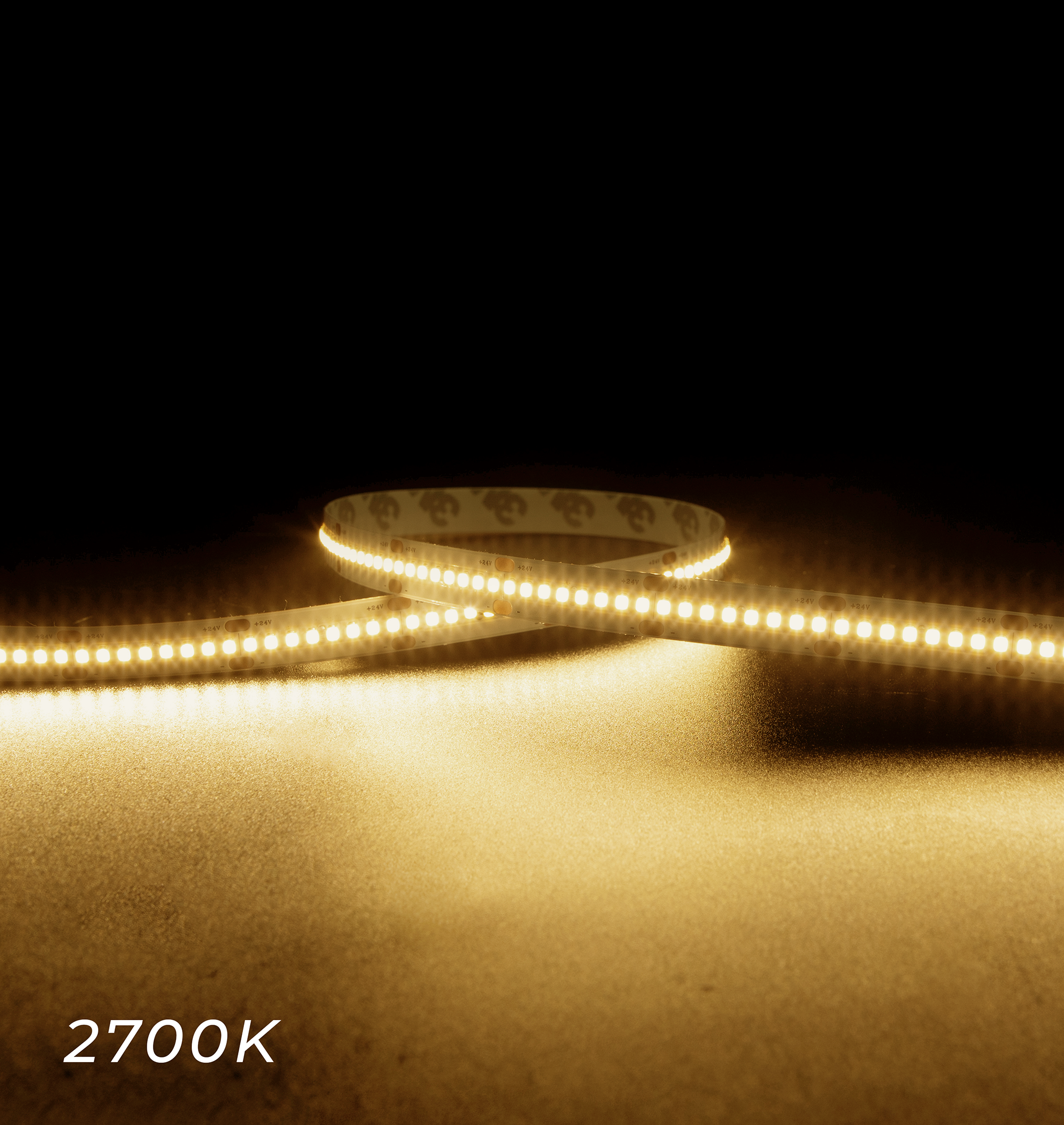

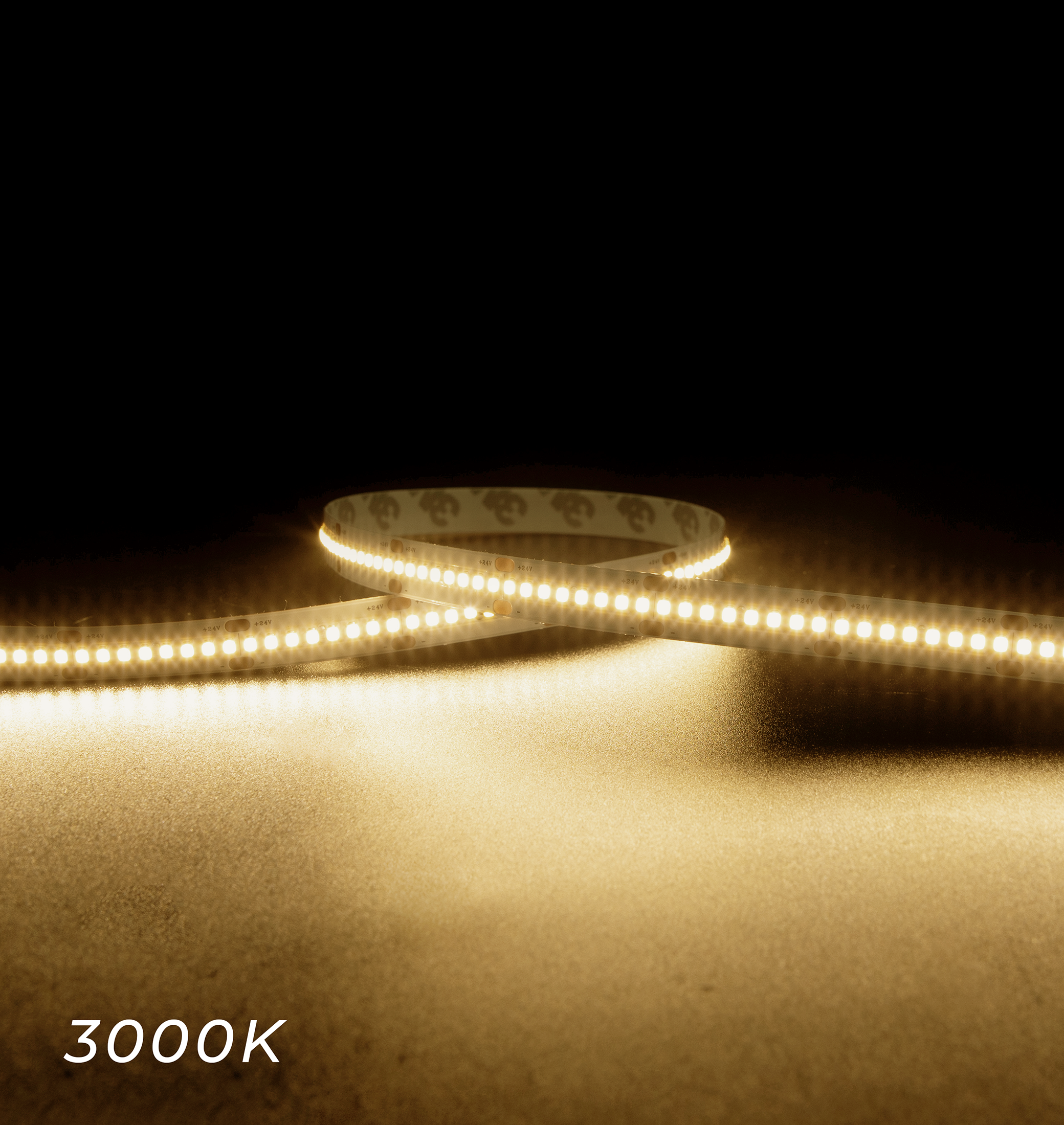

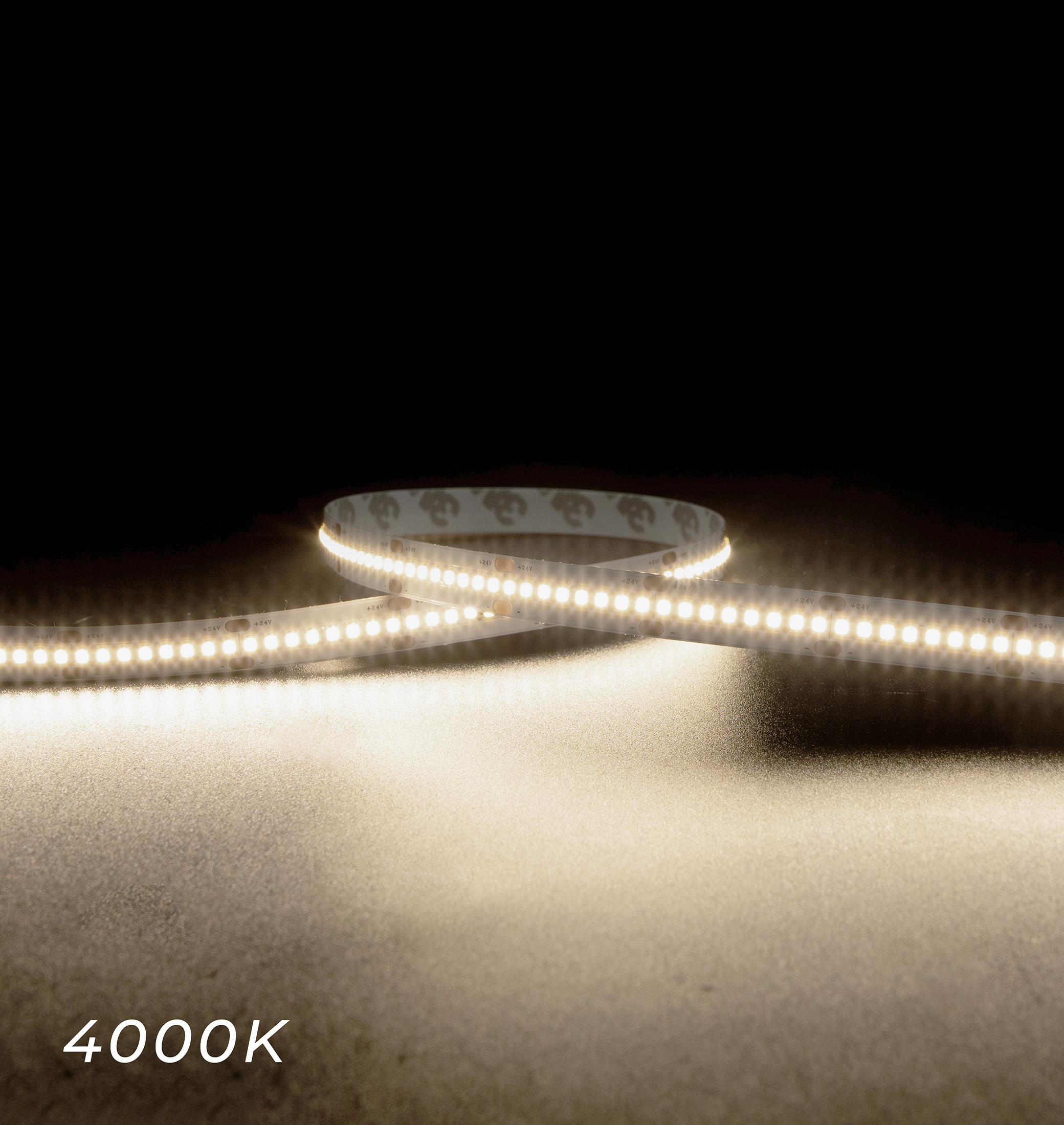

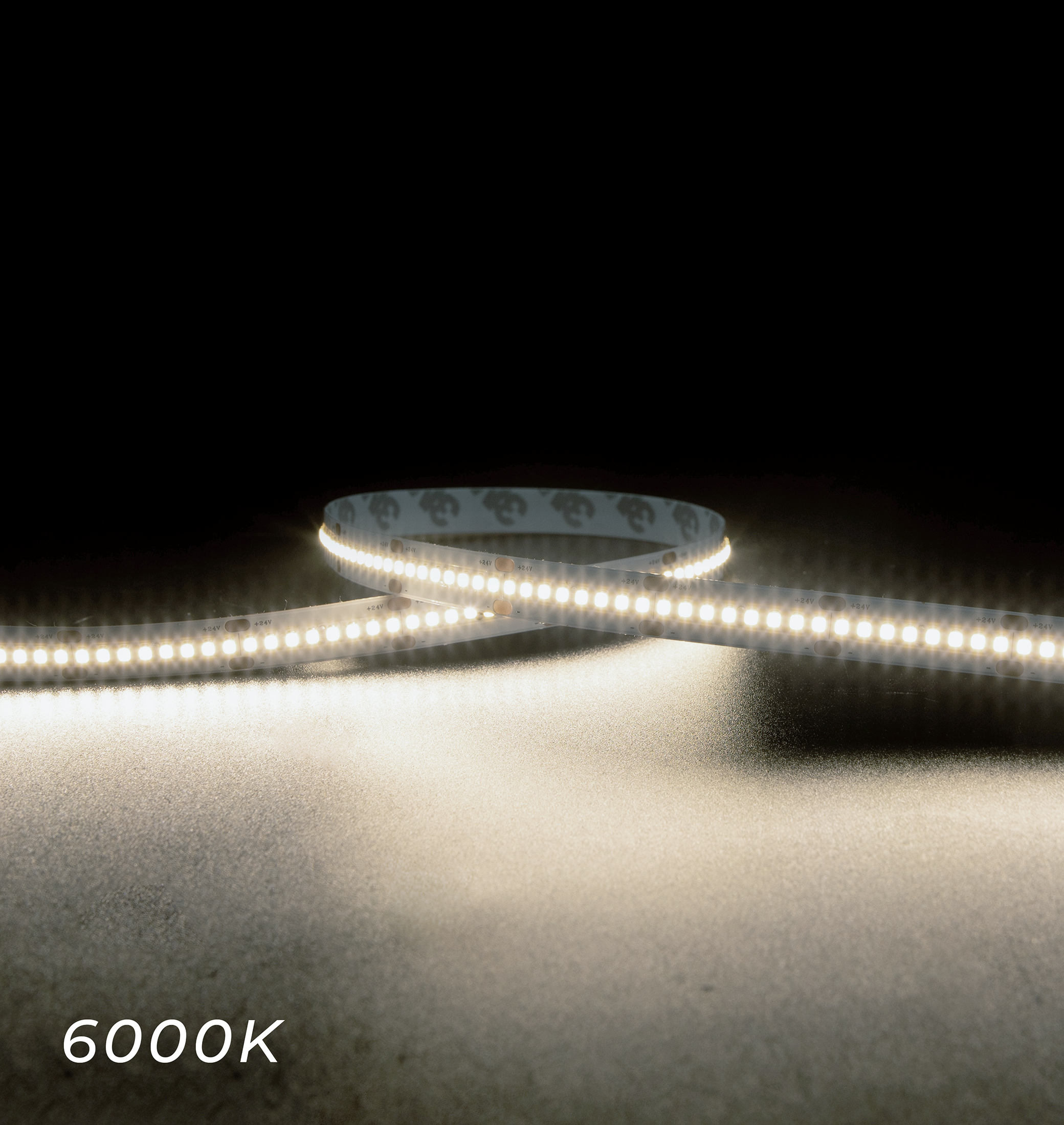

LED Color Options	2700K, 3000K, 3500K, 4000K, 6000K
Max Lumens	Up to 754.57 Lumens/ft (2475 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176°F (-30 - 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes
Compatibility
Compatible Connectors	AL-SL-CN-DLS-SPLICE AL-SL-CN-DLS-PIGTAIL AL-SL-CN-DLS-JUMPER AL-SL-CN-DLS-ANGLESPLICE
Standards / Certifications
Standards / Certifications	CE, UL, RoHS, LM80
Warranty	5 years

Features

High LED Density for Smooth Diffusion: advanced SMD 2022 diodes provide greater density than traditional SMD 2835 strip lights, reducing spots and delivering uniform illumination.
Over 700 Lumens/Ft: our brightest strip lights in the catalog, combining exceptional output with superior energy efficiency at 165 lumens/W to be used in performance driven installations like architectural environments.

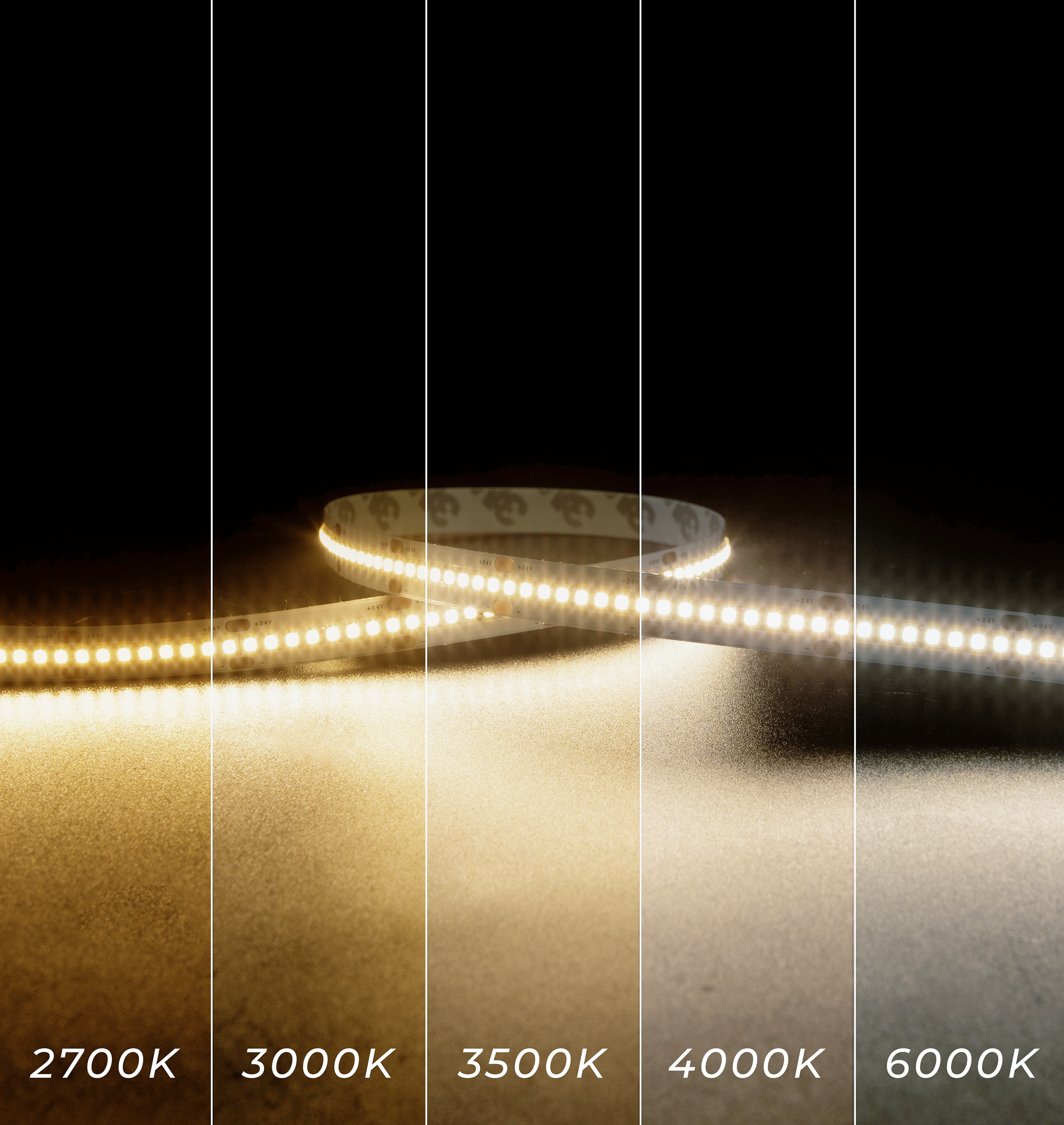

Full color range: Available in 2700K, 3000K, 3500K, 4000K, and 6000K to ensure consistent color matching across residential, commercial, and hospitality projects.
Ultra Small 1.09" Cut Intervals: Precise cut points allow for tighter layout controller and minimal material waste for any project.
Engineered for Shallow Aluminum Channels: optimized for slim-profile extrusions where uniformity and output are critical and required.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Luxury kitchen under-cabinet and toe-kick
Cove and ceiling detail lighting
Closet and display lighting
Integrated millwork and custom fabrication
Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications

Technical Documents

Tech Drawing

Cut Sheet

Photometric Report

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Architect Series Strip Light

SKU: AL-SL-AR-IP20-24-27K

$135.89

$135.89 ~~$135.89~~

In-Stock (97) - Ships Same or Next Business Day

LED Light Color: 2700K

This product requires a power supply.
Calculate your power supply
