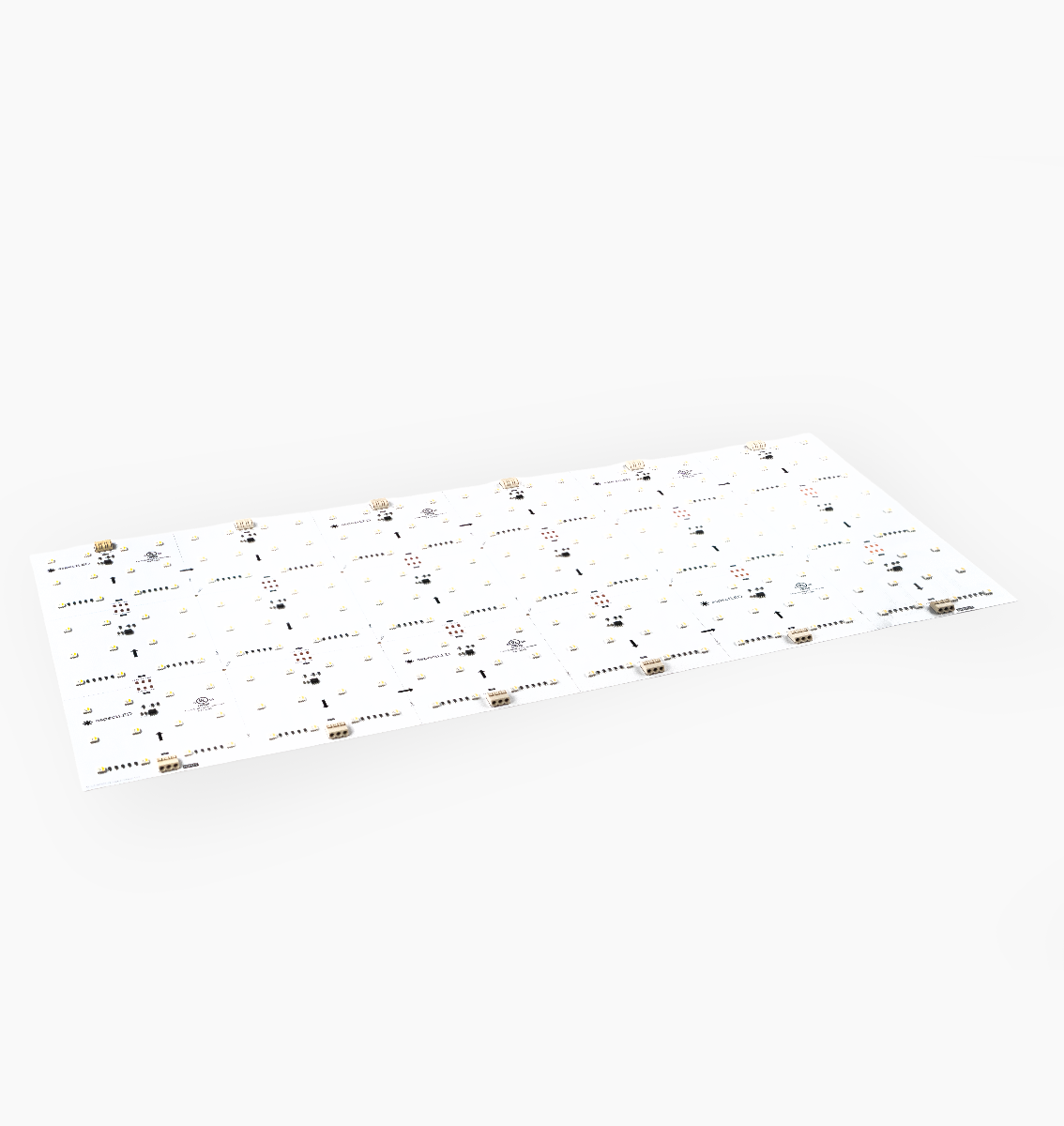

Borealis SPI Addressable Light Sheet – Color Changing RGBW

Description

The Borealis SPI Addressable Light Sheet delivers vibrant RGB color with smooth, fluid transitions across scenes and automations, all controlled through the Casambi app when paired with an SPI Casambi controller. This wireless system allows for easy grouping, advanced scene creation, and precise lighting control. Its thin, flexible design makes it well suited for vertical backlighting applications like accent walls and backsplashes. With segment-based LED addressing, Borealis enables intricate effects and highly customized lighting designs. The light sheets are cuttable and include plug-and-play connectors and a 3M adhesive backing for fast, simple installation. Customize the sheets into nearly any shape without the need for soldering.

Key Features

SPI Addressable
Dynamic Colors
Maximum Customization
Easy Connect

Dimensions

24" long | 12" wide | 0.26" tall

Specifications

Part #	AL-LS-SPSPI-24-35W-RGBW
Physical
Adhesive Backing	Yes
Beam Angle	120°
Cut Length	4" X 4"
Dimensions	24" 12" 0.26"
Estimated Lifespan	50,000 Hours
Mounting Method	3M Adhesive Tape
Weight	0.5 lbs
Electrical
Efficacy (lumens per watt)	65.3 Lumens/Watt
Input Voltage	24VDC
LED Quantity	216 LEDs/sheet
LED Type	SMD5050
Max Power Consumption	32 watts
Max Run Length	3 sheets (for driver <100W), 7 sheets (for driver >240W)
Photometric
CRI	80+

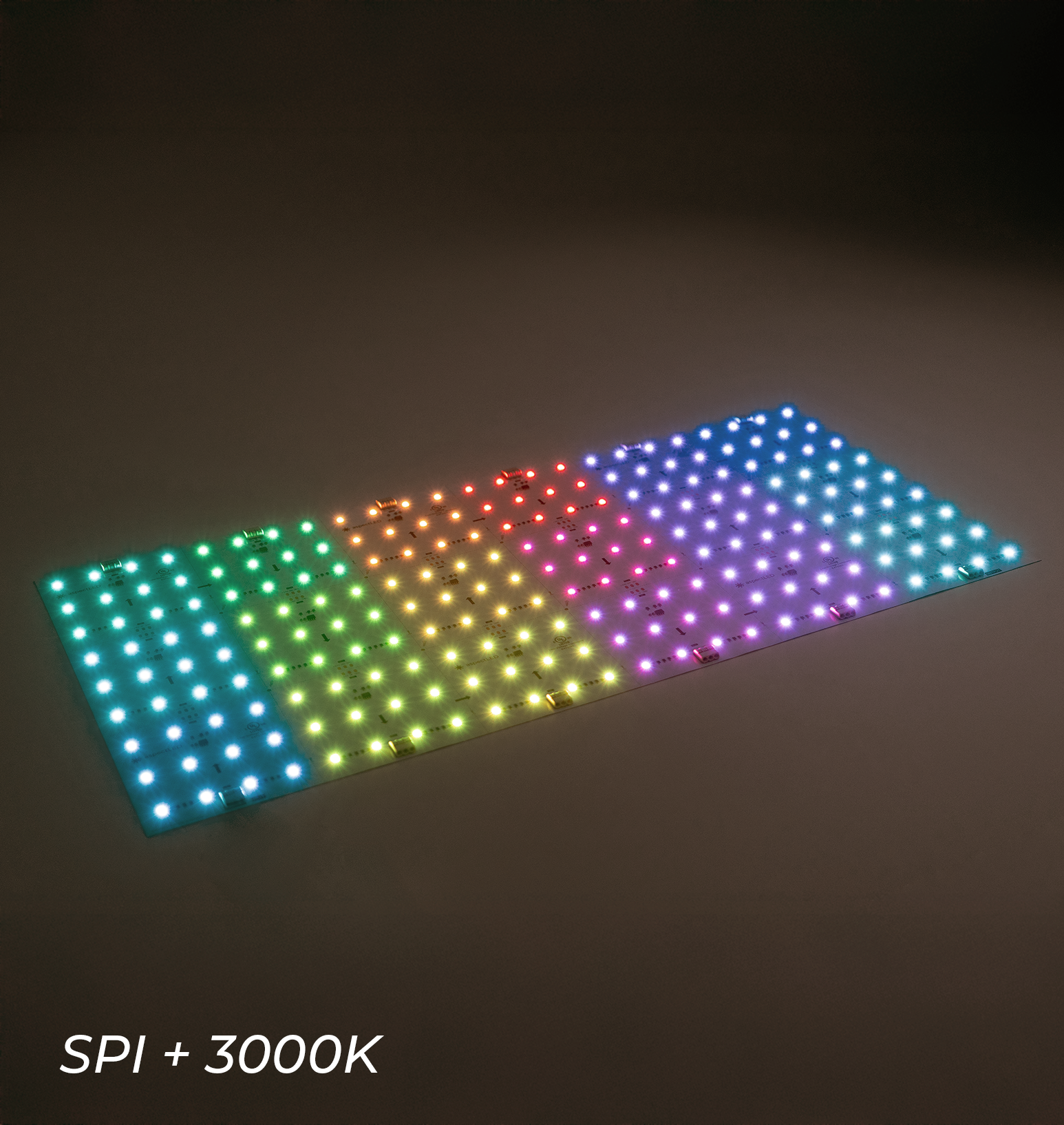

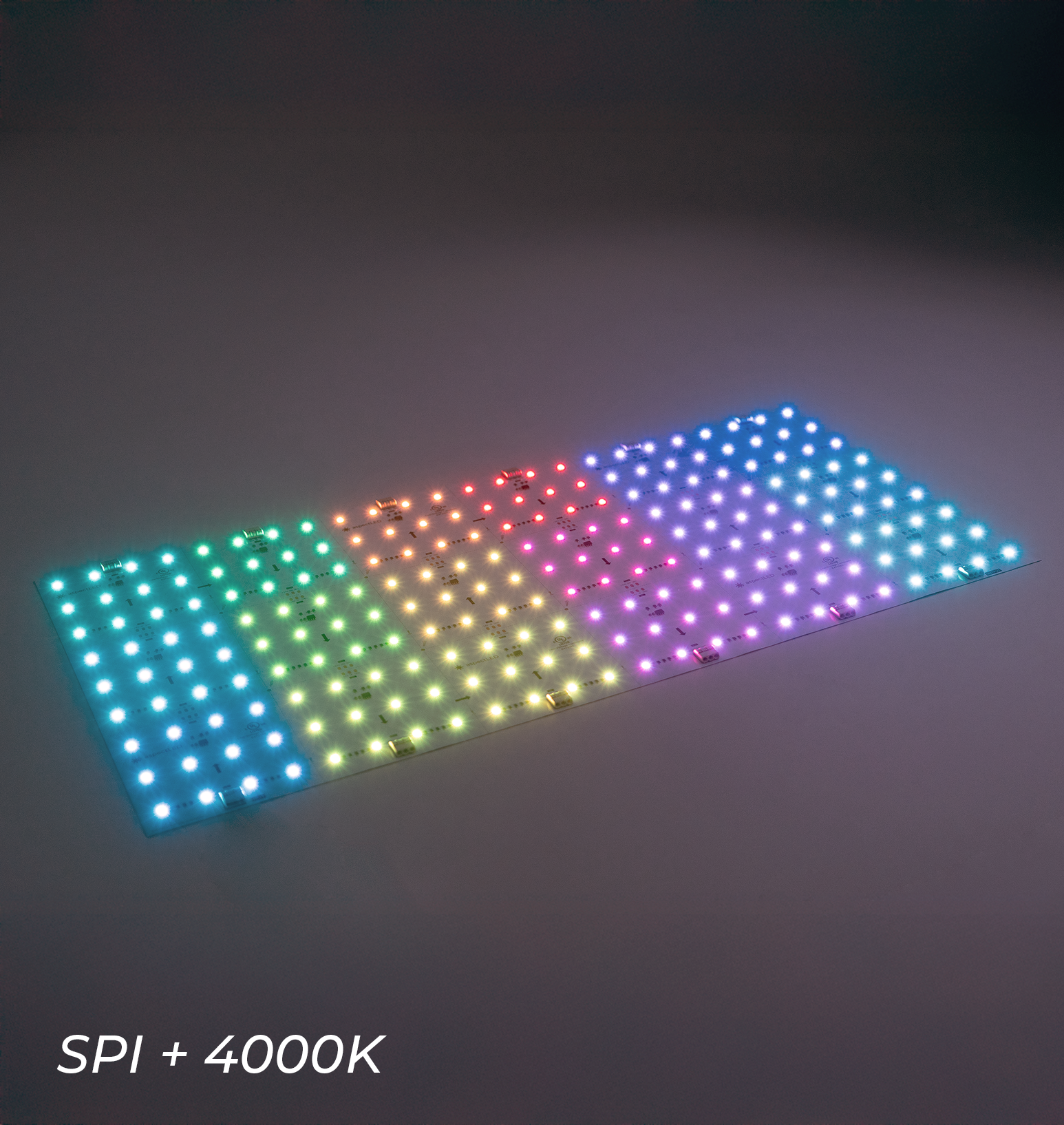

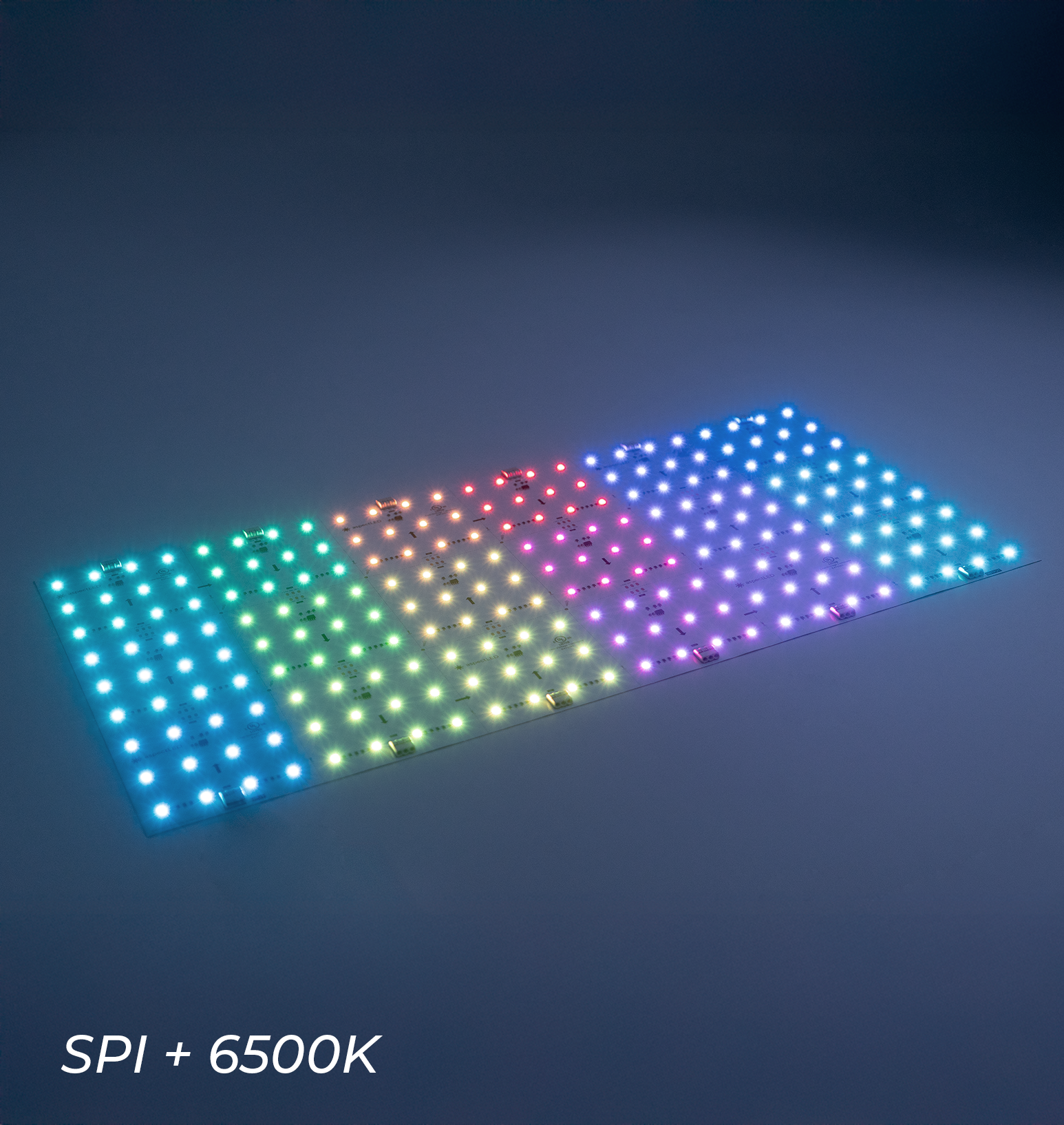

LED Color Options	RGB+3000K, RGB+4000K, RGB+6500K
Max Lumens	2090 lumens
Overall Coverage	2 ft²
RGB Wavelength Ranges	625〰630 520〰525 460〰470
Environmental
IP Rating	IP20
Max Operating Temperature	68°-113°F (20-40°C)
Max Storage Temperatures	140°F
Suitable Uses	Dry Locations Only
Control
Dimmable	Yes
Compatibility
Compatible Connectors	AL-LS-CN-RGBWSPI-JUMPER-WG AL-LS-CN-RGBWSPI-PIGTAIL-WG
Standards / Certifications
Standards / Certifications	RoHS CE UL
Warranty	3 years

Features

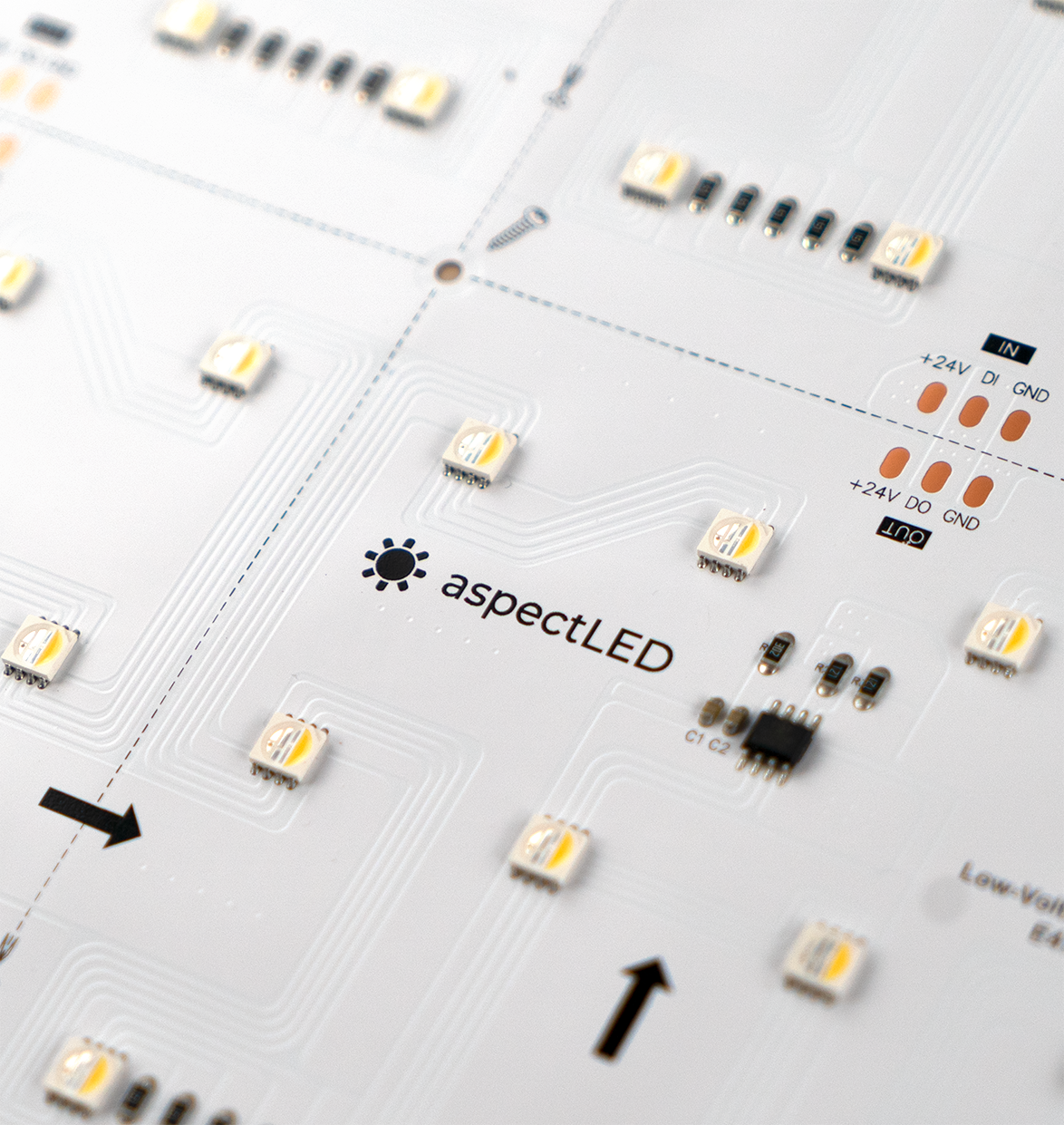

Individually Addressable Cut Lengths: Each diode can be controlled independently via Casambi SPI Controller, enabling advanced effects like color chases and gradients.

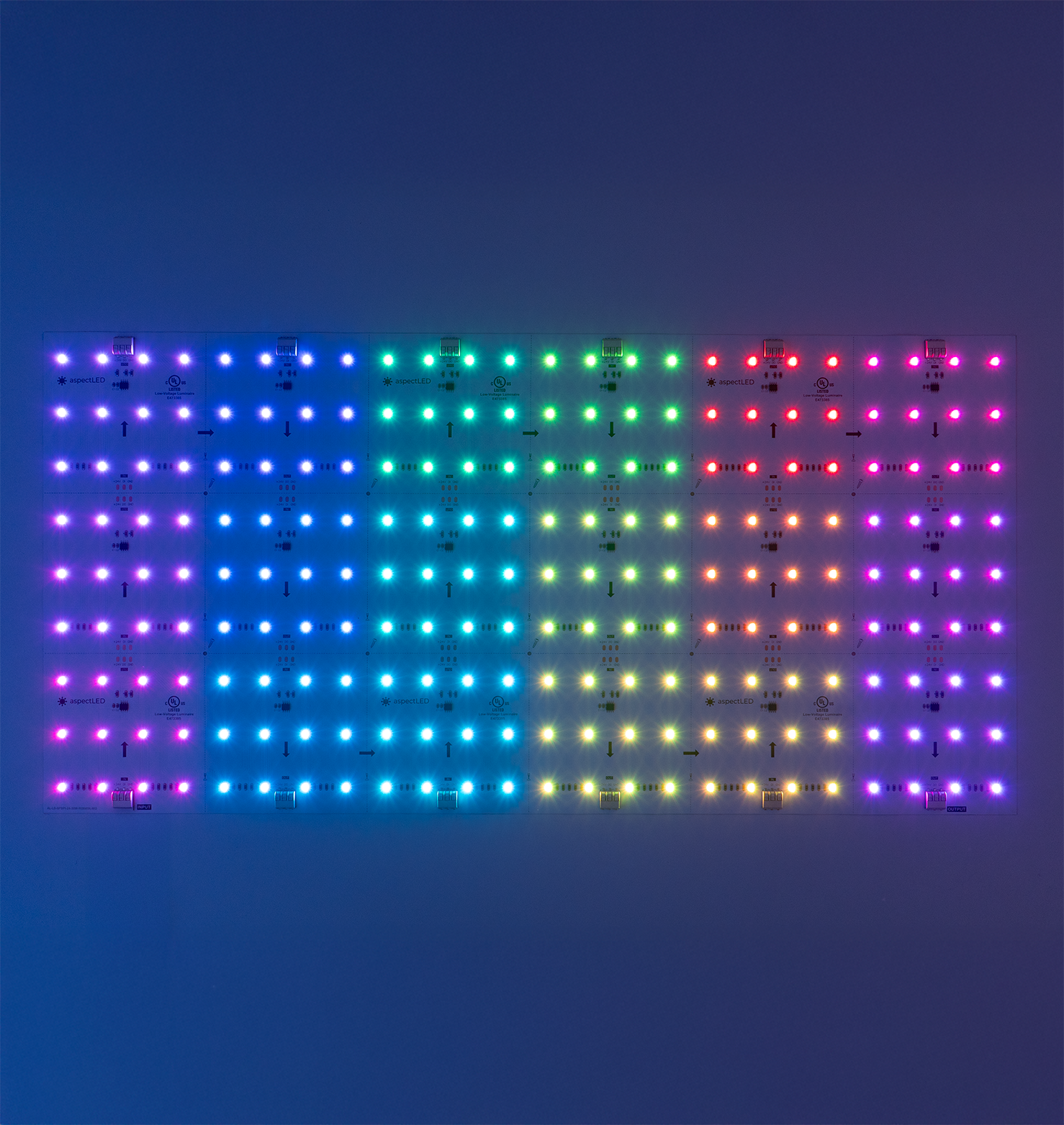

Dynamic Color: Experience flawless, consistent illumination from start to finish with vibrant, full RGBW color-changing capability.
Maximum Customization: Cuttable to nearly any shape. Cuttable down to 4x4" (one diode) squares. Dual direction cut lines allows for last-minute adjustments, design changes, and customization on-site.

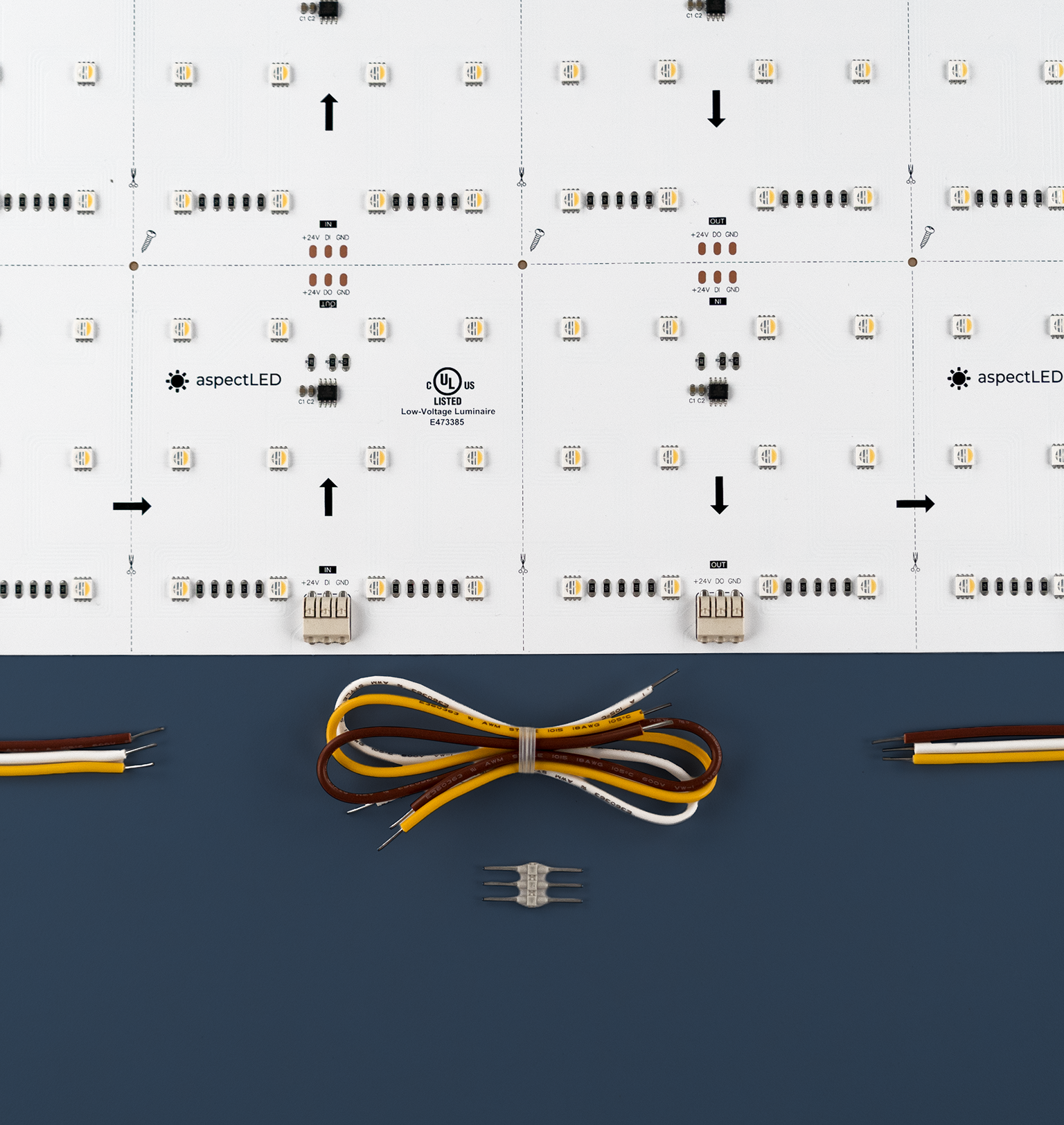

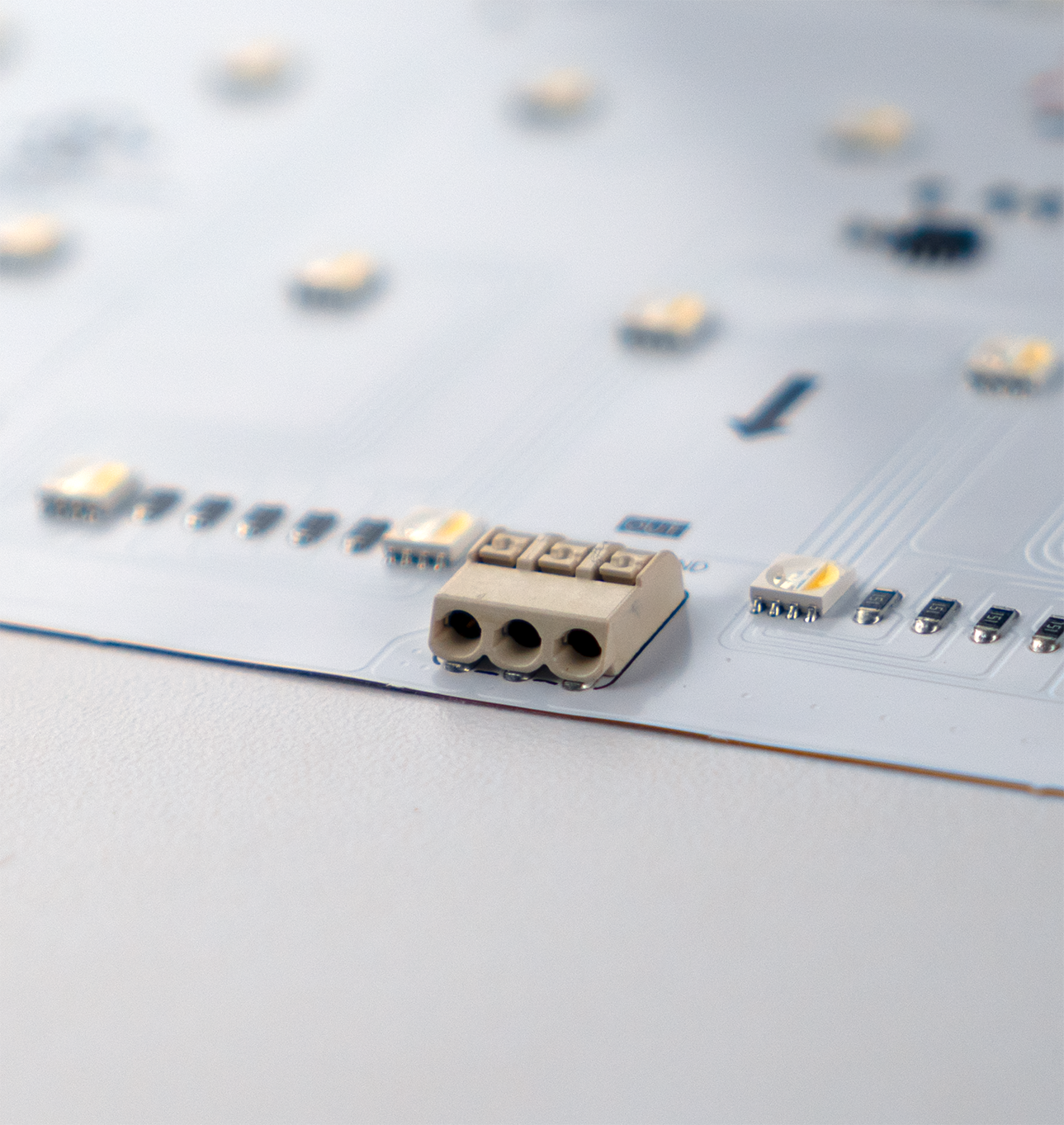

Ready to use accessories: Each light sheet ships with (1) 8” pigtail and (1) 2.75” jumper and (1) splice extension wires to link multiple sheets with integrated connection blocks. Need extras? Replacements can be found here (link).
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Backlighting for signage and/or large format graphics
Backlighting for kitchen backsplashes and translucent stone countertops
Backlighting for accent walls, facades, and other architectural features
Commercial/Retail Lighting
Showroom/Tradeshow Displays
Public Art
Hospitality/Commercial Lobbies
Illuminating Stained Glass (museums, art galleries, churches, etc.)
DIY projects

Technical Documents

View Installation Guide

View Cut Sheet

View Technical Drawing

Download IES File

View Photometric Report

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Borealis SPI Addressable Light Sheet – Color Changing RGBW

SKU: AL-LS-SPSPI-24-35W-RGB3K-WG

$199.89

In-Stock (179) - Ships Same or Next Business Day

LED Light Color: RGB+3000K
