Casambi Wireless DMX Controller, 1 Universe

Description

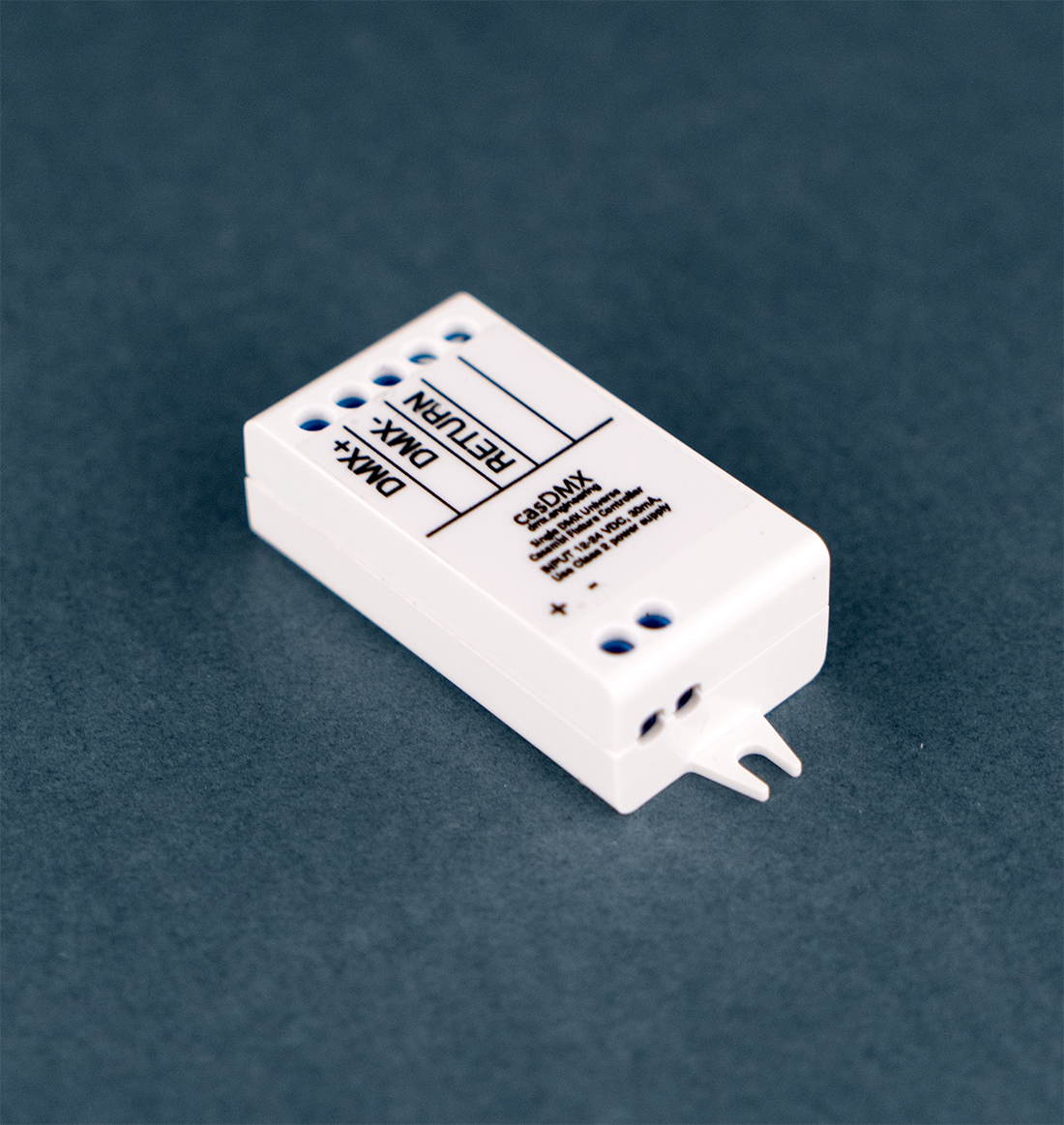

This Casambi-enabled DMX controller makes it easy to wirelessly connect DMX-512 lighting fixtures to a Casambi network. Designed for full-color and tunable white applications, this product offers control of up to 12 DMX channels via Casambi sliders in the App’s Evolution Mode.

Powered by a 12VDC or 24VDC Class 2 power supply, the controller transmits a single DMX universe via Bluetooth and features a built-in long-range mesh radio module. With selectable Casambi profiles, users can easily configure the controller for 4, 8, or 12 channel operation, making it a flexible choice for lighting control.

Simplify your lighting controls and improve the end-user experience immediately with this DMX controller from Casambi.

Key Features

DMX
Space Saving
Wireless
Mesh Network

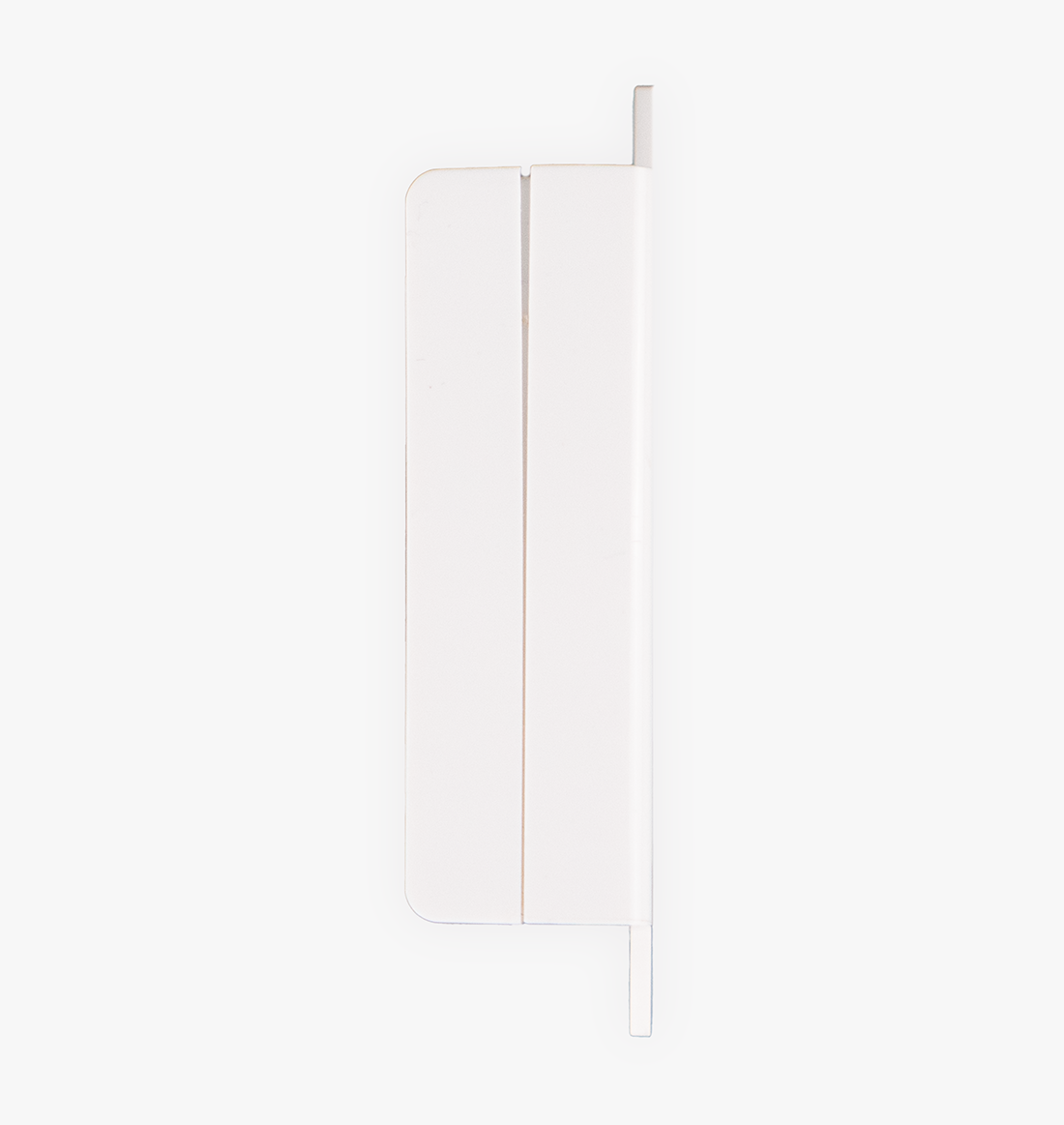

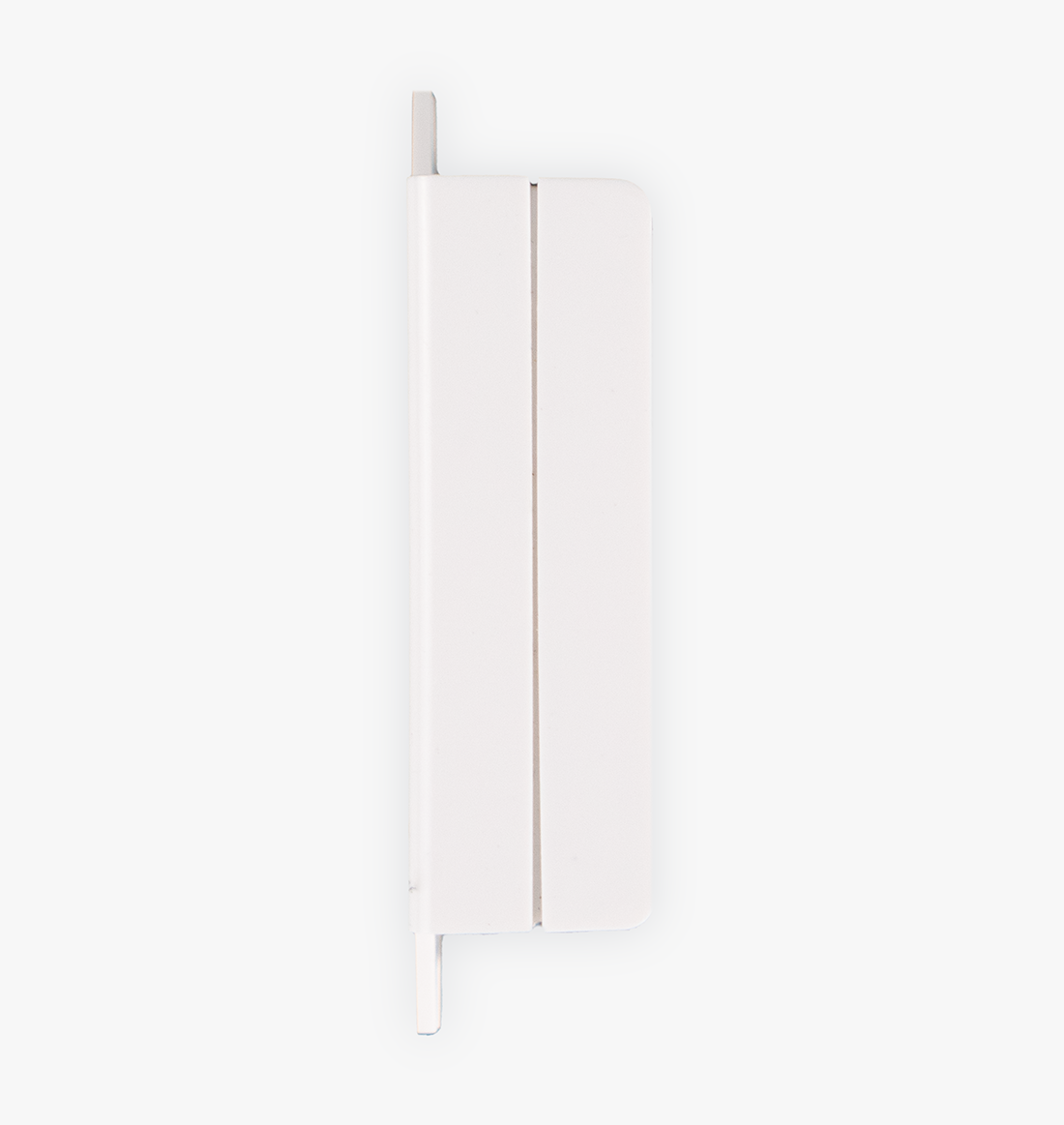

Dimensions

2.20" Tall (56mm) | 1.20" Wide (30mm) | 0.70" Deep (18mm)

Specifications

Part #	AL-CTLR-CAS-DMX
Physical
Dimensions	2.20" Tall (56mm) 1.20" Wide (30mm) 0.70" Deep (18mm)
Finish Options	White
Mounting Method	Mounting tabs
Weight	0.81 oz (23g)
Electrical
Input Voltage	12VDC or 24VDC
Max Output Current	30mA
Output Signal	Bluetooth, DMX 512 (single universe)
Wire Connections	14–22 AWG Solid or Stranded
Environmental
IP Rating	IP20
Max Operating Temperature	-25°C to 45°C (-13°F to 113°F)
Suitable Uses	Dry Locations Only (Indoor Only)
Control
Dimmable	Yes (via Casambi app)
Standards / Certifications

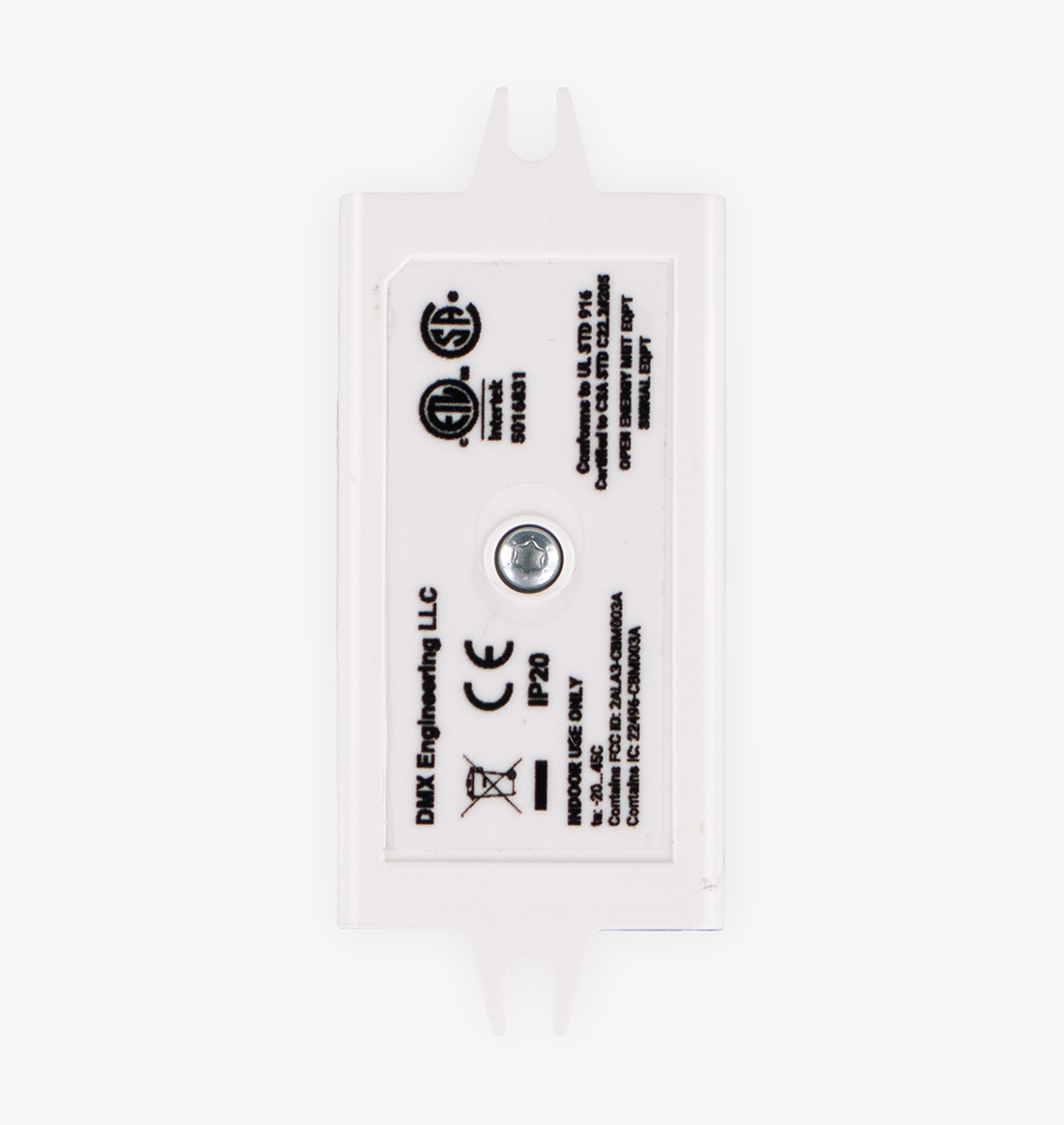

Standards / Certifications	ETL Listed CSA CE
Warranty	1 Year

Features

Casambi Wireless Control: Seamlessly integrate DMX lighting into your Casambi mesh networks utilizing Bluetooth.
Flexible Channel Modes: Supports 4, 8, or 12 DMX channels using standard Casambi or Evolution mode slider controls.
Compact, Low-Power Design: Operates from a 12–24VDC Class 2 supply with just 30 mA no-load current draw.
Ideal for RGBW & Tunable White: Supports Casambi’s color picker and multi-slider widgets for dynamic lighting effects.

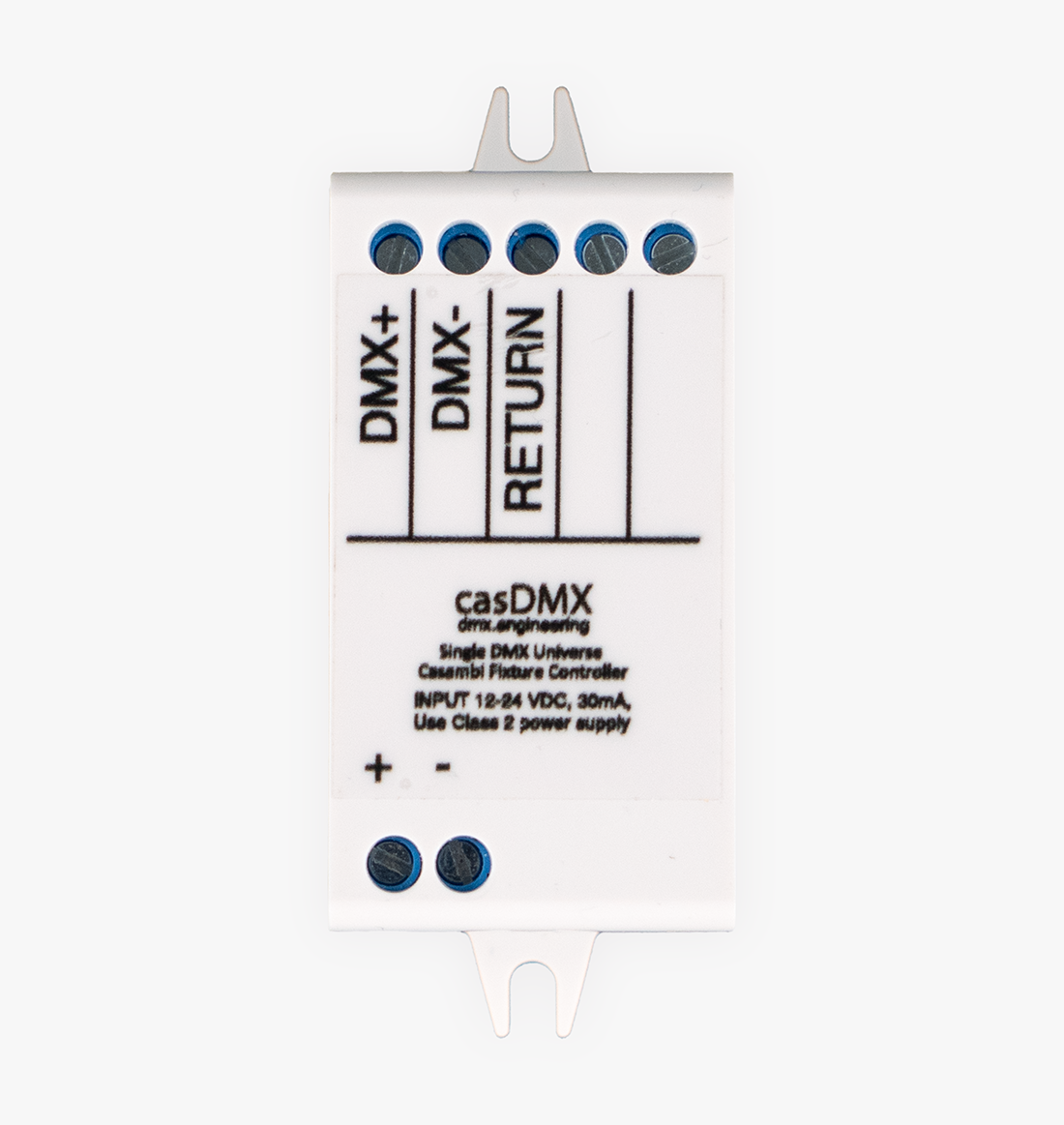

One DMX Universe: Outputs a 3-wire, non-isolated DMX-512 signal for direct connection to DMX fixtures.
Casambi Mesh Networking: Each unit acts as a repeater in the Casambi mesh, extending range and system reliability.
Certified & Compliant: FCC, IC, UL 916, CSA C22.2 #205 certified; compatible with iOS and Android devices.
Small Footprint: Measures just 2.2 x 1.2 x 0.7 in (72.6 x 30.0 x 18.0 mm); 0.8 oz (23g) for easy concealment in junction boxes.

Applications

Architectural lighting control for façades, atriums, and accent systems
Entertainment & stage lighting with wireless DMX integration
Museum & gallery installations with tunable, non-invasive lighting
High-end residential projects with advanced DMX color tuning
Hospitality & themed environments with immersive lighting scenes
Retail & showrooms with dynamic zone and color control
Casambi retrofits for wireless DMX control in legacy systems
Dynamic white and RGBW scene creation using Casambi profiles

Technical Documents

Cut Sheet

Technical Drawing

Installation Guide

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Can I program my DMX system with this Casambi controller?

No. This Casambi controller is designed as an accessory product to provide wireless control of an existing DMX system using the Casambi app.

You will still need to program your system with a standard DMX decoder/controller.

Casambi Wireless DMX Controller, 1 Universe

Name: Casambi Wireless DMX Controller, 1 Universe
Brand: aspectLED
SKU: AL-CTLR-CAS-DMX
Price: 114.99 USD
Availability: InStock

SKU: AL-CTLR-CAS-DMX

$114.99

In-Stock (86) - Ships Same or Next Business Day
