Corner Mount LED Channel, Narrow - Silver - 5PK

SKU: AL-TRK-CRN-N-SSMK-1M-KIT-5

$94.89

In Stock (14) - Moving Fast!

Pack Size: 5 Pack

1 Pack 5 Pack 10 Pack

Channel Color: Silver

Silver Black

Lens: Smoke

Smoke Frosted Clear

Channel Length: 3.3 Feet

3.3 Feet 6.5 Feet

Include Accessories?: Yes

Yes No

Description

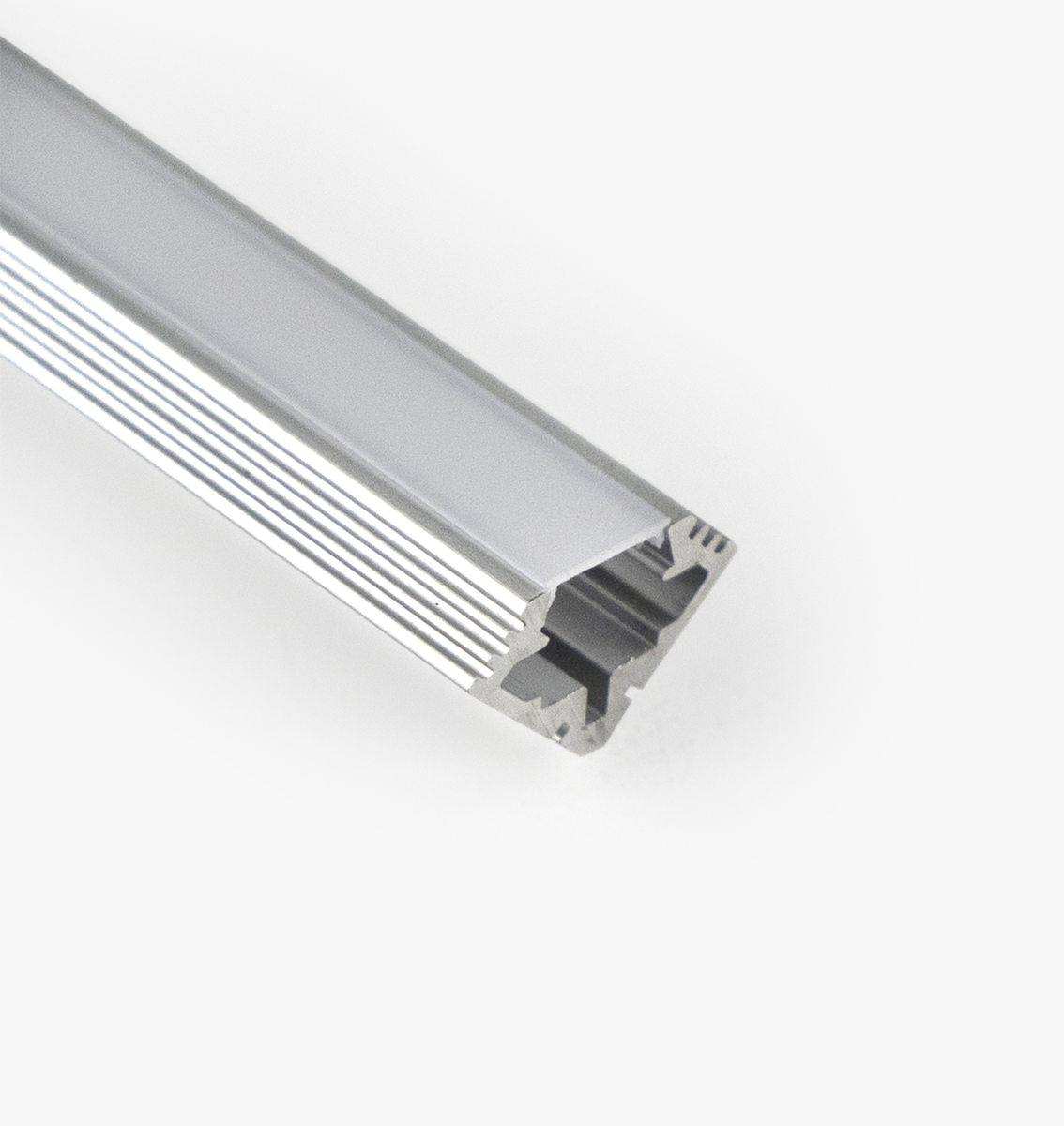

This narrow corner-mount channel is designed for strip lights 11mm wide or less. Its 90° profile makes it perfect for under-shelf, cabinetry, overhang, molding, and other corner installations. Built from durable aluminum, it shields your strip lights while ensuring smooth, even light diffusion. Customize your look with a clear, frosted or smoke lens. The smoke lens softens output for subtle accent lighting, while the clear and frosted lenses provide bright, clean illumination ideal for task lighting.

Specifications

Part #	AL-TRK-CRN-N
Physical
Accommodates these \| Interior Channel Dimensions	0.49" (12.6mm)
Channel Material	Anodized Aluminum
Dimensions	0.88" (22.4mm) Wide 0.88" (22.5mm) Tall
Finish Options	Silver, Black
Lens Material	Polycarbonate
Lens Options	Clear, Frosted, Smoke
Mounting Method	Mounting Clip, Surface Mounted
Package Quantity	Accessory Pack (optional) 1 End Cap with Hole, 1 End Cap without Hole, 2 Mounting Clips per 3.3ft length
Routing Width	N/A
Weight	1.6 lb (6.5ft Channel & Lens)
Photometric
Lens Transmittance	Clear = 92% Frosted = 78% Smoke = 25%
Environmental
IP Rating	IP20
Load Rating	IK06
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light 12mm wide & above
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

The 90° corner design makes it easy to mount out of sight while providing maximum illumination
It directs light at a 45 degree angle, reducing harsh shadow lines and spreading illumination across a larger surface area
Low profile design is easily installed out of sight
1/2" visible lens
Fits any strip light up to 11mm wide
Compatible with SMD and COB light sources, including tunable white, color-changing, and static white options
Available with clear, frosted, or smoke lenses for a customized, built-in look
Offered in sleek black or silver aluminum finishes to blend seamlessly into any space
End caps and mounting clips included for clean, easy installation
Constructed from high-quality AL6063-T5 aluminum alloy for durability, heat dissipation, and extended LED lifespan
Anodized finish adds extra protection against rust and oxidation
Multi-pack options available for installers and large-scale projects

Applications

Shelf Lighting
Under Cabinet Lighting
Retail Display Lighting
Stairway + Step Lighting
Restaurant + Bar Lighting
