DMX Strip Light Jumper Bite Connector
DMX Strip Light Jumper Bite Connector
Regular price
$2.00
Sale price
$2.00
Regular price
In-Stock (528) - Ships Same or Next Business Day
Description

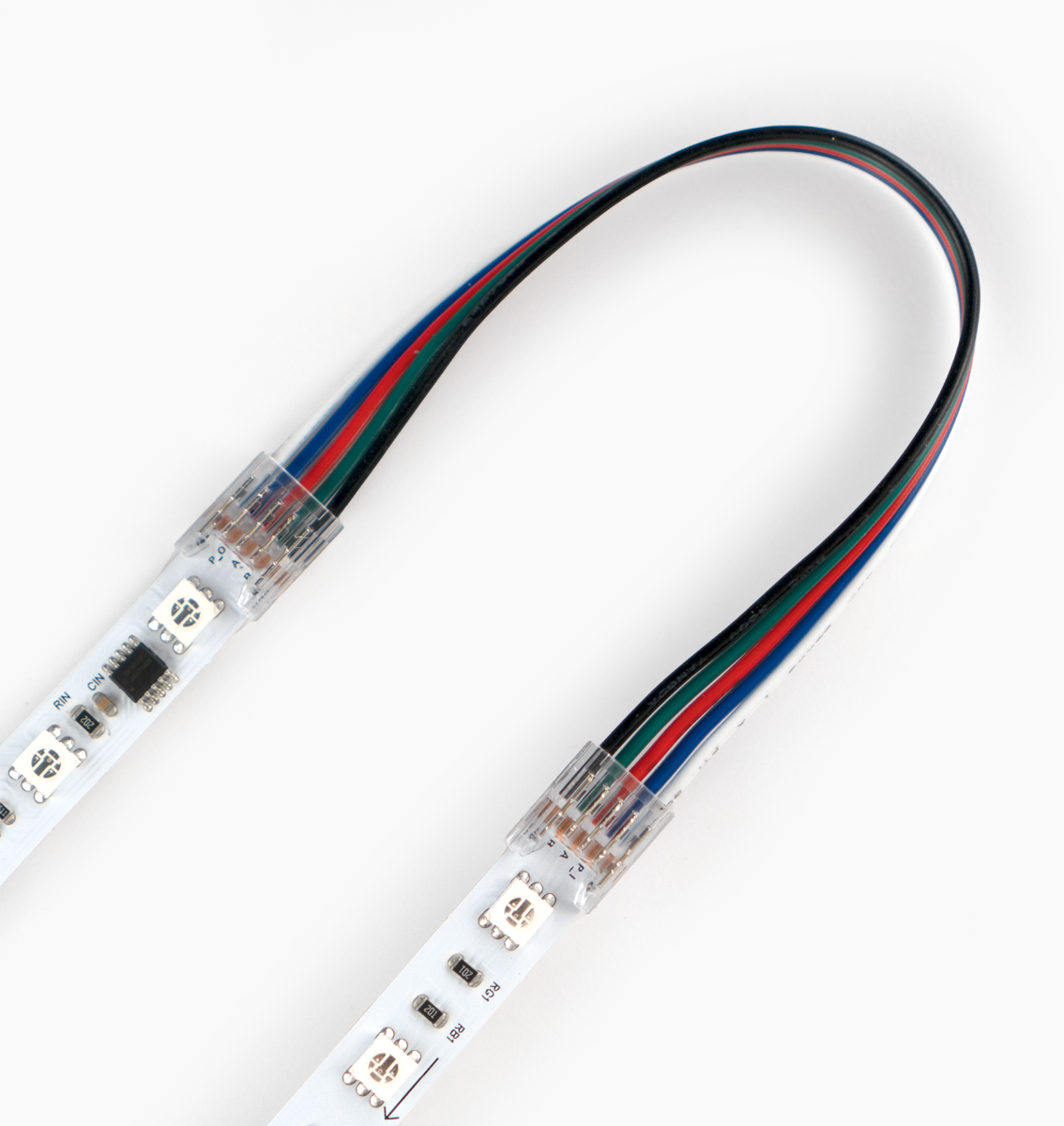

This double ended connector makes it easy to link two sections of strip light, allowing for sharp turns or spacing jumps in your installation, no soldering required. It keeps the strip light run uninterrupted from the power source, navigating around obstacles with a secure, reliable connection. Ensure correct polarity at all connection points. Needle-nose or parallel-jaw pliers are recommended for a smooth installation.
Only compatible with aspectLED LED strip lights.
Key Features
Key Features
-
Compact Design
-
NON WATERPROOF
-
Easy Connect
-
Secure Connection
Specifications
Specifications
| Part # | AL-SL-CN-DMX-JUMPER |
| Physical | |
| Connector Type | Strip to Wire to Strip |
| Dimensions | 7" Long 0.45" Wide 0.15" Deep |
| Weight | 0.22 oz (6.2g) |
| Electrical | |
| Max Current | 4A |
| Pin/Wire Count | 5 pin |
| Wire Connections | 22 AWG |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-AD-DMX-IP20-24-RGB |
| Standards / Certifications | |
| Warranty | 1 year |
