DMX Strip Light Pigtail Bite Connector
DMX Strip Light Pigtail Bite Connector
Regular price
$1.50
Sale price
$1.50
Regular price
In-Stock (538) - Ships Same or Next Business Day
Description

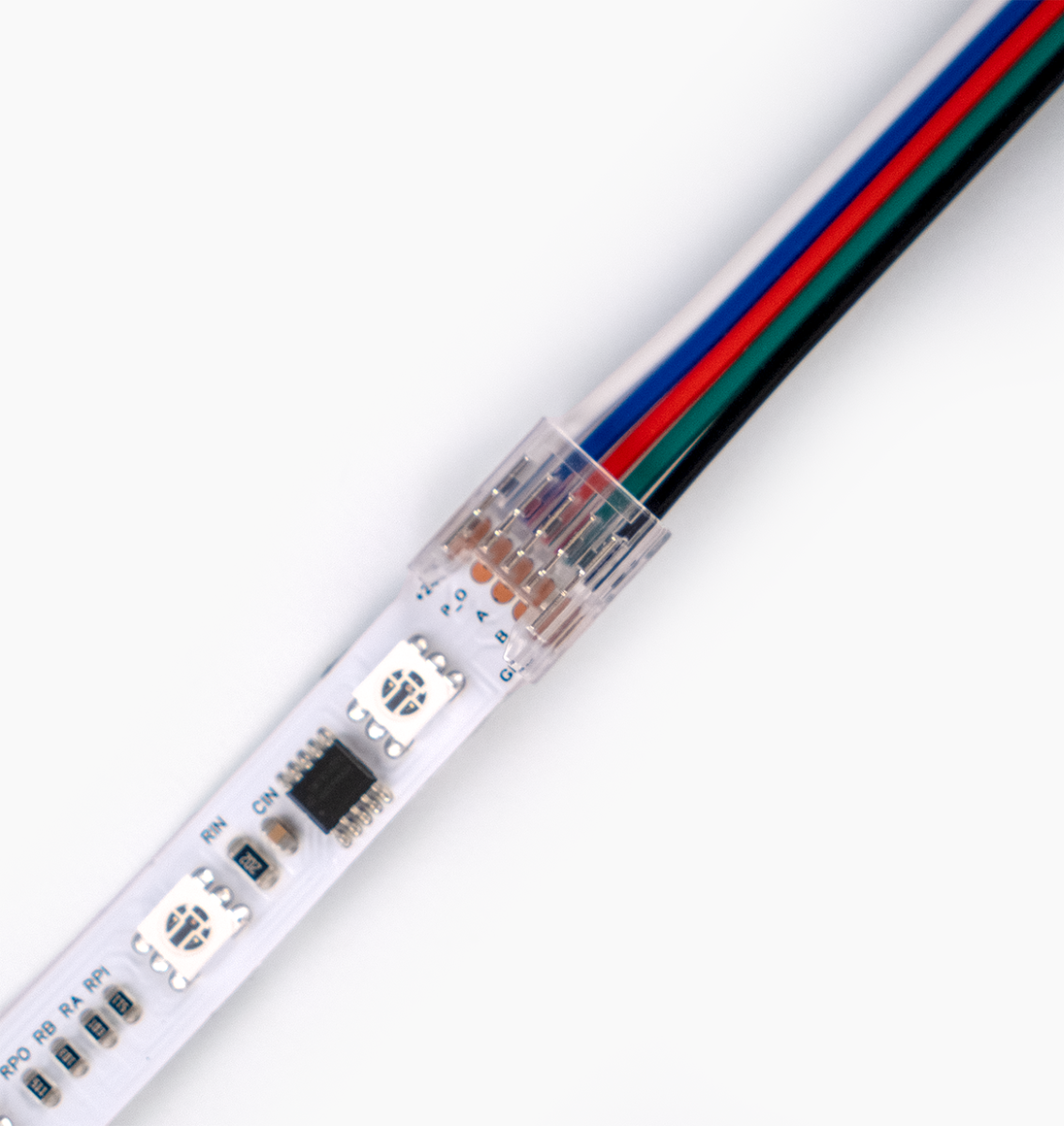

This single ended connector allows you to cut your strip light to length and connect new wire leads without soldering. Be sure to observe strip light polarity at all connection points. Needle-nose or parallel-jaw pliers are recommended for a smooth installation.
Only compatible with aspectLED LED strip lights.
Key Features
Key Features
-
Compact Design
-
NON WATERPROOF
-
Easy Connect
-
Secure Connection
Specifications
Specifications
| Part # | AL-SL-CN-DMX-PIGTAIL |
| Physical | |
| Connector Type | Strip to Wire |
| Dimensions | 6.5" Long 0.45" Wide 0.15" Deep |
| Weight | 0.18 oz (5.0g) |
| Electrical | |
| Max Current | 4A |
| Pin/Wire Count | 5 pin |
| Wire Connections | 22 AWG |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-AD-DMX-IP20-24-RGB |
| Standards / Certifications | |
| Warranty | 1 year |
Features
Features
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
