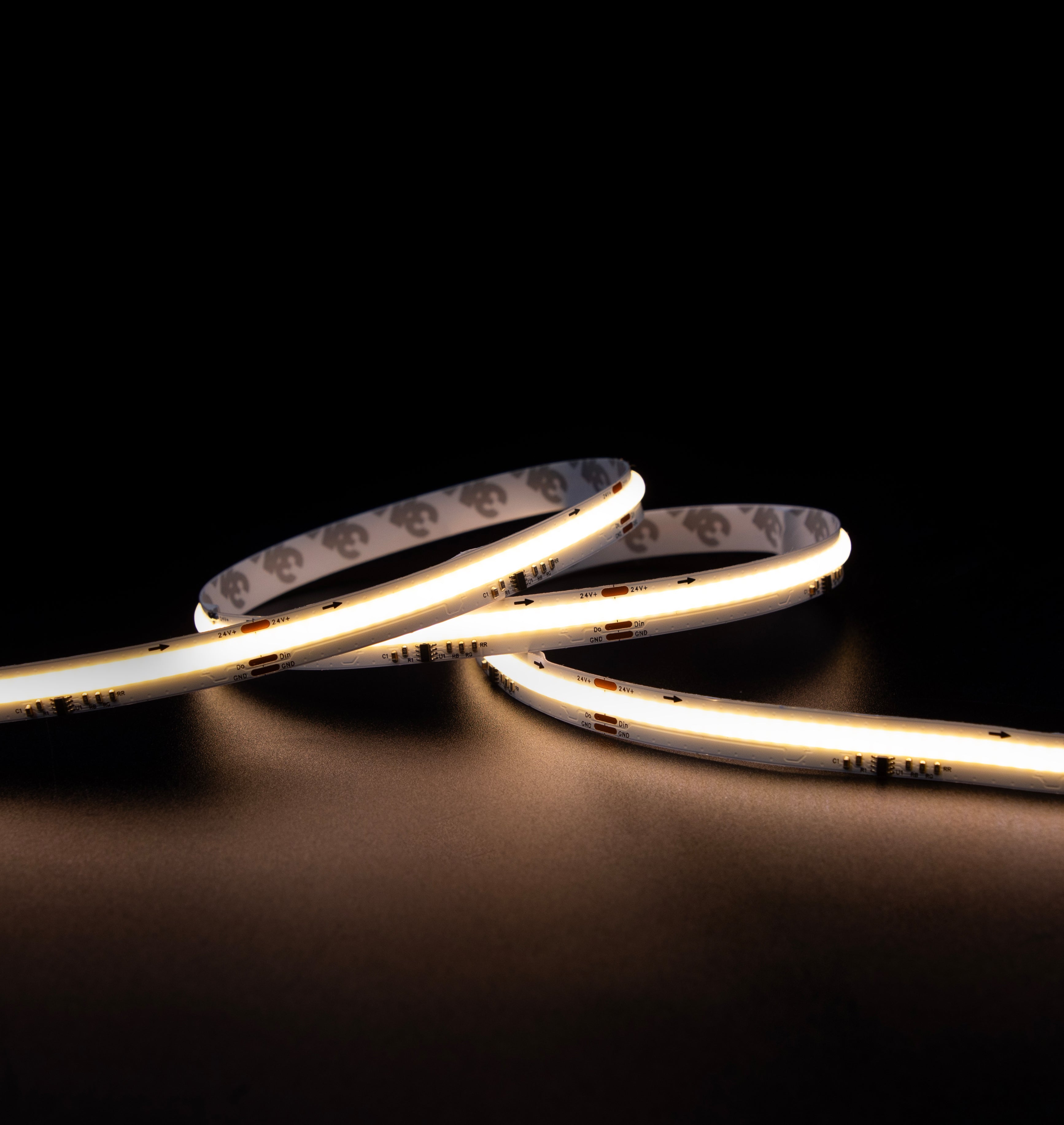

Dotless™ Strip Light - SPI Addressable, Warm White

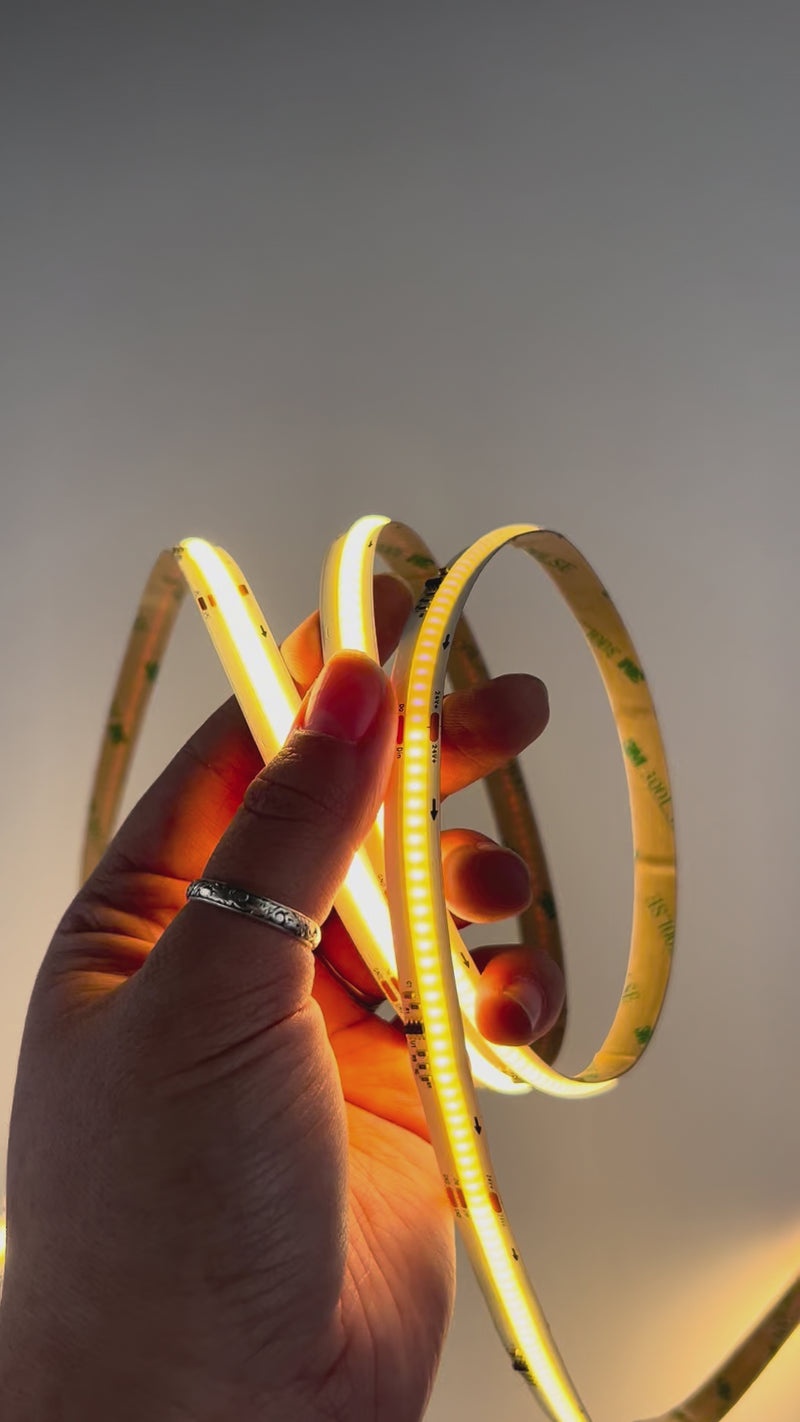

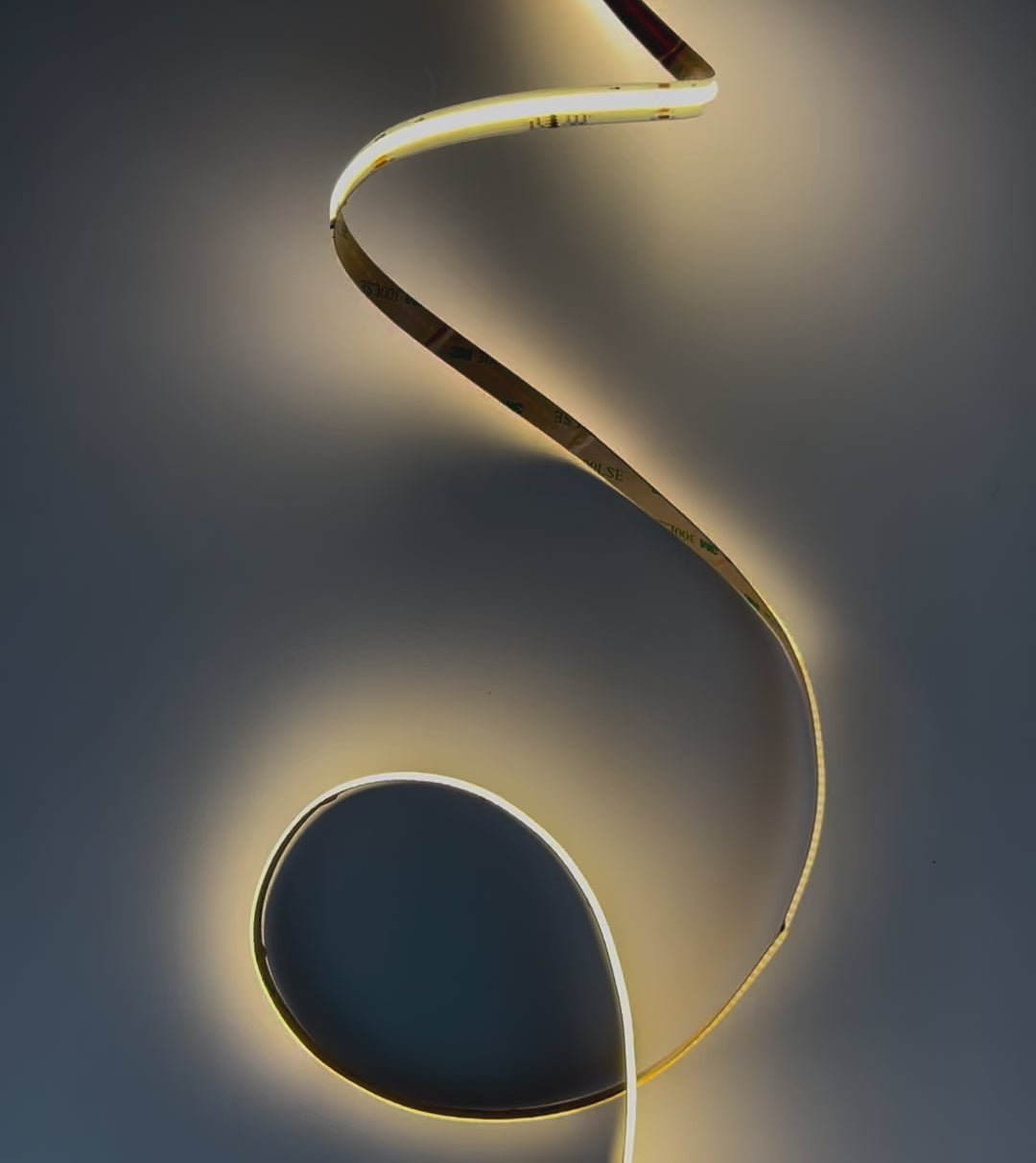

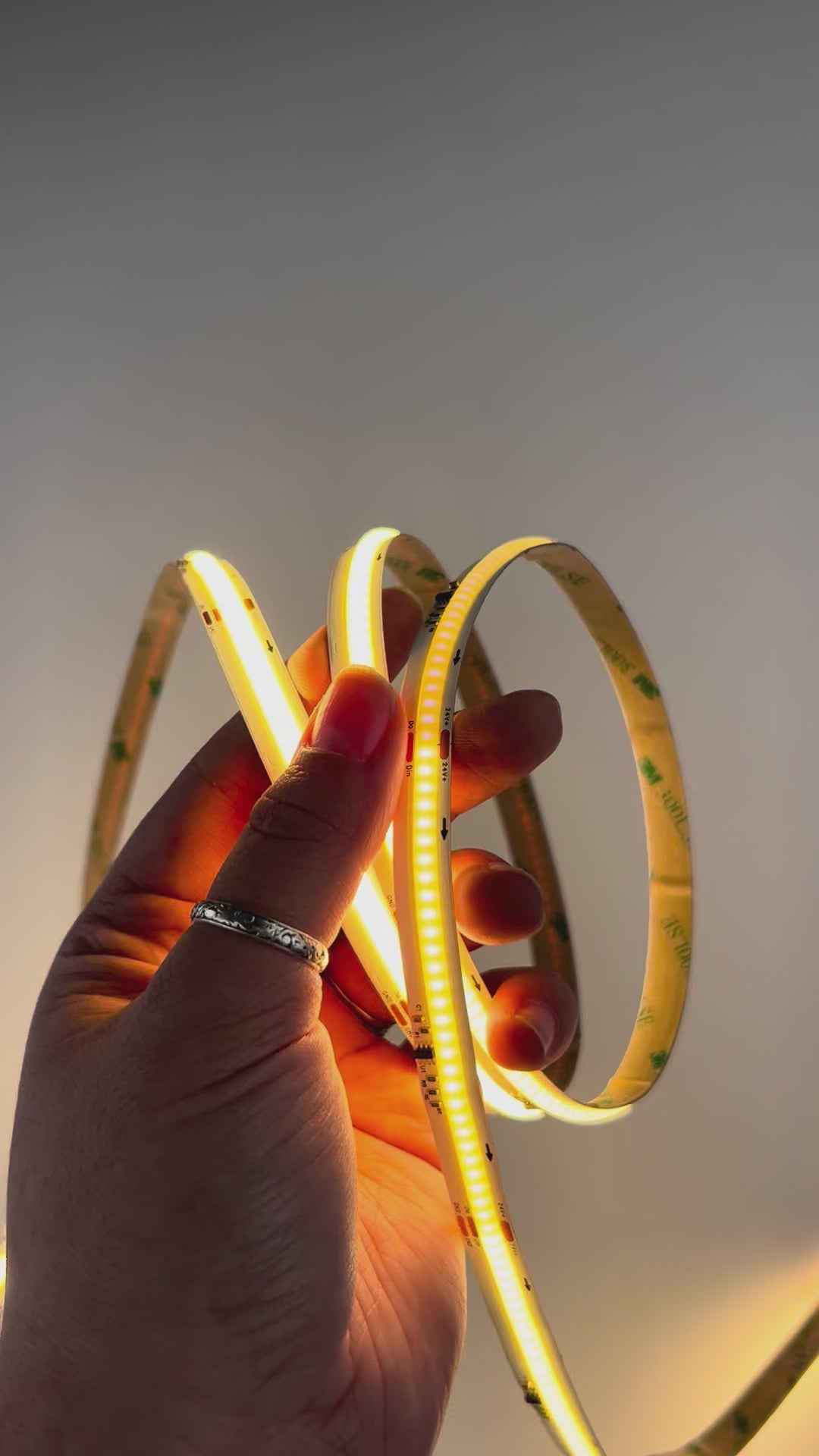

Load video: Dotless™ Strip Light - SPI Addressable, Warm White

Description

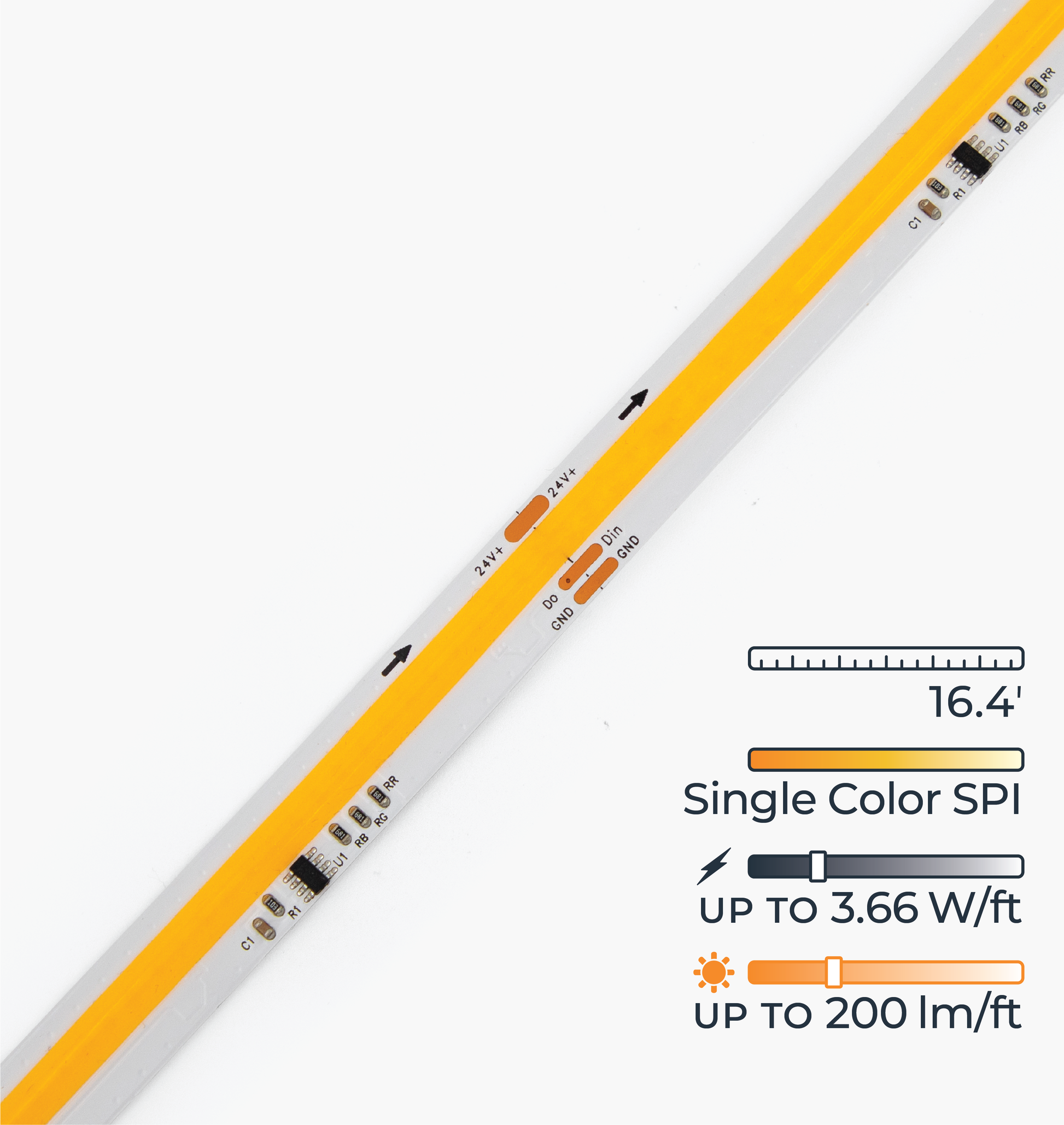

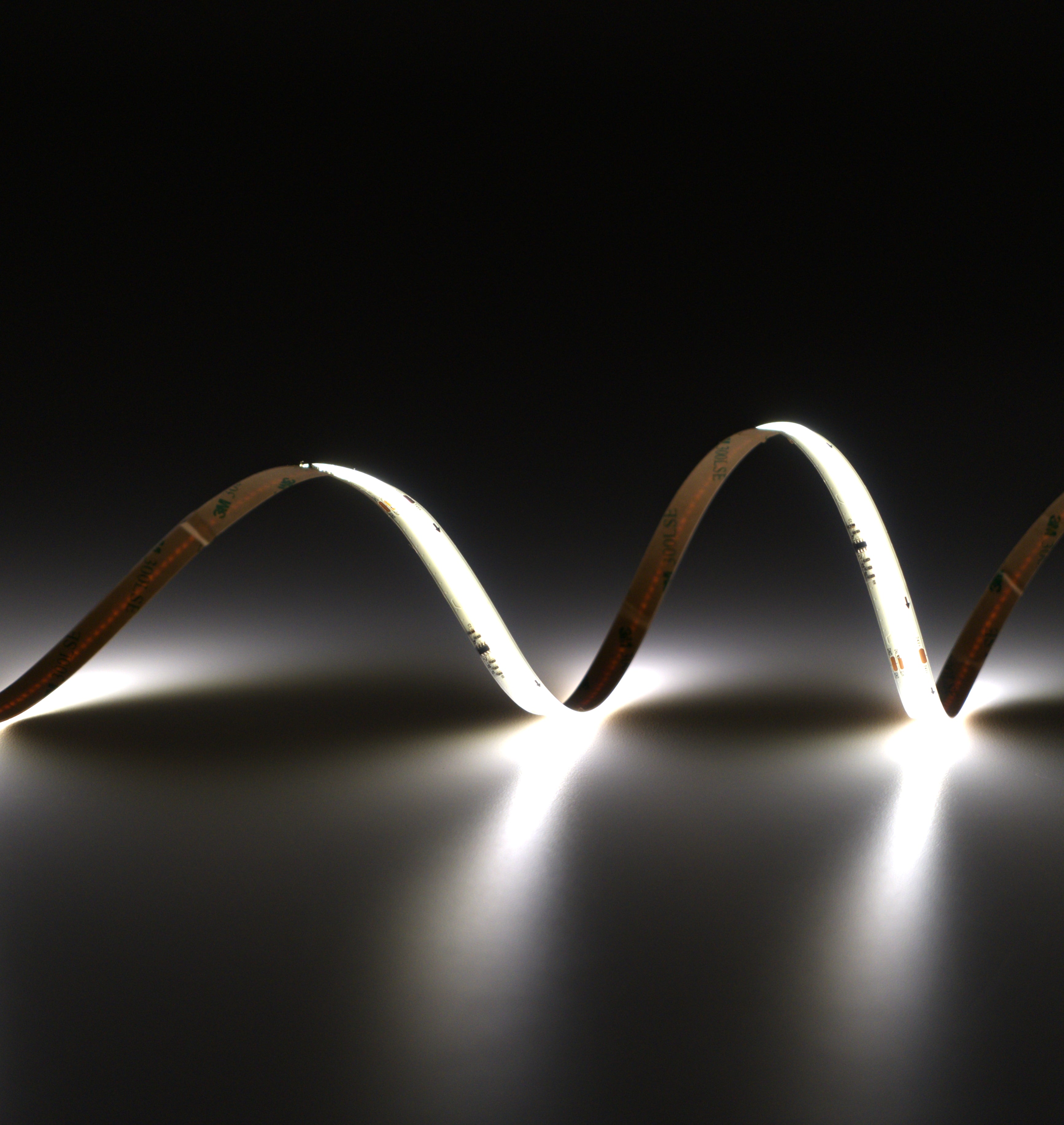

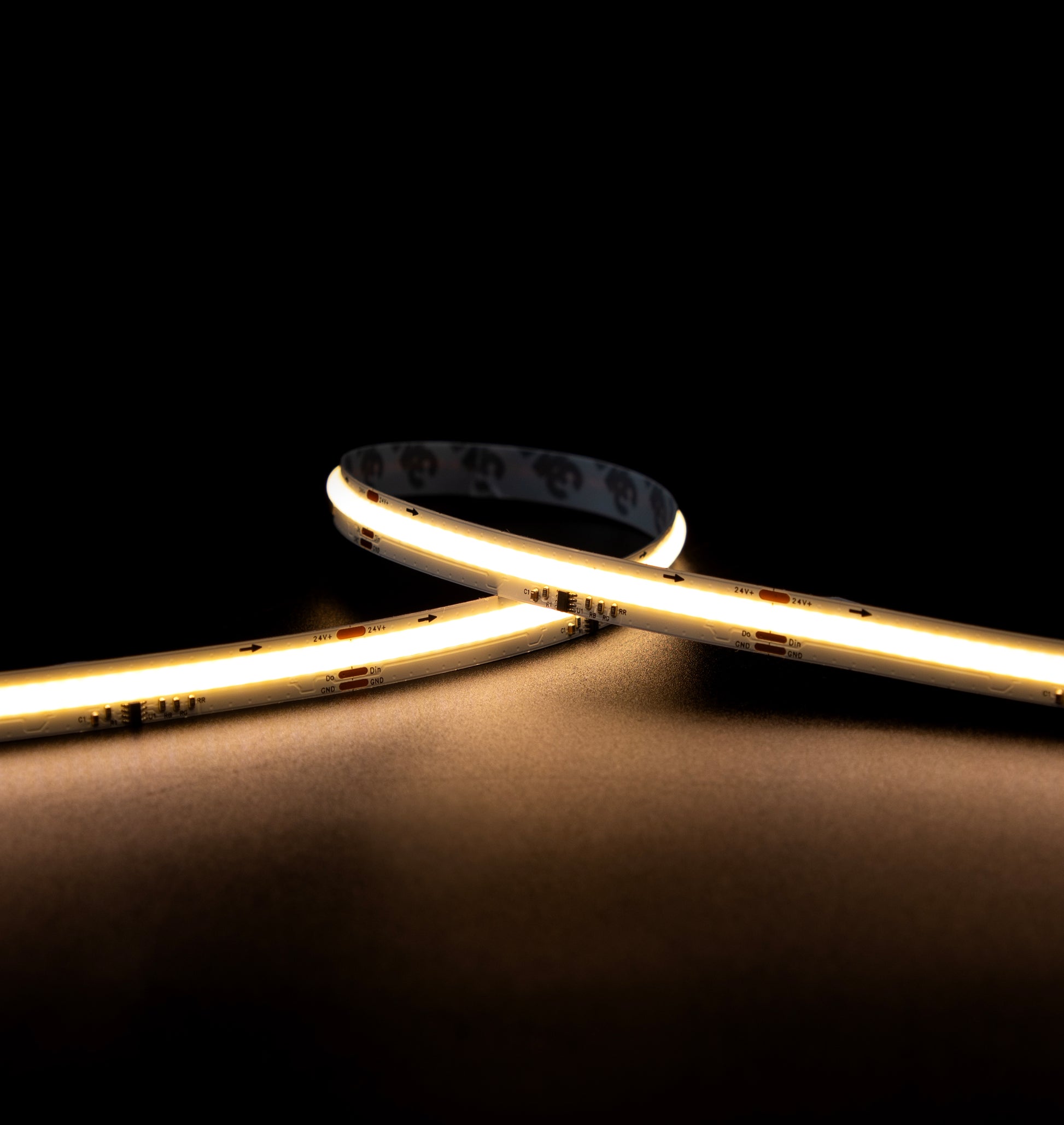

The Dotless™ SPI Addressable Strip Light – Warm White delivers natural warm white light. Its dotless Chip on Board (COB) design creates a smooth, continuous line of light with no visible diodes, eliminating the need for a diffusion lens and providing a clean, seamless appearance. With SPI addressable control, individual LEDs can be programmed to create dynamic color effects, fluid transitions, and custom lighting scenes. This makes it ideal for installations that require high quality white light for everyday use. The strip can be cut every 3.28 inches for precise customization, making it easy to fit your exact project dimensions. With a 90+ CRI, it delivers crisp, accurate color and natural warm white tones, making it perfect for accent lighting, architectural features, and modern lighting designs.

Key Features

Dotless COB
SPI Addressable
Non-Waterproof
3000K

Specifications

Part #	AL-SL-AD-SPI-IP20-24-3K
Physical

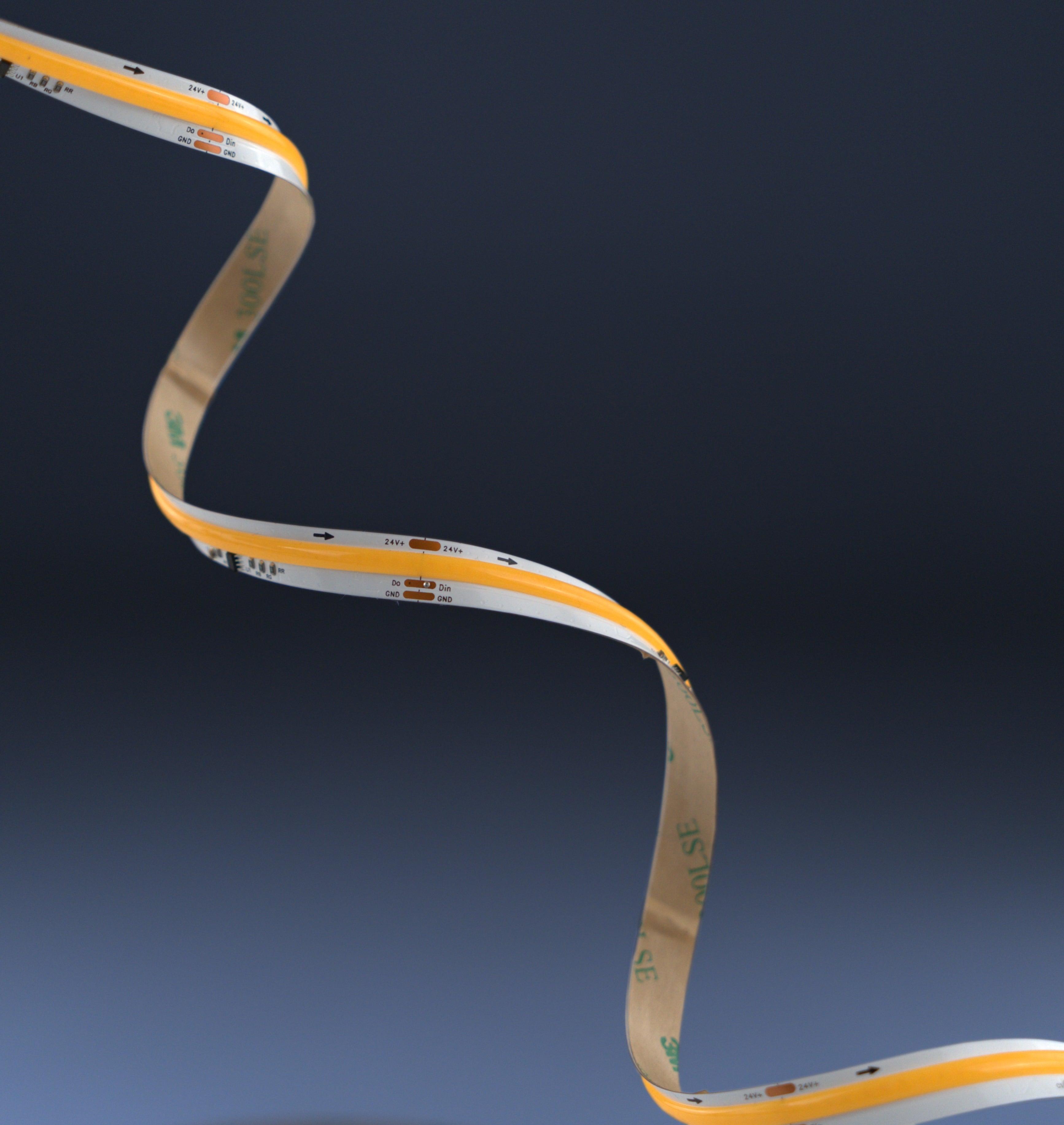

Adhesive Backing	Yes
Beam Angle	120

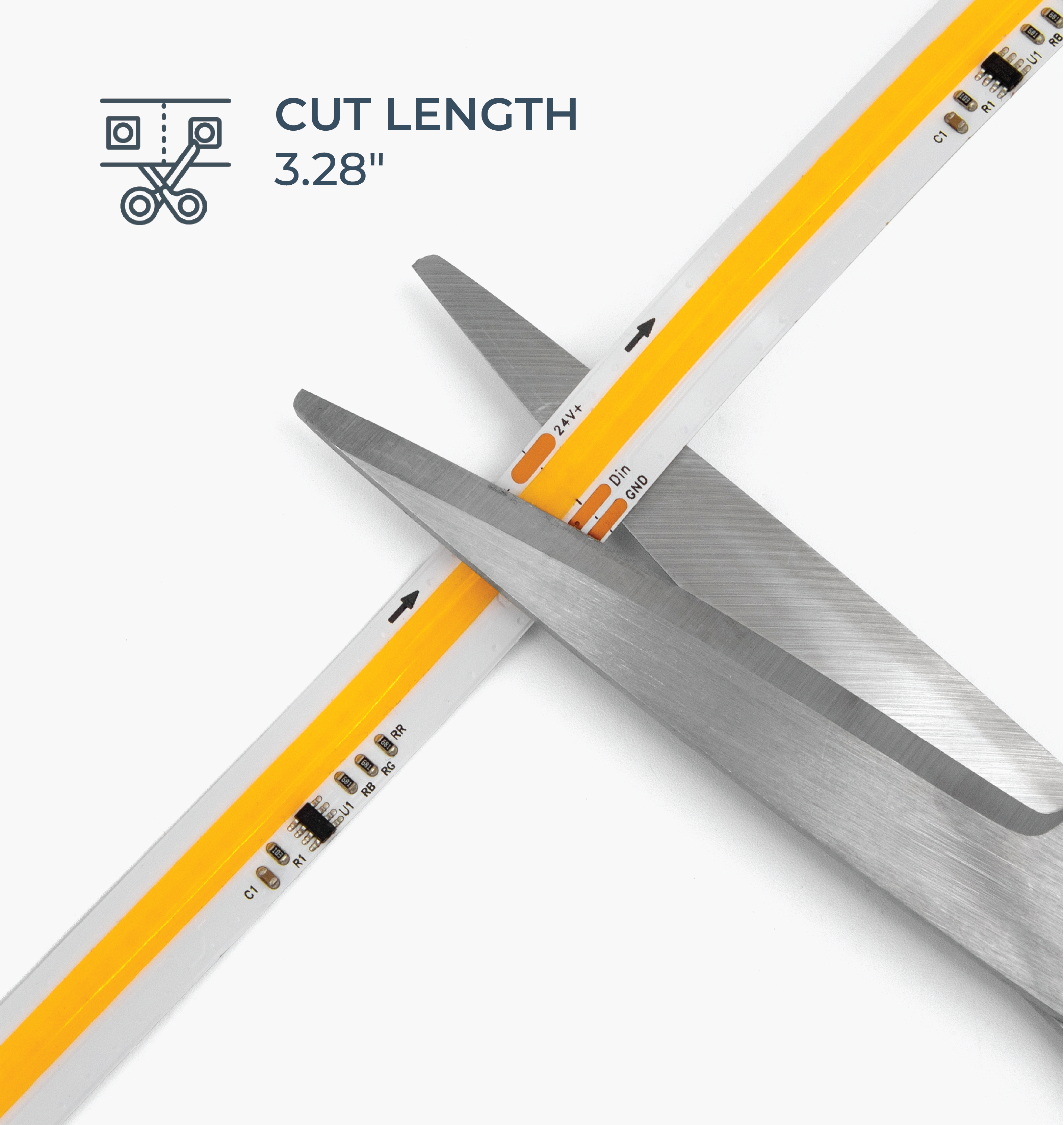

Cut Length	3.28" (83.33mm)

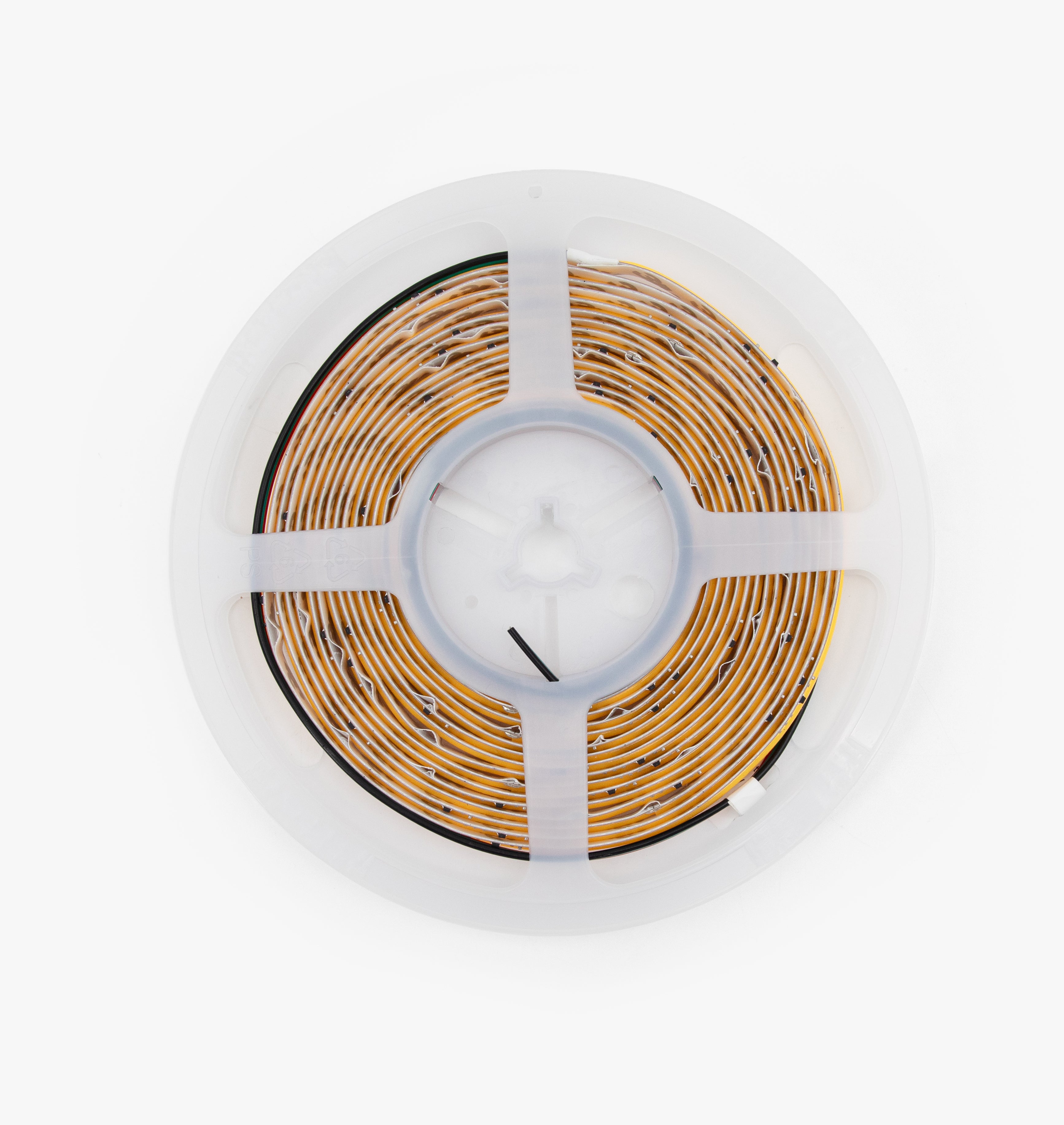

Dimensions	16.4' (5m) 0.393" (10mm) 0.09" (2.2mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Weight	0.4 lb
Electrical
Efficacy (lumens per watt)	Up to 55 Lumens/Watt
Input Voltage	24VDC
LED Quantity	110 LED's/ft (360 LED's/m)
LED Type	COB
Max Power Consumption	3.66W/ft (12W/m)
Max Run Length	16.4' (5m)
Photometric
CRI	90
LED Color Options	3000K
Max Lumens	Up to 200 Lumens/ft (660 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176°F (-30 - 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	SPI
Dimmable	Yes
IC Type	IC-WS2811
# of Addressable Sections	60
Standards / Certifications
Standards / Certifications	CE, UL, RoHS, LM80
Warranty	5 years

Features

Individually Addressable LEDs: Each LED group can be controlled independently using an SPI Casambi controller, allowing for advanced lighting effects such as color chases, gradients, and dynamic animations.
Controller Compatibility: Works seamlessly with our Casambi SPI Controller and the Casambi app for easy wireless setup, group control, and customizable lighting scenes.
Premium Warm White (3000K): With a high CRI of 90+, this strip light provides accurate color rendering that enhances natural tones and materials.
Designed for Indoor Use: IP20 rated for indoor environments such as retail spaces, hospitality settings, and trade show displays where exposure to water or dust is minimal.
Commercial Grade Quality: Built for demanding installations. UL listed and engineered for long lasting performance with up to 50,000 hours of reliable illumination.

Applications

Architectural Lighting: Enhance building features and interiors with dynamic, addressable color effects.
Entertainment Lighting: Ideal for stages, events, and installations requiring synchronized color control.
Hospitality Environments: Create immersive lighting scenes in hotels, restaurants, and lounges.
Retail Environments: Highlight products and displays with vivid, programmable lighting effects.
Tradeshow Exhibits: Draw attention with customizable color chases and gradients that stand out on the show floor.

Technical Documents

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Dotless™ Strip Light - SPI Addressable, Warm White

Name: Dotless™ Strip Light - SPI Addressable, Warm White
Brand: aspectLED
SKU: AL-SL-AD-SPI-IP20-24-3K
Price: 160.89 USD
Availability: InStock

SKU: AL-SL-AD-SPI-IP20-24-3K

$160.89

In-Stock (100) - Ships Same or Next Business Day

This product requires a power supply.
Calculate your power supply
