Dotless™ LED Strip Lights – Tunable White
Dotless™ LED Strip Lights – Tunable White
In-Stock (128) - Ships Same or Next Business Day
This product requires a power supply.
Calculate your power supply
Description

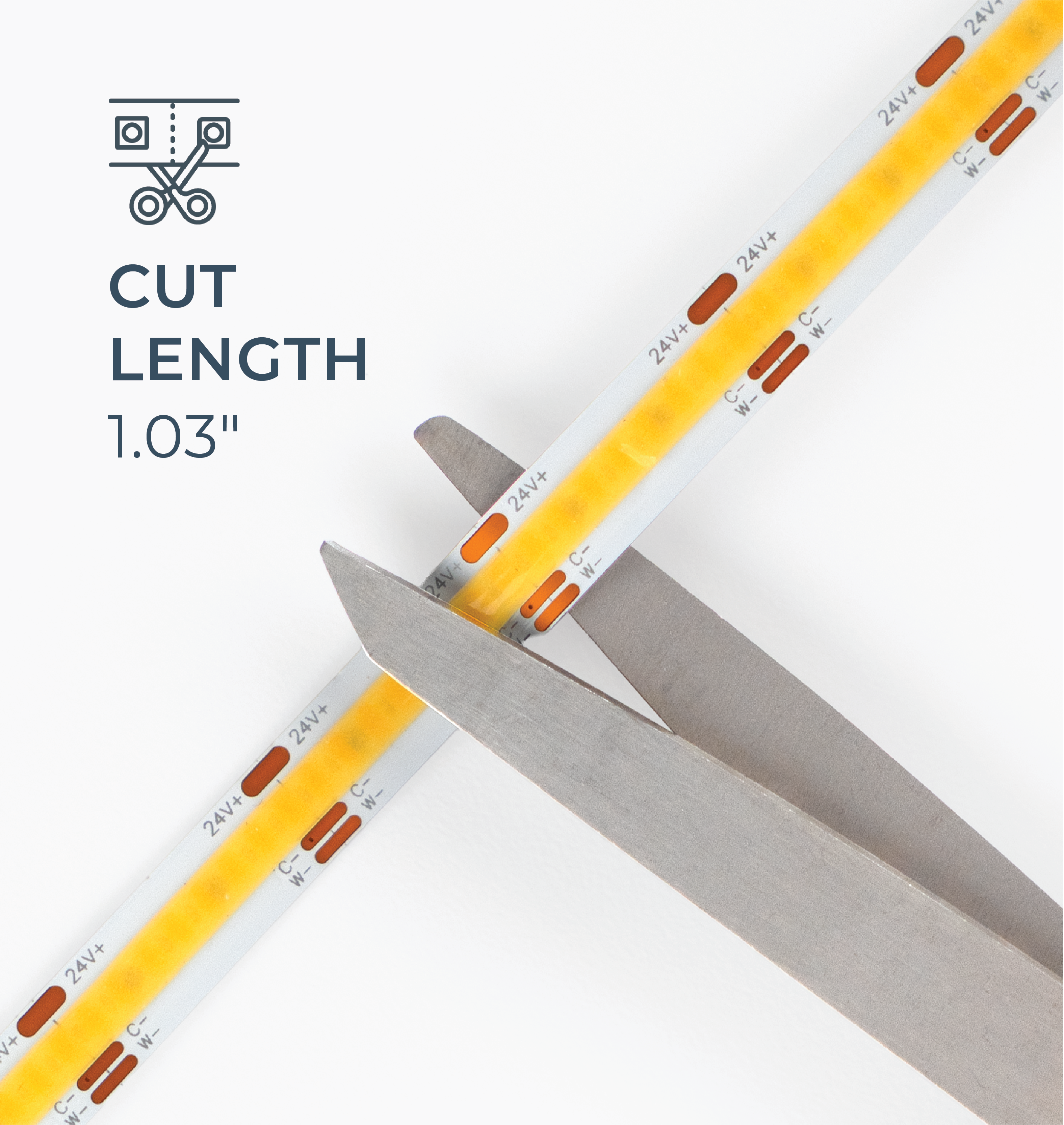

Dotless™ Tunable White LED Strip Light gives you precise control over your lighting with an adjustable color temperature range from 2700K-6500K, allowing you to dial in the perfect warm or cool white for any space. The continuous COB LED design provides smooth, even illumination with no visible diode points, eliminating the need for a diffusion lens. Designed for visible installations, this strip light creates a clean, uninterrupted line of light and delivers 90+ CRI for accurate, natural color rendering. It is compatible with dimmable power supplies for full brightness control. With a flexible construction and a wide 180° beam angle, the strip easily conforms to a variety of layouts and contours, and its cuttable design every 1.03" (26.3mm) allows for precise, custom installations.
Key Features
Key Features
-
Dotless COB
-
Non-waterproof
-
Reduced glare
-
CRI 90
Specifications
Specifications
| Part # | AL-SL-LN-IP20-24-CCT |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 180° |
| Cut Length | 1.03" (26.3mm) |
| Dimensions | 16.4' (5m) 0.394" (10mm) 0.09" (2.2mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape |
| Weight | 0.4 lbs (0.2 kg) |
| Electrical | |
| Efficacy (lumens per watt) | Up to 100 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 186 LEDs/ft (608 LEDs/m) |
| LED Type | COB |
| Max Power Consumption | 4.27W/ft (14W/m) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| CRI | 90 |
| LED Color Options | CCT (2700K–6500K) |
| Max Lumens | Up to 427 Lumens/ft (1400 Lumens/m) |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -4 – 122°F (-20 – 50°C) |
| Max Storage Temperatures | -22 – 176°F (-30 – 80°C) |
| Suitable Uses | Dry, Indoor |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Dimmable | Yes |
| Compatibility | |
| Compatible Connectors | AL-SL-CN-LT-JUMPER-1 AL-SL-CN-LT-PIGTAIL-1 AL-SL-CN-LRC-SPLICE-1 |
| Standards / Certifications | |
| Standards / Certifications | CE UL RoHS LM80 |
| Warranty | 5 Years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
