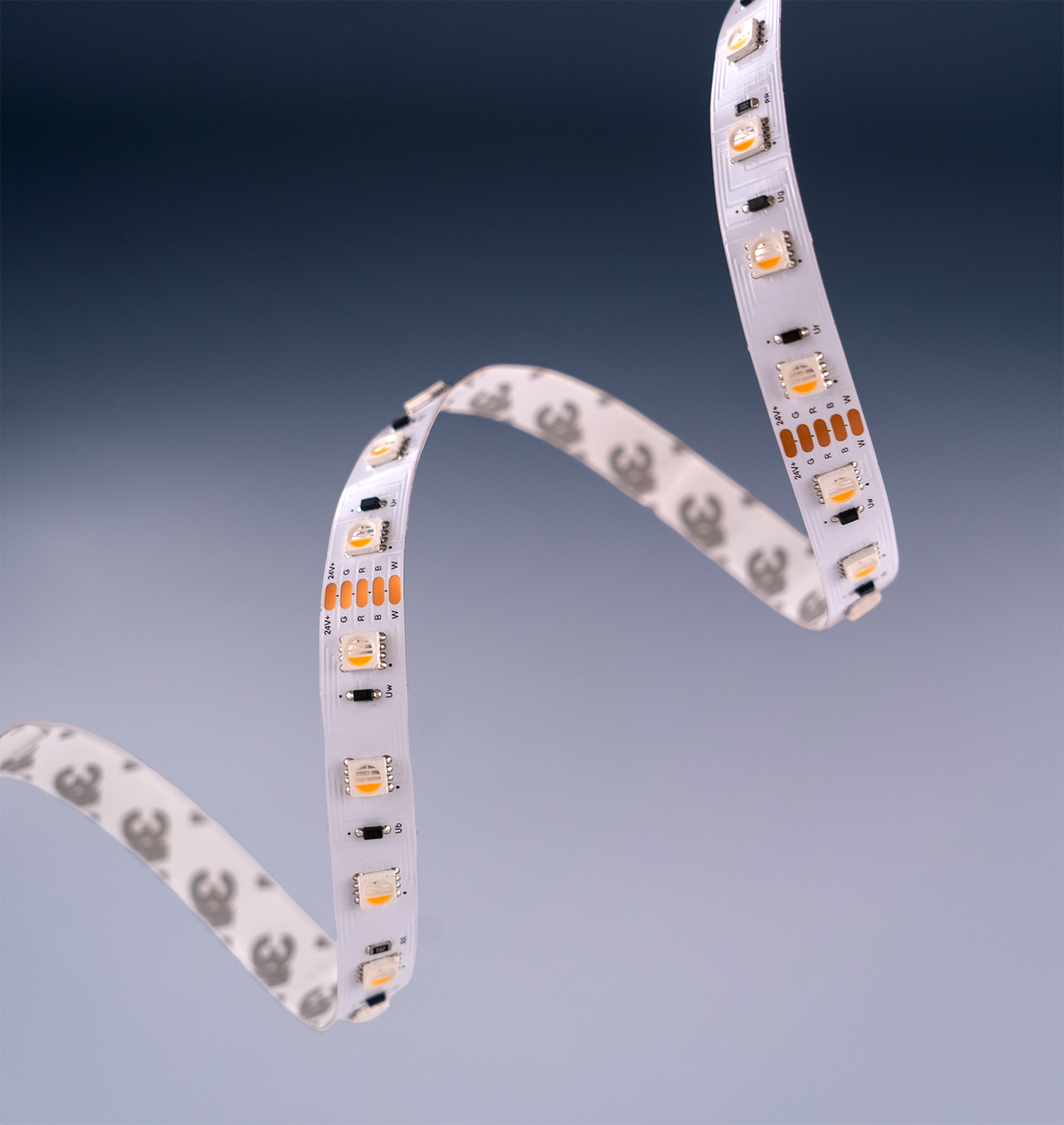

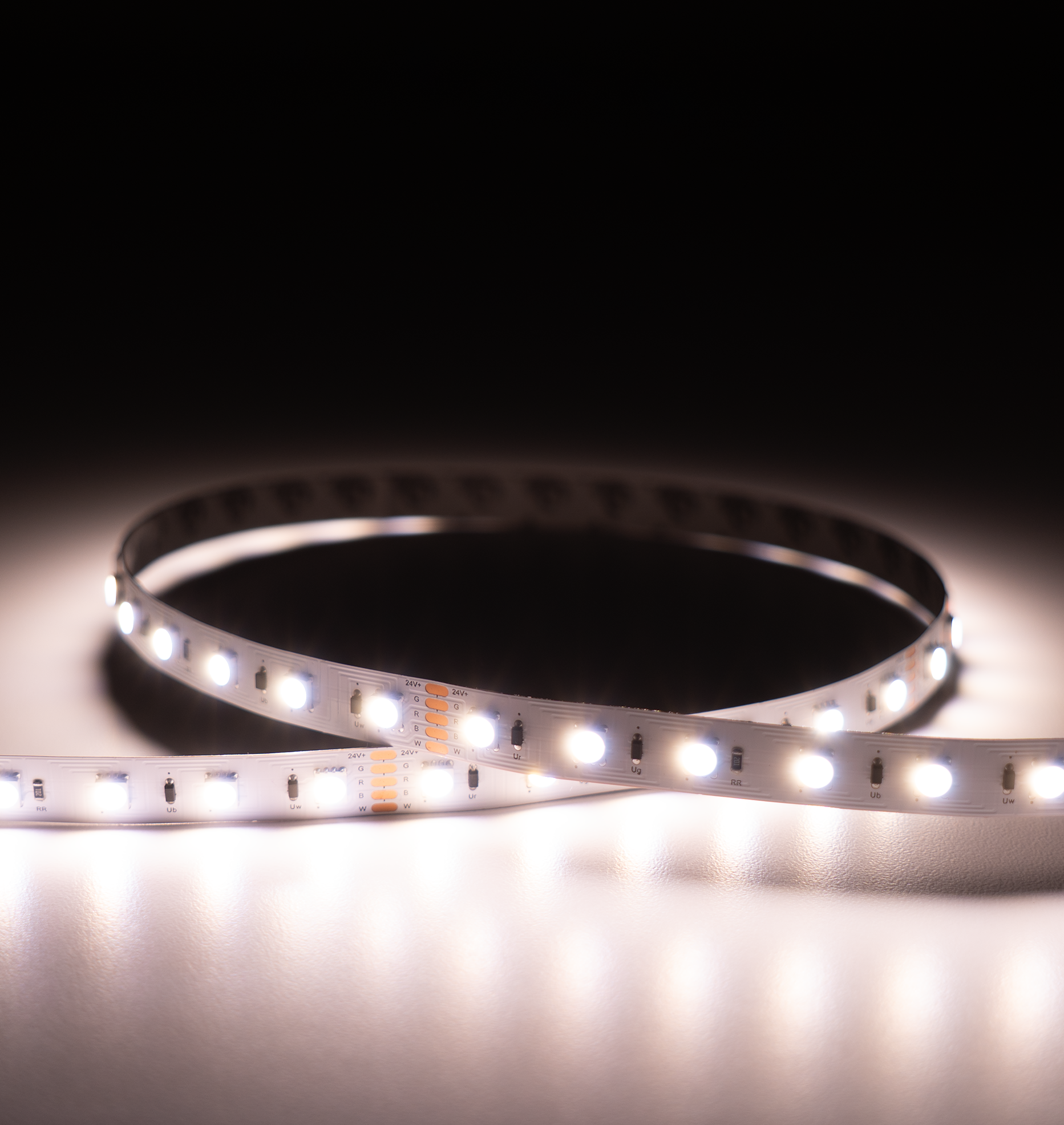

Endless LED Strip Light - RGBW Color Changing

Description

The RGBW Endless™ LED Strip Light delivers smooth, even illumination for runs up to 32 feet, with no dim spots or brightness loss. With Integrated Chip (IC) technology, you can install long, continuous runs without the wiring complexity or voltage drop of traditional Constant Voltage (CV) strips, saving time and project costs. Producing up to 330 lumens per foot, it’s ideal for both accent and task lighting. The RGBW configuration combines red, green, and blue LEDs with a dedicated white channel, allowing you to create vibrant colors along with crisp, 90+ CRI true white light for greater lighting versatility. It is compatible with non-dimmable power supplies and DC decoders/remotes, making upgrades or replacements quick and hassle-free.

Key Features

Max Run Length: 32.8ft
RGBW
Constant Current
Integrated Chip

Specifications

Part #	AL-SL-EN-CC-IP20-24-RGBW-32
Physical
Adhesive Backing	3M Adhesive Tape
Beam Angle	120°

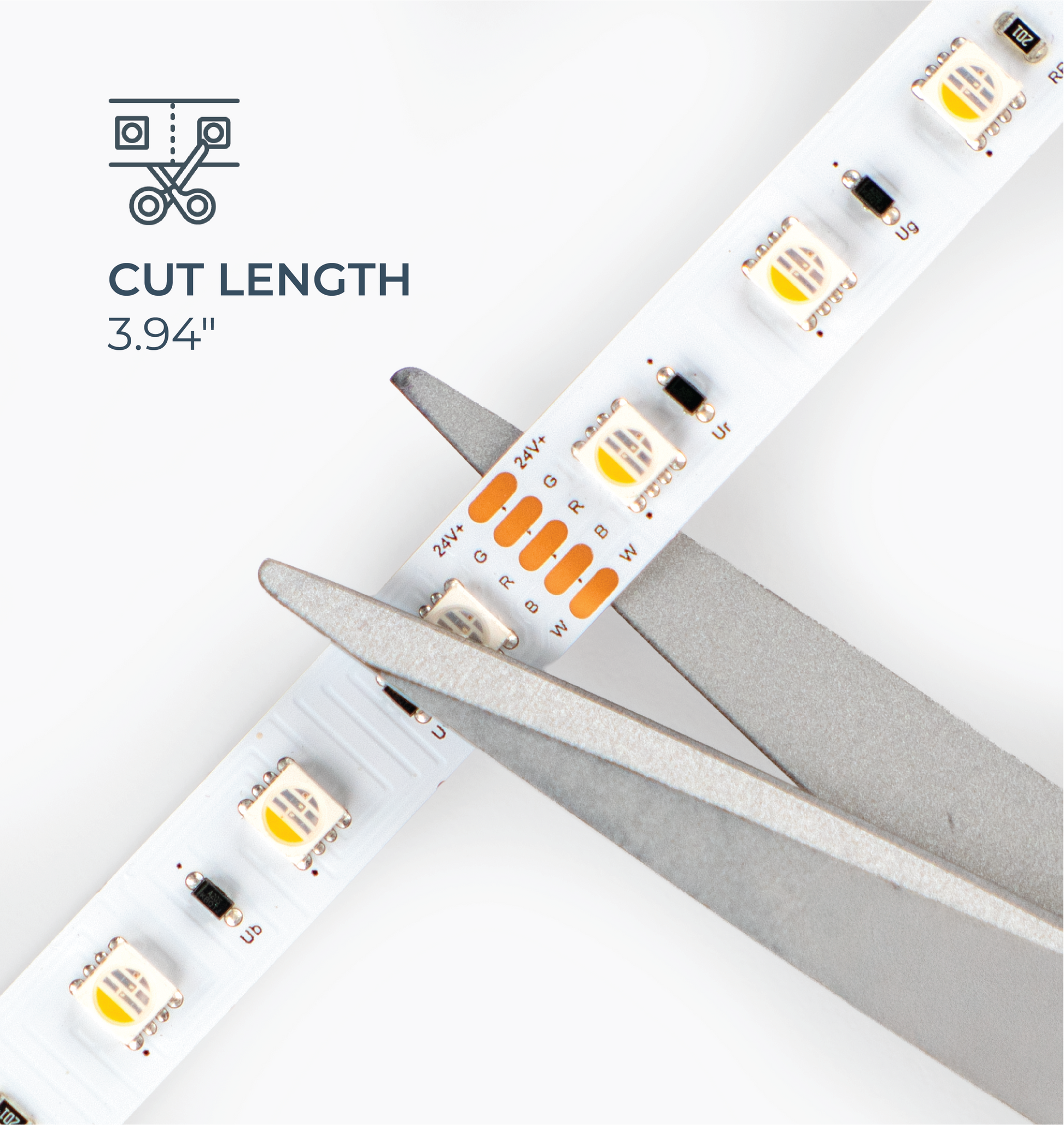

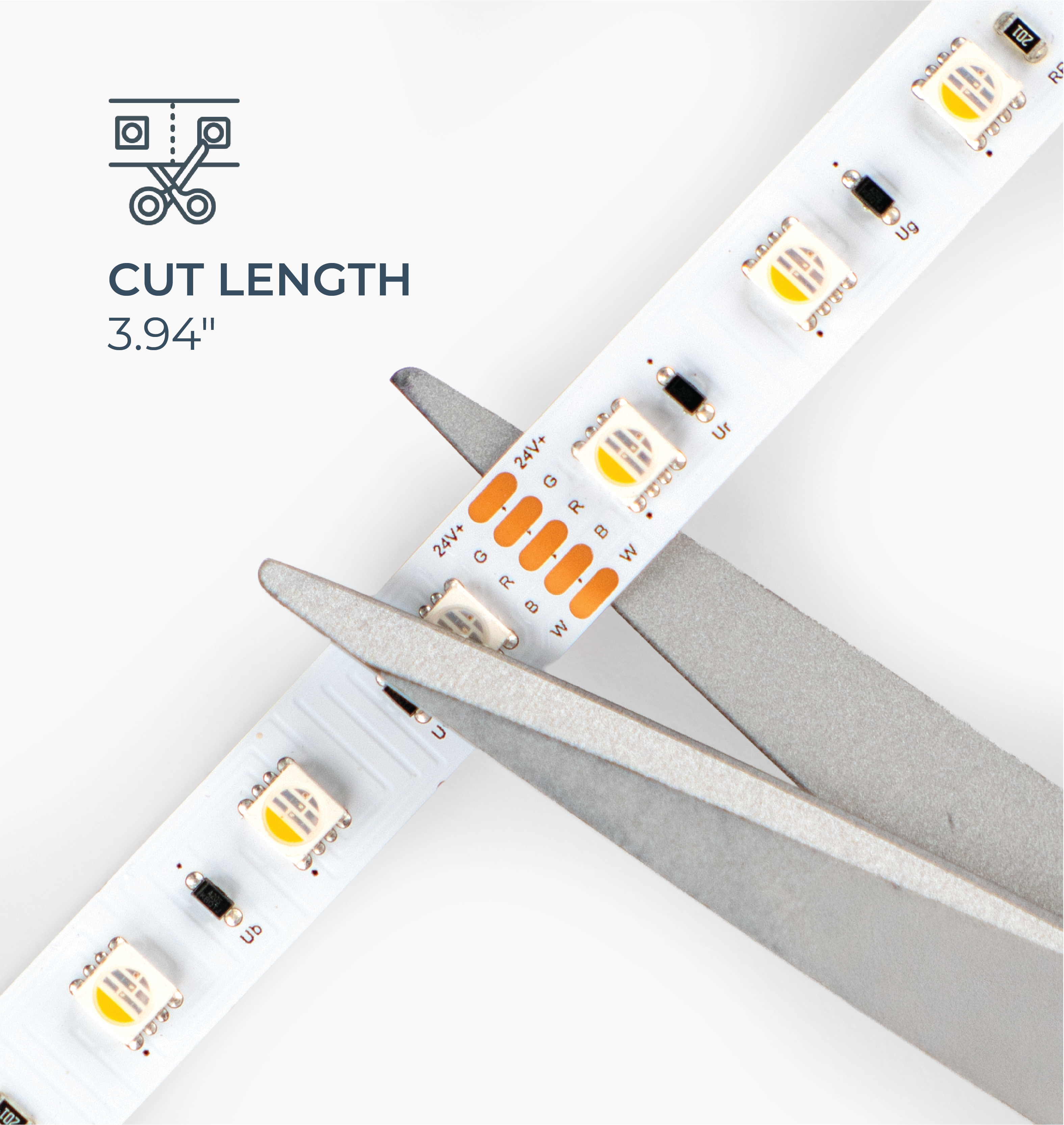

Cut Length	3.94" (100mm)
Dimensions	32.8' Long (10m) 0.472" (12mm) 0.083" (2.1mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Electrical
Efficacy (lumens per watt)	57 Lumens/Watt
Input Voltage	24VDC
LED Quantity	18 LEDs per foot (60 LEDs per meter)
LED Type	SMD 5050 LED Chip

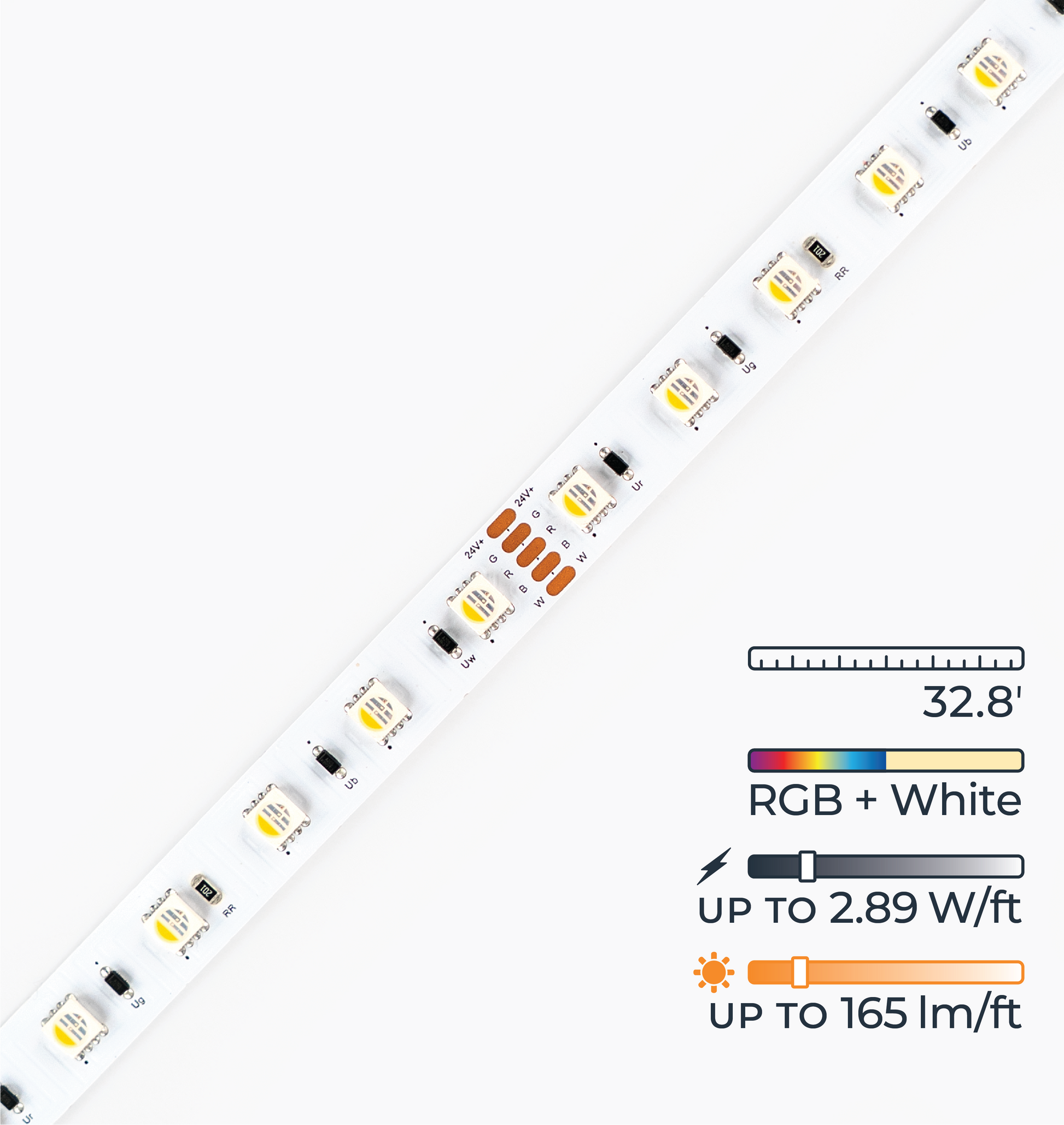

Max Power Consumption	2.9W per foot (9.5W per meter)
Max Run Length	32.8' (10m)
Photometric
CRI	90+ (White Only)

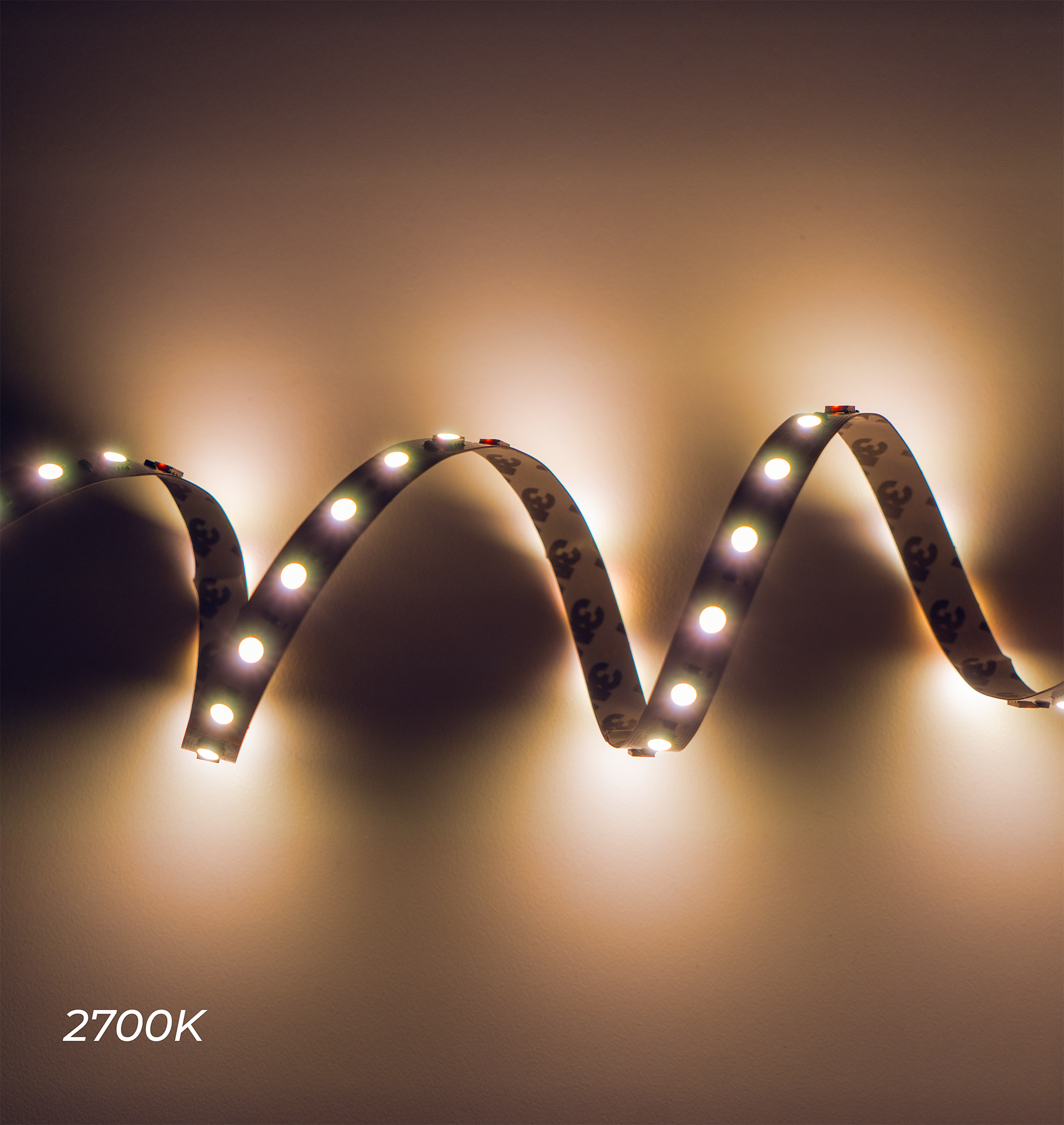

LED Color Options	RGB + 2700K RGB + 3000K RGB + 4000K RGB + 6000K
Max Lumens	Red: 69 lm/ft Green: 212 lm/ft Blue: 46 lm/ft White: 200 lm/ft
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry, indoor
Control
CV, CC, DMX or SPI	Constant Current
Dimmable	Yes
Compatibility
Compatible Connectors	AL-SL-CN-WRGBW-JUMPER-1 AL-SL-CN-WRGBW-PIGTAIL-1 AL-SL-CN-WRGBW-SPLICE-1
Standards / Certifications
Standards / Certifications	UL/cUL Listed RoHS CE LM80
Warranty	5 years

Features

Extended Length: Install one reel of 32ft, or equivalent shorter runs wired in series, up to a total length of 32ft, making it our longest RGBW strip light yet.
Integrated Chips: regulate the light output across the entire run of Constant Current strip lights giving an even level of light output from beginning to end.

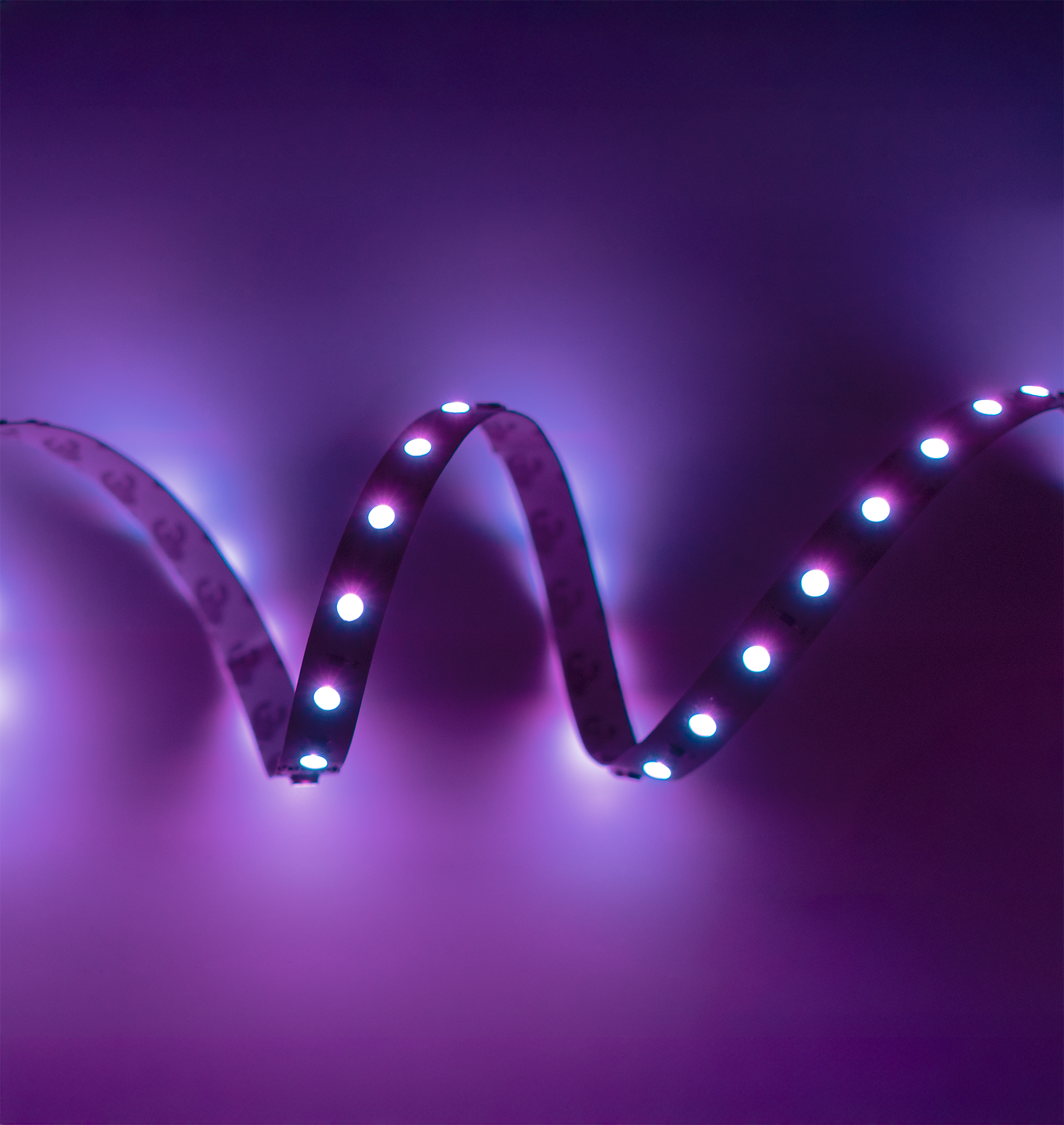

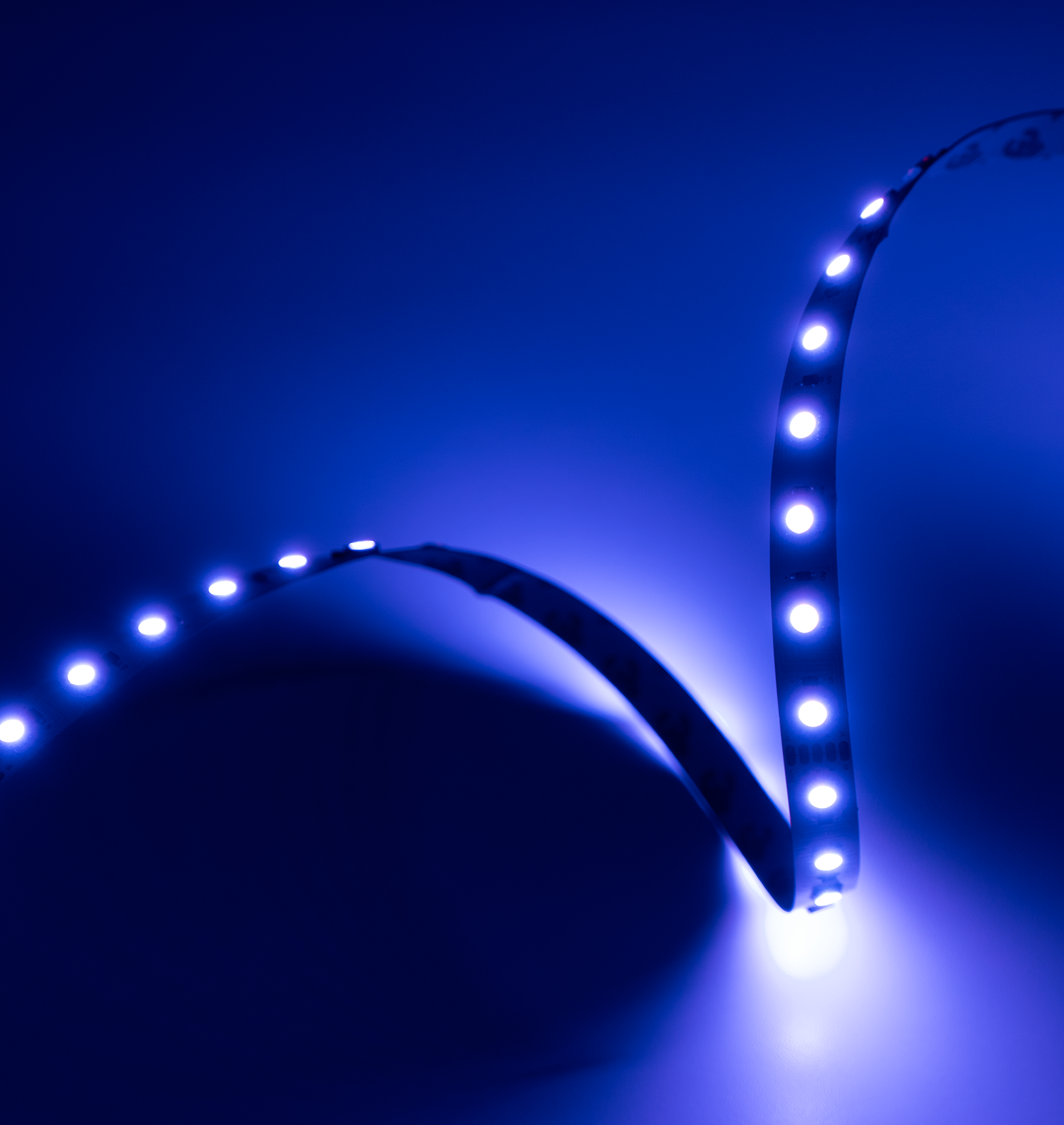

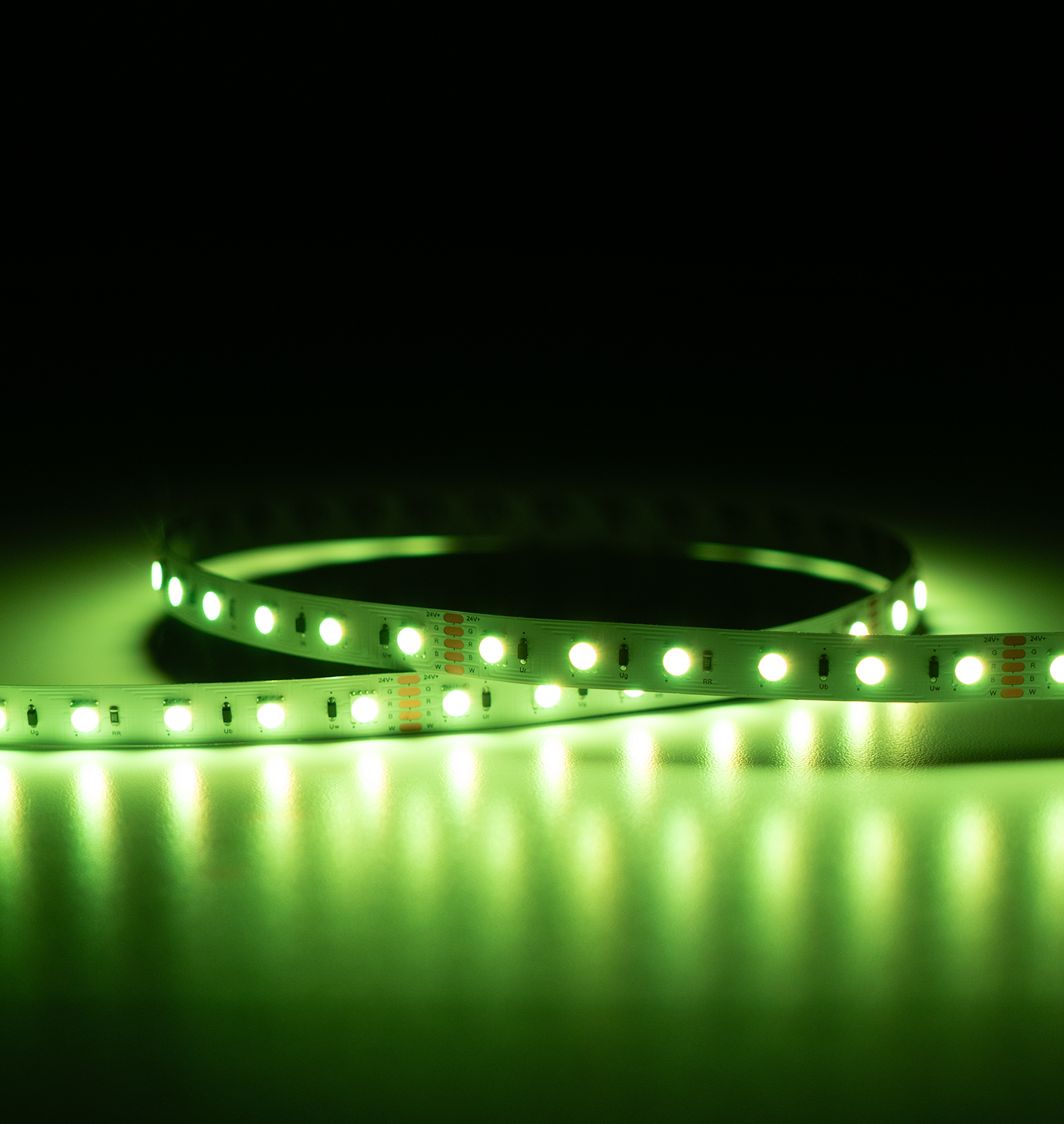

Millions of Colors: Experience flawless, consistent illumination with our advanced constant current technology, ensuring an even light output from start to finish, regardless of length, and vibrant RGBW color changing options.
Powerful Lumen Output: Up to 330 lumens per foot for bright, high-intensity illumination, perfect for colorful accent lighting.
Compatibility: Works seamlessly with the non-dimmable power supplies and DC decoders/remotes you already use, ensuring a hassle-free swap or upgrade.
Integrated temperature sensors reduce current output and protect products from damage in high temperature or variable temperature environments.
Extremely long life: up to 50,000 hours
Maintenance free
No RF interference

Applications

Accent lighting
Above cabinet lighting
Crown molding lighting
Cove lighting
Decorative lighting for tradeshows or exhibitions
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Shelf lighting
Toe kick lighting
Safety stair tread and step marking

Technical Documents

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Endless™ LED Strip Lights?

Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.
