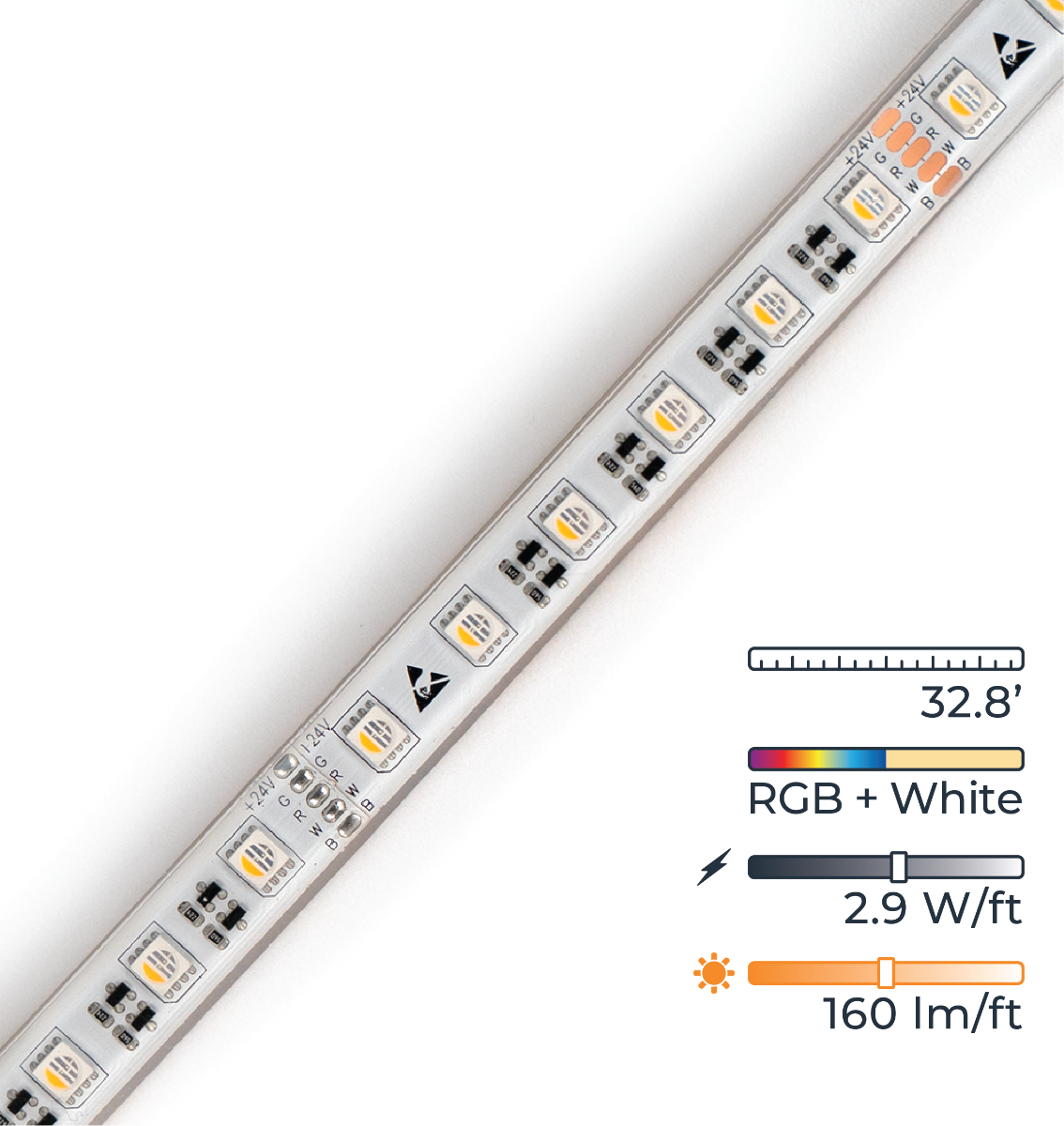

Endless™ RGBW Color Changing LED Strip Light - Waterproof

Description

Experience the next level of lighting with our most advanced and versatile strip light yet. The Endless™ RGBW LED Strip Light features integrated chip (IC) technology, allowing for continuous waterproof runs up to 32 feet (10 meters) without the voltage drop or added complexity of traditional constant voltage (CV) strips, eliminating the extra time and project costs typically associated with CV installations.

With advanced constant current technology, this strip delivers bright, consistent illumination at 150 lumens per foot, with smooth and vibrant RGB color-changing capabilities. Ideal for accent lighting, task lighting, and custom installations, the Endless™ RGBW Strip Light is engineered for superior performance and long-term reliability. Compatible with standard non-dimmable power supplies and DC decoders/remotes, this strip is a hassle-free solution for both upgrades and new installations.

Key Features

Max Run Length: 32.8ft
Waterproof IP68
Constant Current
Integrated Chip

Specifications

Part #	AL-SL-CC-24-RGBXX-IP68-60-10
Physical
Adhesive Backing	3M Adhesive Tape (300LSE)
Beam Angle	120°
Cut Length	4" (100mm)
Dimensions	32.8' Long (10m) 0.55" Wide (14mm) 0.08" Thick (2mm)
Distance Between LEDs	0.47" (12mm)
Estimated Lifespan	50,000 Hours
Weight	2.6 lb (1.1 kg)
Electrical
Efficacy (lumens per watt)	70
Input Voltage	24VDC
LED Quantity	18 LEDs per foot (60 LEDs per meter)
LED Type	SMD 5050 LED Chip
Max Power Consumption	2.9W per foot (9.5W per meter)
Max Run Length	32.8' (10m)
Photometric
CRI	80+ (White Only)
LED Color Options	RGB + Natural White (3400K) RGB + Bright White (5800K) RGB + Ice White (10,000K)
Max Lumens	Max Luminous Flux: Up to 200 lumens per foot
RGB Wavelength Ranges	R: 620-625nm G: 520-525nm B: 465-470nm
Environmental
IP Rating	IP68
Max Operating Temperature	-25°C to 60°C (-13°F to 140°F)
Max Storage Temperatures	-40°C to 80°C (-40°F to 176°F)
Suitable Uses	Dry, Damp, and Wet Locations
Control
Dimmable	Yes
Standards / Certifications
Standards / Certifications	UL/cUL Listed RoHS CE
Warranty	5 years

Features

Extended Length: Install one reel of 32ft, or equivalent shorter runs wired in series, up to a total length of 32ft, making it our longest RGBW strip light yet.
Waterproof IP68 strip light with adhesive backing make installs even faster.
Integrated Chips: regulate the light output across the entire run of Constant Current strip lights giving an even level of light output from beginning to end.
Millions of Colors: Experience flawless, consistent illumination with our advanced constant current technology, ensuring an even light output from start to finish, regardless of length, and vibrant RGBW color changing options.
Compatibility: Works seamlessly with the non-dimmable power supplies and DC decoders/remotes you already use, ensuring a hassle-free swap or upgrade.
Integrated temperature sensors reduce current output and protect products from damage in high temperature or variable temperature environments.
Extremely long life: up to 50,000 hours
Maintenance free
No RF interference

Applications

Accent lighting
Deck lighting
Decorative lighting for tradeshows or exhibitions
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Pergola lighting
Safety stair tread and step marking
Shower niche lighting

Technical Documents

IES Files available upon request

View Installation Guide

Mounting Channel Compatibility Chart

Technical Drawing

Cut Sheet

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Endless™ LED Strip Lights?

Only our Non-Dimmable Power Supplies are compatible.

Save 29%

Endless™ RGBW Color Changing LED Strip Light - Waterproof

SKU: AL-SL-CC-24-RGB10K-IP68-60-10

$258.86

$258.86 ~~$368.89~~

In-Stock (75) - Ships Same or Next Business Day

Waterproof LED Colors: RGB + Ice White (10000K)

This product requires a power supply.
Calculate your power supply
