Arc™ - LED Light Sheet - Static White
Arc™ - LED Light Sheet - Static White
In-Stock (124) - Ships Same or Next Business Day
Description

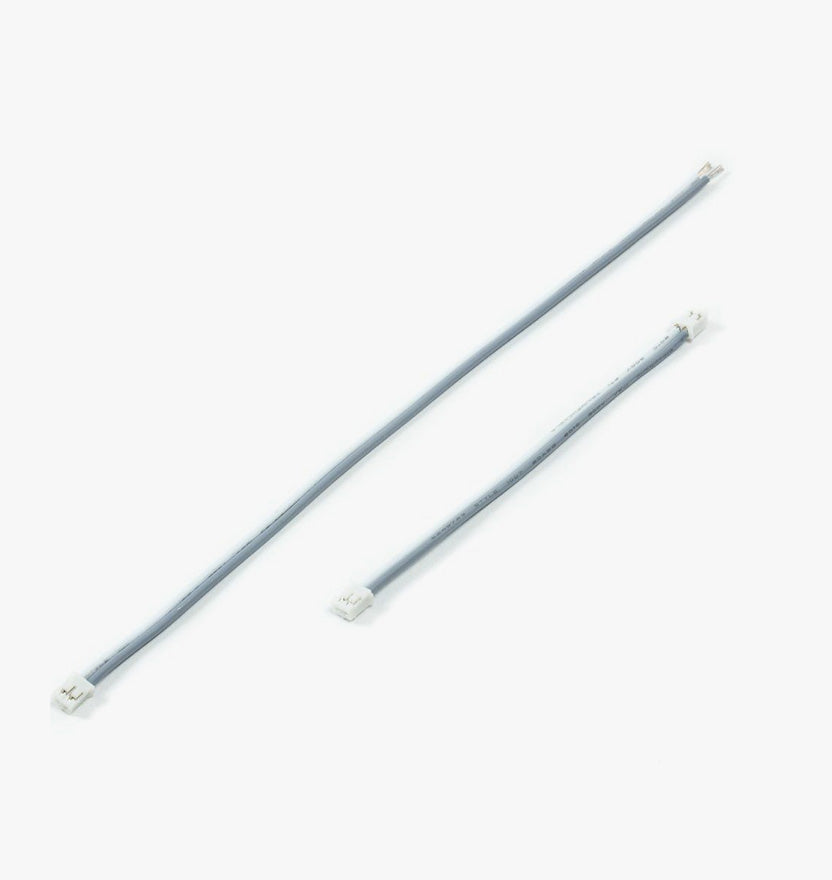

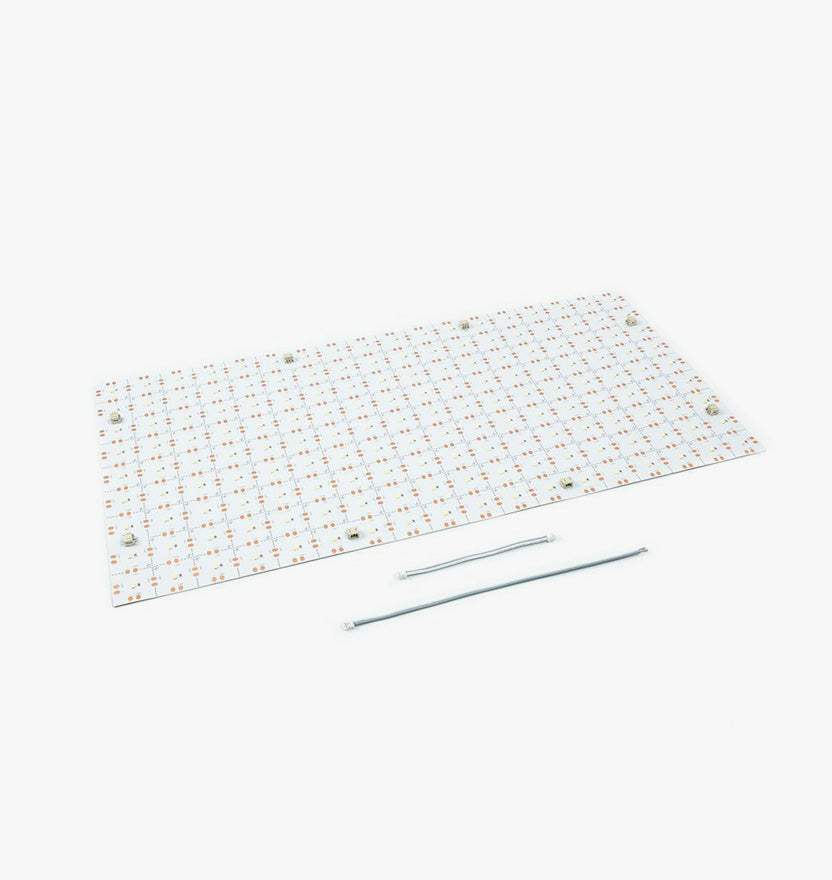

aspectLED's dynamic Single Color Flexible LED Light Sheets are the perfect solution for a wide variety of lighting applications including; retail signage, back-lighting, and other decorative lighting for holidays, trade shows, and exhibitions. These versatile flexible LED light sheets can be cut in any direction along the cut lines, allowing you to cut pieces to the length or shape that you need. They are available in Soft White, Warm White, Cool White, and DayWhite. Two of the double-ended connectors and two of the single-ended connectors are included with each sheet.
According to the National Electrical Code (NEC), wiring exceeding 96 watts is no longer considered Class 2 wiring.
Key Features
Key Features
-
3,400 Lumens
-
36 Watts
-
Voltage: 24VDC
-
Cuttable
Specifications
Specifications
| Part # | AL-LS-S |
| Physical | |
| Adhesive Backing | Yes / 3M Adhesive |
| Cut Length | 1.04"x 1.04"(26.4mm x 26.4mm) |
| Dimensions | 18-15/16" (480mm) long x 9-1/2" (240mm) wide x 1/4" (6mm) thick |
| Estimated Lifespan | 50,000 hours |
| Electrical | |
| Input Voltage | 24VDC, Requires Power Supply |
| LED Quantity | 162 LEDs per sheet |
| Max Power Consumption | 36 Watts per sheet |
| Max Run Length | Maximum Run Length = 6 sheets. Please use both sets of connectors when using multiple sheets. |
| Photometric | |
| CRI | >95 |
| LED Color Options | Soft White 2700K Warm White 3000K Neutral White 4000K DayWhite 6000K |
| Max Lumens | 3,400 Lumens per sheet |
| Environmental | |
| IP Rating | IP20 Indoor Use Dry Location |
| Suitable Uses | Dry Location Only |
| Control | |
| Dimmable | Yes |
| Compatibility | |
| Compatible Connectors | AL-LS-CN-1 AL-LS-CN-2 |
| Standards / Certifications | |
| Standards / Certifications | RoHS, UL Listed |
| Warranty | 1 Year |
