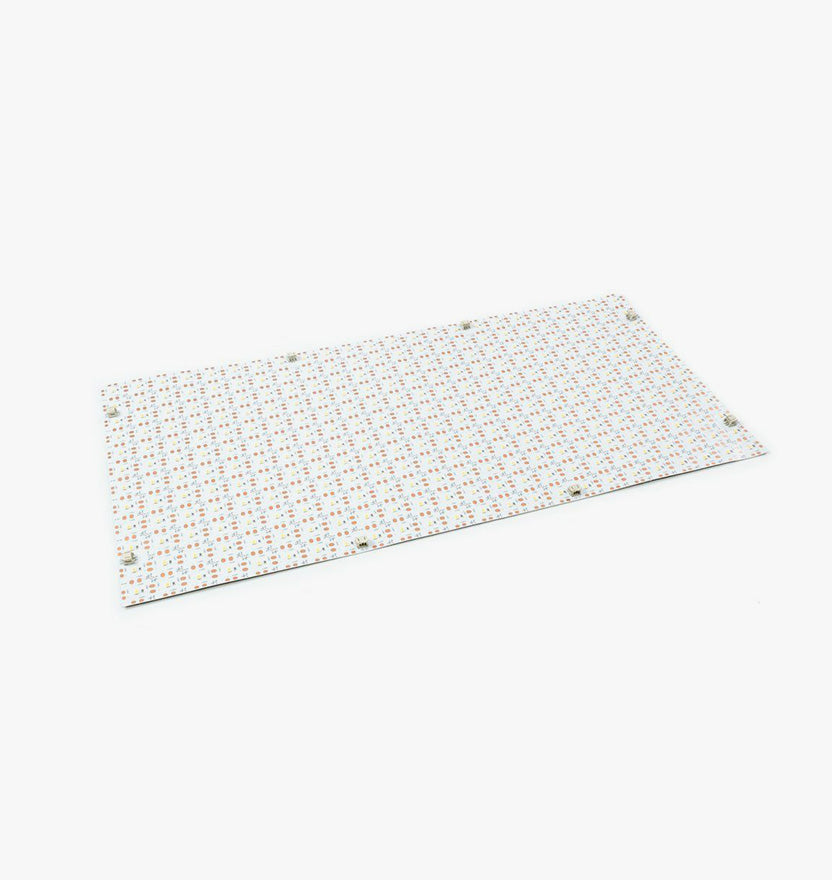

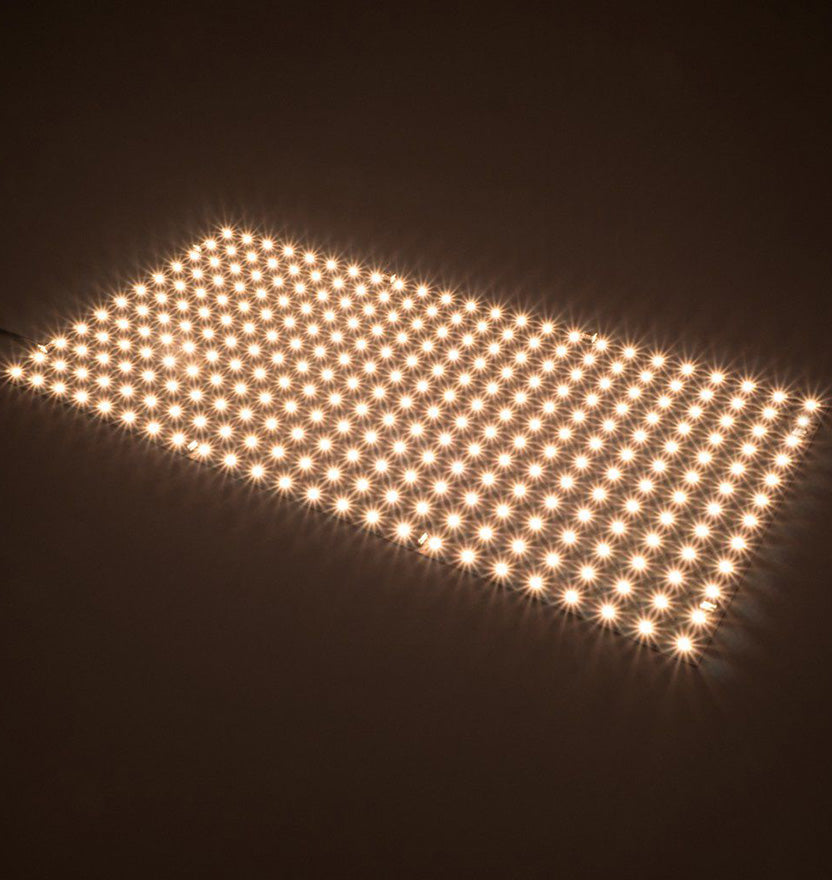

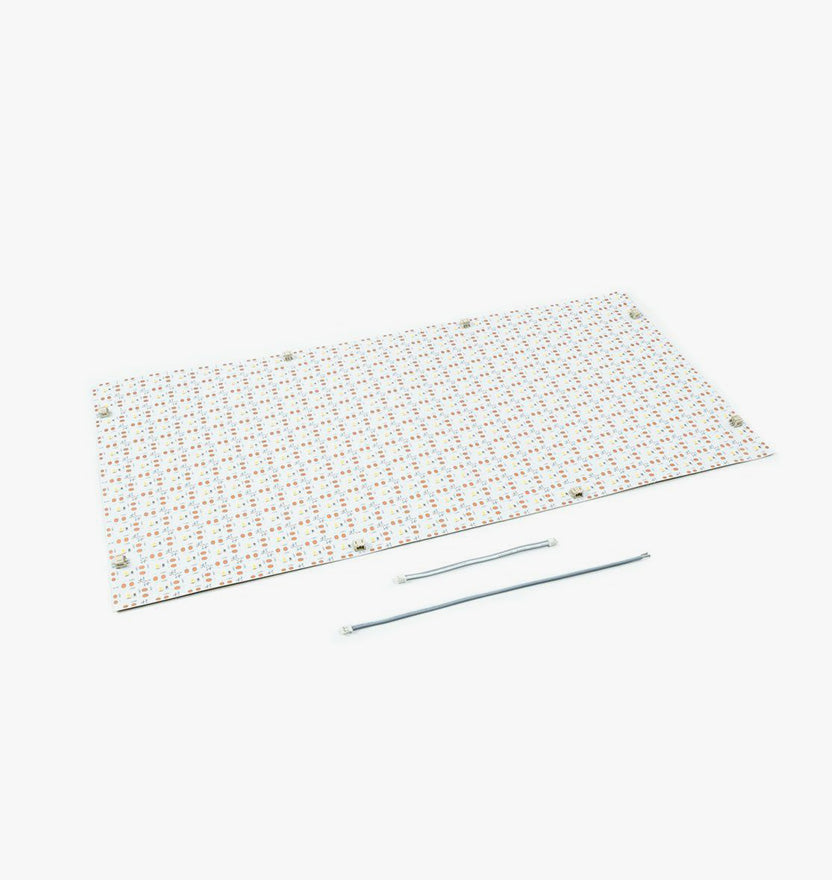

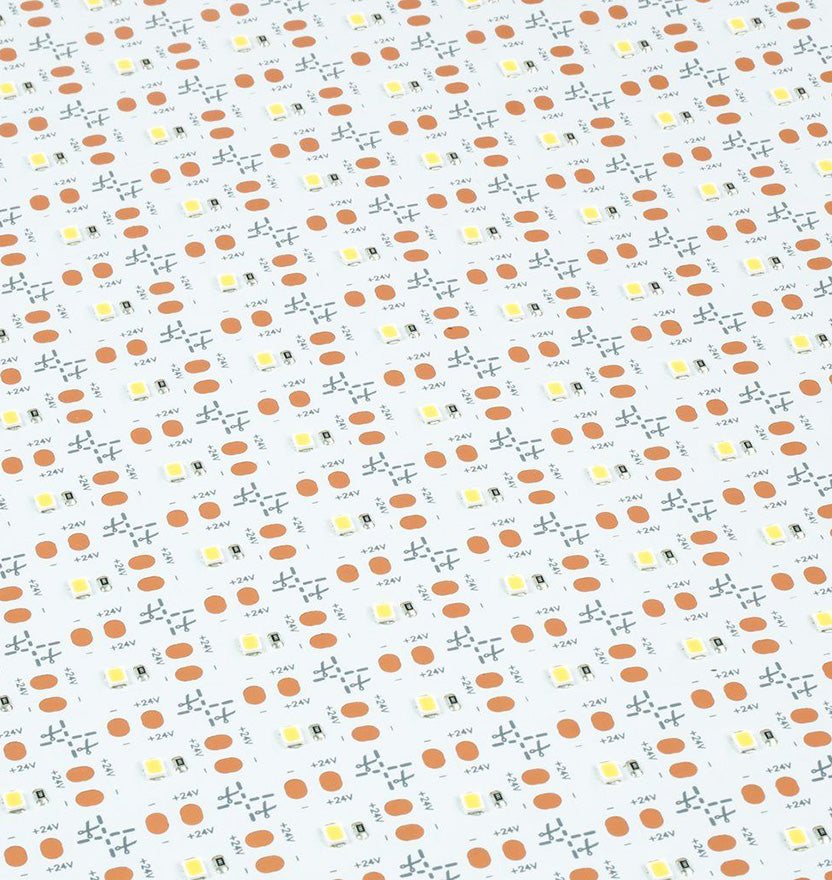

Arc™ - LED Light Sheet - Ultrabright Static White
Arc™ - LED Light Sheet - Ultrabright Static White
In-Stock (57) - Ships Same or Next Business Day
Description
aspectLED's dynamic Single Color Flexible LED Light Sheets are the perfect solution for a wide variety of lighting applications including; retail signage, back-lighting, and other decorative lighting for holidays, trade shows, and exhibitions. These versatile flexible LED light sheets can be cut in any direction along the cut lines, allowing you to cut pieces to the length or shape that you need.
Key Features
Key Features
-
6,300 Lumens
-
60 Watts
-
Voltage: 24VDC
-
Cuttable
Specifications
Specifications
| Part # | AL-LS-x-U-24 |
| Physical | |
| Adhesive Backing | Yes / 3M Adhesive |
| Cut Length | 0.78"x 0.78"(19.8mm x 19.8mm) |
| Dimensions | 18-15/16" (480mm) long x 9-1/2" (240mm) wide x 1/4" (6mm) thick |
| Estimated Lifespan | 50,000 hours |
| Electrical | |
| Input Voltage | 24VDC, Requires Power Supply |
| LED Quantity | 288 LEDs per sheet |
| Max Power Consumption | 60 Watts per sheet |
| Max Run Length | Maximum Run Length = 4 sheets. Use both sets of connectors when connecting multiple sheets. |
| Photometric | |
| CRI | >95 |
| LED Color Options | Soft White 2700K Warm White 3000K Neutral White 4000K DayWhite 6000K |
| Max Lumens | 6,300 Lumens per sheet |
| Environmental | |
| IP Rating | IP20 Indoor Use Dry Location |
| Suitable Uses | Dry Location Only |
| Control | |
| Dimmable | Yes |
| Compatibility | |

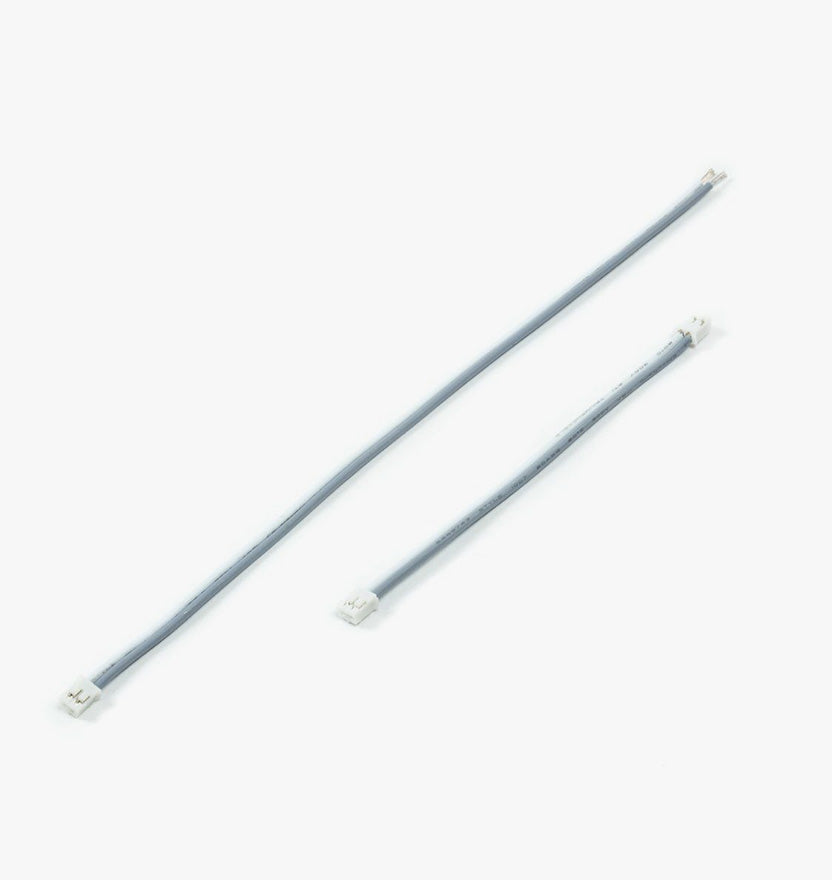

| Compatible Connectors | AL-LS-CN-1 AL-LS-CN-2 |
| Standards / Certifications | |
| Standards / Certifications | RoHS, UL Listed |
| Warranty | 1 Year |
