Description

GloTread Channel is engineered to enhance stair safety and visibility. Made from durable aluminum, it protects strip lights, delivers even light diffusion, and is tough enough to withstand foot traffic. The included silicone lens creates a smooth, linear glow with minimal visible hot spots from the LEDs. With a low-profile height of just 0.87", it minimizes the risk of tripping hazards for foot traffic. This channel is compatible with Micro Series Strip Light or any strip light 4mm wide or less.

Specifications

Part #	AL-TRK-TREAD1-M
Physical
Accommodates these \| Interior Channel Dimensions	0.15" (4mm)
Channel Material	Anodized Aluminum
Dimensions	1.70" (43.3mm) Wide 0.88" (22.5mm) Tall
Finish Options	Silver, Black
Lens Material	Flexible Silicone
Lens Options	Frosted
Mounting Method	Surface Mounted
Package Quantity	Accessory Pack (optional) 1 End Cap with Hole, 1 End Cap without Hole
Routing Width	Not applicable
Weight	1.6 lb (6.5ft Channel & Lens)
Photometric
Lens Transmittance	Clear = 92% Frosted = 78% Smoke = 25%
Environmental
IP Rating	IP20
Load Rating	IK06
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light up to 4mm wide
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

3/16" visible lens improves visibility to hard-to-see steps and ledges with minimal visual intrusion
Low-profile design reduces tripping hazards for pedestrians
Compatible with Micro Series Strip Light or strip light products 4mm wide or less

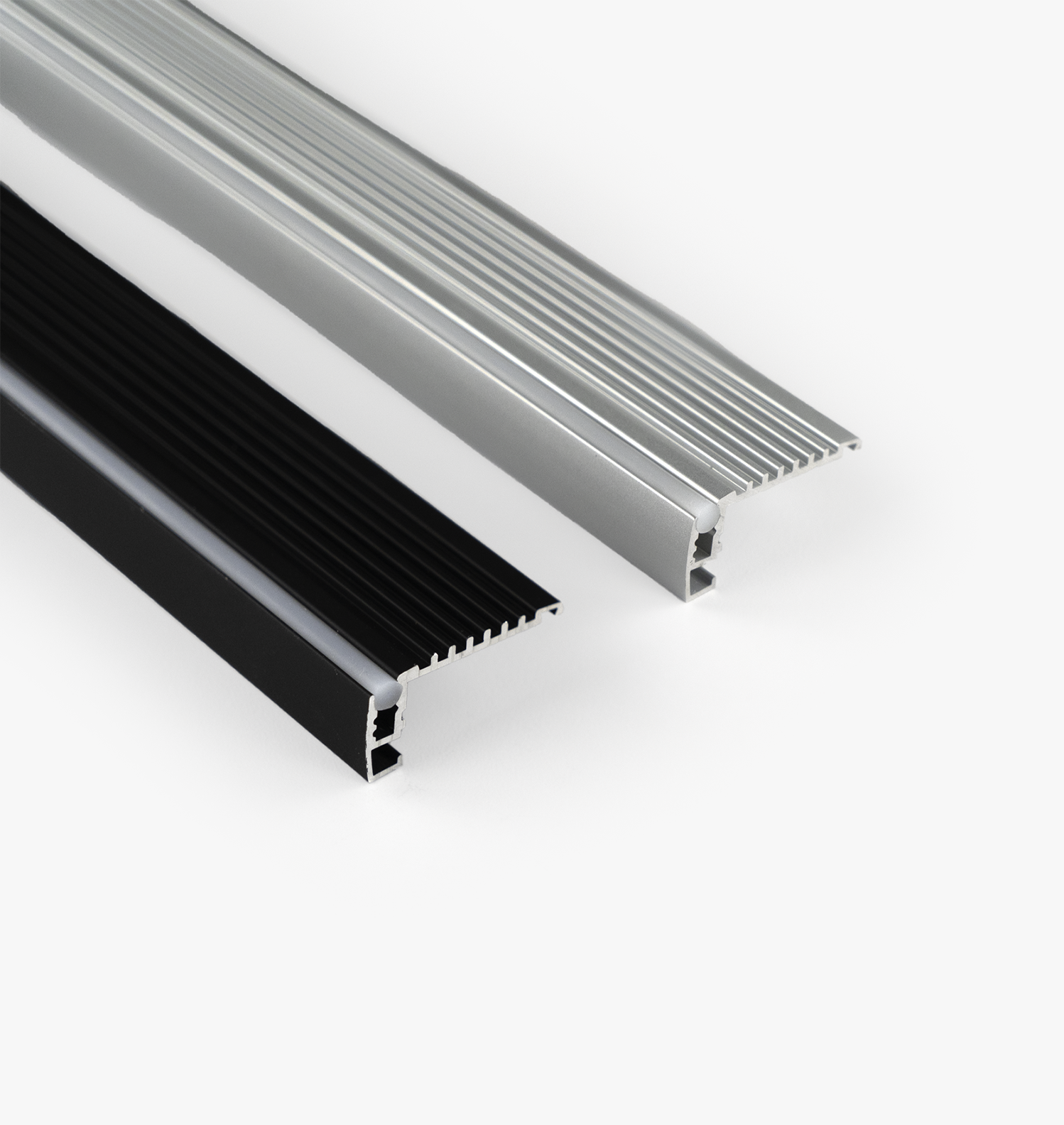

Offered in sleek black or silver aluminum finishes to blend seamlessly into any space
End caps included for clean, easy installation
Constructed from high-quality AL6063-T5 aluminum alloy for durability, heat dissipation, and extended LED lifespan
Anodized finish adds extra protection against rust and oxidation
Multi-pack options available for installers and large-scale projects
Flexible silicone lens available in 98ft bulk rolls
IP20, not suitable for wet areas or heavy cleaning

Applications

Stairway + Step Lighting
Low-profile design reduces tripping hazards for pedestrians
Theater Lighting
Utility Lighting
Commercial Spaces
Gym Lighting
Entryways
Hotel Lighting

Technical Documents

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

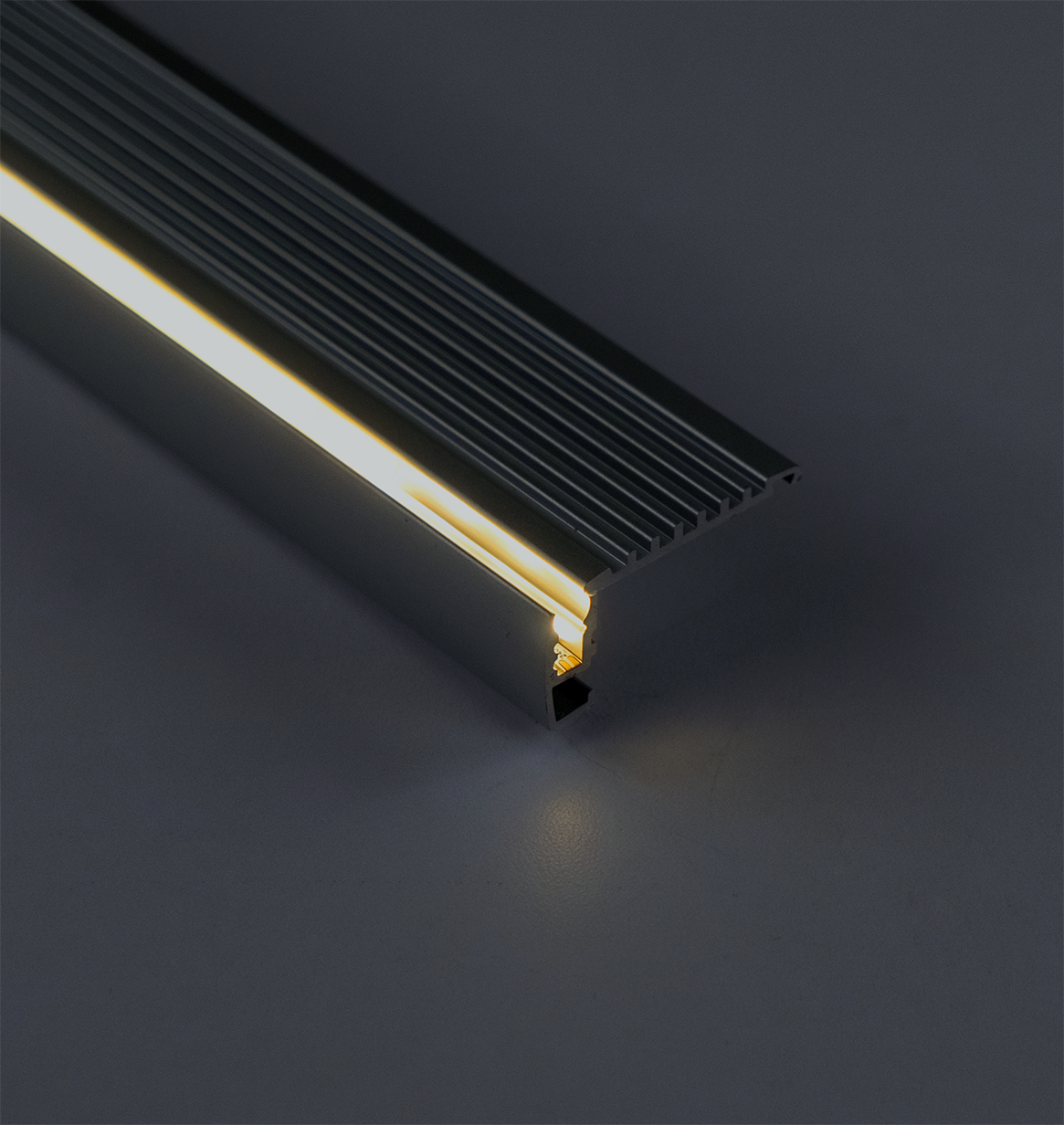

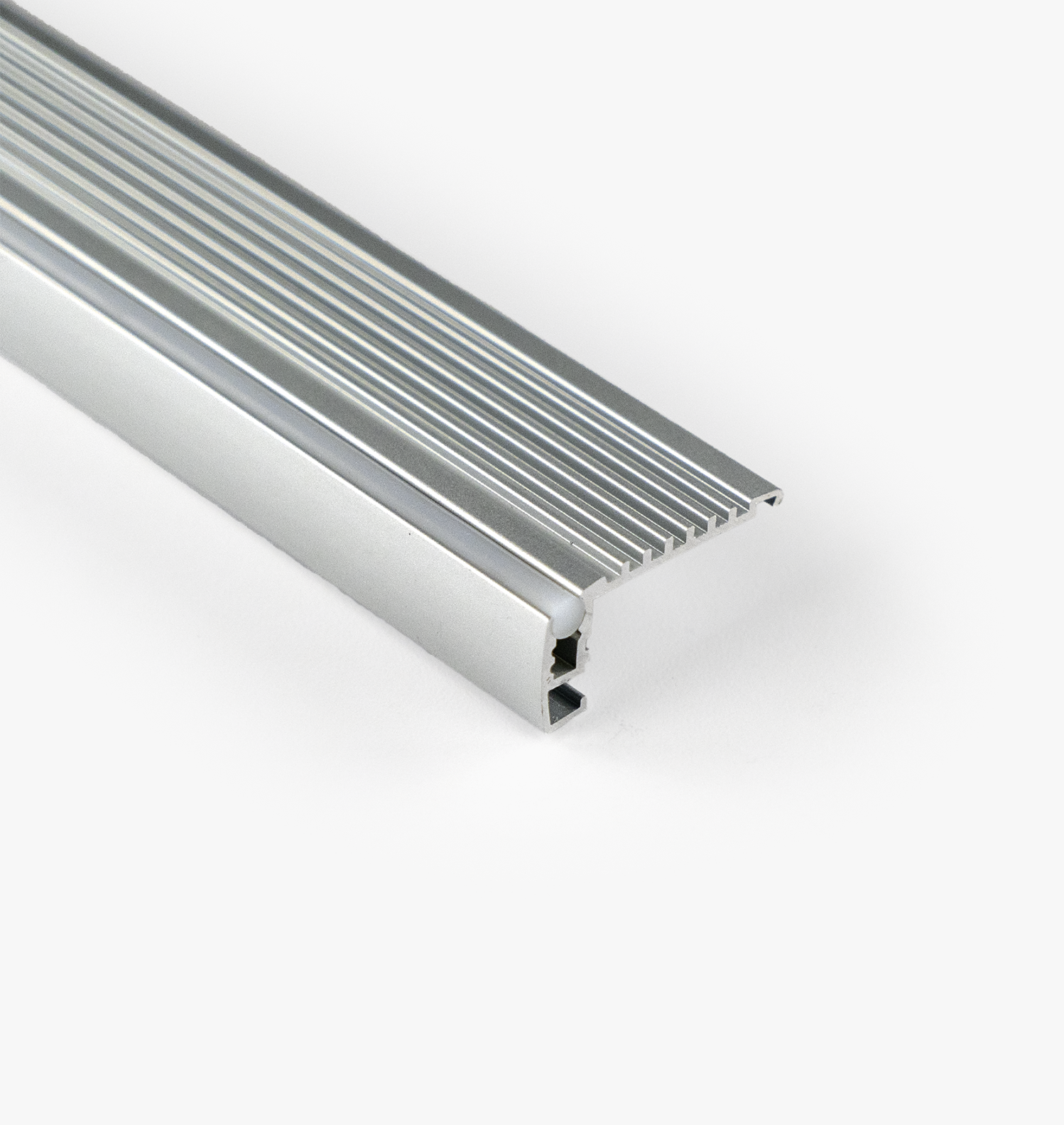

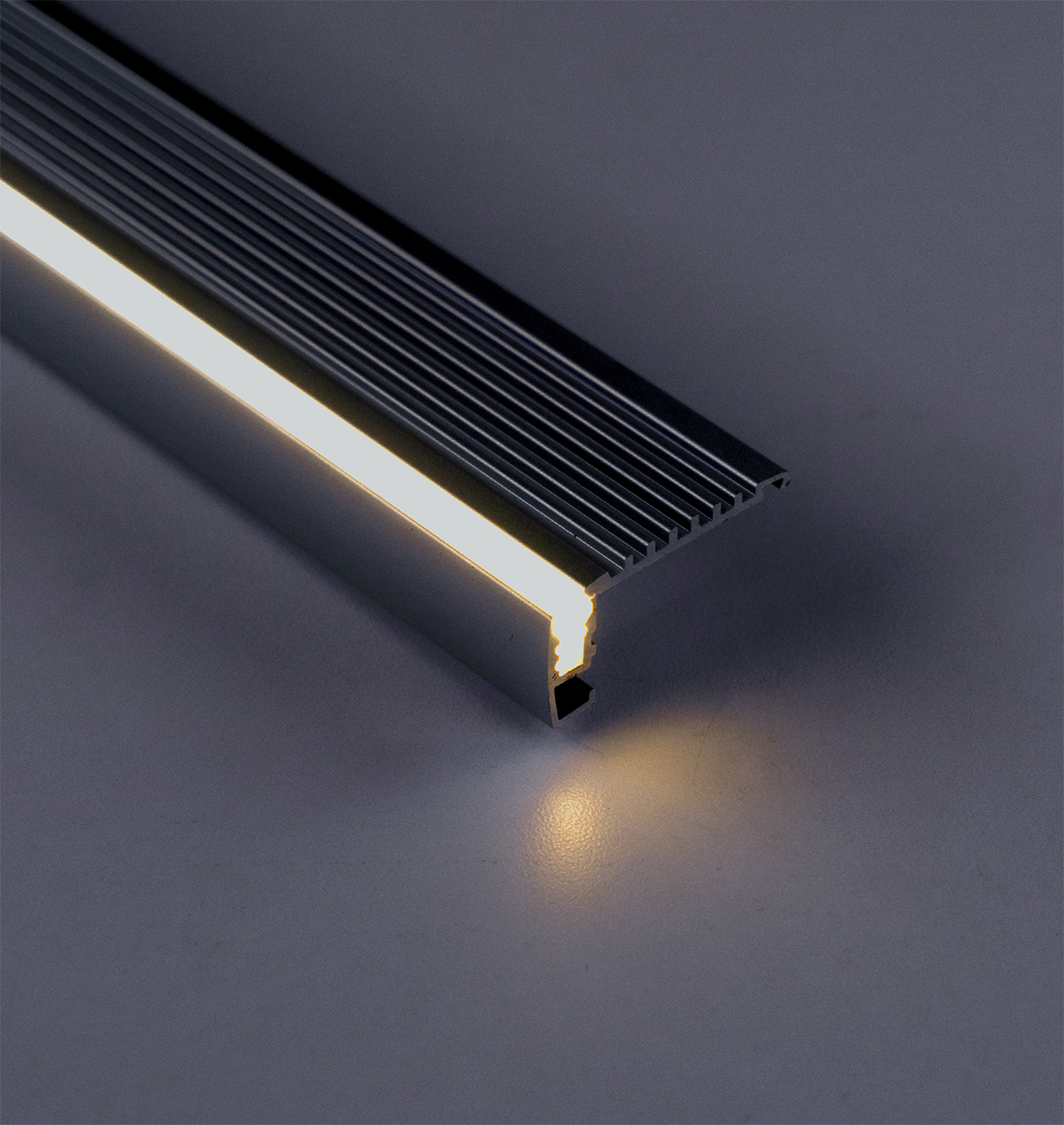

GloTread Micro LED Channel - Silver

SKU: AL-TRK-TREAD1-M-SFST-1M-KIT

$30.89

Low Stock (only 10 items left in stock) - Backorder Available

Channel Color: Silver

Black Silver

Channel Length: 3.3 Feet

3.3 Feet 6.5 Feet

Include Accessories?: Yes

No Yes

Quantity: 1 Pack

1 Pack 5 Pack 10 Pack
