In Floor LED Channel, Universal Wide (IP65) - Silver - 5PK

Description

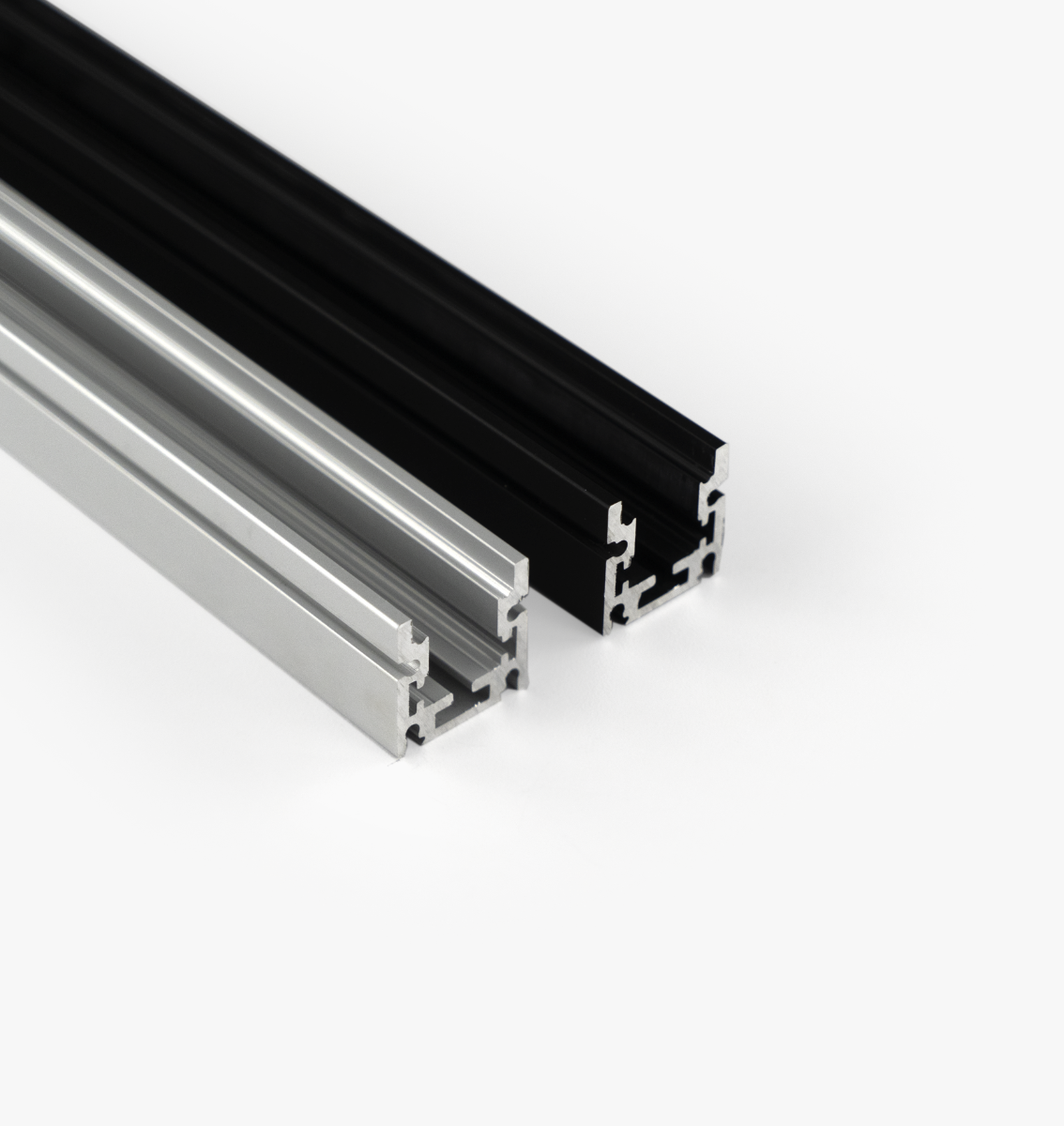

This Universal Wide In-Floor Channel accommodates strip lights up to 16mm wide, whether rated for indoor or outdoor use. Its extra-wide design can even fit two 8mm strips for enhanced brightness. Built from durable aluminum, it protects your strip lights, diffuses light evenly, and is strong enough to withstand foot traffic. Choose between a frosted or smoke lens to achieve your desired effect: the smoke lens reduces output for subtle accent lighting, while the frosted lens delivers bright, clean illumination ideal for task lighting.

Specifications

Part #	AL-TRK-INFLR-W
Physical
Accommodates these \| Interior Channel Dimensions	0.57" (14.7mm)
Aluminum Channel \| Routing Width	See Technical Drawing
Channel Material	Anodized Aluminum
Dimensions	1.10" (28mm) Wide 1.10" (28mm) Tall
Finish Options	Silver, Black
Lens Material	Polycarbonate
Lens Options	Frosted, Smoke
Mounting Method	Mounting Clip, Surface Mounted
Package Quantity	Accessory Pack (optional) 1 End Cap with Hole, 1 End Cap without Hole, 2 Silicone End Cap Gaskets, 2 Flexible Silicone Seals
Routing Width	30mm
Weight	3.9 lb (6.5ft Channel & Lens)
Photometric
Lens Transmittance	Frosted = 78% Smoke = 25%
Environmental
IP Rating	IP65
Load Rating	IK10
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light 12mm wide & above
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Lens Thickness: 3/16" for added impact resistance and long-term durability.
Heavy Duty Construction: Extra stability and resistance against flexing, bending, and warping.
Outdoor Ready: Pair with waterproof end caps and silicone seals for IP65+ applications.
Visible Lens: 7/8" lens opening delivers broad, even illumination.
Strip Compatibility: Fits indoor or outdoor strip lights up to 16mm wide.
Versatile Light Sources: Compatible with SMD and COB strips, including tunable white, color-changing, and static white options.
Customizable Appearance: Available with smoked or frosted lenses for a built-in, tailored look.
Finish Options: Offered in sleek black or silver aluminum to blend seamlessly into any space.
Easy Installation: End caps and mounting clips included for a clean, hassle-free setup.
Durability: Constructed from high-quality AL6063-T5 aluminum alloy for heat dissipation and extended LED lifespan.
Added Protection: Anodized finish guards against rust and oxidation.
Multi-Pack Options: Available for installers and large-scale projects.
Indoor & Outdoor Safe: Suitable for installation in both environments.

Applications

Outdoor & Indoor Pathway Lighting
Outdoor Hardscape Lighting
Border & Perimeter Lighting
Floor Transition & Demarcation Lighting
Commercial Lighting
Pool & Spa Lighting
