L & N-Series Single Color Solderless Jumper Bite Connector
L & N-Series Single Color Solderless Jumper Bite Connector
Regular price
$1.50
Sale price
$1.50
Regular price
In-Stock (2540) - Ships Same or Next Business Day
Description

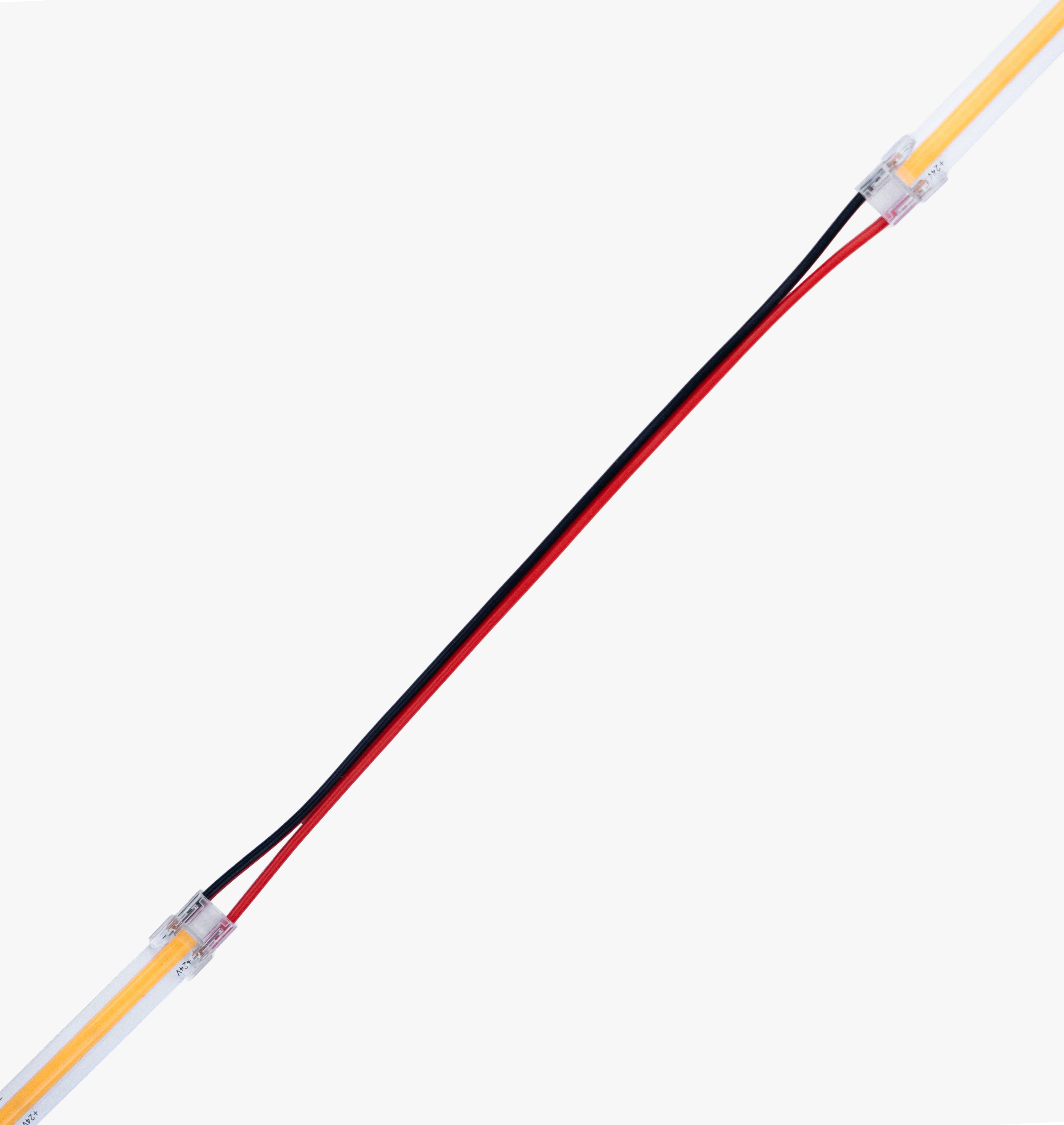

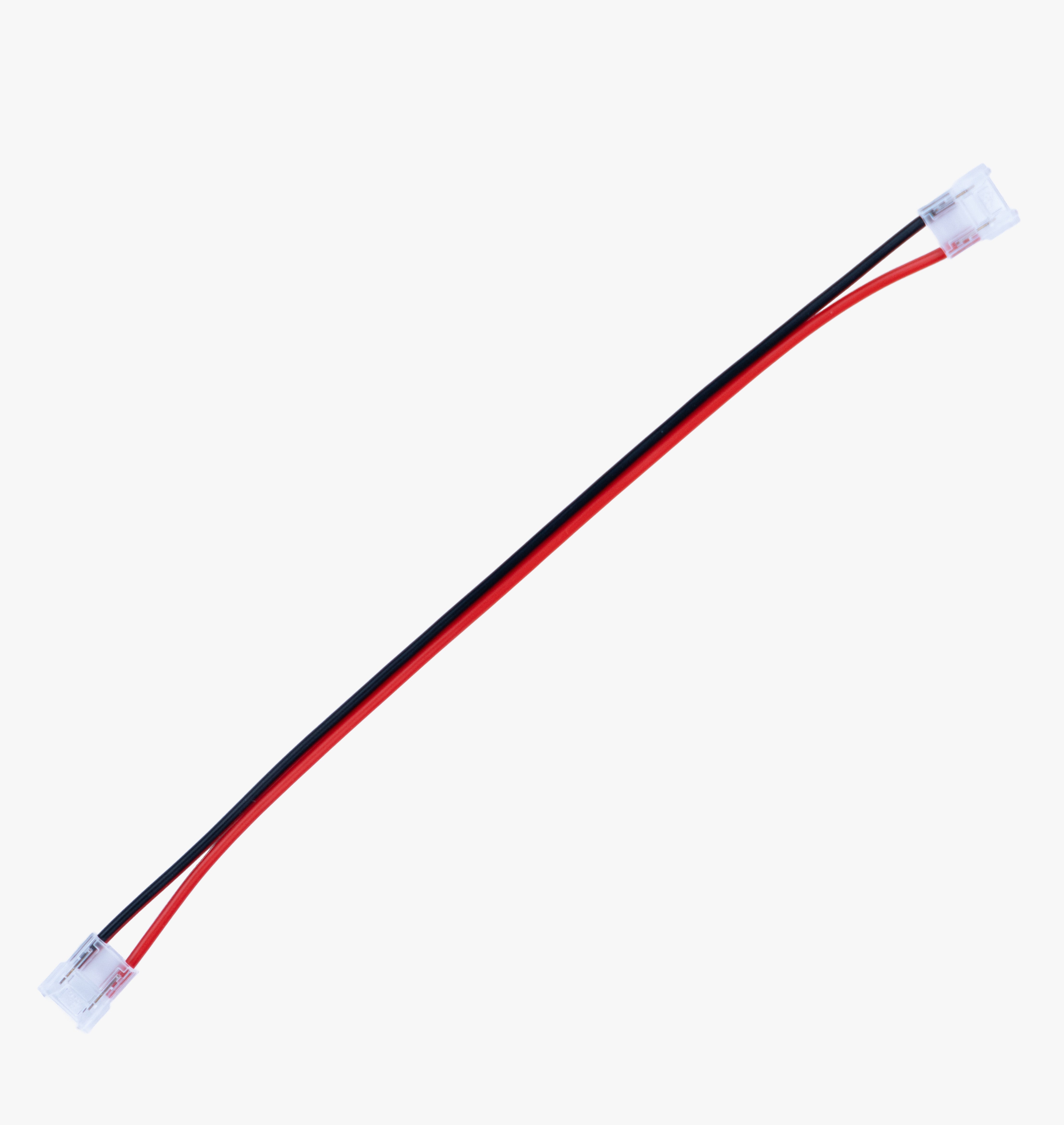

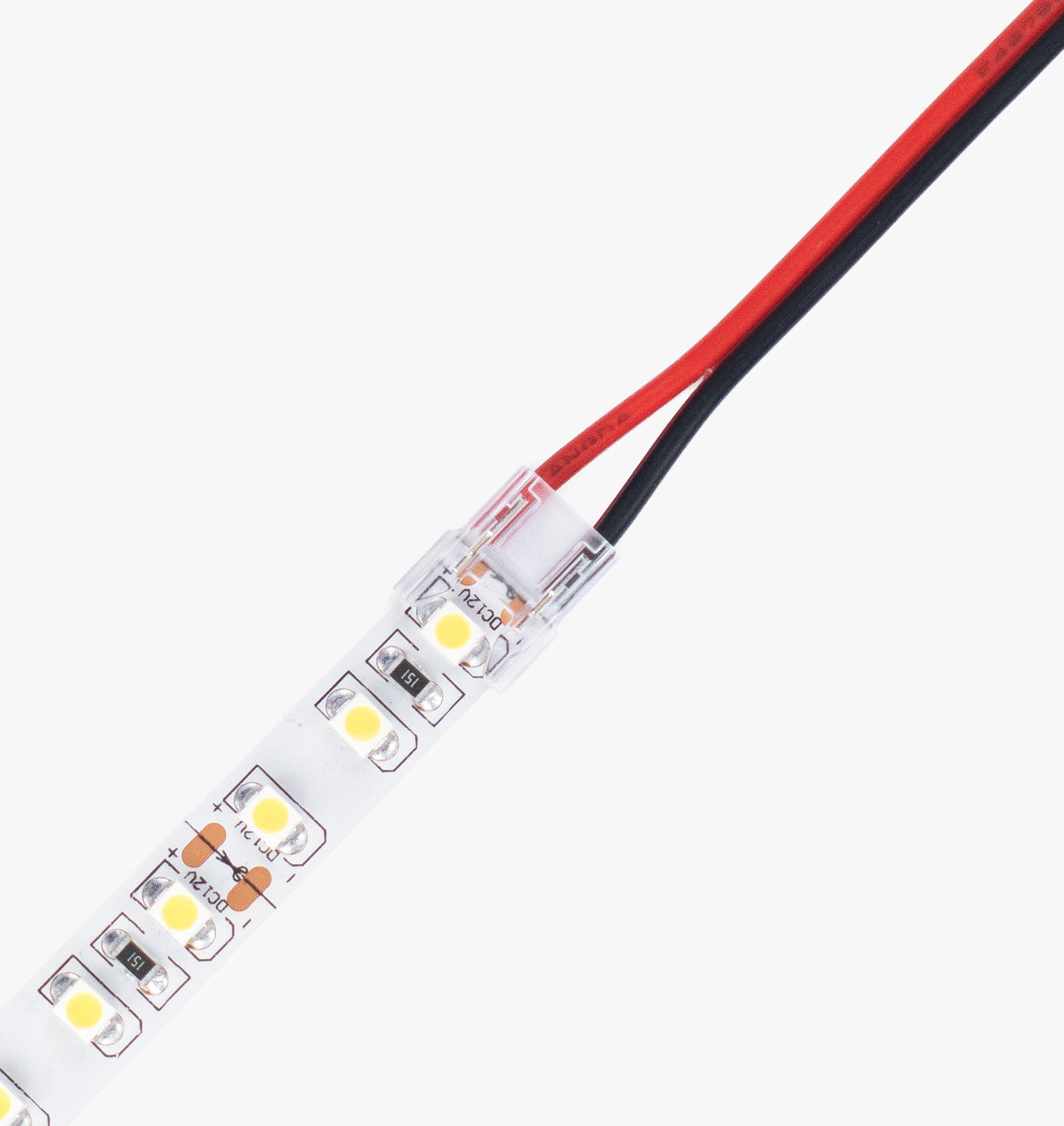

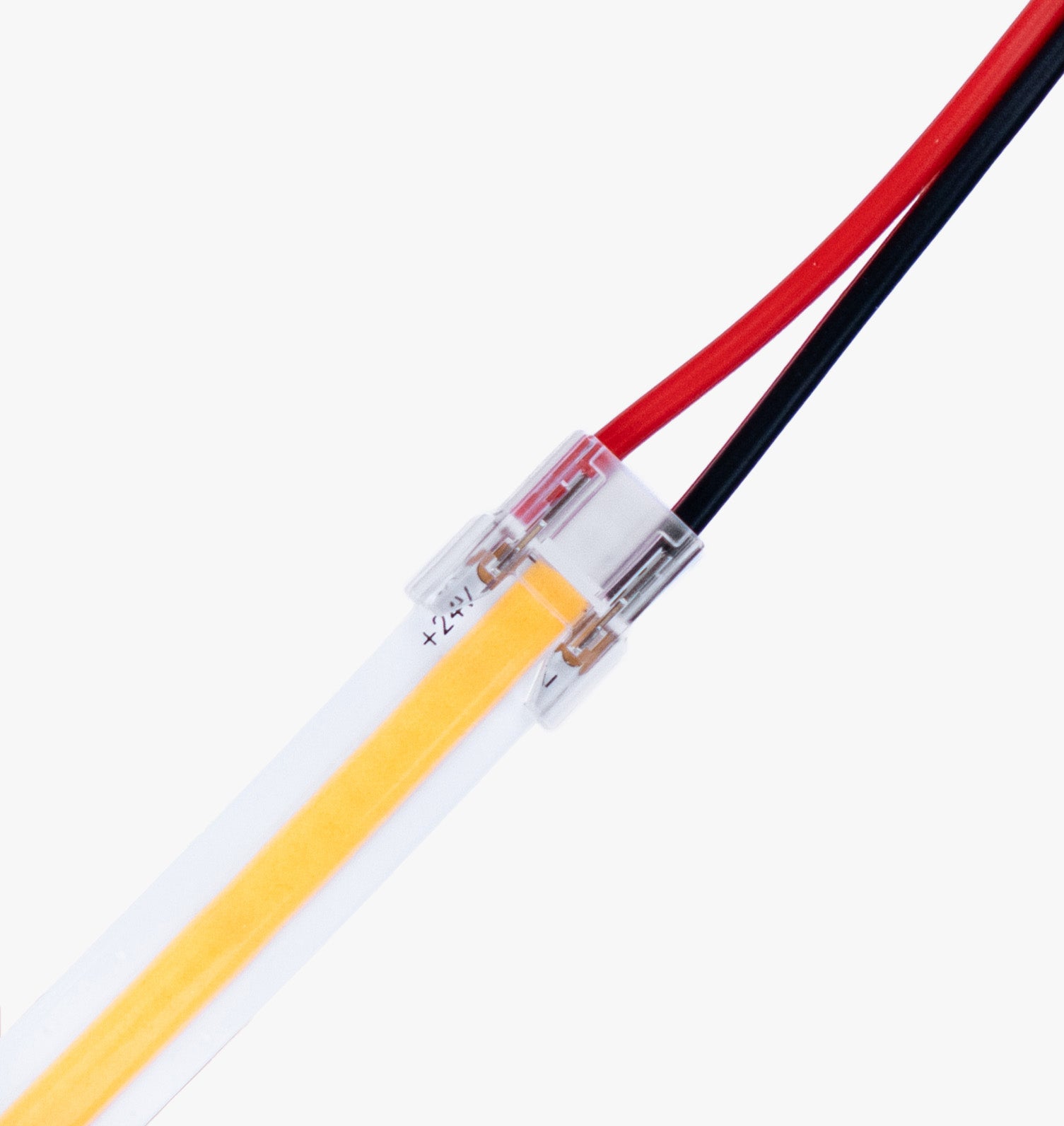

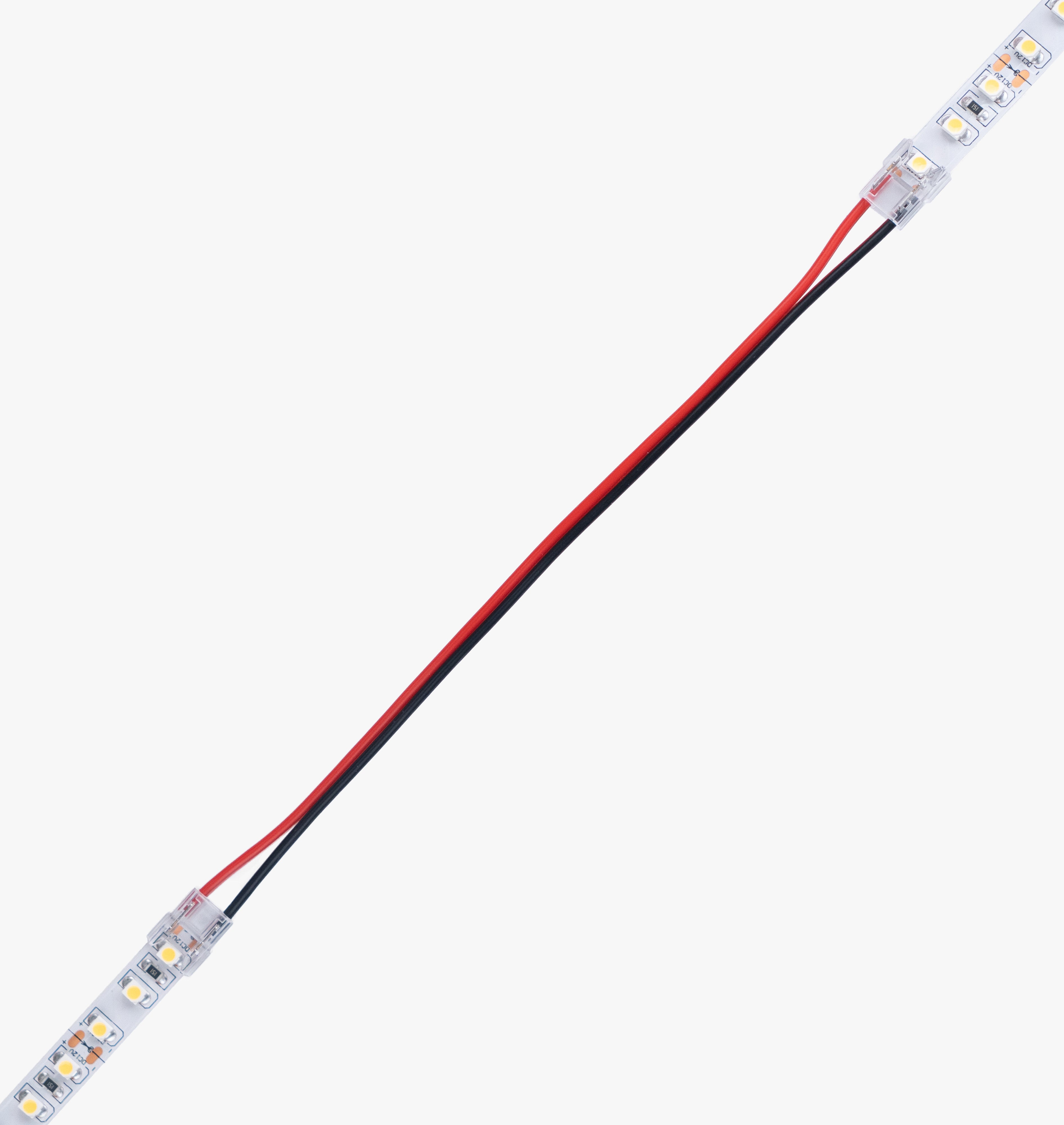

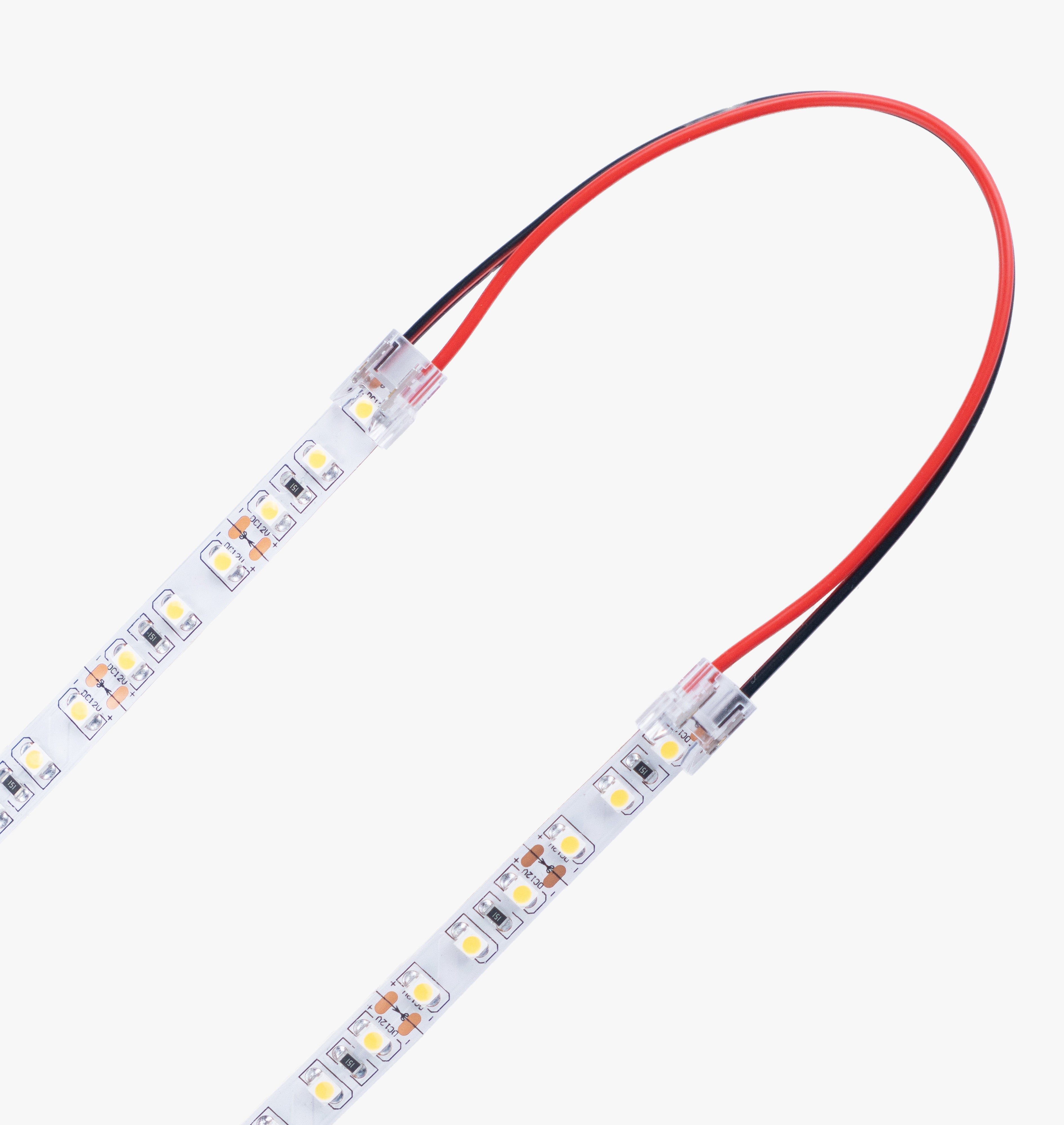

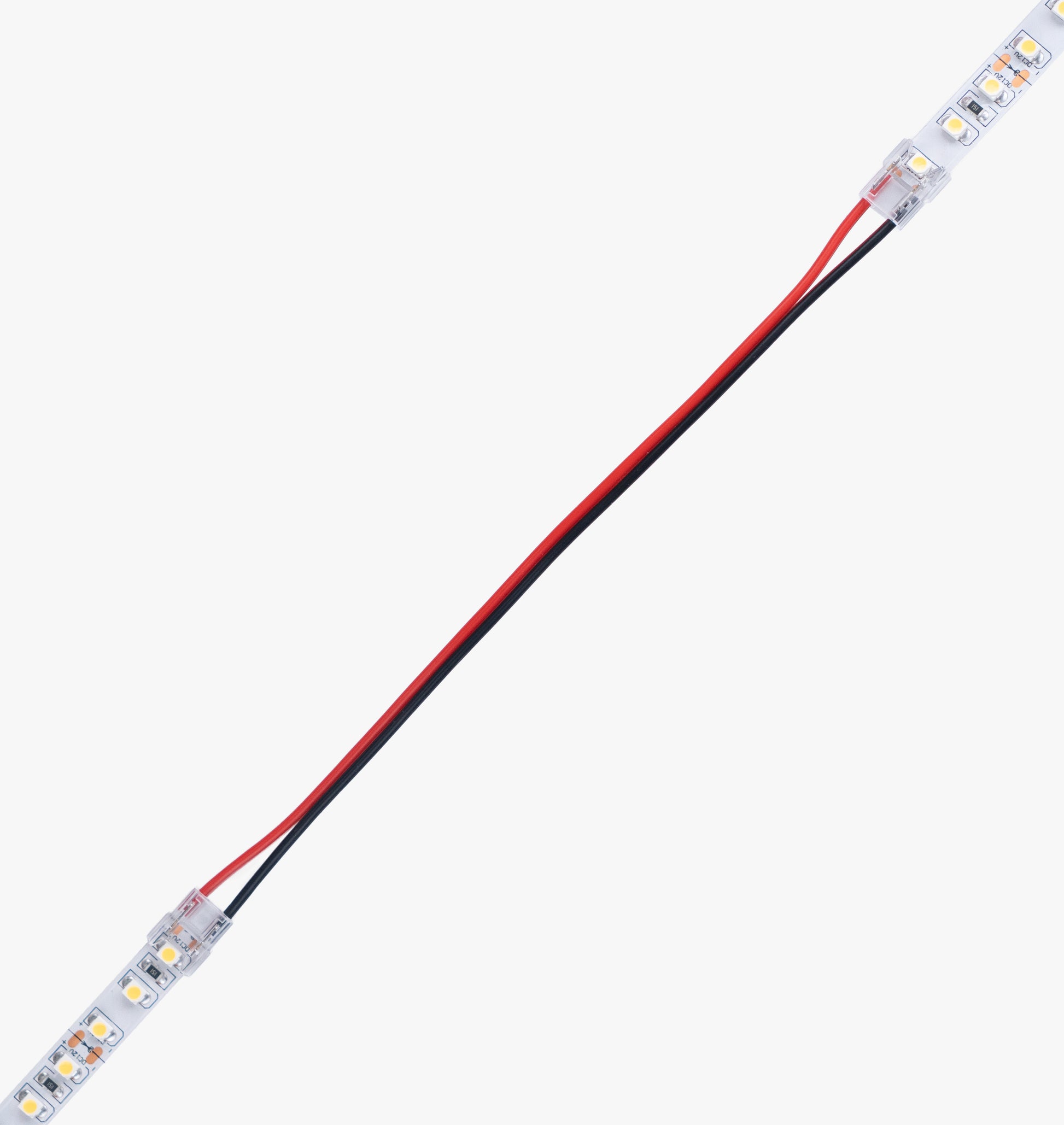

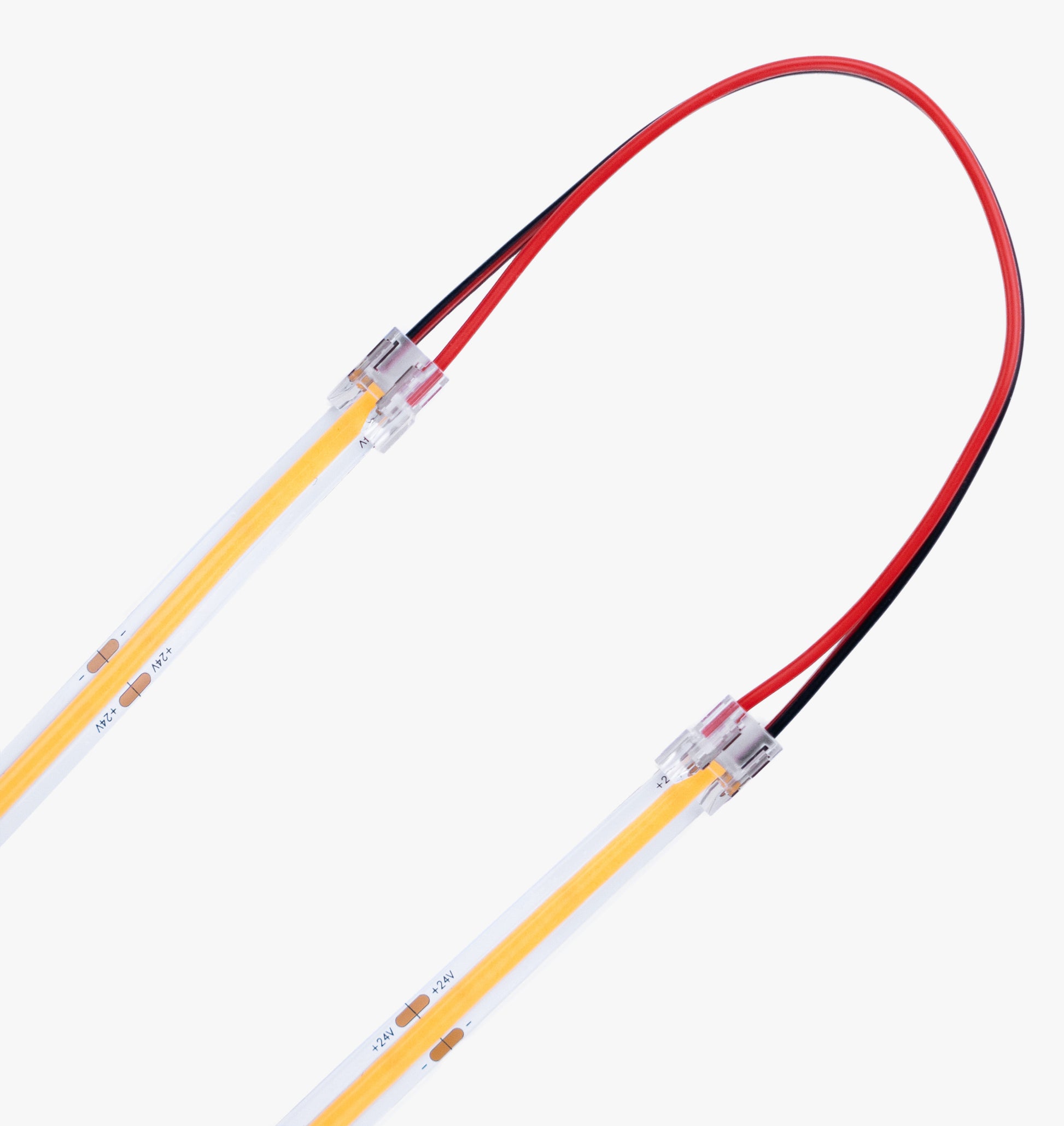

This connector is a double ended connector designed to connect 2 sections of L-Series Single Color or N-Series Single Color LED Strip Lights to make turns or jump installation obstacles with no soldering work. For use only with aspectLED Strip Lights (sold separately). Be sure to observe strip light polarity at all connection points. Needle Nose or Parallel Jaw Pliers recommended for installation.
Key Features
Key Features
-
IP20 Non-Waterproof
-

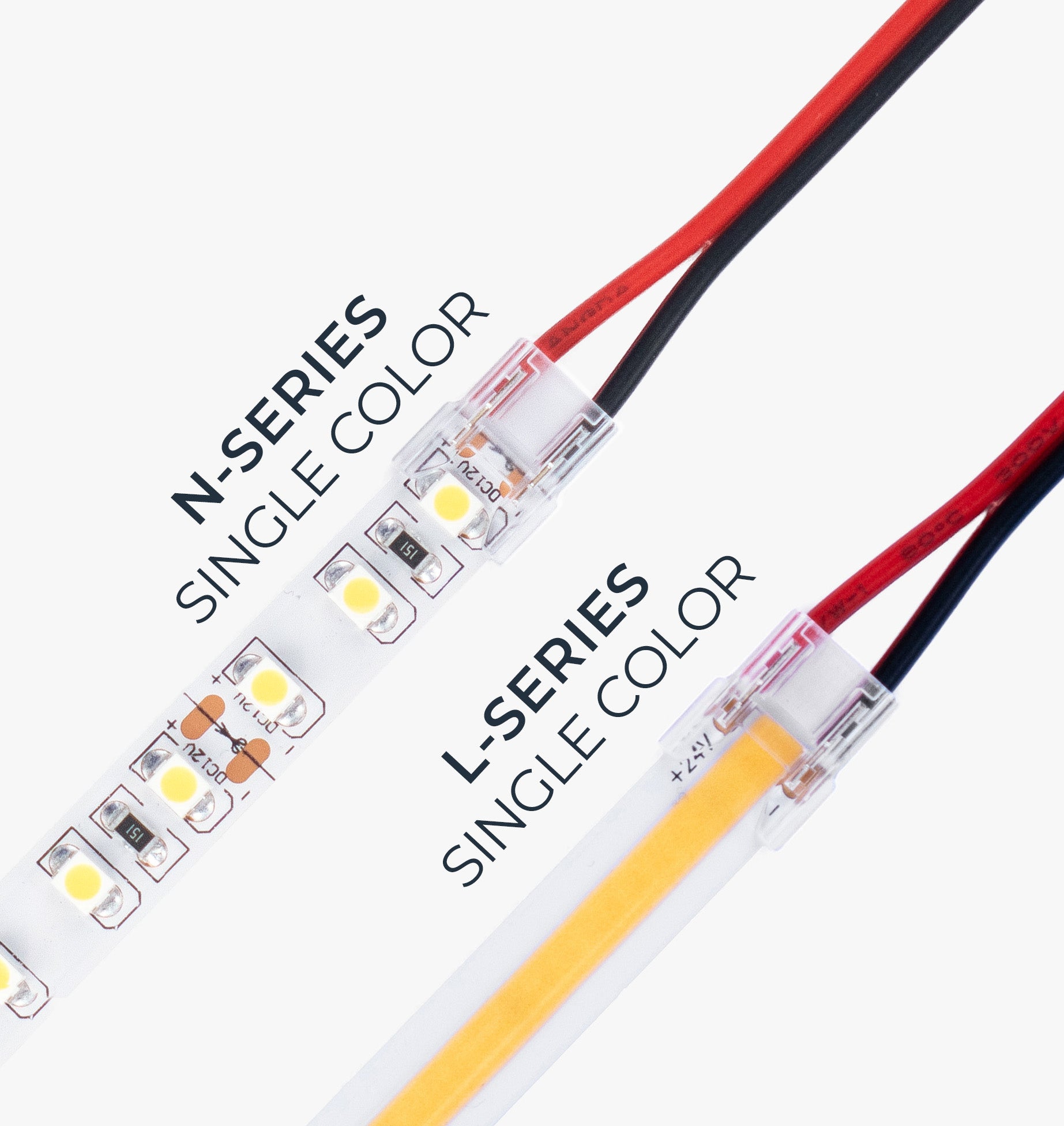

N-Series +
L-Series (Single Color)
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-SL-CN-LN-JUMPER |
| Physical | |
| Connector Type | Strip to Wire to Strip |
| Dimensions | 7" Long (177.8mm) 0.38" Wide (9.85mm) 0.21" Deep (5.5mm) |
| Weight | 0.10 oz (3.1g) |
| Electrical | |
| Max Current | 4A |
| Wire Connections | 20 AWG (Red+/Black-) |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-L95 AL-SL-LN-U AL-SL-LN-IP20-24 AL-SL-N90 AL-SL-NN-U AL-SL-NN-S |
| Standards / Certifications | |
| Standards / Certifications | CE |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
