Medium In-Ground/In-Wall LED Light - RGB + White (12W)

LED LIGHT COLOR

CLICK FOR HELP CHOOSING

RGB + Day White

VOLTAGE

CLICK FOR HELP CHOOSING

MOST POPULAR! Requires a power supply

WIRE LEAD LENGTH

CLICK FOR HELP CHOOSING

$ 123.99

SKU: AL-IG-M-12-RGBDW-24V
LED Color: 24VDC
Voltage: RGB + Day White
Wire Lead Length: 2 Feet

Please Contact an LED Expert for Lead Time

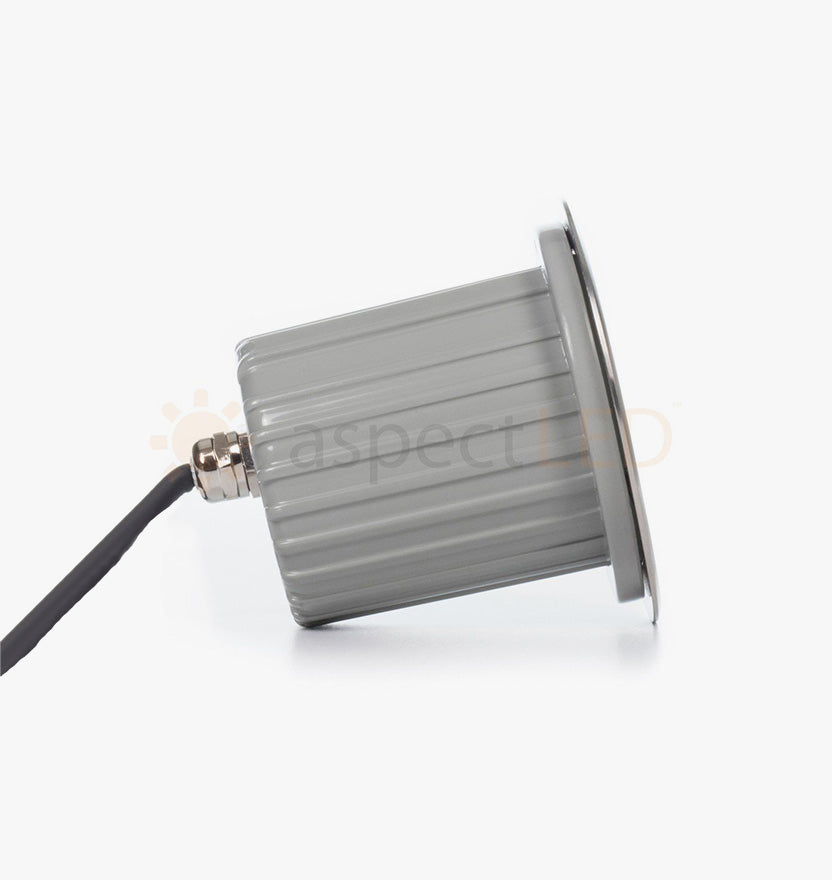

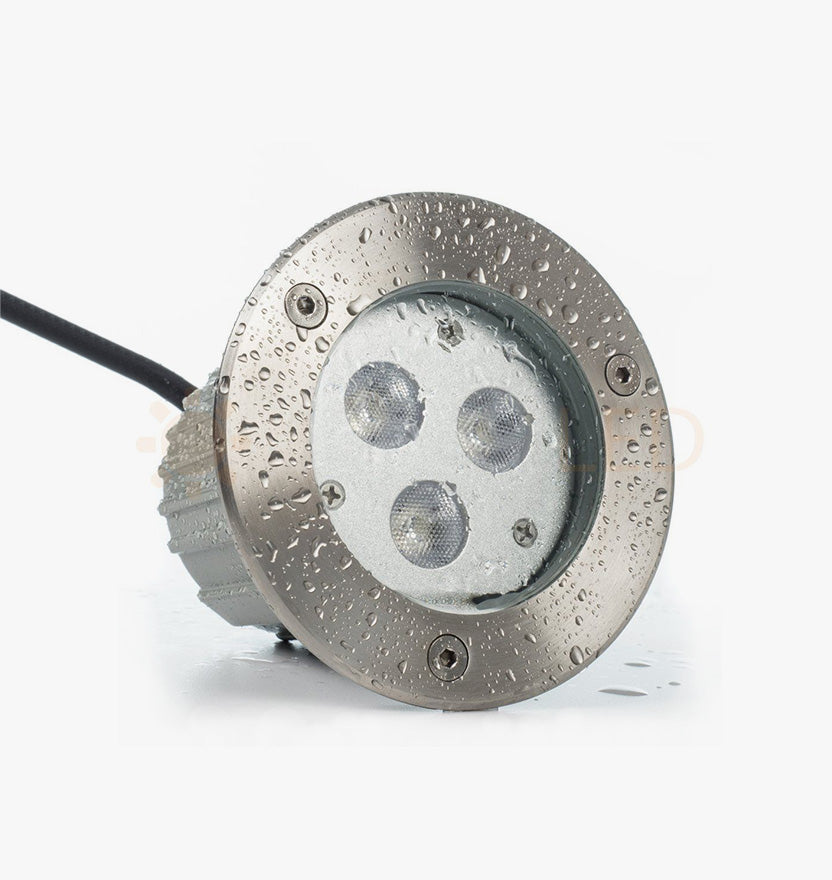

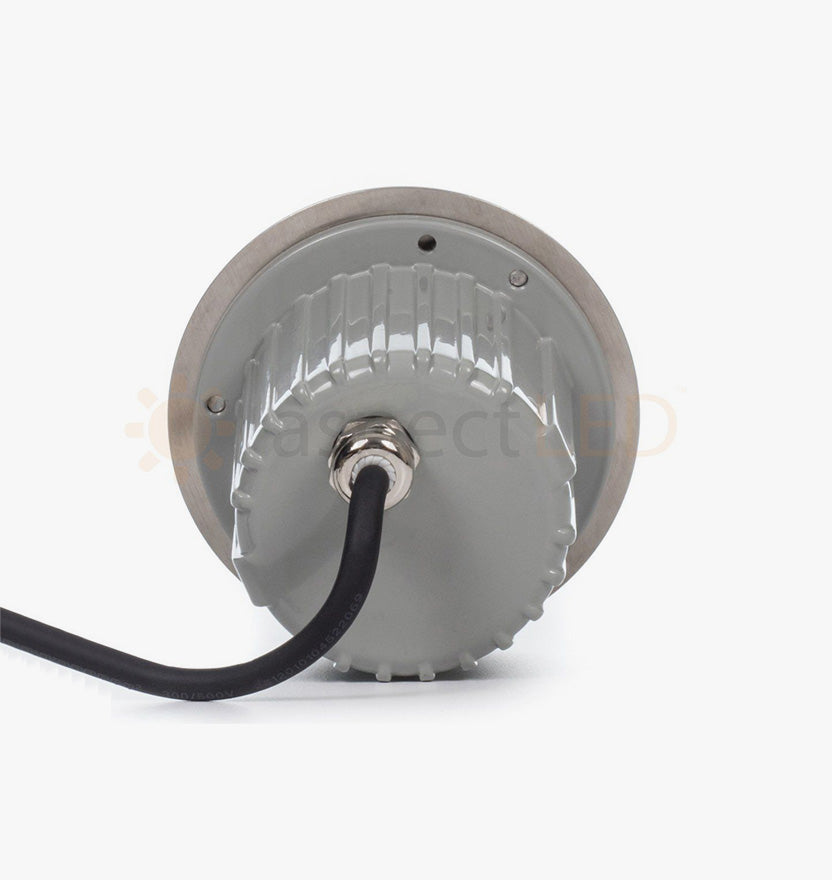

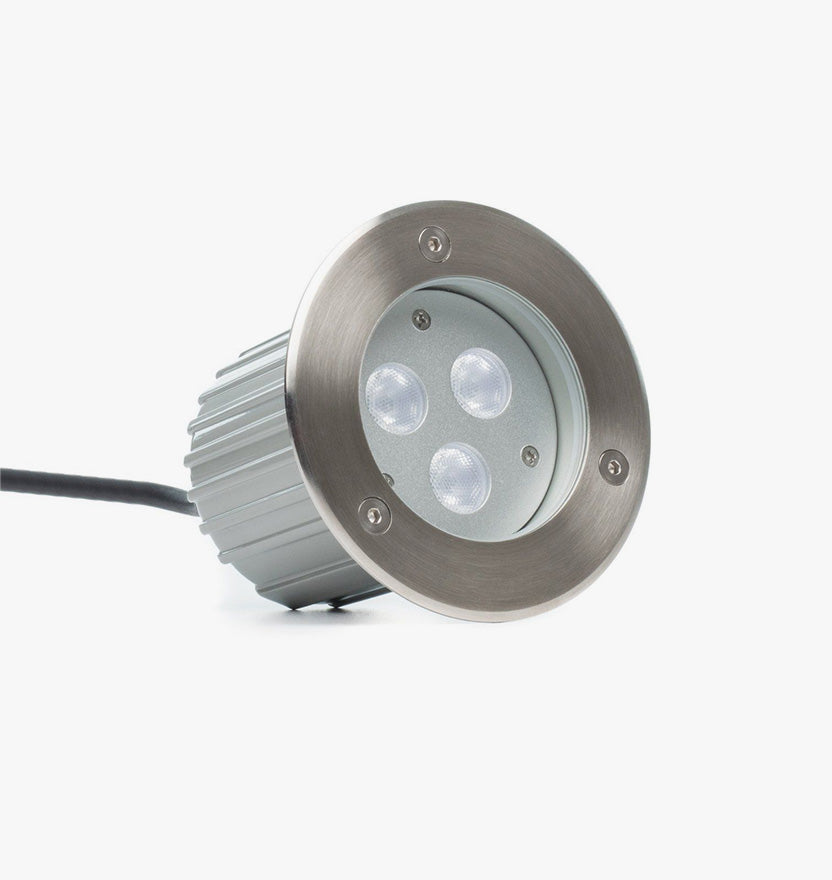

This 12W medium 4.25" diameter x 3.5" deep light can be mounted in-ground or in-wall. Perfect for patios, garden walls, decks, docks, gazebos, and many other locations.

aspectLED's in-ground/in-wall recessed lights are bright, energy efficient, and attractively styled, making them perfect for virtually any application. Ideal for installation in stair safety/accent lighting, garden walls, building entrances, pathways, decks, gazebos, public parks, docks, and marine environments.

These recessed in-ground/in-wall lights are waterproof (with an IP67 rating) and feature a #304 stainless steel trim and aluminum body. These lights come standard with a clear glass trim with stainless steel bezel.

RoHS Compliant


Physical Dimensions & Specifications

  24VDC
Part # AL-IG-M-12-RGBW-24V
Light Fixture Dimensions 4.25" (108mm) Diameter
3.5" (89mm) Deep
Input Voltage 24VDC
Dimmable No
Power Consumption 12 Watts
Luminous Flux 730 Lumens
LED Type RGBW SMD LED Chips
LED Quantity 3 - High Power RGBW LEDs
Beam Angle 30 Degrees
Housing Material Die-cast Aluminum
Trim Material Polished 304 Stainless Steel
Contact us for info on 316 Stainless, painted, or powder coated finishes.
Clear Glass Lens
Operating Temperature -4 to 113 Fahrenheit (-20 to +45 Celsius)
Weight 3 lbs
IP Rating IP67
Lens Optical, >85% efficient
Contact us for availability on frosted lenses.
Glass Step-tempered 12mm thickness glass
Waterproof Seal Double silicon gasketed seal
Mounting Sleeve Die-Cast Aluminum Sleeve
Suitable Uses Dry, Damp, or Wet Locations
Weight Rating Can withstand normal passenger vehicle traffic
Average Lifespan 50,000 hours
Warranty 1 Year
Compatible Power Supplies Non-Dimmable Power Supplies
Never use with MLV power supplies!
Standards / Certifications RoHS, CE

Features:

  • Suitable for installation in concrete, asphalt, stone, stucco, brick, wood, Hardieboard, and many other materials
  • Included mounting sleeve allows pre-pouring the sleeve in concrete, then installing fixtures later
  • Easy to install and mount, featuring a die cast body and stainless steel trim face
  • Standard trim is 304 Stainless Steel, but can be special ordered in 316 Stainless steel (contact us for details)
  • Maintenance free
  • Suitable for indoor/outdoor temperatures from -4 to 113 Fahrenheit (-20 to +45 Celsius)
  • Solid-state construction makes for high shock and vibration resistance
  • SMD LEDs are super bright, high intensity and low power consumption
  • Extremely long life: up to 50,000 hours with very low time-luminosity decay
  • No RF interference
  • Standard included lead length is 2'. If a longer lead length is needed, please contact us for special order options.

Applications:

  • Safety and accent lighting for stairways
  • Architectural lighting for corridors, pathways, and archways
  • Public park lighting
  • Landscape lighting
  • Excellent for hospitality applications (bars, restaurants, clubs, hotels)
  • Stage lighting
  • Marine lighting
  • Docks and marinas
  • Road and bridge lighting
  • Elevator lobby areas
  • Public parking ramps
  • Airport pathway/step lighting
  • Museum and art gallery lighting
  • Sculpture and statue base illumination

FAQ

Have a question and don't see the answer below? Click here to chat with an LED expert.

For 24VDC lights, how do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply.It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
What gauge wire should I run to my in-ground/in-wall lights?
We generally recommend using between 14ga and 16ga stranded wire. Longer distances require larger gauge wire. Always consult a wire gauge chart to determine the correct size wire for your application.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
