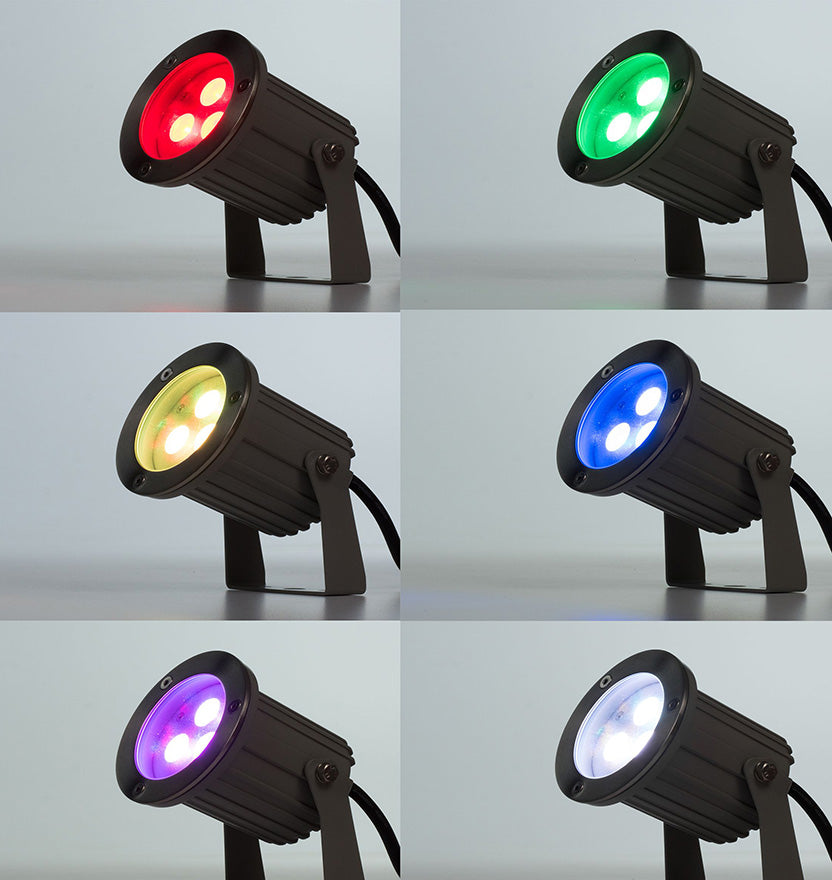

Signature Series LED Landscape Light (Stake Mount) - Ultra Bright (9W)
Signature Series LED Landscape Light (Stake Mount) - Ultra Bright (9W)
Special Order - Contact our LED Experts for lead time
Description
Our most popular selling landscape light, this 9W signature series 3.78" diameter x 3.5" deep landscape light can be stake mounted in ground. Also available in a surface mounted version for mounting on ground, wall or ceiling surfaces. Perfect for architectural landscape lighting, patios, garden walls, decks, docks, gazebos, walkways, and many other locations. aspectLED's landscape LED lights are bright, energy efficient, and attractively styled, making them perfect for virtually any outdoor application. Ideal for installation in gardens, landscaping, garden walls, building entrances, pathways, decks, gazebos, public parks, docks, and marine environments. These LED landscape lights are waterproof (with an IP65 rating) and feature an aluminum body. These lights come standard with a clear glass trim.
Key Features
Key Features
-
520 Lumens
RGB:480 Lumens -
9 Watts
-
VOLTAGE
12VDC, 24VDC
or 120VAC -
IP65
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | 120VAC | |
|---|---|---|---|
| Part # | AL-LL-SSS-9 | AL-LL-SSS-9 | AL-LL-SSS-9 |
| Physical | |||
| Beam Angle | 30 Degrees | 30 Degrees | 30 Degrees |
| Dimensions | 3.78" (96mm) Diameter 3.5" (89mm) Deep | 3.78" (96mm) Diameter 3.5" (89mm) Deep | 3.78" (96mm) Diameter 3.5" (89mm) Deep |
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Glass | Step-tempered 3mm thickness glass | Step-tempered 3mm thickness glass | Step-tempered 3mm thickness glass |
| Housing Material | Die-Cast Aluminum with Gray Powder Coating | Die-Cast Aluminum with Gray Powder Coating | Die-Cast Aluminum with Gray Powder Coating |
| Lens | Optical, >85% efficient | Optical, >85% efficient | Optical, >85% efficient |
| Stake Dimensions | 1.69" (43mm) Diameter 6.69" (170mm) Tall | 1.69" (43mm) Diameter 6.69" (170mm) Tall | 1.69" (43mm) Diameter 6.69" (170mm) Tall |
| Trim Material | #304 Stainless Steel | #304 Stainless Steel | #304 Stainless Steel |
| Waterproof Seal | Double Silicone Seal | Double Silicone Seal | Double Silicone Seal |
| Weight | 1.6 lbs | 1.6 lbs | 1.6 lbs |
| Electrical | |||
| Input Voltage | 12VDC | 24VDC | 120VAC |
| LED Quantity | 3 - High Power 3 Watt LED | 3 - High Power 3 Watt LED | 3 - High Power 3 Watt LED |
| LED Type | SMD LED Chips | SMD LED Chips | SMD LED Chips |
| Max Power Consumption | 9 Watts | 9 Watts | 9 Watts |
| Photometric | |||
| Max Lumens | Luminous Flux: 520 Lumens RGB=480 Lumens | Luminous Flux: 520 Lumens RGB=480 Lumens | Luminous Flux: 520 Lumens RGB=480 Lumens |
| Environmental | |||
| IP Rating | IP65 | IP65 | IP65 |
| Max Operating Temperature | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) |
| Suitable Uses | Outdoor, Dry, Damp or Wet Locations | Outdoor, Dry, Damp or Wet Locations | Outdoor, Dry, Damp or Wet Locations |
| Control | |||
| Dimmable | No | No | No |
| Compatibility | |||
| Compatible Power Supplies | Non-Dimmable Power Supplies Never use with MLV power supplies! | Non-Dimmable Power Supplies Never use with MLV power supplies! | No Power Supply Needed |
| Standards / Certifications | |||
| Standards / Certifications | RoHS, CE | RoHS, CE | RoHS, CE |
| Warranty | 1 Year | 1 Year | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
I want a white light but which white light color should I choose?
Warm White is equivalent to a standard incandescent light color and is most popular for residential applications. It has a slight warm yellow glow to it that many people find comfortable and we are all used to seeing in our homes. It is a 2700-3000K on the Kelvin Light Color Scale.
Cool White is equivalent to a standard CFL or Fluorescent light color and is most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without any yellow undertone. It is a 4000-4500K on the Kelvin Light Color Scale.
DayWhite™ most closely replicates natural daylight and does have a slight blue hue to the light output. This is rarely seen in residential applications as the light output can seem a bit harsh and bright, and is most commonly seen in exterior or commercial applications. This is the brightest of the White light color options. It is a 6000-6500K on the Kelvin Light Color Scale.
How does this fixture install?

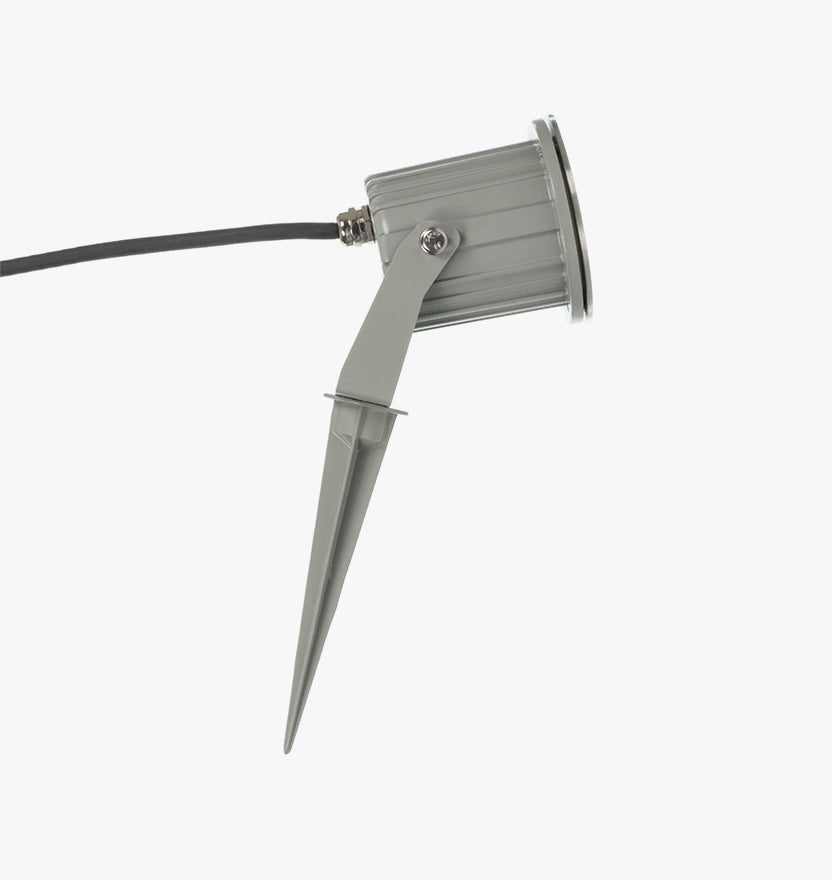

This light comes with a landscape stake that can be placed into the ground to support the light.
The light is supplied with a wire pigtail that you will connect directly to your power source (12VDC, 24VDC or 120VAC). Connect the positive(+) wire to the positive wire on your power supply and the neutral(-) wire to the neutral(-) wire on your power supply.
Can I daisy chain or connect multiple lights together?
Yes, just make sure that your wire gauge and power source are adequate to support the distance you are running from your power source to the lights and the number of lights on your circuit.
How long is the wire lead on each light?
There is approximately 2' of wire lead that comes standard with these lights. You have the option to order longer wire lead lengths if needed./dd>
Which voltage option should I choose?
12VDC: Popular for automotive, motorcycle, boat/marine applications, or anywhere where you are connecting to a 12VDC supply. Some applications may require a separate 12VDC power supply!
24VDC: This is the most popular option for residential and commercial applications. 24VDC is a safe low voltage, and is the most stable and reliable voltage for your aspectLED in-ceiling lights. Requires a separate 24VDC supply!
120VAC: Designed to connect directly to your 120VAC residential supply power. No additional power supply is required.
If I choose a low voltage (12VDC or 24VDC) light; how do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply.It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
What gauge wire should I run to my lights?
We generally recommend using between 14ga or 16ga stranded wire. If you are installing these outdoors, you will need direct burial rated wire. Longer distances require larger gauge wire. Always consult a wire gauge chart to determine the correct size wire for your application.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
