Small Square In-Ground/In-Wall LED Light - Ultra Bright (3W)
Small Square In-Ground/In-Wall LED Light - Ultra Bright (3W)
Special Order - Contact our LED Experts for lead time
Description

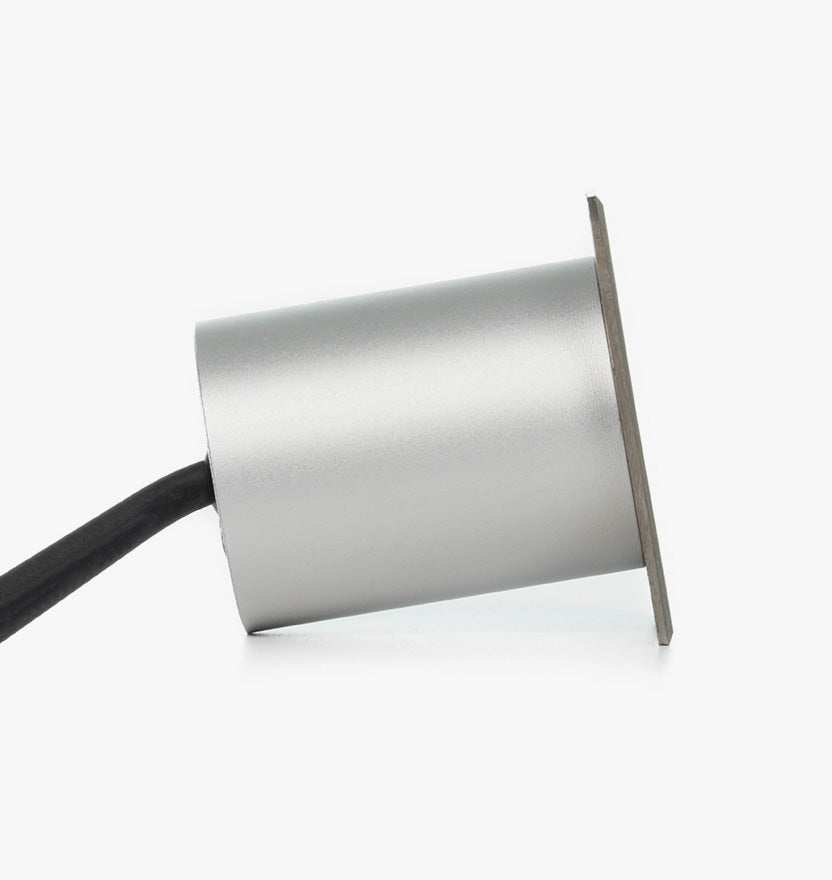

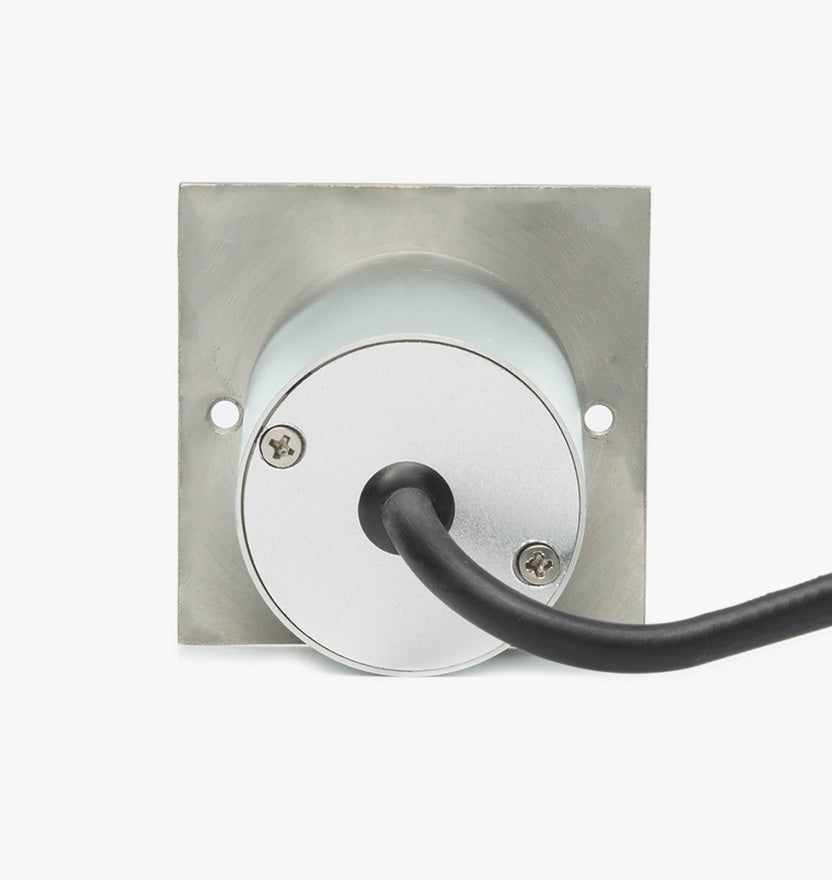

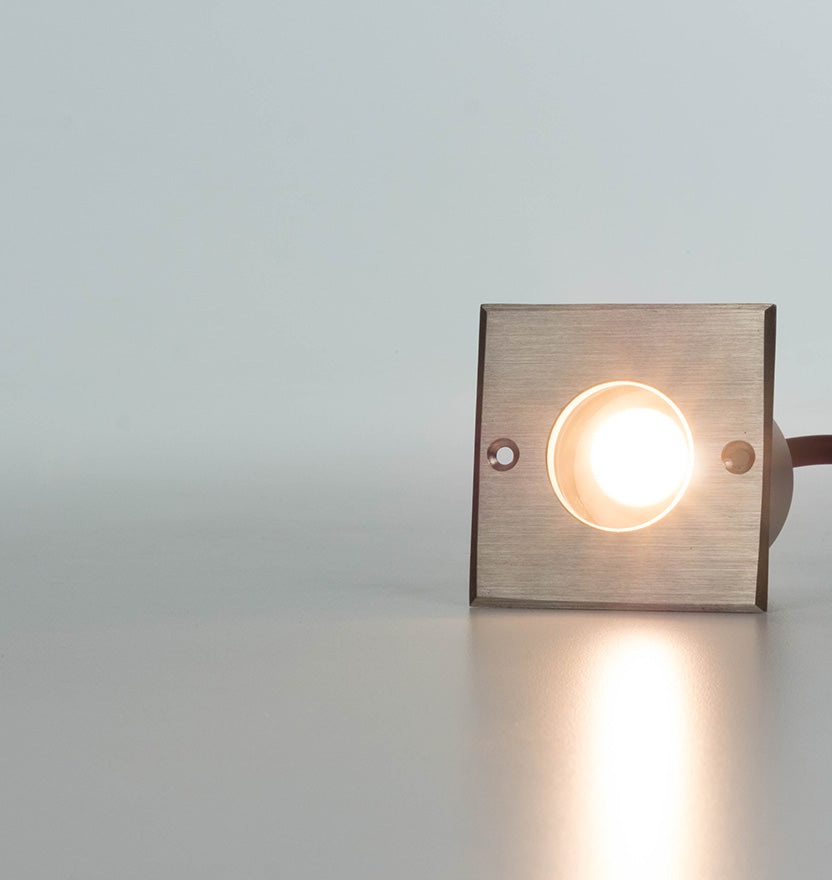

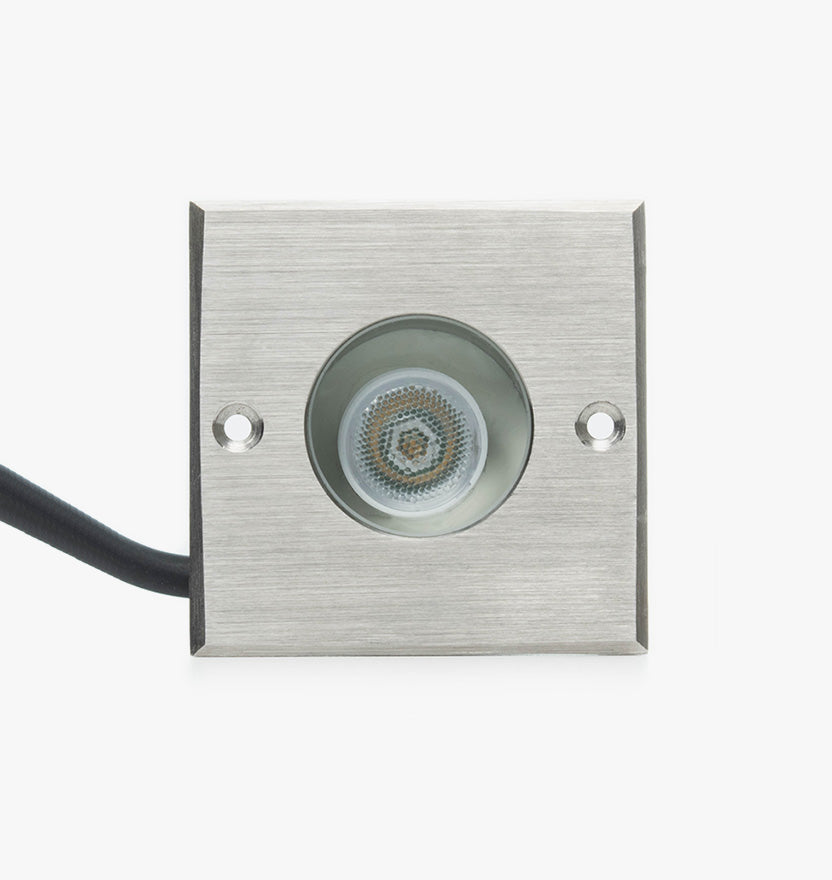

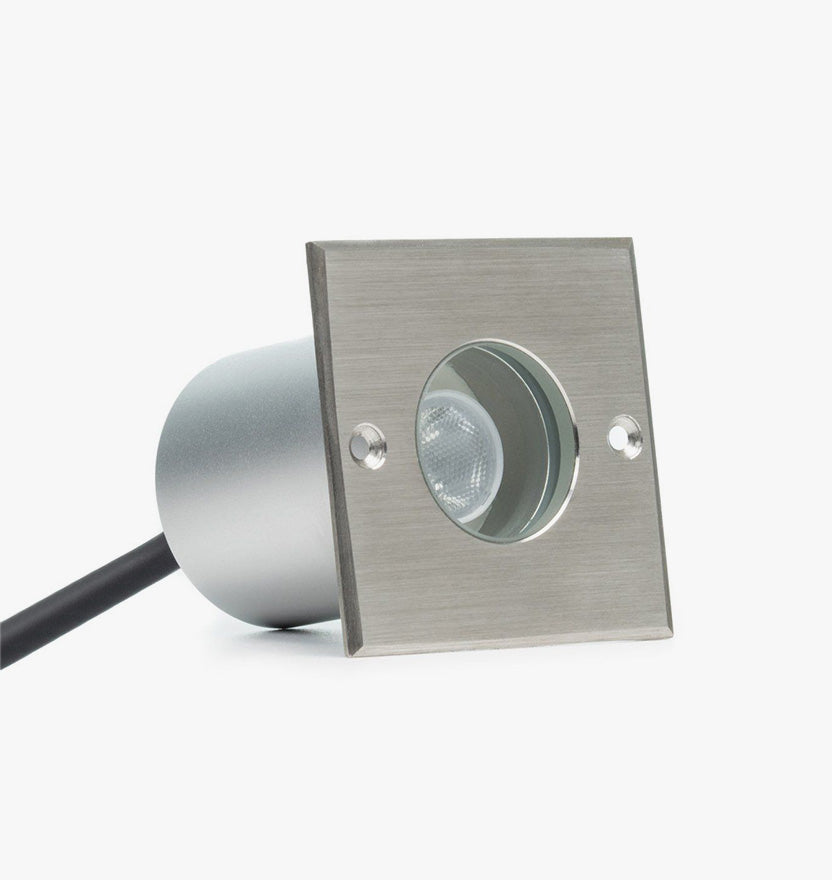

This 3W small modern 2.5" square by 2.8" deep light can be mounted in-ground or in-wall. Also available in an standard brightness (1W) version. Perfect for patios, garden walls, decks, docks, gazebos, and many other locations. aspectLED's in-ground/in-wall recessed lights are bright, energy efficient, and attractively styled, making them perfect for virtually any application. Ideal for installation in stair safety/accent lighting, garden walls, building entrances, pathways, decks, gazebos, public parks, docks, and marine environments. These recessed in-ground/in-wall lights are waterproof (with an IP67 rating) and feature a #304 stainless steel trim and aluminum body. These lights come standard with a clear glass trim with stainless steel bezel.
Key Features
Key Features
-
Up to 175 Lumens for Single Color
Up to 160 Lumens for RGB
-
3 Watts
-
VOLTAGE
12VDC, 24VDC or 120VAC -
IP67
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | 12VAC | |
|---|---|---|---|
| Part # | AL-IG-SS-3 | AL-IG-SS-3 | AL-IG-SS-3 |
| Physical | |||
| Beam Angle | 30 Degrees | 30 Degrees | 30 Degrees |
| Dimensions | 2.5" (65mm) Square 2.7" (71mm) Deep | 2.5" (65mm) Square 2.7" (71mm) Deep | 2.5" (65mm) Square 2.7" (71mm) Deep |
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Glass | Step-tempered 12mm thickness glass | Step-tempered 12mm thickness glass | Step-tempered 12mm thickness glass |
| Housing Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Lens | Optical, >85% efficient Contact us for availability on frosted lenses. | Optical, >85% efficient Contact us for availability on frosted lenses. | Optical, >85% efficient Contact us for availability on frosted lenses. |

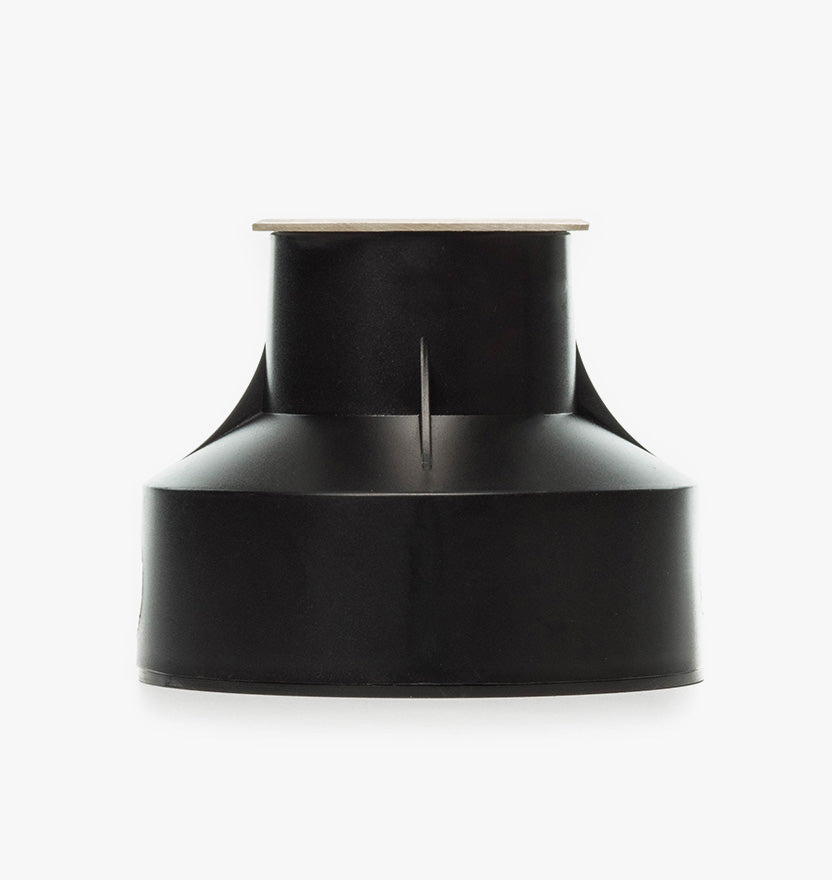

| Mounting Sleeve | Included ABS Plastic Sleeve | Included ABS Plastic Sleeve | Included ABS Plastic Sleeve |
| Trim Material | Polished 304 Stainless Steel Contact us for info on 316 Stainless, painted, or powder coated finishes. Clear Glass Lens | Polished 304 Stainless Steel Contact us for info on 316 Stainless, painted, or powder coated finishes. Clear Glass Lens | Polished 304 Stainless Steel Contact us for info on 316 Stainless, painted, or powder coated finishes. Clear Glass Lens |
| Waterproof Seal | Double silicon gasketed seal | Double silicon gasketed seal | Double silicon gasketed seal |
| Weight | 2 lbs | 2 lbs | 2 lbs |
| Weight Rating | Can withstand normal passenger vehicle traffic | Can withstand normal passenger vehicle traffic | Can withstand normal passenger vehicle traffic |
| Electrical | |||
| LED Driver Input Voltage | 12VDC | 24VDC | 12VAC |
| LED Quantity | 1 - High Power 3 Watt LEDs | 1 - High Power 3 Watt LEDs | 1 - High Power 3 Watt LEDs |
| LED Type | SMD LED Chips | SMD LED Chips | SMD LED Chips |
| Max Power Consumption | 3 Watts | 3 Watts | 3 Watts |
| Photometric | |||
| Max Lumens | Max Luminous Flux of LED Array: 175 Lumens for Single Color 160 Lumens for RGB | Max Luminous Flux of LED Array: 175 Lumens for Single Color 160 Lumens for RGB | Max Luminous Flux of LED Array: 175 Lumens for Single Color 160 Lumens for RGB |
| Environmental | |||
| IP Rating | IP67 | IP67 | IP67 |
| Max Operating Temperature | -4 to 113 Fahrenheit (-20 to +45 Celsius) | -4 to 113 Fahrenheit (-20 to +45 Celsius) | -4 to 113 Fahrenheit (-20 to +45 Celsius) |
| Suitable Uses | Dry, Damp, or Wet Locations | Dry, Damp, or Wet Locations | Dry, Damp, or Wet Locations |
| Control | |||
| Dimmable | No | No | No |
| Compatibility | |||
| Compatible Power Supplies | Non-Dimmable Power Supplies Never use with MLV power supplies! | Non-Dimmable Power Supplies Never use with MLV power supplies! | 12VAC Power Supplies. Not compatible with standard 12VDC power supplies. aspectLED does not currently supply 12VAC power supplies. |
| Standards / Certifications | |||
| Standards / Certifications | RoHS, CE | RoHS, CE | RoHS, CE |
| Warranty | 1 Year | 1 Year | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What light color should I choose?
Warm White is equivalent to a standard incandescent light color and is most popular for residential applications. It has a slight warm yellow glow to it that many people find comfortable and we are all used to seeing in our homes. It is a 2700-3000K on the Kelvin Light Color Scale.
Cool White is equivalent to a standard CFL or Fluorescent light color and is most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without any yellow undertone. It is a 4000-4500K on the Kelvin Light Color Scale.
Neutral White is a very pure white, most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without without any blue undertone. It is a 5000-5500K on the Kelvin Light Color Scale.
DayWhite™ most closely replicates natural daylight and does have a slight blue hue to the light output. This is rarely seen in residential applications as the light output can seem a bit harsh and bright, and is most commonly seen in exterior or commercial applications. This is the brightest of the White light color options. It is a 6000-6500K on the Kelvin Light Color Scale.
Which voltage option should I choose?
12VDC: Popular for automotive, motorcycle, boat/marine applications, or anywhere where you are connecting to a 12 volt DC supply. Some applications may require a separate 12VDC power supply!
24VDC: This is the most popular option for residential and commercial applications. 24VDC is a safe low voltage, and is the most stable and reliable voltage for your aspectLED inground lights. Requires a separate 24 volt DC power supply!
120VAC: Designed to connect directly to your 120VAC residential supply power. No additional power supply is required.
12VAC: For use with legacy 12VAC power supplies, which have been popular in outdoor applications and are still popular with incandescent power supplies. Be sure your power supply is 12VAC, as the product warranty does not cover using a DC power supply with an AC fixture, or vice versa.
If I choose a low voltage (12VDC or 24VDC) light; how do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply.It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
What gauge wire should I run to my in-ground/in-wall lights?
We generally recommend using between 14ga and 16ga stranded wire. Longer distances require larger gauge wire. Always consult a wire gauge chart to determine the correct size wire for your application.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
