Description

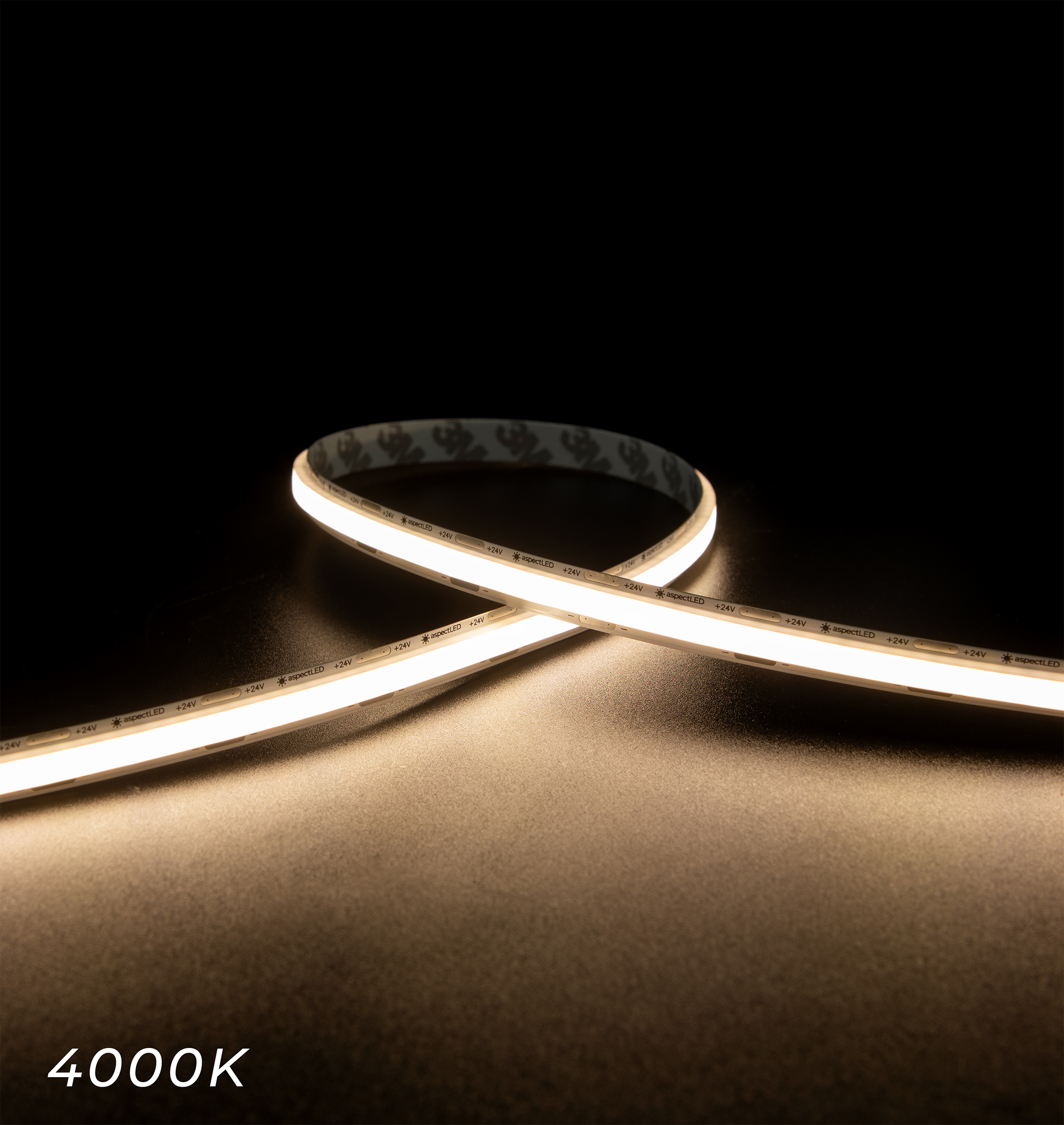

The Summit LED Strip Light Free Cut delivers unmatched flexibility and precision for custom lighting installations. Designed with a cut anywhere construction, this strip can be trimmed to the exact length you need, eliminating waste and allowing complete design freedom for any project. Advanced CSP technology produces a smooth, continuous line of light with no visible hotspots or dark gaps, creating a clean, high end finish. Built for indoor applications, this IP20 rated strip is ideal for retail displays, hospitality environments, and trade show setups where consistent, professional customizable lighting is essential.

Key Features

Cut Anywhere
Non Waterproof
Reduced Glare

Specifications

Part #	AL-SL-FC-IP20-24
Physical
Adhesive Backing	Yes
Beam Angle	180
Cut Length	Free Cut
Dimensions	16.4' (5m) 0.393" (10mm) 0.11" (2.7mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Weight	0.4 lb
Electrical
Efficacy (lumens per watt)	Up to 120 Lumens/Watt
Input Voltage	24VDC
LED Quantity	87 LED's/ft (288 LED's/m)
LED Type	2022x

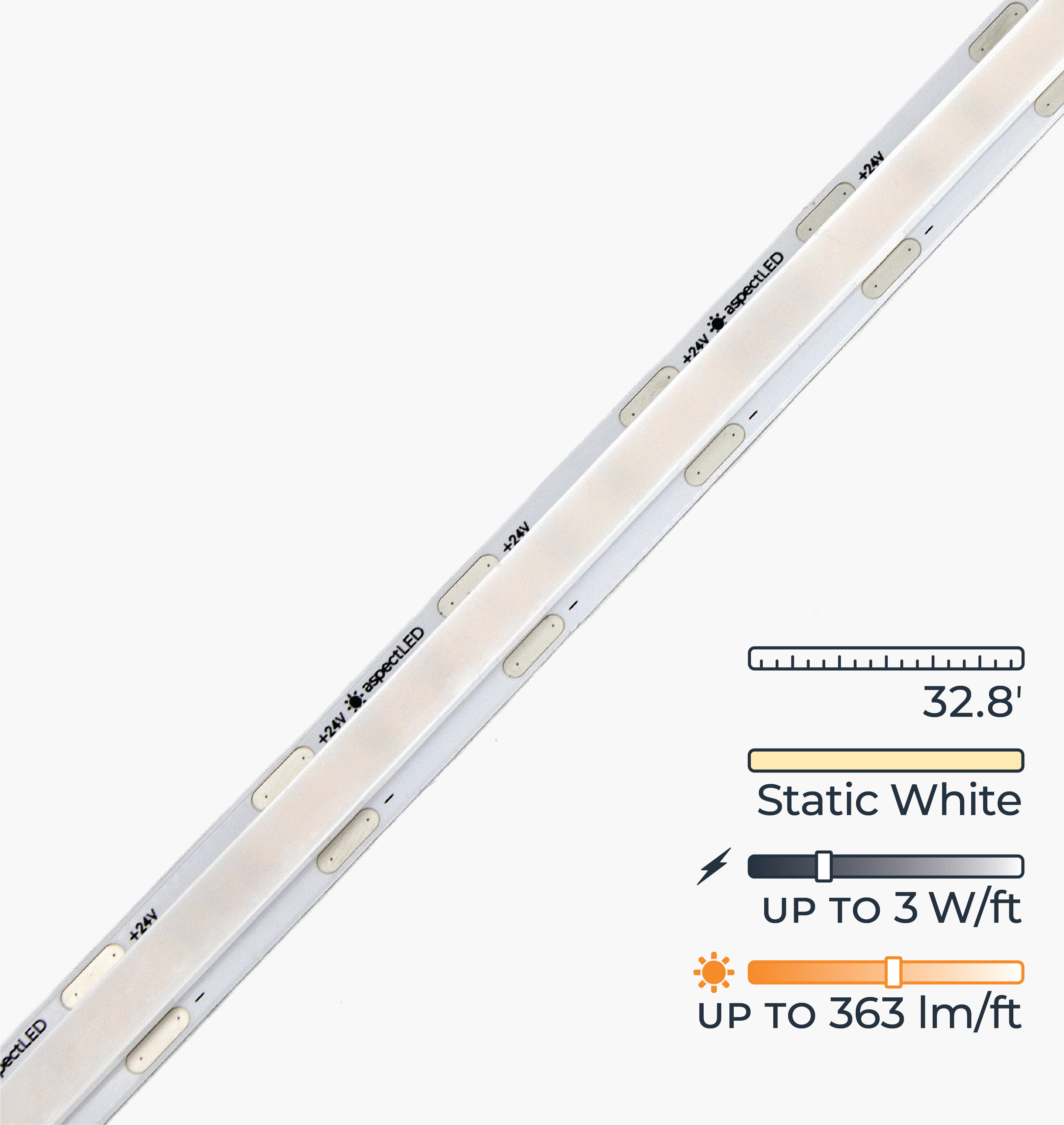

Max Power Consumption	3.0W/ft (10W/m)
Max Run Length	16.4' (5m)
Photometric
CRI	90

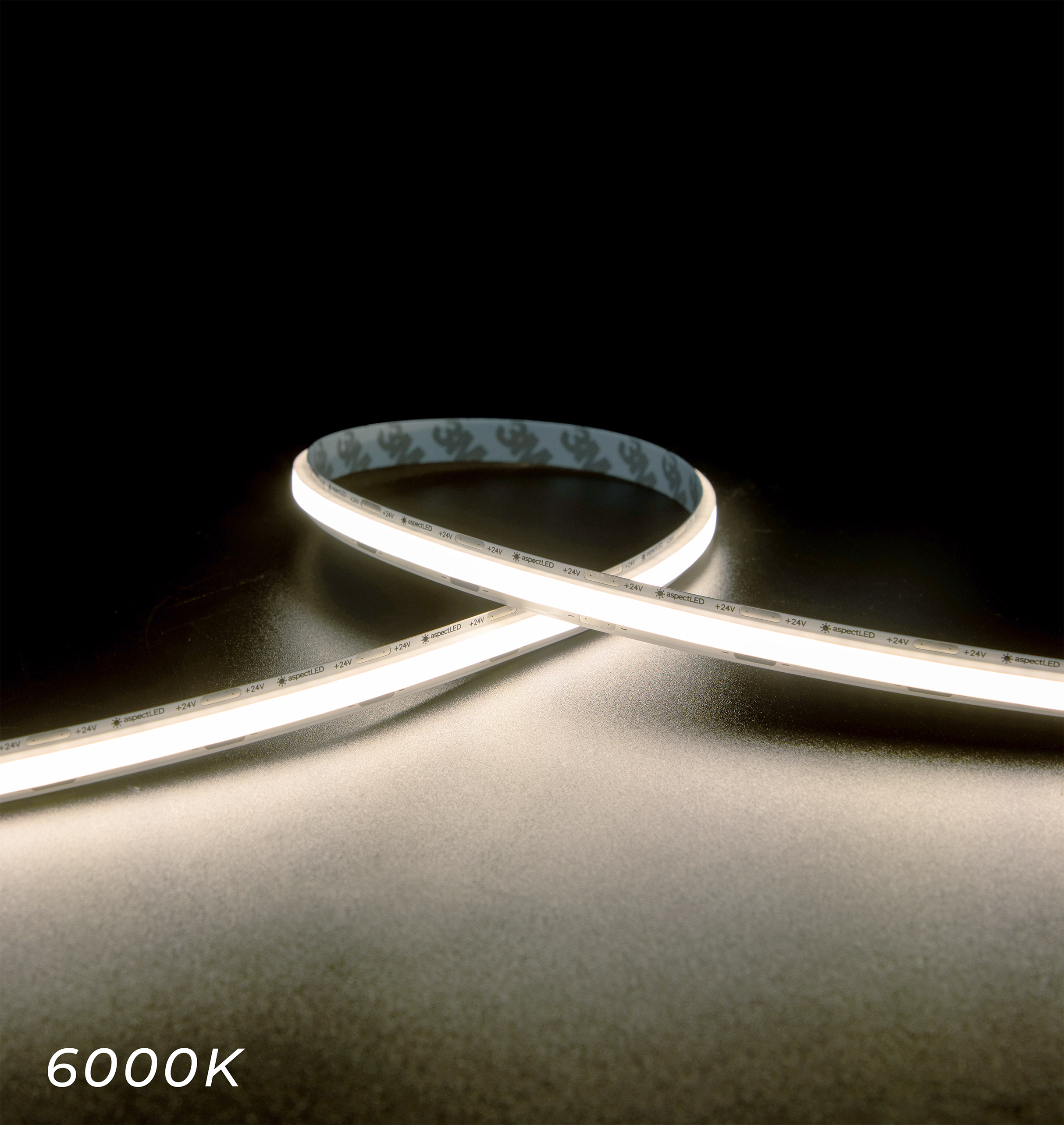

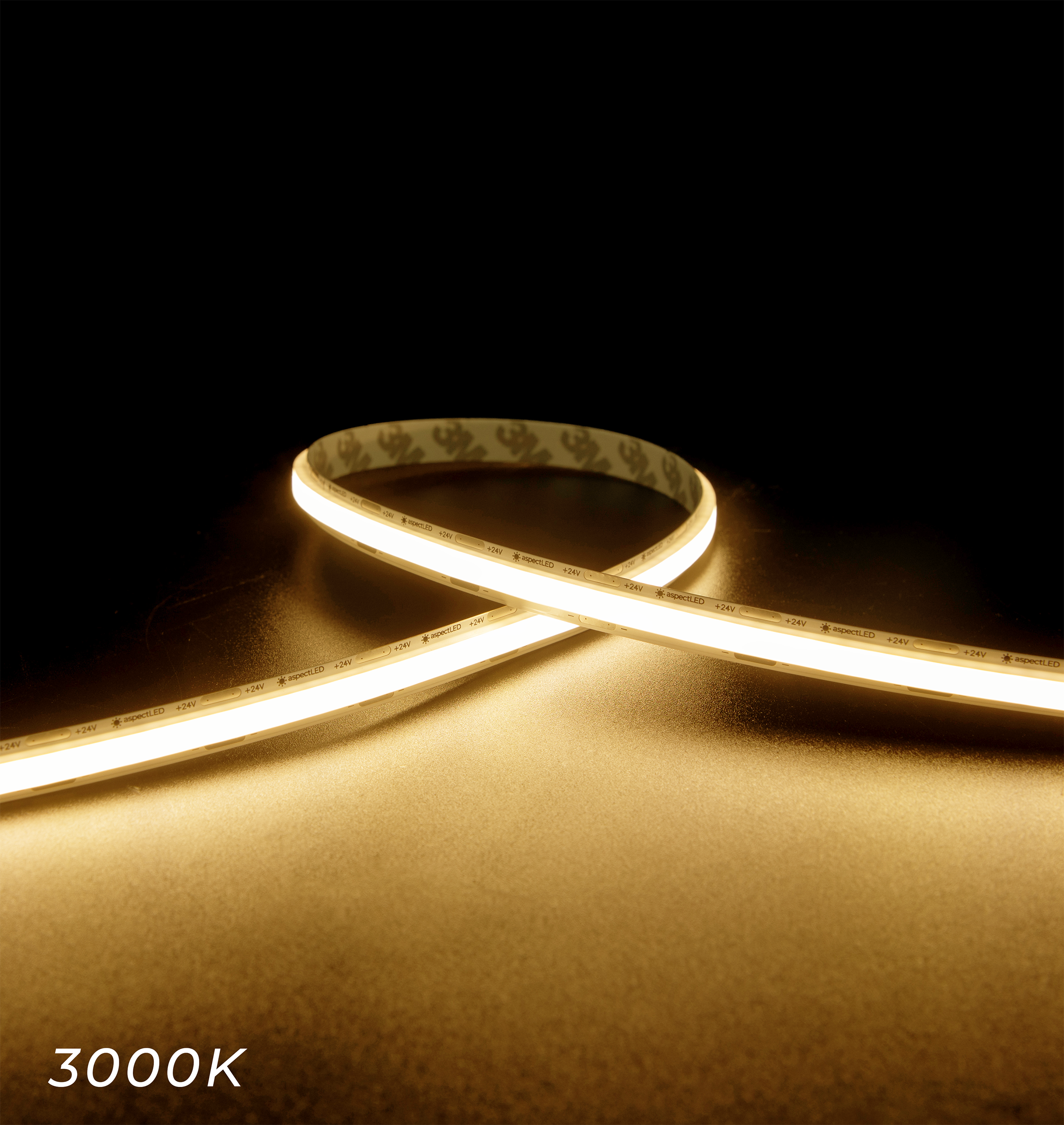

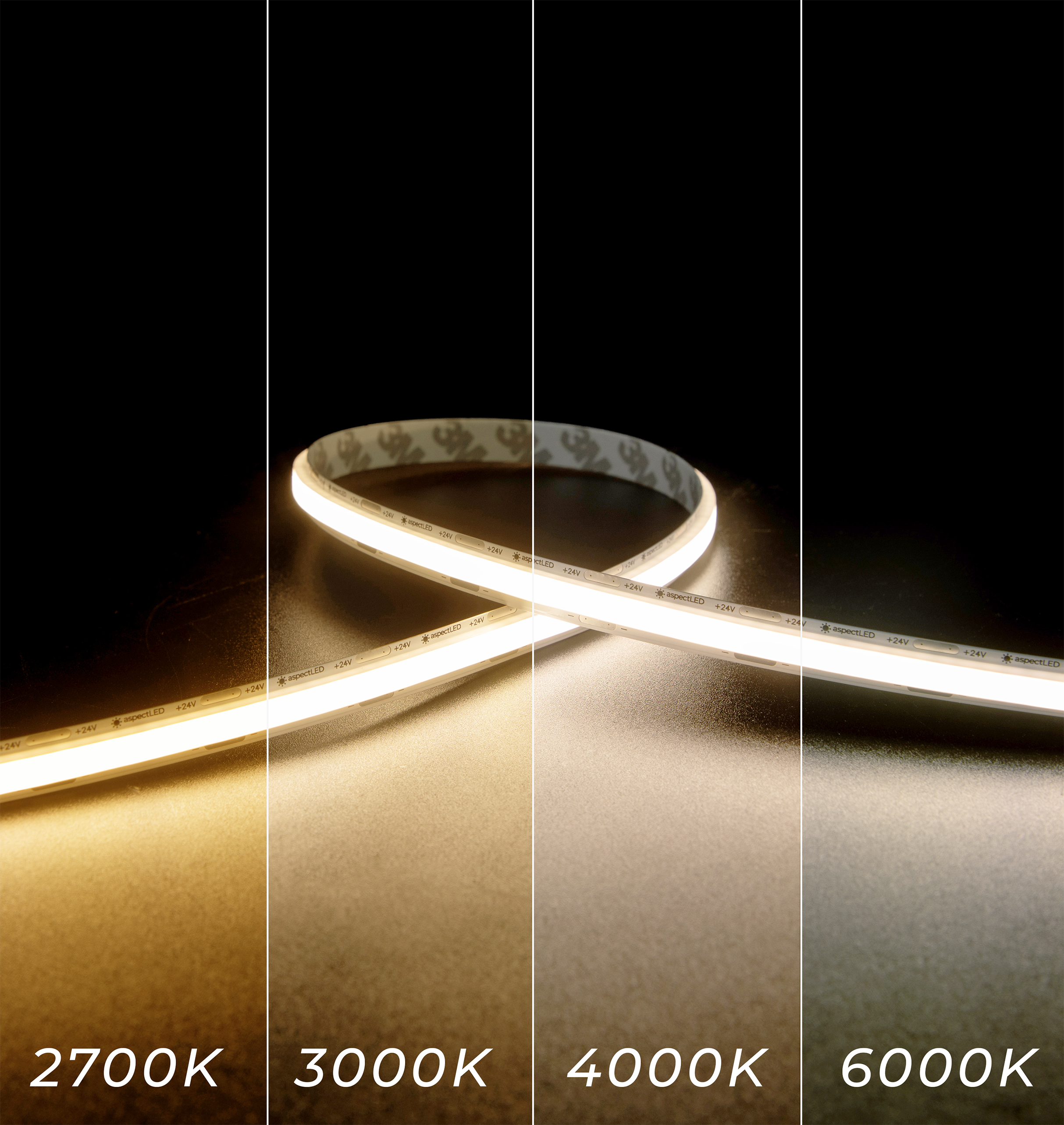

LED Color Options	2700K, 3000K, 4000K, 6000K
Max Lumens	Up to 362.8 Lumens/ft (1190 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176°F (-30 - 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes
IC Type	N/a
Compatibility
Compatible Connectors	AL-SL-CN-DLS-SPLICE AL-SL-CN-DLS-PIGTAIL AL-SL-CN-DLS-JUMPER AL-SL-CN-DLS-ANGLESPLICE
Standards / Certifications
Standards / Certifications	CE, UL, RoHS, LM80
Warranty	5 years

Features

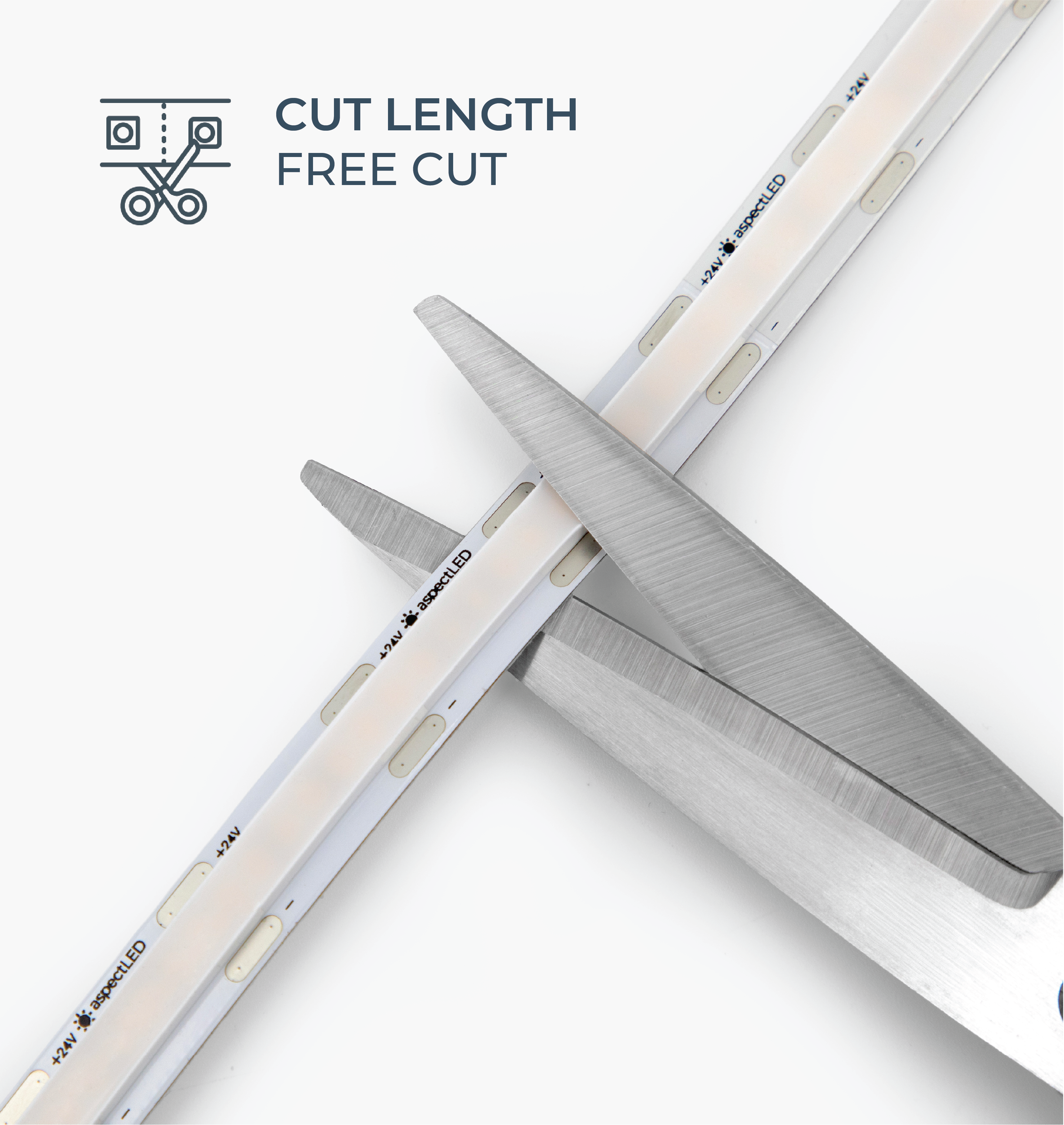

Cut anywhere design: Tim to the exact length you need with zero restriction points, allowing precise, waste free customization for any installation.
Uniform light output: No visible LED hotspots or dark gaps with smooth, continuous illumination across the entire strip for a premium finish.
Peel and Stick Tape: Industrial-grade 3M VHB adhesive backing ensures quick, secure installation on most clean, dry surfaces.
For Indoor Environments: IP20-rated strip lights are ideal for retail, hospitality, and tradeshow applications where water and dust exposure are minimal.
Future Forward LED Engineering: Featuring innovative CSP technology, this strip light delivers improved efficiency, smoother output and better reliability.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Accent lighting
Above cabinet lighting
Crown molding lighting
Cove lighting
Decorative lighting for tradeshows or exhibitions
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Safety stair tread and step marking
Shelf lighting
Toe kick lighting

Technical Documents

Tech Drawing

Cut Sheet

Installation Guide

Photometric Report

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Summit LED Strip Light - Free Cut

SKU: AL-SL-FC-IP20-24-27K

$186.89

In-Stock (100) - Ships Same or Next Business Day

Color temp: 2700K

2700K 3000K 4000K 6000K

This product requires a power supply.
Calculate your power supply
