Summit LED Strip Light - Static White, 32ft, Waterproof
Summit LED Strip Light - Static White, 32ft, Waterproof
In-Stock (60) - Ships Same or Next Business Day
This product requires a power supply.
Calculate your power supply
Description
Waterproof Single Color Summit Strip Lights are designed for seamless outdoor accent lighting. Using advanced CSP technology, they produce a clean, continuous line of light with no visible diodes and no diffusion lens required, delivering smooth and even illumination. Integrated IC technology allows for continuous runs up to 32 feet without voltage drop, reducing installation time, labor, and materials compared to traditional constant voltage strip lights. Each cut section regulates its own current to maintain consistent brightness from end to end. Featuring a 90+ CRI, these strip lights provide accurate color rendering and vibrant illumination. Available in four color temperatures, Summit Strip Lights provide a tailored lighting solution for a wide range of applications. With an IP68 waterproof rating, they are fully submersible and built to perform in demanding environments. Compatible with non-dimmable power supplies and DC decoders/remotes, installation and upgrades are simple and reliable.
Key Features
Key Features
-
CRI 90
-
Max Run Length:
32.8ft -
Waterproof IP68
-
CSP Technology
Specifications
Specifications
| Part # | AL-SL-DL-CC-IP68-24-32 |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 180 |

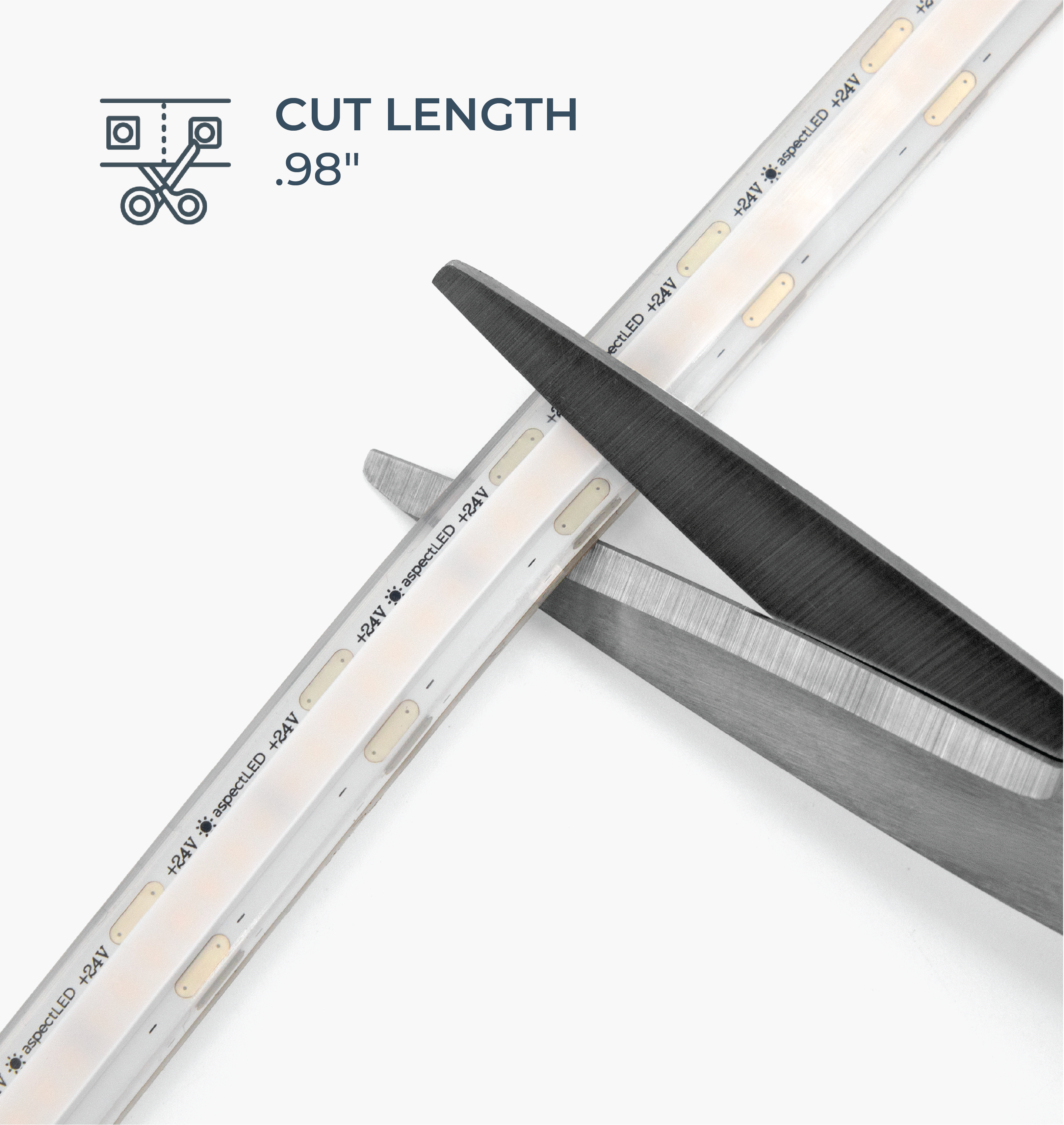

| Cut Length | 0.98" (25mm) |
| Dimensions | 16.4' (5m) 0.393" (10mm) 0.08" (2.1mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape, Mounting Straps |
| Weight | 2.8 lb |
| Electrical | |
| Efficacy (lumens per watt) | Up to 117 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 85 LED's/ft (280 LED's/m) |
| LED Type | 2022x |

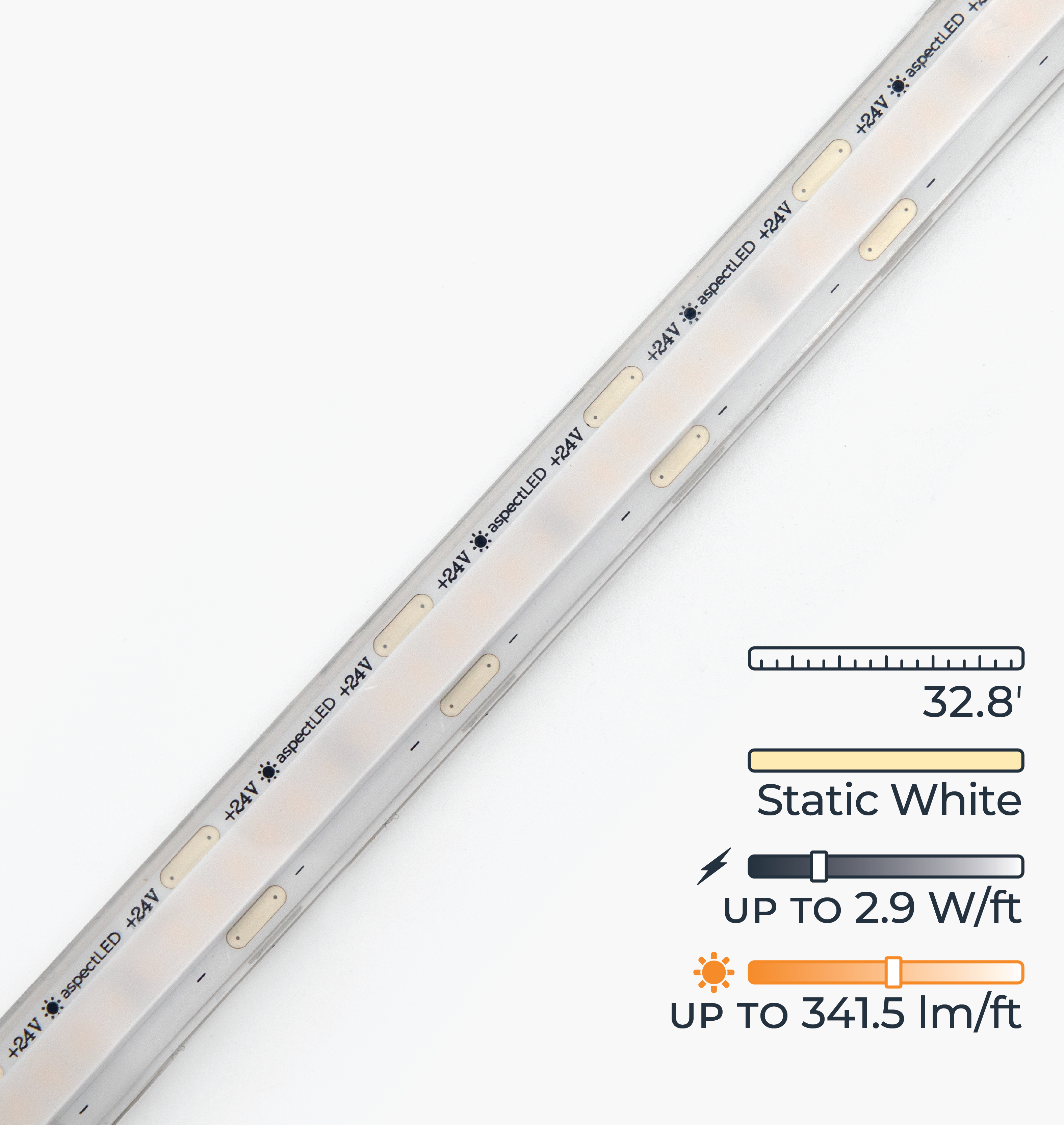

| Max Power Consumption | 2.9W/ft (9.6W/m) |
| Max Run Length | 32.8' (10m) |
| Photometric | |
| CRI | 90 |
| LED Color Options | 2700K, 3000K, 4000K, 6000K |
| Max Lumens | Up to 341.46 Lumens/ft (1120 Lumens/m) |
| Environmental | |
| IP Rating | IP68 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176°F (-30 - 80°C) |
| Suitable Uses | Wet, Outdoor |
| Control | |
| CV, CC, DMX or SPI | Constant Current |
| Dimmable | Yes |
| Standards / Certifications | |
| Standards / Certifications | CE, UL, RoHS, LM80 |
| Warranty | 5 years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What power supply should I use with the Summit LED Strip Lights? Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.
