Description

This surface mount channel is compatible with all indoor-rated (IP20) strip lights up to 12mm wide. Available in sleek silver or black aluminum finishes, it can be paired with clear or frosted lenses for maximum brightness and diffusion, or a smoke lenses for subtle accents. Its slim 0.28" low-profile design makes it ideal for tight or challenging spaces. Crafted from durable aluminum, it shields strip lights from damage and tampering, while providing smooth, even light diffusion and effective heat dissipation to extend LED lifespan.

This channel has a 9/16" visible lens and accommodates strip lights up to 12mm wide.

Specifications


Part #	AL-TRK-SM-N
Physical
Channel Material	Anodized Aluminum
Lens Material	Polycarbonate
Lens Options	Clear, Frosted, Smoke
Routing Width	18mm
Weight	0.60lb
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Low Profile Design: Easily installed out of sight for a clean, professional look.
Visible Lens: 9/16" lens opening provides consistent illumination.
Strip Compatibility: Fits any strip light up to 12mm wide.
Versatile Light Sources: Compatible with SMD and COB strips, including tunable white, color-changing, and static white options.
Customizable Appearance: Choose from clear, frosted, or smoke lenses for a built-in, tailored finish.
Finish Options: Offered in sleek black or silver aluminum to blend seamlessly into any space.
Easy Installation: End caps and mounting clips included for a clean, hassle-free setup.
Durability: Constructed from high-quality AL6063-T5 aluminum alloy for heat dissipation and long-lasting performance.
Added Protection: Anodized finish guards against rust and oxidation.
Multi-Pack Options: Available for installers and large-scale projects.

Applications

Shelf Lighting
Under Cabinet Lighting
Retail Display Lighting
Stairway & Step Lighting
Restaurant & Bar Lighting

Technical Documents

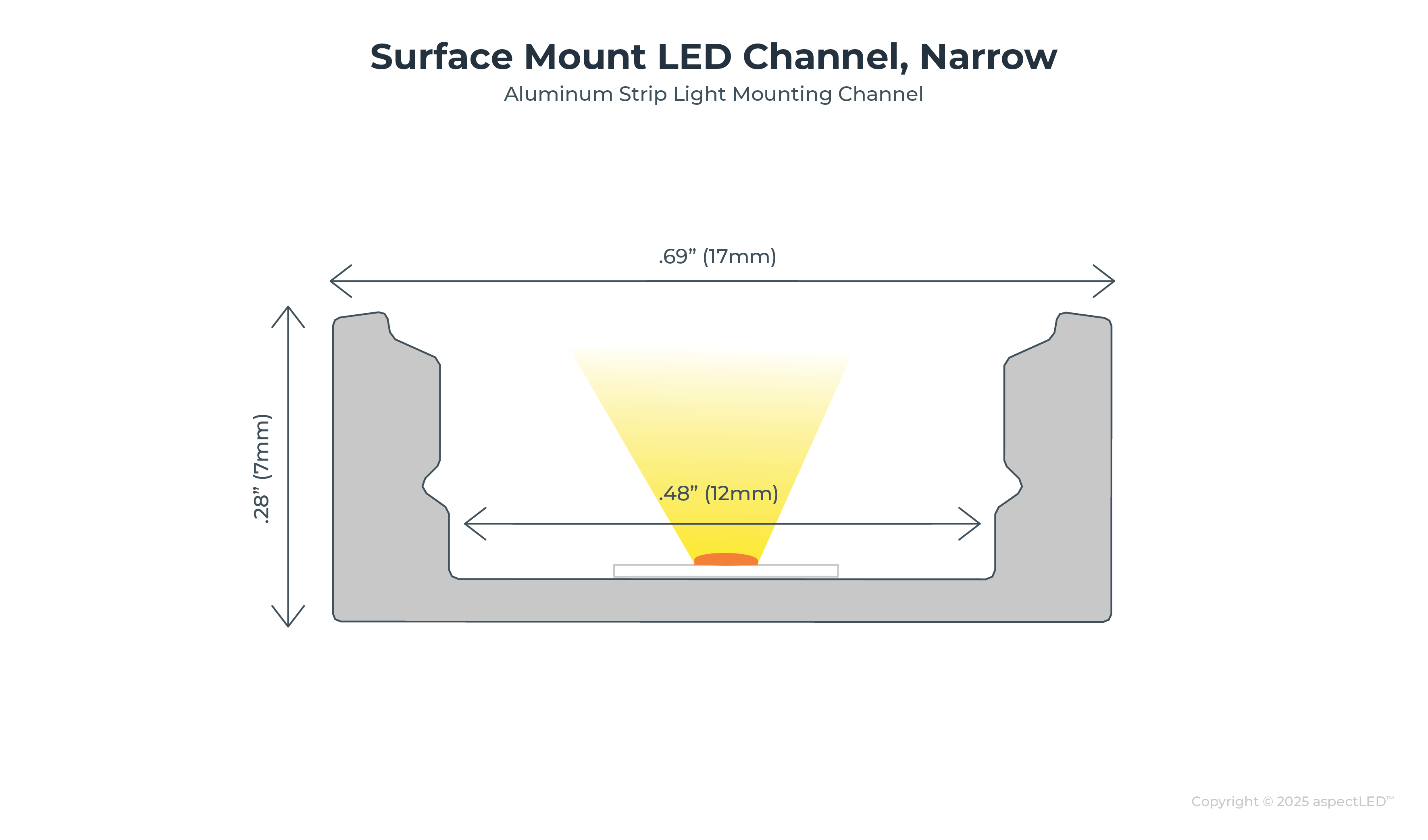

Technical Drawing

Cut Sheet

Compatibility Chart

FAQ
