Description

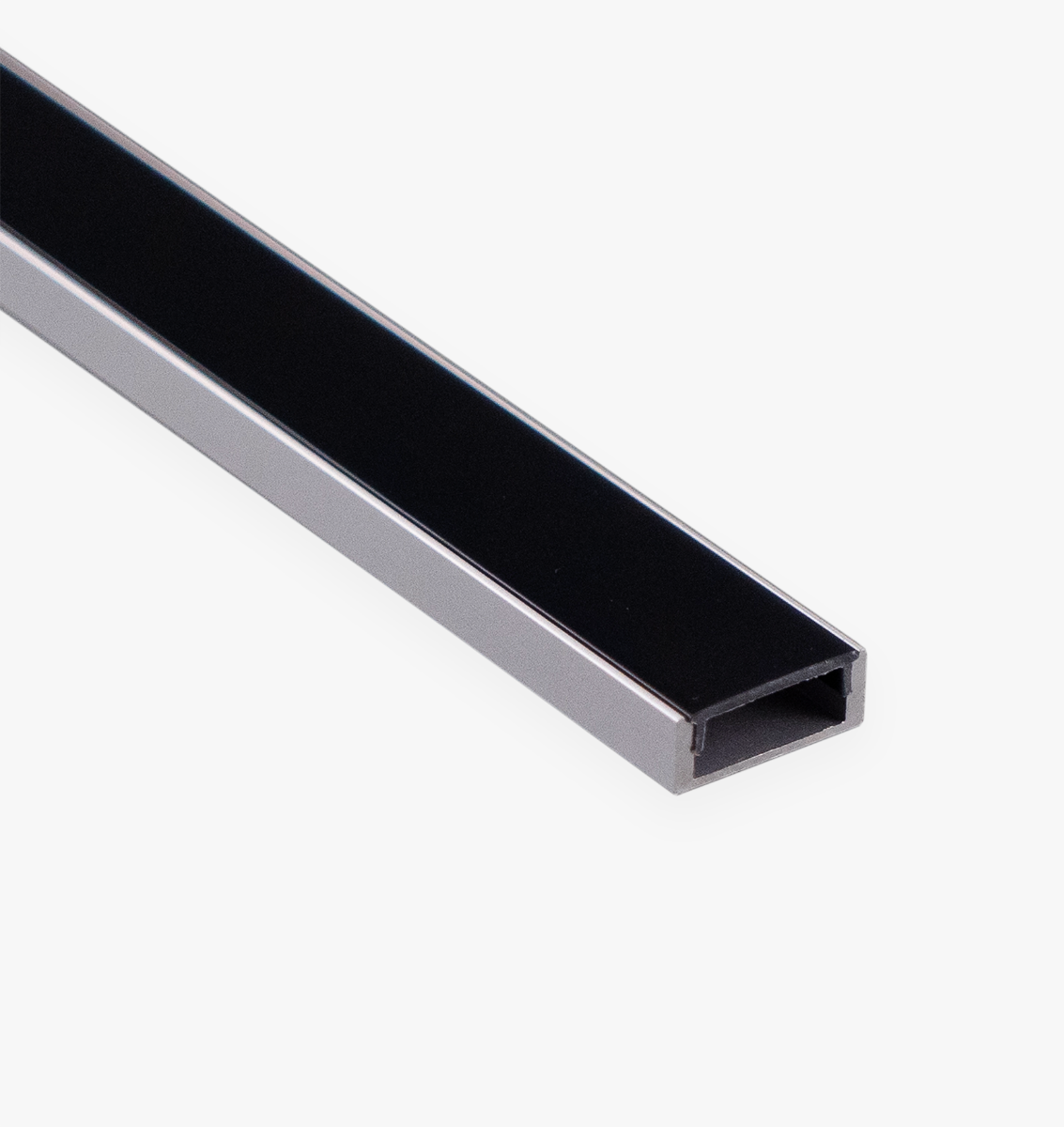

This channel is designed for universal compatibility with all aspectLED strip lights - both indoor and outdoor rated. With its extra wide clearance, it can even hold two 8mm strips for added brightness. Just over 1/4" tall, it offers a low profile design that’s easy to mount, hides well in tight or tricky spaces, and is perfect for retrofitting existing installations. Made from durable aluminum, it protects your strip lights from damage and tampering while providing smooth, even diffusion.

Key Features

Low Profile: With just over ¼” height, this channel is made to brighten tight spaces with minimal intrusion or visual clutter.
Universal Compatibility: 18mm of strip space accommodates ALL aspectLED strip lights (indoor and outdoor rated).
Customizable: Mix and match channel and lens colors to get the perfect combo for any project.
DIY Friendly: Installation is made easy with simple mounting clips and easy-to-use end caps.
Durable Aluminum Construction: High-quality aluminum body enhances heat dissipation and extends LED lifespan.
Maintenance Free: No ongoing upkeep required.
Multi-Packs Available: Perfect for installers and larger projects.

Specifications


Part #	AL-TRK-SM-W
Physical
Channel Material	Anodized Aluminum
Dimensions	0.87" Wide x 0.33" Deep
Lens Material	Polycarbonate
Lens Options	Frosted, Smoke, Clear
Routing Width	0.91" (23mm)
Weight	0.74 lbs (channel + lens)
Photometric
Lens Transmittance	Frosted - 78%, Clear - 92%, Smoke - 25% of total lumen output
Compatibility
Compatible Strip Lights	Compatible with all aspectLED strip light products (indoor or outdoor rated) – or other strip light products 15mm wide or less.
Standards / Certifications
Warranty	1 year

Applications

Under Cabinet Lighting: Quickly mount below kitchen cabinets for nearly invisible task lighting.
Stairway & Step Lighting: Mount or embed channel into stair risers or under steps for both aesthetics and safety.
Retail Display Lighting: Create eye-catching product displays that make people stop in their tracks.
Restaurants & Bars: Add mood lighting along walls, counters, and seating areas with minimal effort.
Integrated Handrails & Railings: Provide subtle, functional illumination where guests and the public need it most.
Gallery & Museum Lighting: Seamlessly integrate high-quality lighting into exhibits and display cases to illuminate masterpieces.
Custom Furniture & Fixtures: Incorporate into custom built-ins, shelving, or bed frames.

Technical Documents

Technical Drawing

Cut Sheet

Compatibility Chart
