Surface Mount LED Channel, Universal Wide - 10PK - Silver

Description

This channel is designed for universal compatibility with all aspectLED strip lights - both indoor and outdoor rated. With its extra wide clearance, it can even hold two 8mm strips for added brightness. Just over 1/4" tall, it offers a low profile design that’s easy to mount, hides well in tight or tricky spaces, and is perfect for retrofitting existing installations. Made from durable aluminum, it protects your strip lights from damage and tampering while providing smooth, even diffusion.

Specifications

Part #	AL-TRK-SM-W
Physical
Accommodates these \| Interior Channel Dimensions	0.70" (18mm)

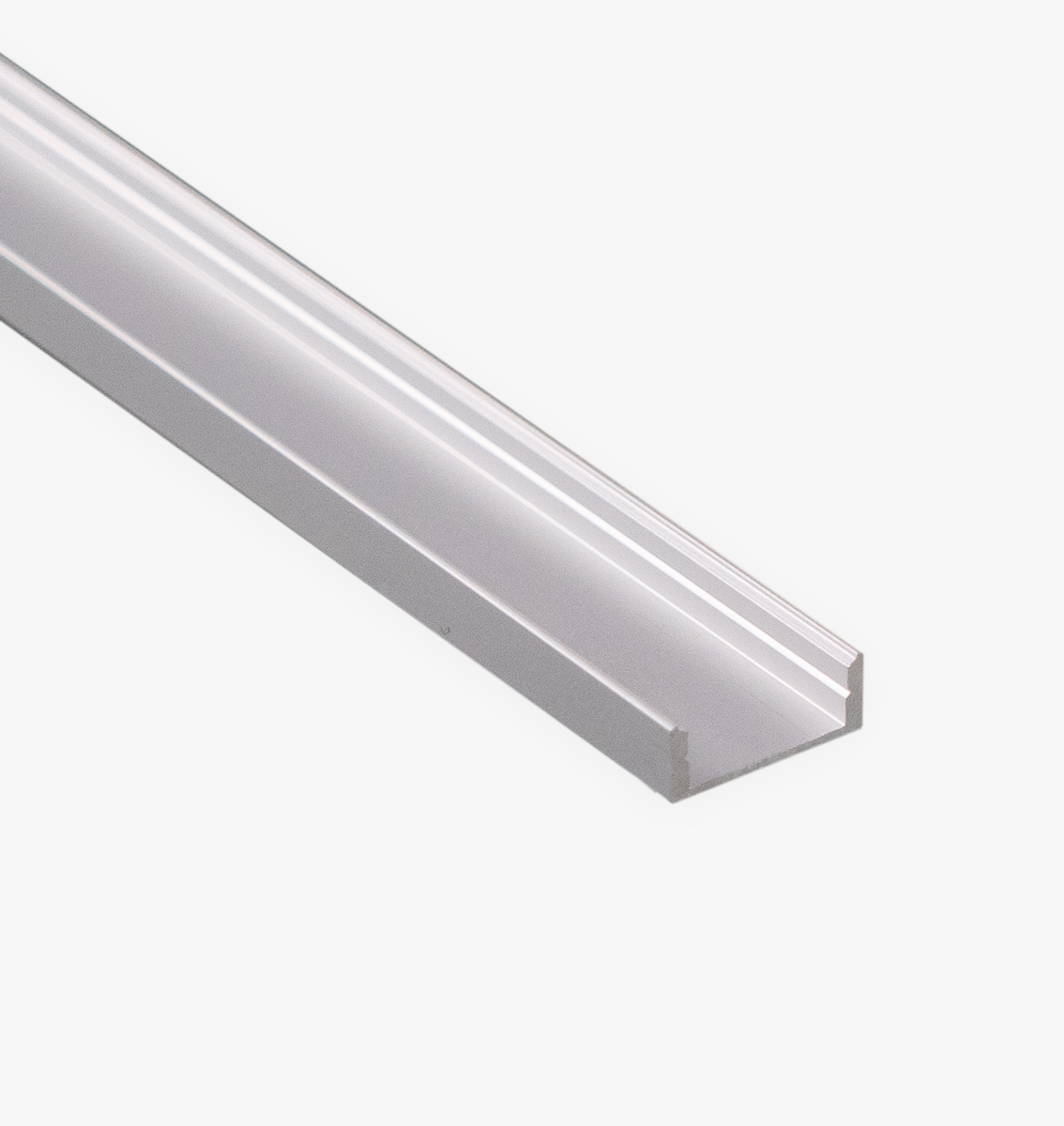

Channel Material	Anodized Aluminum
Dimensions	0.88" (22.6mm) Wide 0.33" (8.5mm) Tall
Finish Options	Silver, Black
Lens Material	Polycarbonate

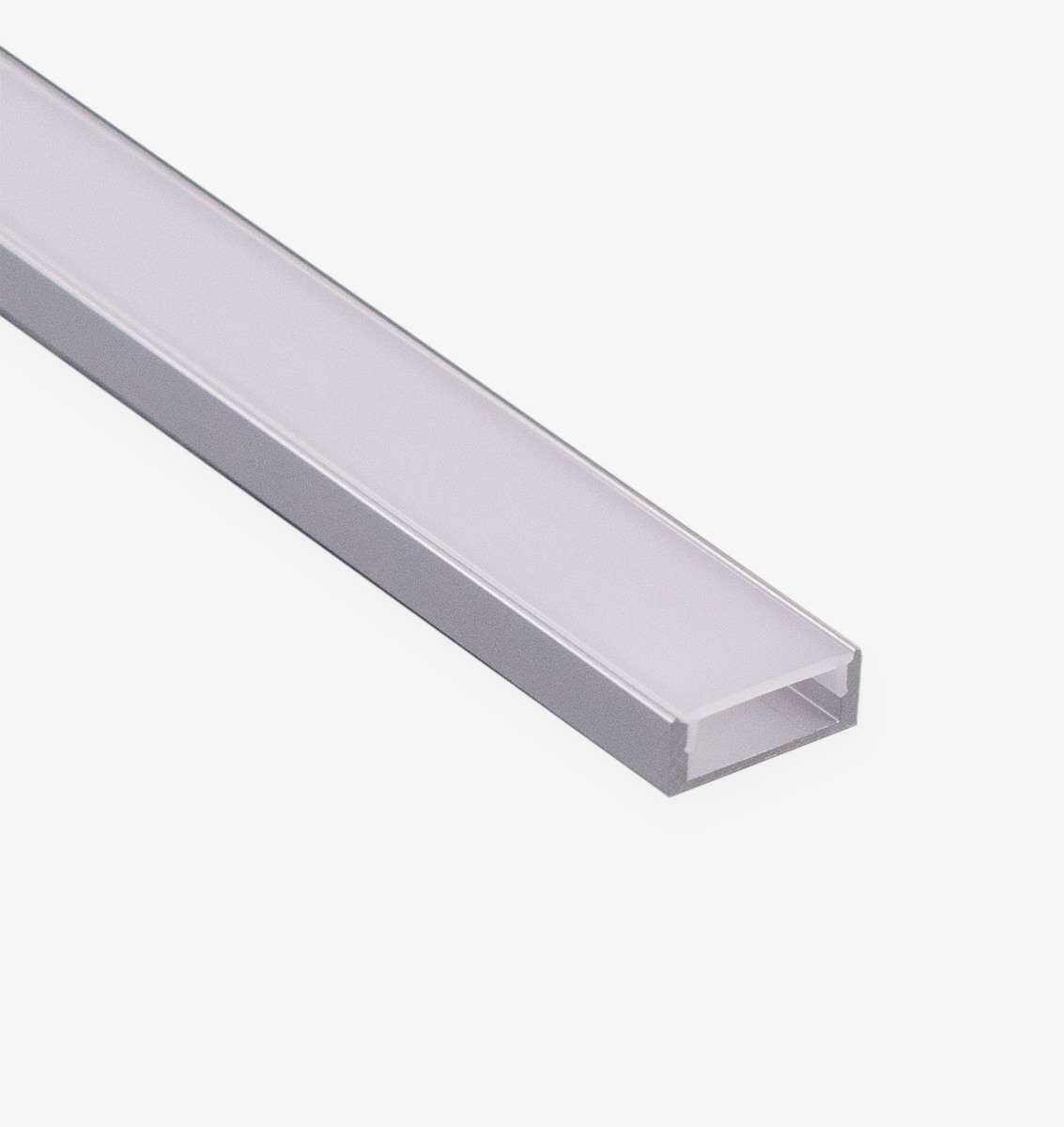

Lens Options	Frosted, Smoke, Clear
Mounting Method	Mounting Clip, Surface Mounted

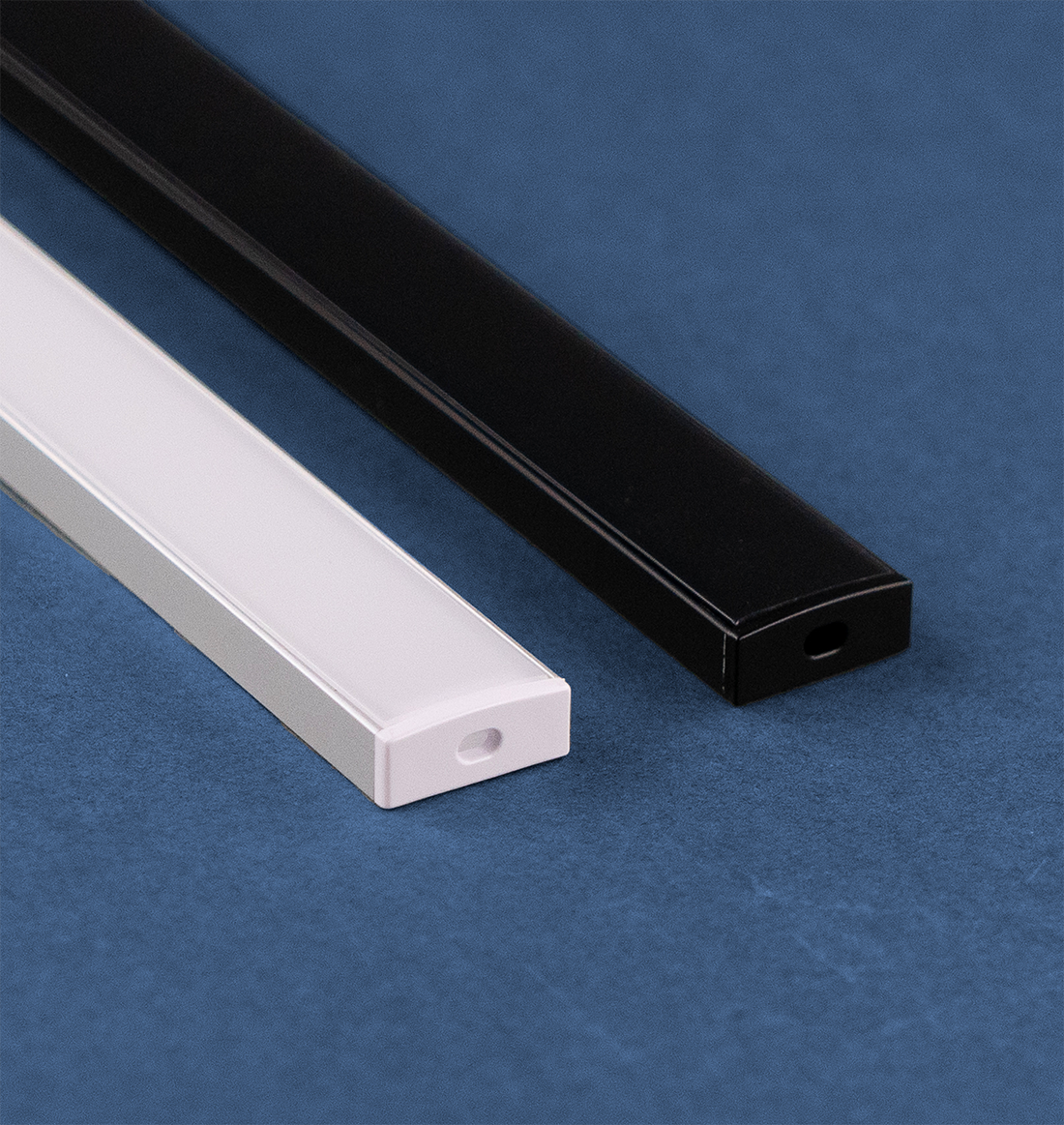

Package Quantity	Accessory Pack (optional) 1 End Cap with Hole, 1 End Cap without Hole, 2 Mounting Clips per 3.3ft length
Routing Width	0.91" (23mm)
Weight	1.2 lb (6.5ft Channel & Lens)
Photometric
Lens Transmittance	Clear = 92% Frosted = 78% Smoke = 25%
Environmental
IP Rating	IP20
Load Rating	IK06
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light 12mm wide & above
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Low Profile: With just over ¼” height, this channel is made to brighten tight spaces with minimal intrusion or visual clutter.
Universal Compatibility: 18mm of strip space accommodates ALL aspectLED strip lights (indoor and outdoor rated).
Customizable: Mix and match channel and lens colors to get the perfect combo for any project.
DIY Friendly: Installation is made easy with simple mounting clips and easy-to-use end caps.
Durable Aluminum Construction: High-quality aluminum body enhances heat dissipation and extends LED lifespan.
Maintenance Free: No ongoing upkeep required.
Multi-Packs Available: Perfect for installers and larger projects.

Applications

Under Cabinet Lighting: Quickly mount below kitchen cabinets for nearly invisible task lighting.
Stairway & Step Lighting: Mount or embed channel into stair risers or under steps for both aesthetics and safety.
Retail Display Lighting: Create eye-catching product displays that make people stop in their tracks.
Restaurants & Bars: Add mood lighting along walls, counters, and seating areas with minimal effort.
Integrated Handrails & Railings: Provide subtle, functional illumination where guests and the public need it most.
Gallery & Museum Lighting: Seamlessly integrate high-quality lighting into exhibits and display cases to illuminate masterpieces.
Custom Furniture & Fixtures: Incorporate into custom built-ins, shelving, or bed frames.

Technical Documents

Technical Drawing

Cut Sheet

Compatibility Chart

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Surface Mount LED Channel, Universal Wide - 10PK - Silver

SKU: AL-TRK-SM-W-SSMK-1M-10PK

Regular price $133.89

Sale price $133.89 Regular price

Unit price

/per

Low Stock (only 4 items left in stock) - Backorder Available

Pack Size: 10 Pack

1 PackVariant sold out or unavailable 5 PackVariant sold out or unavailable 10 PackVariant sold out or unavailable

Channel Color: Silver

BlackVariant sold out or unavailable SilverVariant sold out or unavailable

Channel Length: 3.3 Feet

3.3 FeetVariant sold out or unavailable 6.5 FeetVariant sold out or unavailable

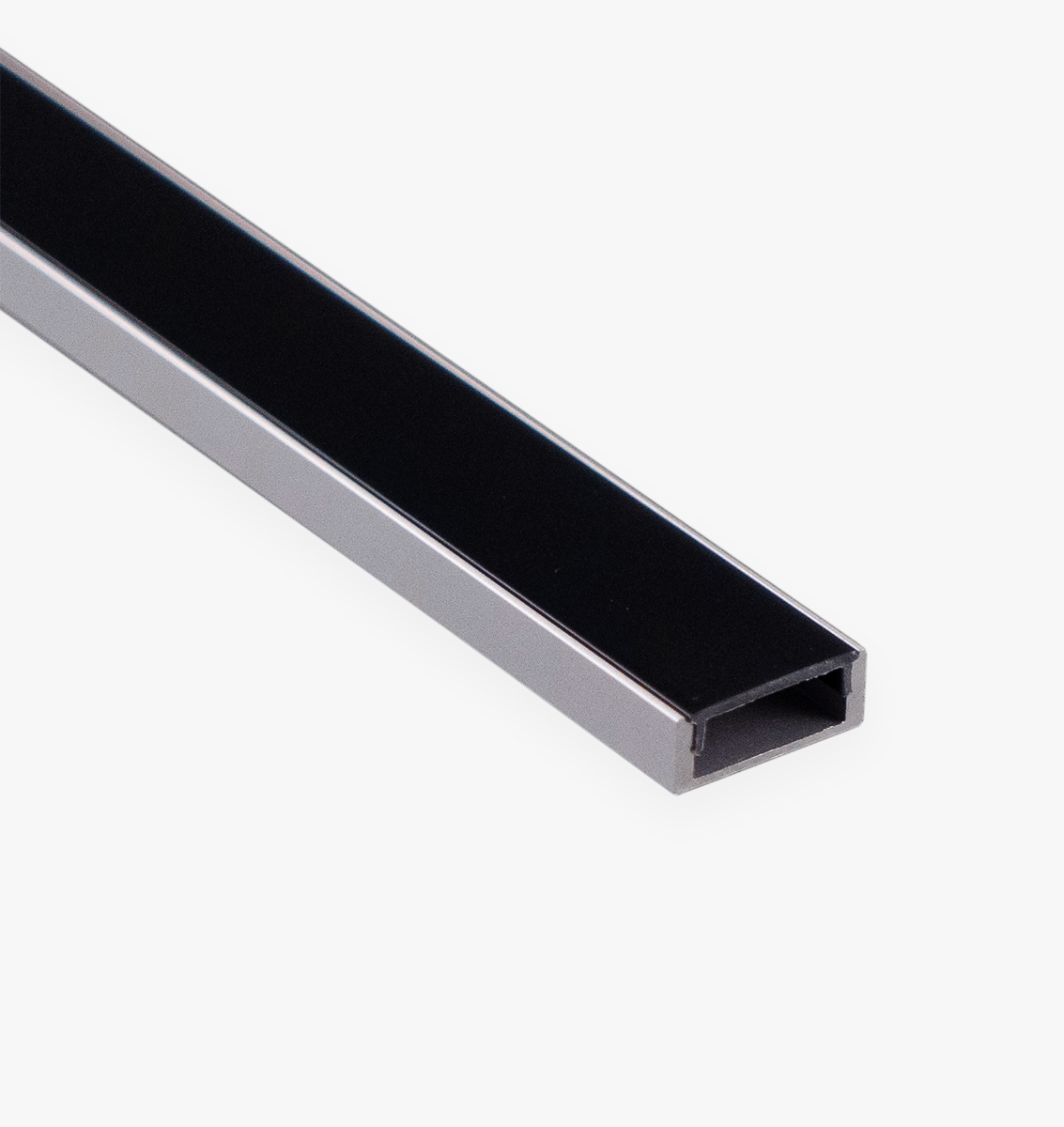

Lens: Smoke
