Superior™ 90 LED Strip Light - Tunable White
Superior™ 90 LED Strip Light - Tunable White
This product requires a power supply.
Calculate your power supply
Description
Discover the perfect blend of color accuracy, flexibility, and efficiency with our high CRI Tunable White Superior 90 LED Strip Lights. Designed to bring out the true colors of your space, these lights ensure vibrant and lifelike illumination that enhances every detail. With a tunable range of color temperatures from 2500K to 6000K, you have the power to create the perfect ambiance for any occasion. Whether you need warm, cozy lighting or bright daylight conditions, our LED strip lights adapt to your mood and preferences.
Thanks to their flexible design and wide 120-degree beam angle, these strip lights seamlessly fit into any space, providing uniform and even lighting wherever needed. Installation is a breeze with the strong adhesive backing, ensuring a secure setup that stays in place. Not only do our lights deliver bright illumination but they are also energy efficient helping you save on energy costs without sacrificing brightness. Plus, their incredibly long lifespan of up to 50,000 hours ensures lasting performance with minimal luminosity decay over time.
Key Features
Key Features
-
CRI 90
-
2500k-6000k
-

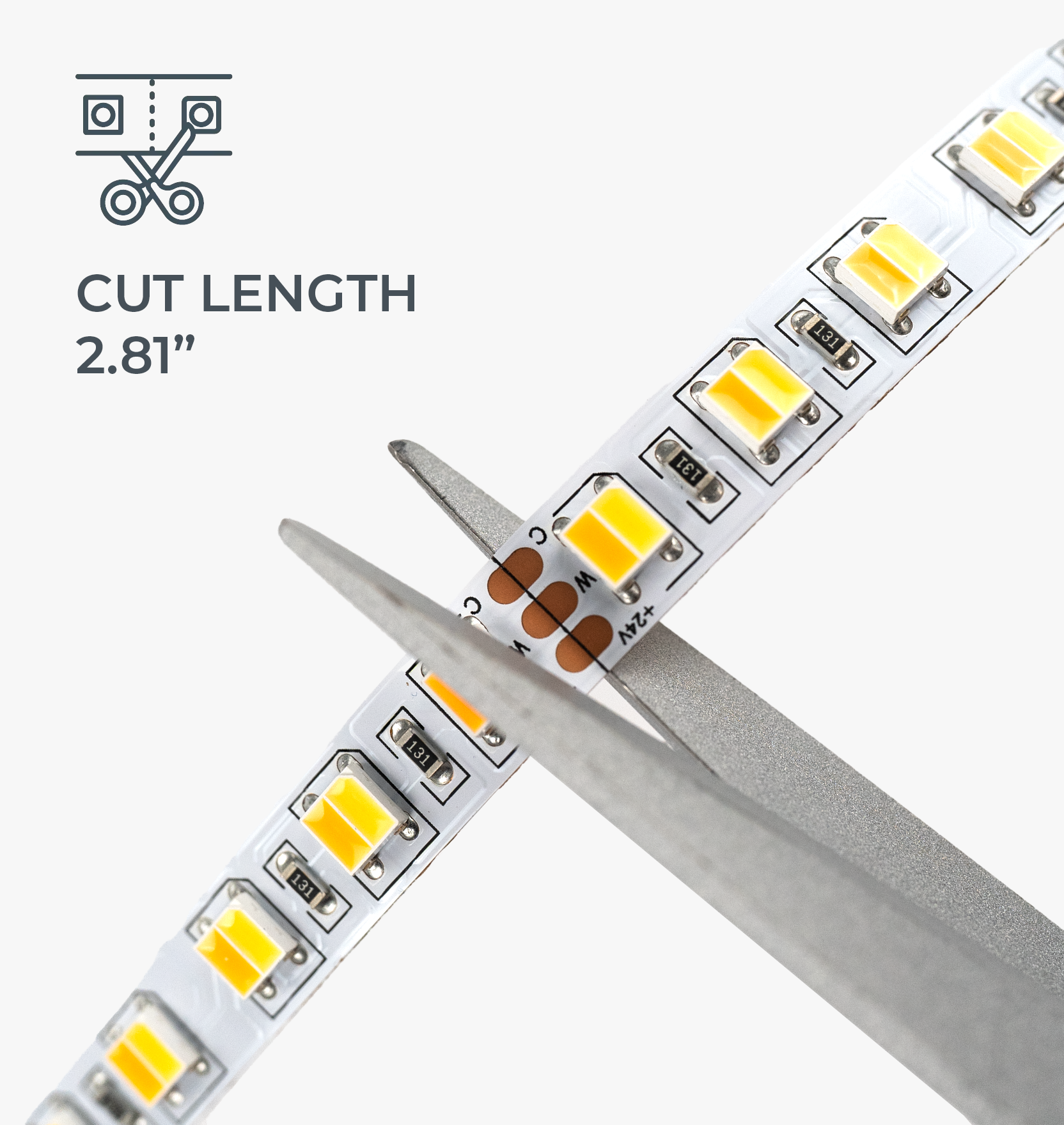

Cut Length: 2.81"
-
Lumens per foot: 422
Specifications
Specifications
| Part # | AL-SL-W90-24-CCT-IP20-60 |
| Physical | |
| Adhesive Backing | 3M Adhesive Tape (300LSE) |
| Beam Angle | 120° |
| Cut Length | 2-13/16" (71.5mm) |
| Dimensions | 1/16" Thick (2mm) |
| Distance Between LEDs | 1/4" (7mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape |
| Weight | 0.34 lb (0.15 kg) |
| Electrical | |
| Efficacy (lumens per watt) | 72 |
| Input Voltage | 24VDC |
| LED Quantity | 25 per foot (84 per meter) |
| LED Type | SMD 5050 LED Chip |
| Max Power Consumption | 6.1W per foot (20W per meter) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| CRI | 90+ |
| Max Lumens | Up to 422 Lumens/ft (Up to 1385 Lumens/m) |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Standards / Certifications | |
| Standards / Certifications | UL/cUL Listed RoHS CE |
| Warranty | 5 years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
How do I connect my strip lights to the power supply?
On the strip light, there are three wires: a brown wire, a yellow wire and a white wire. The brown wire is the V(+) wire and the yellow wire and white wire are the V(-) wires as indicated on the strip itself. Our Tunable White Superior 90 LED Strip Lights require a controller to change the temperature of white. Your power supply output will also have a V(+) and V(-) wire. Connect the corresponding wires together using standard wire nuts or splice/crimp connectors.
Why is CRI important?
CRI gauges how closely a light source mimics sunlight. Higher CRI values indicate better color accuracy, revealing true natural colors and hues. There are particular settings where color accuracy is important, such as art galleries, commercial retailers or even places like grocery stores where accurately displaying the true color of product is important for consumers. In some U.S. states regulations mandate the use of high CRI lighting for new installations to ensure quality and accuracy in color rendering.
