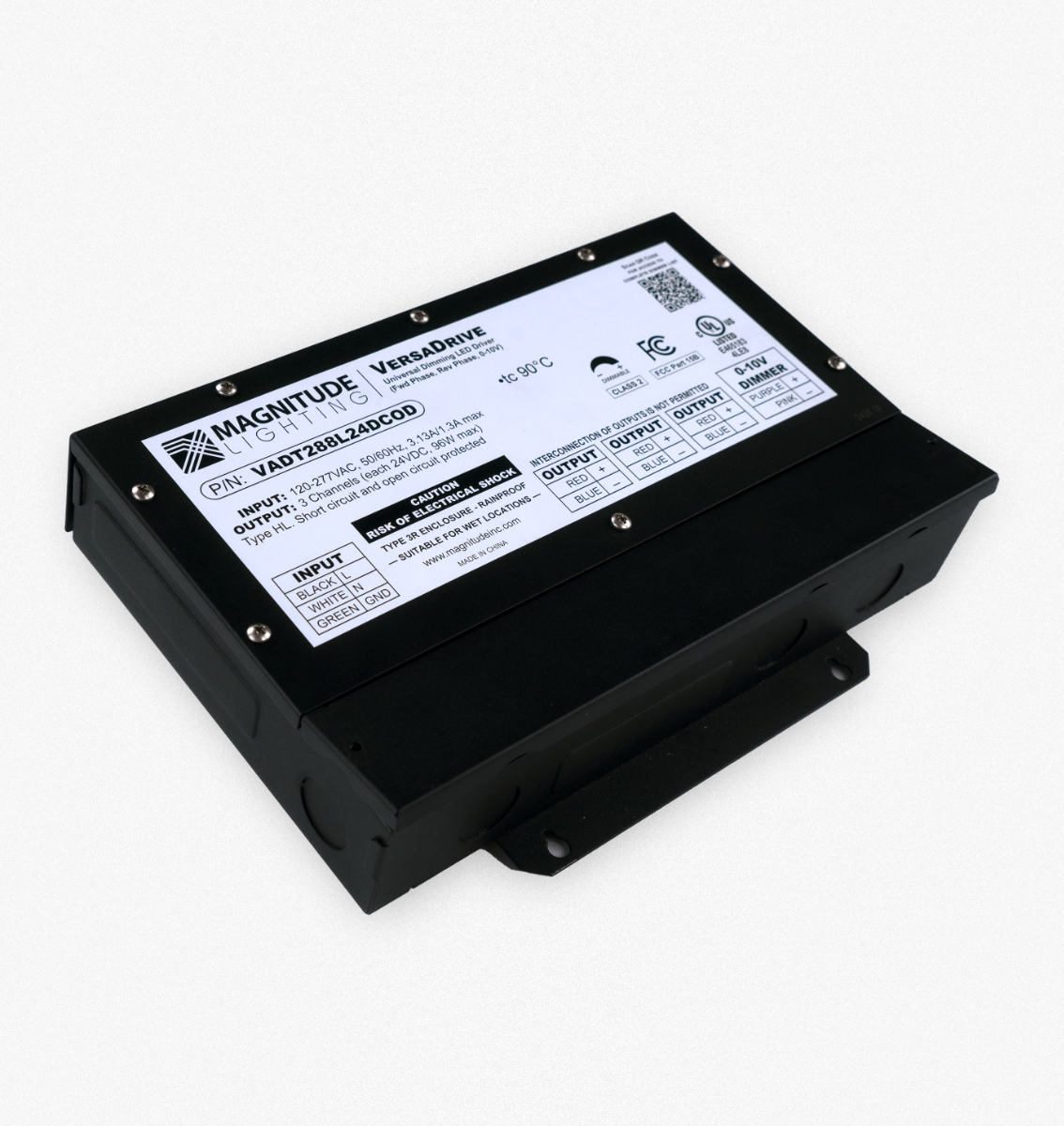

VersaDrive 288 Watt Power Supply - 5-in-1 Dimming – Class 2 Certified
VersaDrive 288 Watt Power Supply - 5-in-1 Dimming – Class 2 Certified
In-Stock (59) - Ships Same or Next Business Day
Description
The Magnitude VersaDrive 288 Watt 5-in-1 Dimmable Power Supply combines advanced functionality with user-friendly versatility, making it ideal for professional LED lighting systems. Its flicker-free dimming down to 1% ensures precise ambiance, while 5-in-1 compatibility—Forward Phase (MLV), Reverse Phase (ELV), 0-10V, 0-10 PWM, and Potentiometer—simplifies installation and adapts to diverse setups. This customer-friendly design reduces complexity without sacrificing performance. Compatible with COB and high-density LEDs, it is housed in a durable NEMA 3R-rated enclosure with corrosion-resistant screws for long-lasting outdoor performance.
Key Features
Key Features
-
5-way universal dimming
-
NEMA 3R Rated
-
Output Voltage: 24VDC
-
Class 2 rated, 3 channels
Specifications
Specifications
| Part # | AL-PS-MVD-288-24 |
| Physical | |
| Dimensions | 9.9" Long (252mm), 6.4" Wide (163mm), 1.9" Tall (48.3mm) |
| Housing Material | Steel |
| Mounting Method | Mounting Tabs |
| Weight | 7.95 lb (3.61 kg) |
| Electrical | |
| AC Current | 3.0A @ 120VAC |
| AC Voltage Range | 120-277VAC |
| DC Voltage | 24VDC |
| Efficiency | 91% |
| Frequency Range | 50/60Hz |
| Inrush Current | 90A @ 277VAC |
| Max Output Current | 4.1A per channel |
| Max Power Consumption | 288W |
| Minimum Load | 20W per channel |
| Environmental | |
| IP Rating | NEMA 3R (IP65) |
| Max Operating Temperature | -40°C to 50°C (-40°F to 125°F) |
| Max Storage Temperatures | -40°C to 85°C (-40°F to 185°F) |
| Suitable Uses | Dry, Damp, and Wet Locations |
| Control | |
| Dimmable | Yes |
| Standards / Certifications | |
| Standards / Certifications | UL/cUL Listed Title 24/JA8 Compliant RoHS Class 2 |
| Warranty | 5 years |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
How many power supplies do I need?
Many LED lighting systems are designed with one driver for each individual LED light in a 1:1 ratio. Strip light systems are wired differently due to the spread of lights over the length of the run. The number of power supplies needed will be based on the total wattage required to power the specific lights in your system.
Can I dim my lights with aspectLED power supplies?
Yes, you can! LED lighting systems can be dimmed on either the Alternating Current (AC) or Direct Current (DC) side of the system. The direction you choose depends on personal preferences, system goals, and design constraints.
AC-side Dimming: This is the most common approach for controlling brightness. It aligns with electrical systems found in most homes and commercial buildings, allowing control via standard wall switches. If this is your preferred method, ensure your system includes dimmable lights and dimmable power supplies.
DC-side Dimming: While less common, DC-side dimming is growing in popularity. It’s often controlled by handheld remotes or smartphone apps, providing more customization options. If designing a system with RGB color tuning, CCT color tuning, or addressable strip lights, you’ll need DC-side dimming. Additionally, DC-side systems are generally more energy-efficient.
How do I know which size I need?
Use this simple equation: Watts per fixture x Number of lights installed = Z, then Z x 1.25 = Minimum size of power supply required.
Example 1: 9 Watts x 4 Fixtures = 36 Watts. 36 x 1.25 = 45. The minimum power supply needed is 45 watts.
Example 2: 16.4’ of N-series Ultra-bright Strip (2.92 Watts per foot): 16.4 x 2.92 = 47.88. 47.88 x 1.25 = 59.86. The minimum power supply size needed is 60 watts.
