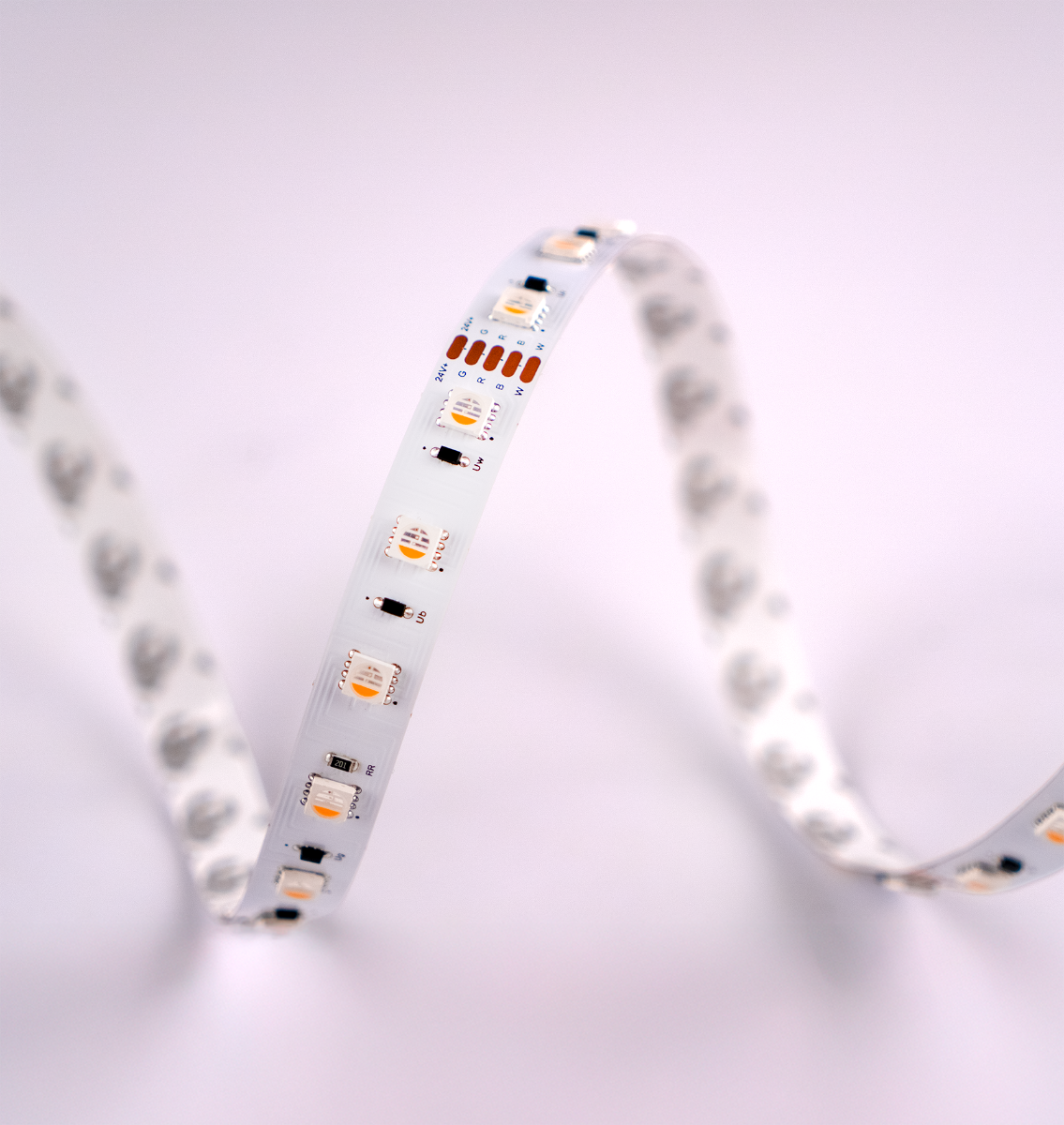

WideLine LED Strip Light – RGBW Color Changing

Description

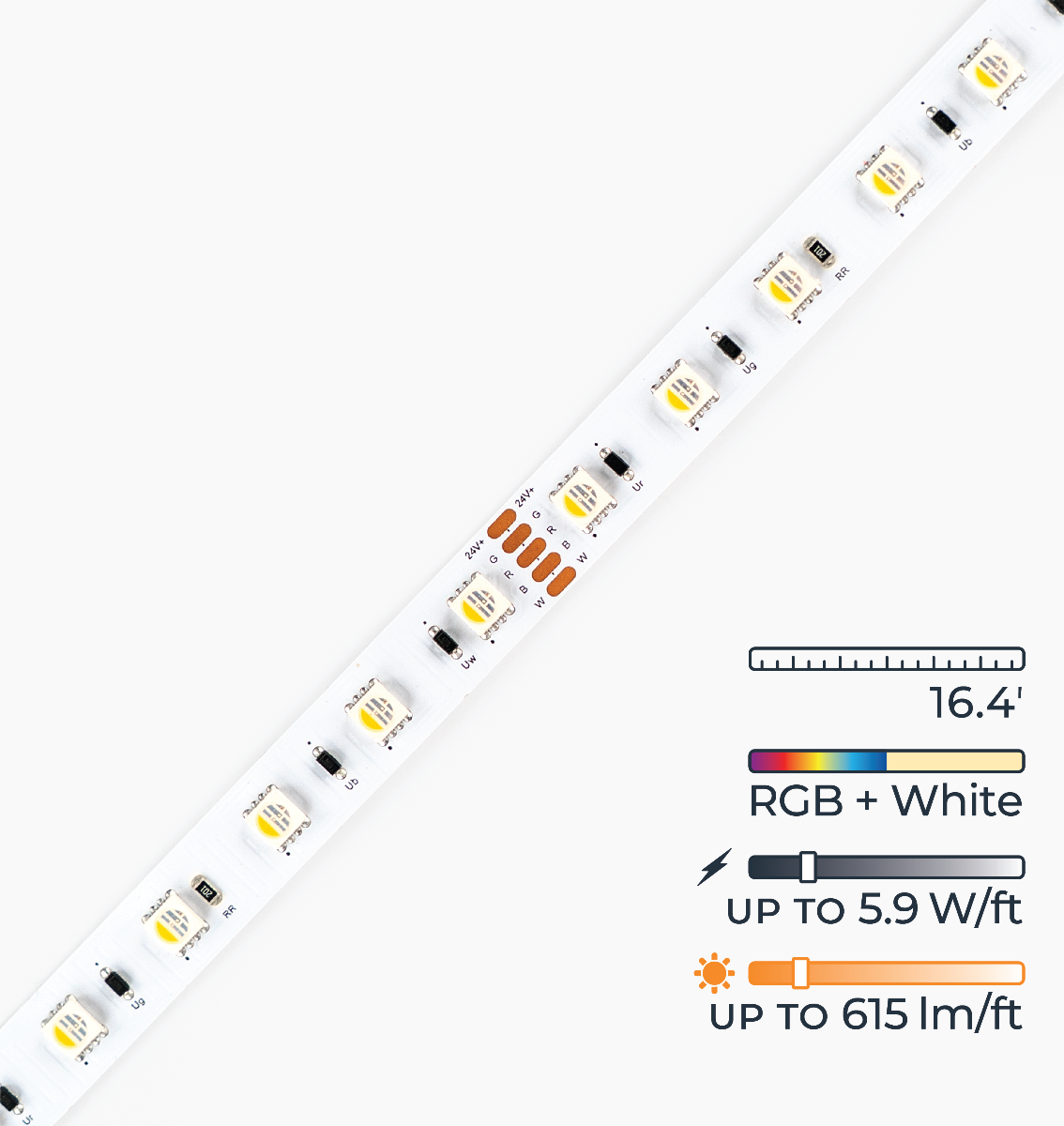

The WideLine LED Strip Light RGBW Color Changing combines vibrant RGB color with a dedicated white channel for both decorative and functional lighting. Create millions of colors while achieving clean, usable 90+ CRI white light for accent or task applications. Featuring SMD 5050 LEDs, this strip delivers consistent brightness up to 615.67 lumens per foot with smooth color blending. Fully compatible with non-dimmable power supplies, it allows you to easily adjust brightness to match any mood or task with use of a controller. A flexible design and wide 120° beam angle provide uniform, even illumination across a variety of applications. The strip works seamlessly with RGBW controllers for dimming, color control, and scene setting, and can be cut every 3.94" (100mm) for easy customization in cabinets, coves, and displays.

Key Features

NON-WATERPROOF
CRI 90
Cut Length: 4"
RGBW

Specifications

Physical
Adhesive Backing	Yes
Beam Angle	120.1

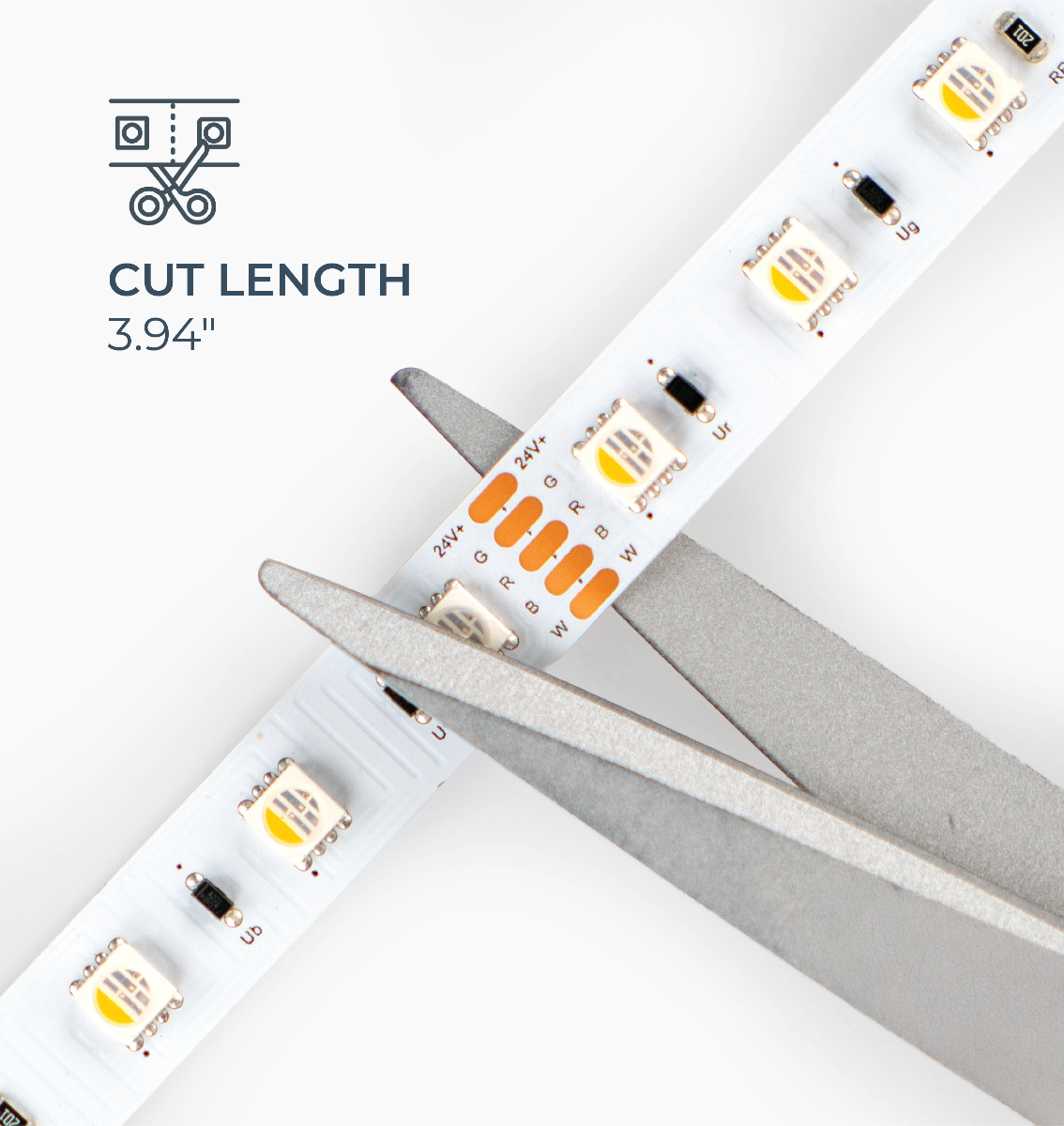

Cut Length	3.94" (100mm)
Dimensions	16.4' (5m) Long 0.472" (12mm) Wide 0.083" (2.1mm) Thick
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Electrical
Efficacy (lumens per watt)	Up to 105.21 Lumens/Watt
Efficiency	Up to 105.21 Lumens/Watt
Input Voltage	24VDC
LED Quantity	18 LED's/ft (60 LED's/m)
LED Type	SMD 5050
Max Power Consumption	5.90W/ft (19.2W/m)
Max Run Length	16.4' (5m)
Photometric
CRI	90

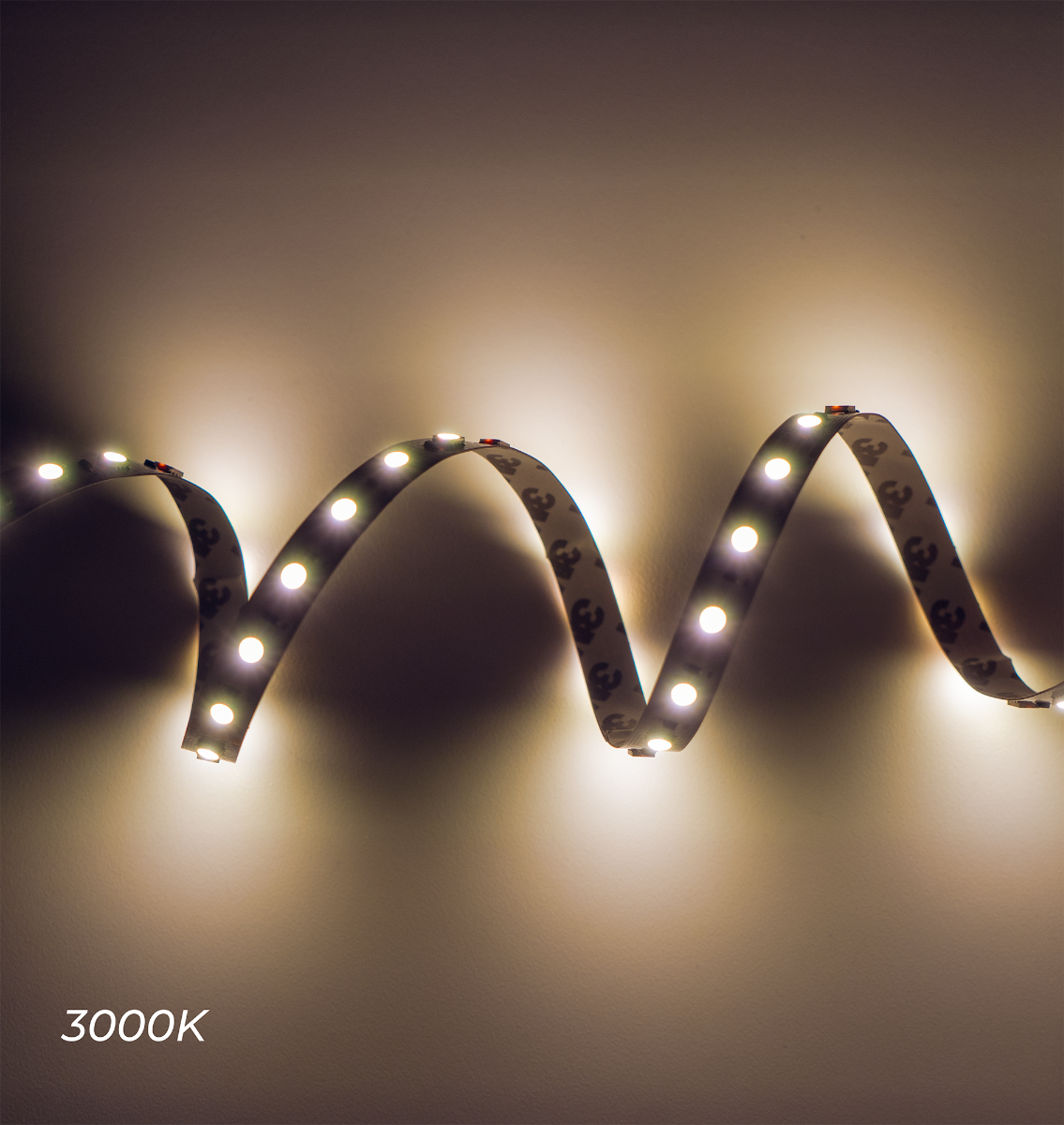

LED Color Options	RGB + 2700K RGB + 3000K RGB + 4000K RGB + 6000K
Max Lumens	Red: 140 lm/ft Green: 430 lm/ft Blue: 95 lm/ft White: 420 lm/ft
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes
Compatibility
Compatible Connectors	AL-SL-CN-WRGBW-JUMPER-1 AL-SL-CN-WRGBW-PIGTAIL-1 AL-SL-CN-WRGBW-SPLICE-1
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 Years

Features

Millions of Colors & True White: Create vibrant RGB colors plus a dedicated white channel for clean, functional illumination which is perfect for accent and decorative lighting.
Reliable LEDs: Industry standard LED strip light that delivers consistent brightness and excellent color mix ability.
Smooth Dimming & Color Control: Compatible with RGBW controllers and remotes for dynamic color changing, scene setting and dimming.
Flexible & Cuttable Design: Flexible strip format with designed cut points allows easy customization for cabinets, coves and display details.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Edge-lighting for glass
Under-cabinet, toe-kick, in-cove moldings
DIY projects
Safety stair tread and step marking Edge-lighting for glass
Decorative lighting for holidays, tradeshows, exhibitions

Technical Documents

View Installation Guide

Download Cut Sheet

Download Technical Drawing

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Save 14%

WideLine LED Strip Light – RGBW Color Changing

SKU: AL-SL-W4-IP20-24-RGB27

$81.51

$81.51 ~~$95.89~~

In-Stock (67) - Ships Same or Next Business Day

Color: RGB+2700K

This product requires a power supply.
Calculate your power supply
