9 LED Large In-Ground/In-Wall LED Light - RGB+White (36W)
9 LED Large In-Ground/In-Wall LED Light - RGB+White (36W)
Special Order - Contact our LED Experts for lead time
Description

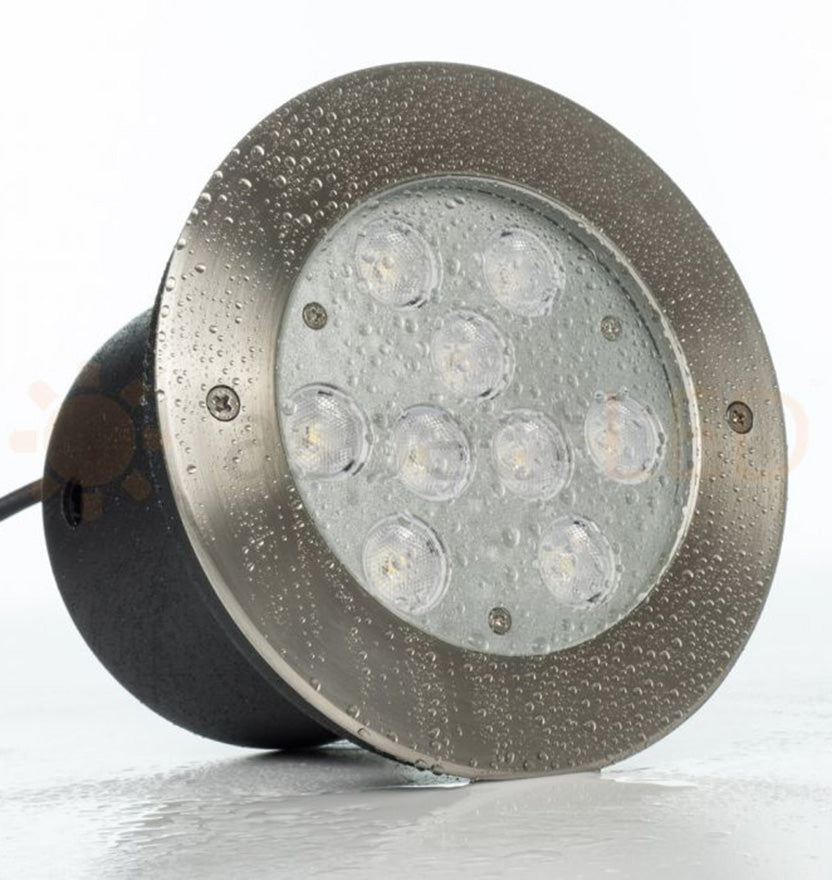

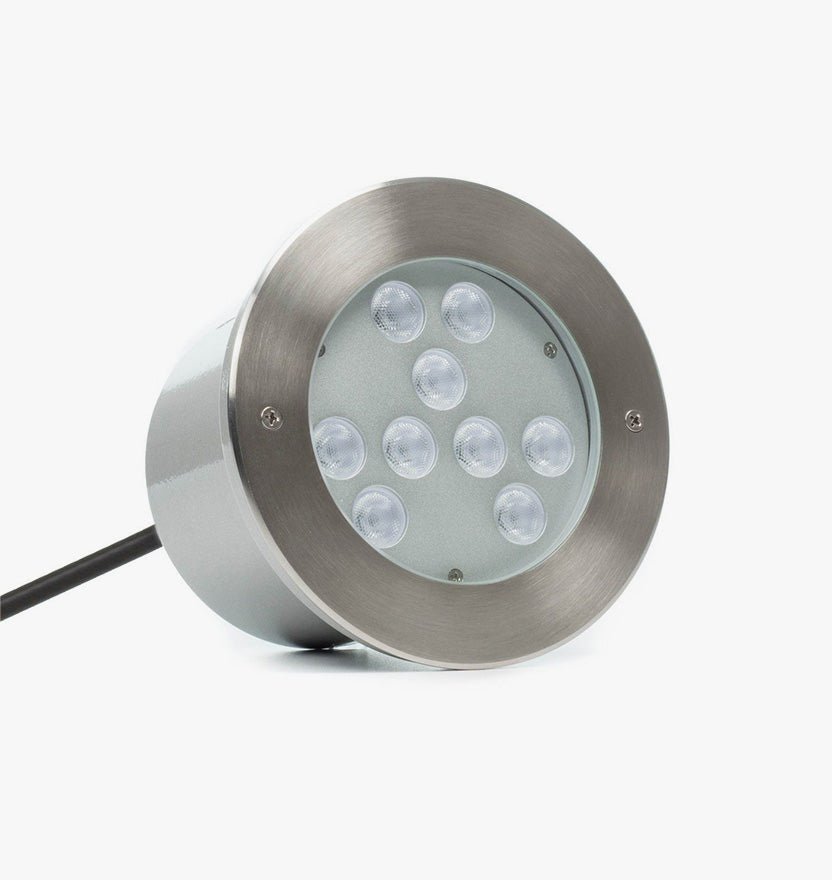

This 36W large 6.5" diameter x 3.3" deep well light with 9 RGBW high power LEDs can be mounted in-ground or in-wall. Also available in a single color or lower brightness versions. Perfect for patios, garden walls, decks, docks, gazebos, and many other locations. aspectLED's in-ground/in-wall recessed lights are bright, energy efficient, and attractively styled, making them perfect for virtually any application. Ideal for installation in stair safety/accent lighting, garden walls, building entrances, pathways, decks, gazebos, public parks, docks, and marine environments. These recessed in-ground/in-wall lights are waterproof (with an IP67 rating) and feature a #304 stainless steel trim and aluminum body. These lights come standard with a clear glass trim with stainless steel bezel.
Key Features
Key Features
-
Up to 2,200 Lumens
-
36 Watts
-
VOLTAGE 24VDC
-
IP67
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-IG-L-36-RGBW |
| Physical | |
| Beam Angle | 30 Degrees |
| Dimensions | 6.5" (165mm) Diameter 3.3" (83mm) Deep Back of Housing Diameter 4.5" (114mm) |
| Estimated Lifespan | 50,000 hours |
| Glass | Step-tempered 12mm thickness glass |
| Housing Material | Die-cast Aluminum |
| Lens | Optical, >85% efficient Contact us for availability on frosted lenses. |
| Mounting Sleeve | Included Die-Cast Aluminum |
| Trim Material | Polished 304 Stainless Steel Contact us for info on 316 Stainless, painted, or powder coated finishes. Clear Glass Lens |
| Waterproof Seal | Double silicon gasketed seal |
| Weight | 6.5 lbs |
| Weight Rating | Can withstand normal passenger vehicle traffic |
| Electrical | |
| LED Driver Input Voltage | 24VDC |
| LED Quantity | 9 - High Power RGBW LEDs |
| LED Type | RGBW SMD LED Chips |
| Max Power Consumption | 36 Watts |
| Photometric | |
| Max Lumens | Max Luminous Flux of LED Array: 2200 Lumens |
| Environmental | |
| IP Rating | IP67 |
| Max Operating Temperature | -4 to 113 Fahrenheit (-20 to +45 Celsius) |
| Suitable Uses | Dry, Damp, or Wet Locations |
| Control | |
| Dimmable | No |
| Compatibility | |
| Compatible Power Supplies | Non-Dimmable Power Supplies Never use with MLV power supplies! |
| Standards / Certifications | |
| Standards / Certifications | RoHS, CE |
| Warranty | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
For 24VDC lights, how do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply. It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
What gauge wire should I run to my in-ground/in-wall lights?
We generally recommend using between 14ga and 16ga stranded wire. Longer distances require larger gauge wire. Always consult a wire gauge chart to determine the correct size wire for your application.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
