Architect Series Strip Light - Dim to Warm
Architect Series Strip Light - Dim to Warm
In-Stock (45) - Ships Same or Next Business Day
This product requires a power supply.
Calculate your power supply
Description
The Architect LED Strip Light Dim to Warm delivers a premium lighting experience that blends high performance with natural, comfortable illumination. Designed for architectural applications, it features dim to warm technology that smoothly transitions from warm white to a soft, candlelight glow as it dims, mimicking the familiar feel of traditional incandescent lighting. With a 90+ CRI, this strip ensures accurate color rendering so wood finishes, paints, and textiles appear rich and true at any brightness level. Available in a 1800K–3000K dim to warm range, it delivers up to 362.8 lumens per foot at 3000K while dimming to a soft, ambient glow at lower levels, supporting a more natural circadian rhythm by shifting to warmer tones as light levels decrease.
This product is compatible with the InDrive 2-in-1 Dimmer Switch + Driver and the VersaDrive Power Supply.
Key Features
Key Features
-
1800K-3000K
-
CRI 90
-
Non Waterproof
-
Circadian Rhythm
Specifications
Specifications
| Part # | AL-SL-AR-IP20-24-D2W |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 120 |

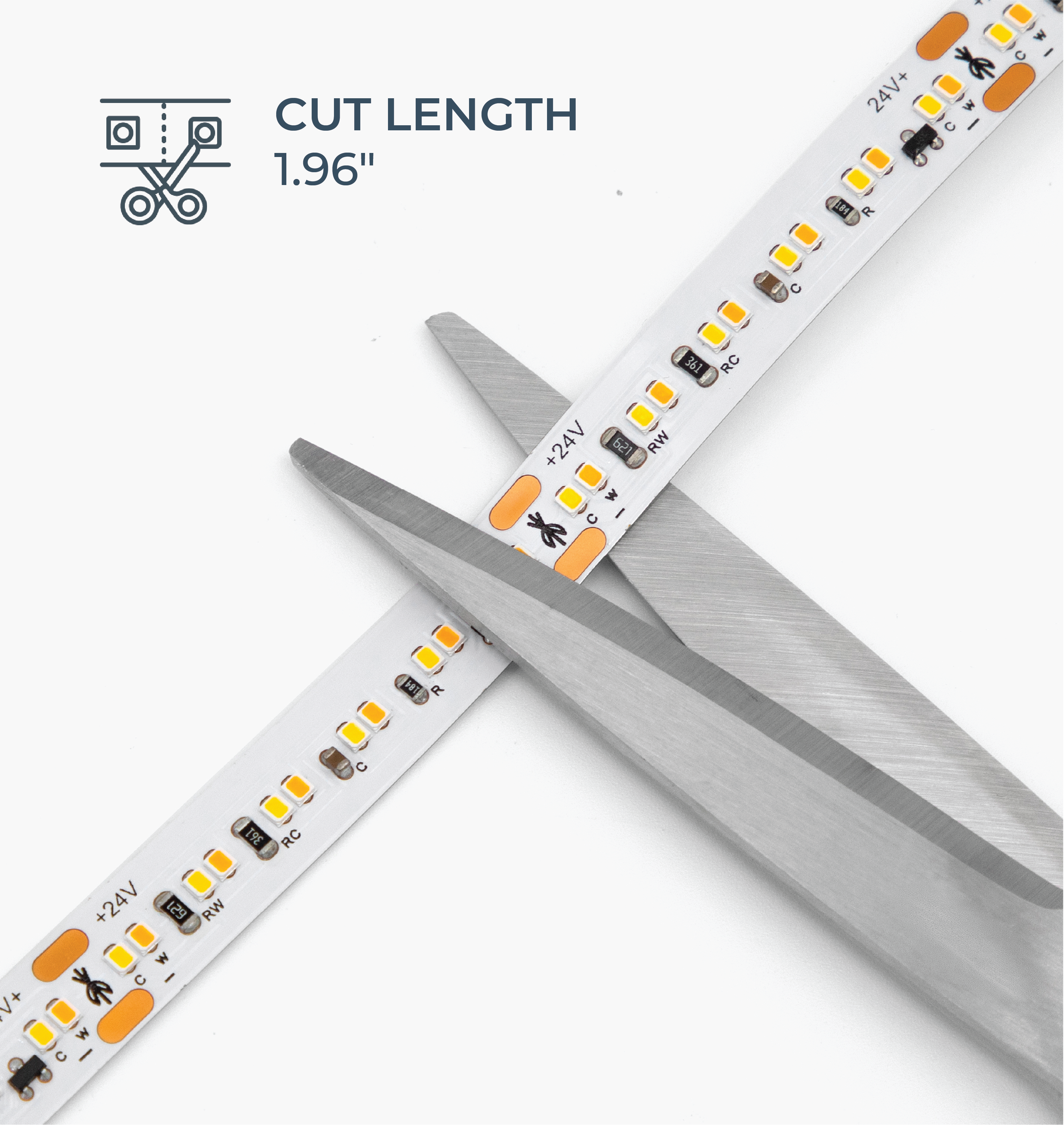

| Cut Length | 1.96" (50mm) |
| Dimensions | 16.4' (5m) 0.393" (10mm) 0.08" (2.1mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape |
| Weight | 0.4 lb |
| Electrical | |
| Efficacy (lumens per watt) | 1800K: 2 Lumens/Watt 3000k: 74 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 3 LED's/ft (240 LED's/m) |
| LED Type | 2022x |
| Max Power Consumption | 4.8W/ft (16W/m) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| CRI | 90 |

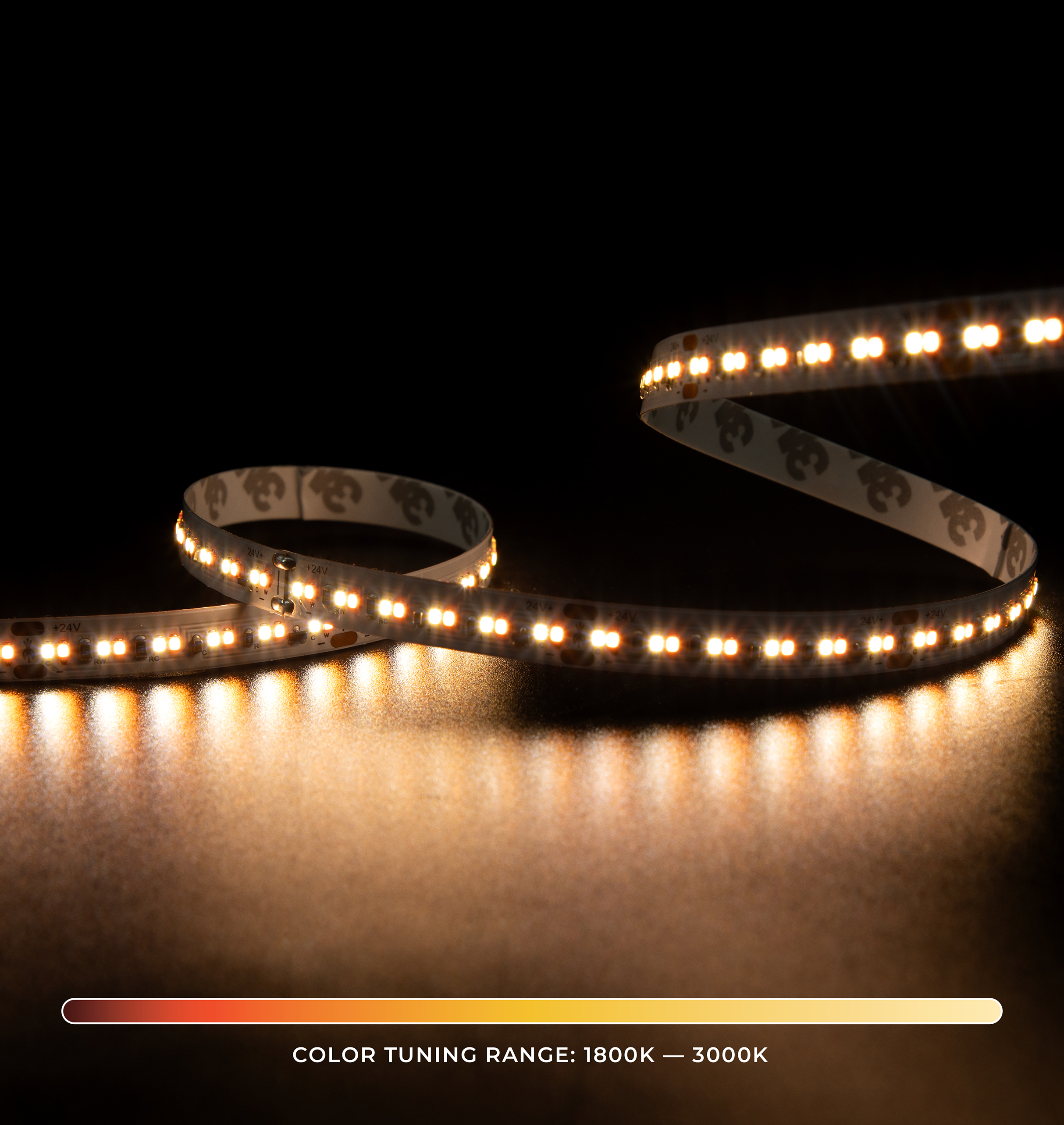

| LED Color Options | 1800K-3000K |
| Max Lumens | 1800K:Up to 12.19 Lumens/ft (40 Lumens/m) 3000K:Up to 362.8 Lumens/ft (1190 Lumens/m) |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176° F (-30 - 80° C) |
| Suitable Uses | Dry, Indoor |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Dimmable | Yes |
| Compatibility | |
| Compatible Connectors | AL-SL-CN-DLS-SPLICE AL-SL-CN-DLS-PIGTAIL AL-SL-CN-DLS-JUMPER AL-SL-CN-DLS-ANGLESPLICE |
| Standards / Certifications | |
| Standards / Certifications | CE, UL, RoHS, LM80 |
| Warranty | 5 years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What controller should be used with the Architect LED Strip Light in Dim to Warm? This product is only compatible with our InDrive 2-in-1 Dimmer Switch + Driver, 96W - Single Color. https://www.aspectled.com/products/indrive-dimmer-switch-96-single-color?variant=44766801002541
